Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00

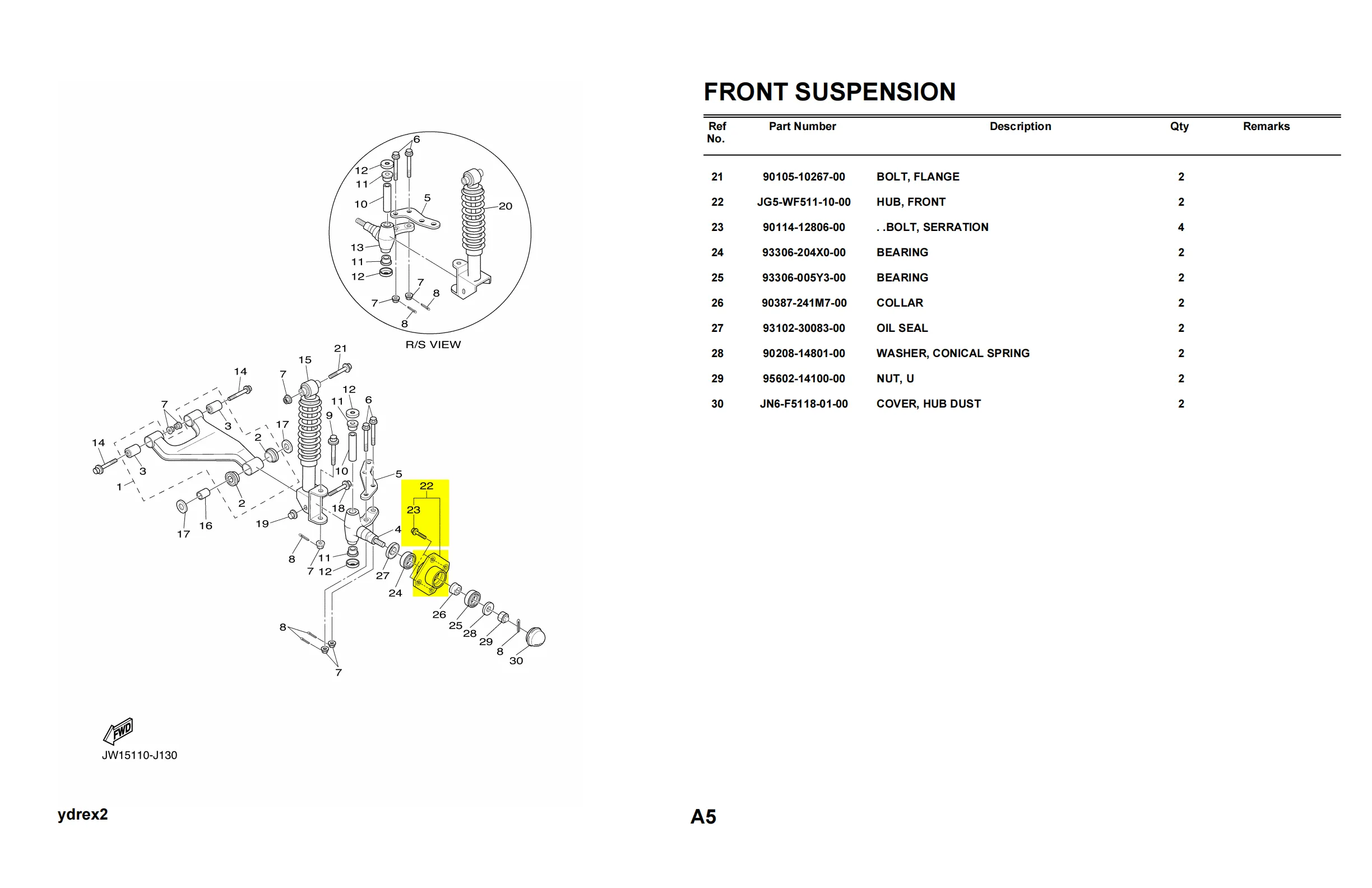

Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00 - Image 2

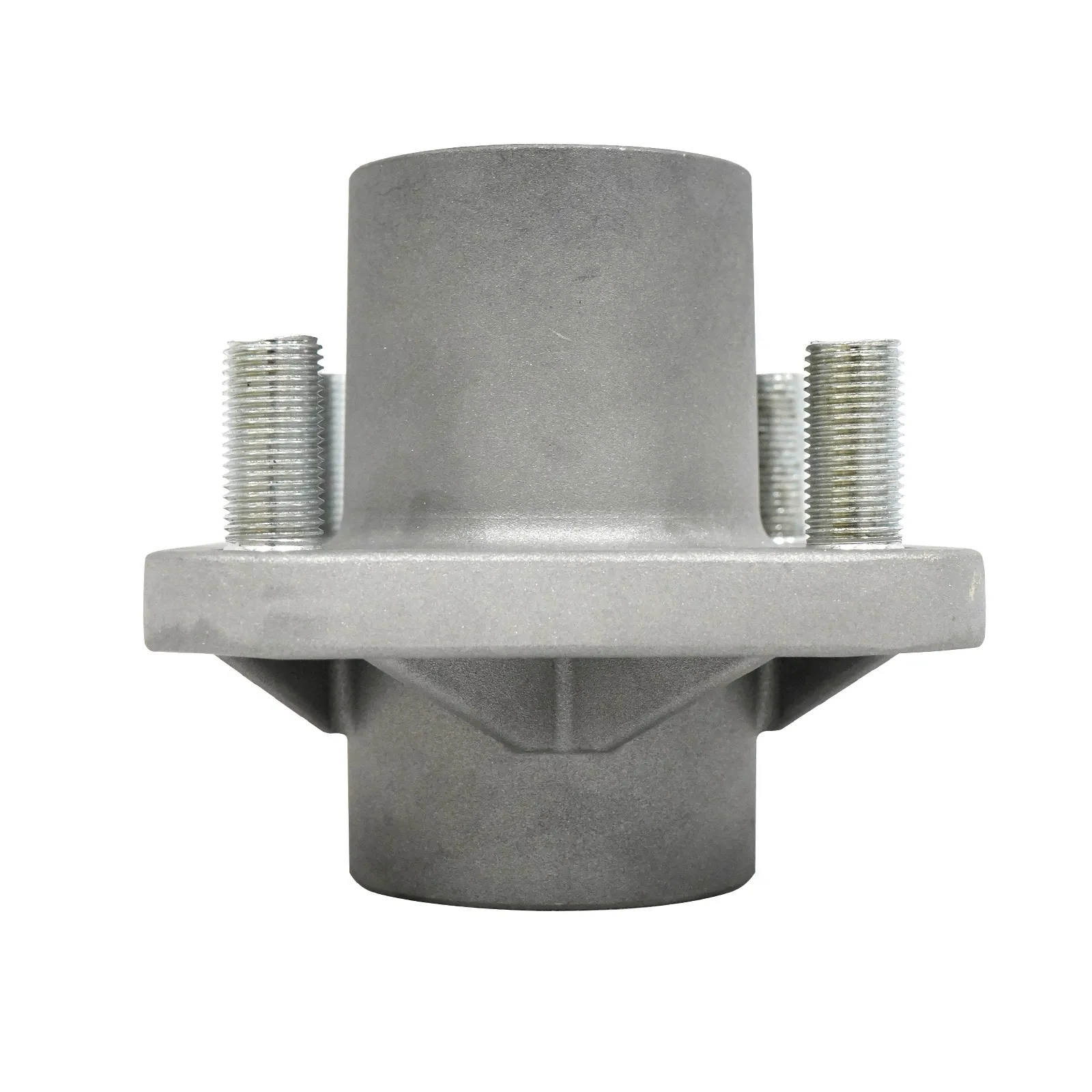

Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00 - Image 3

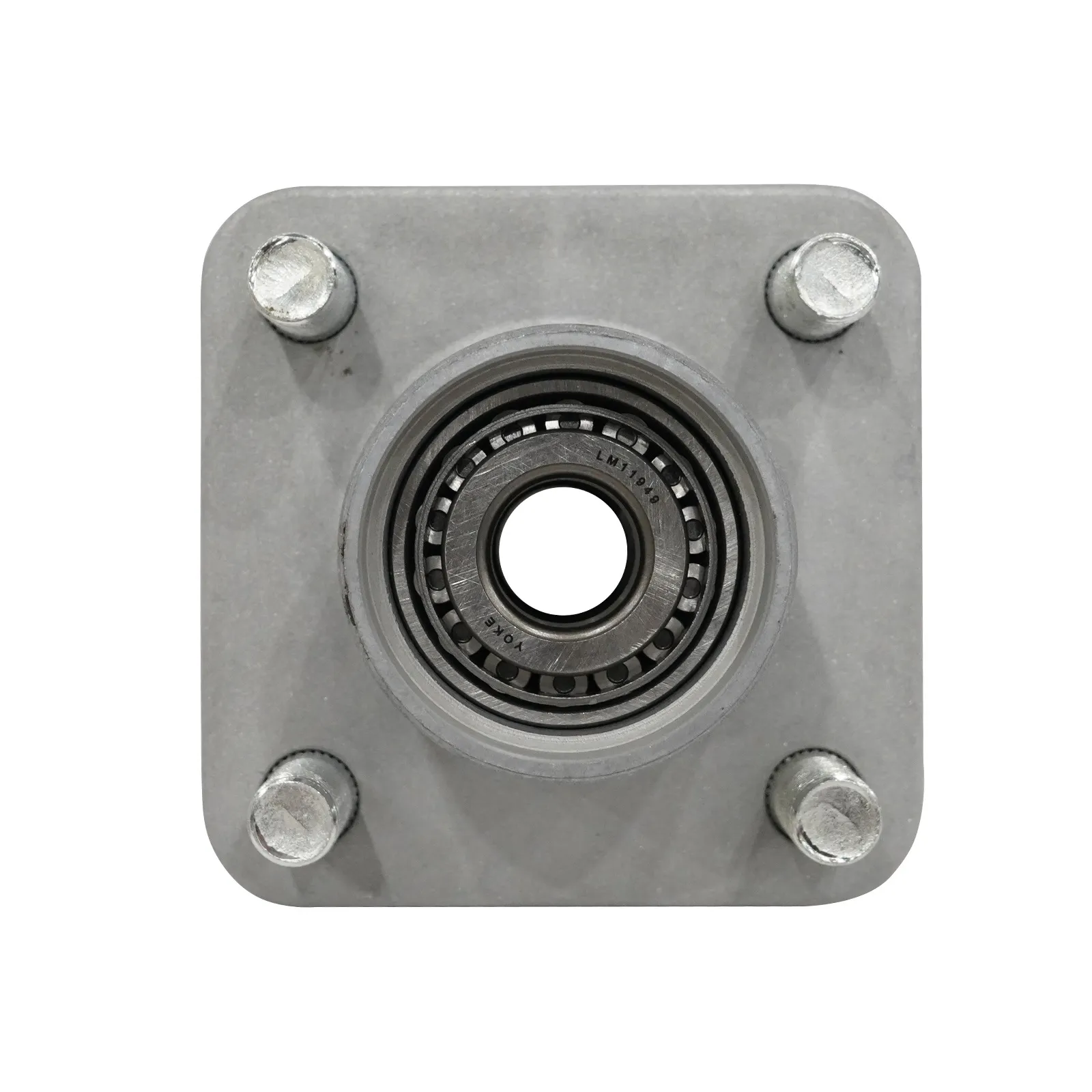

Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00 - Image 4

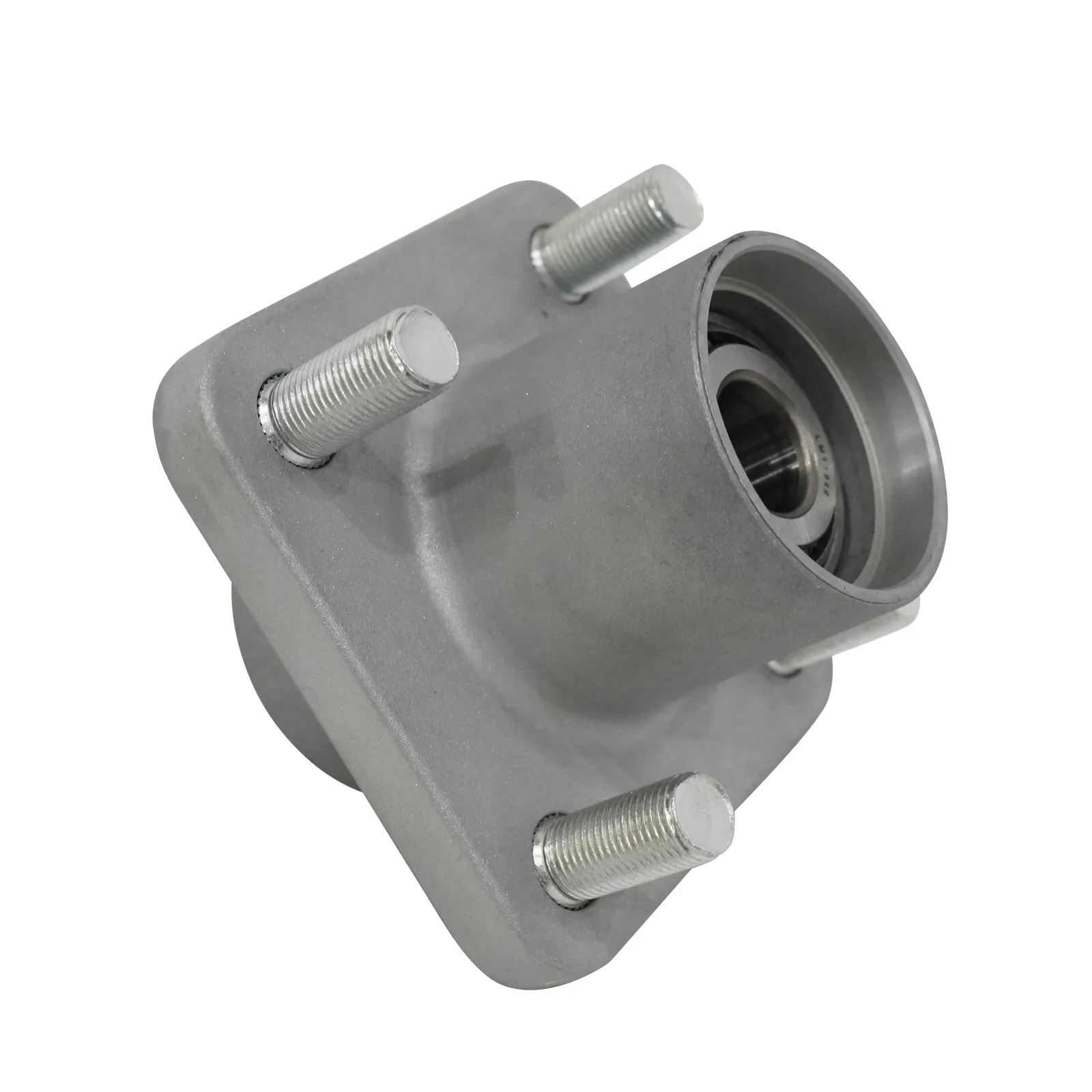

Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00 - Image 5

Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00

Be the first to leave a review.

Original price was: $59.00.Current price is: $49.00.

17% Off

Package: 1 piece/box, 4.69 x 4.49 x 4.21 inches;
Weight: 1.85 Pounds;

Categories: ,

Description

Yamaha Golf Cart Front Wheel Hub Assembly — G2/G8/G9/G14/G16/G19/G22/G29 Drive — OEM JG5-WF511-10-00

Compatibility

  • Yamaha G2, G8, G9, G14, G16, G19, G22, G29 models
  • Yamaha Drive models
  • Direct replacement for OEM: JG5-WF511-10-00, JG5-WF511-00

Specifications

  • OEM Reference: JG5-WF511-10-00 / JG5-WF511-00
  • Type: Front wheel hub assembly with bearings
  • Material: Cast aluminum hub with pressed-in bearings
  • Position: Front axle

Features

  • Pre-assembled with pressed-in bearings — ready to install
  • Cast aluminum construction for lightweight strength
  • Sealed bearings resist dirt and moisture intrusion
  • Fits a wide range of Yamaha models for broad compatibility
  • Direct OEM replacement for factory hub assembly

Installation

Jack up the front of the cart. Remove the front wheel. Remove the cotter pin and axle nut. Slide the old hub off the spindle. Clean the spindle surface. Install the new hub assembly, replace the axle nut and cotter pin. Reinstall the wheel. Installation time: approximately 20-30 minutes per side.

What’s in the Box

  • 1 x Front Wheel Hub Assembly (with bearings)

Warranty

Backed by our 1-2 year quality warranty. Free replacement for any manufacturing defects during the warranty period.

Brand

SKYWARD

Brand for Golf Cart Parts

Reviews

There are no reviews yet.

Be the first to review “Yamaha G2/G8/G9/G14/G16/G19/G22/G29 Drive Golf Cart, Front Wheel Hub Assembly Replace OEM JG5-WF511-10-00, JG5-WF511-00”
