EZGO TXT Medalist Starter Generator Belt OEM 26414G01, 630587

Description

Starter/Generator Belt for EZGO TXT, RXV, Valor and Medalist Gas — Replaces OEM 26414G01, 630587

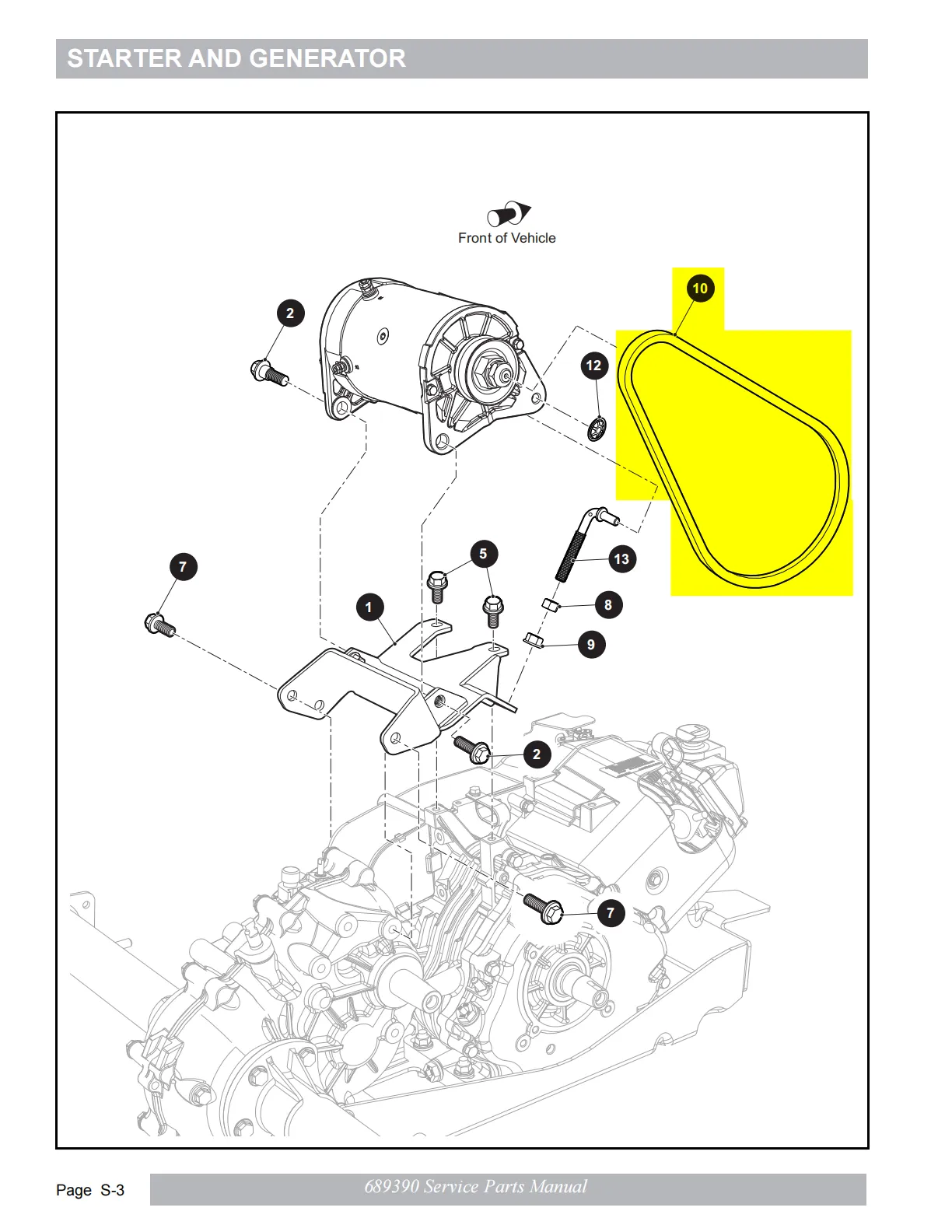

This aftermarket replacement belt links the engine crankshaft pulley to the starter/generator on gas EZGO golf carts. The same belt cranks the engine when you start and turns the generator to charge the battery. A squealing noise, slipping on start-up, cracks or a glazed surface, or a battery that will not stay charged are signs it needs replacing.

Will it fit my cart?

• EZGO TXT gas: 2003–2006 (OEM 26414G01) and 2019-up EFI models (OEM 630587)
• EZGO RXV gas (2009-up) and Valor gas EFI (2019-up)
• EZGO ST 350 gas (2002)
• EZGO Medalist gas (compare the part number on your old belt)
• Not for electric carts
• Not sure? Compare the part number on your old belt, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 26414G01 / 630587 (both listed as "STARTER / GENERATOR BELT")
• System: gas engine starter/generator drive
• Quantity per cart: 1
• Package: 2 pieces, 10.12 x 8.07 x 0.94 inches; 0.3 kg (0.66 lb)

Installation — difficulty: moderate (about 20–30 minutes)

1. Remove the key and disconnect the battery negative cable.
2. Raise the seat or body to reach the engine, then loosen the starter/generator mounting and adjusting bolts.
3. Remove the old belt and fit the new one around the crankshaft pulley and the starter/generator pulley.
4. Move the starter/generator to tension the belt (about 1/4 inch deflection at mid-span), then tighten the bolts.
5. Reconnect the battery and start the engine to check that the belt runs straight and quietly.

What’s in the Box

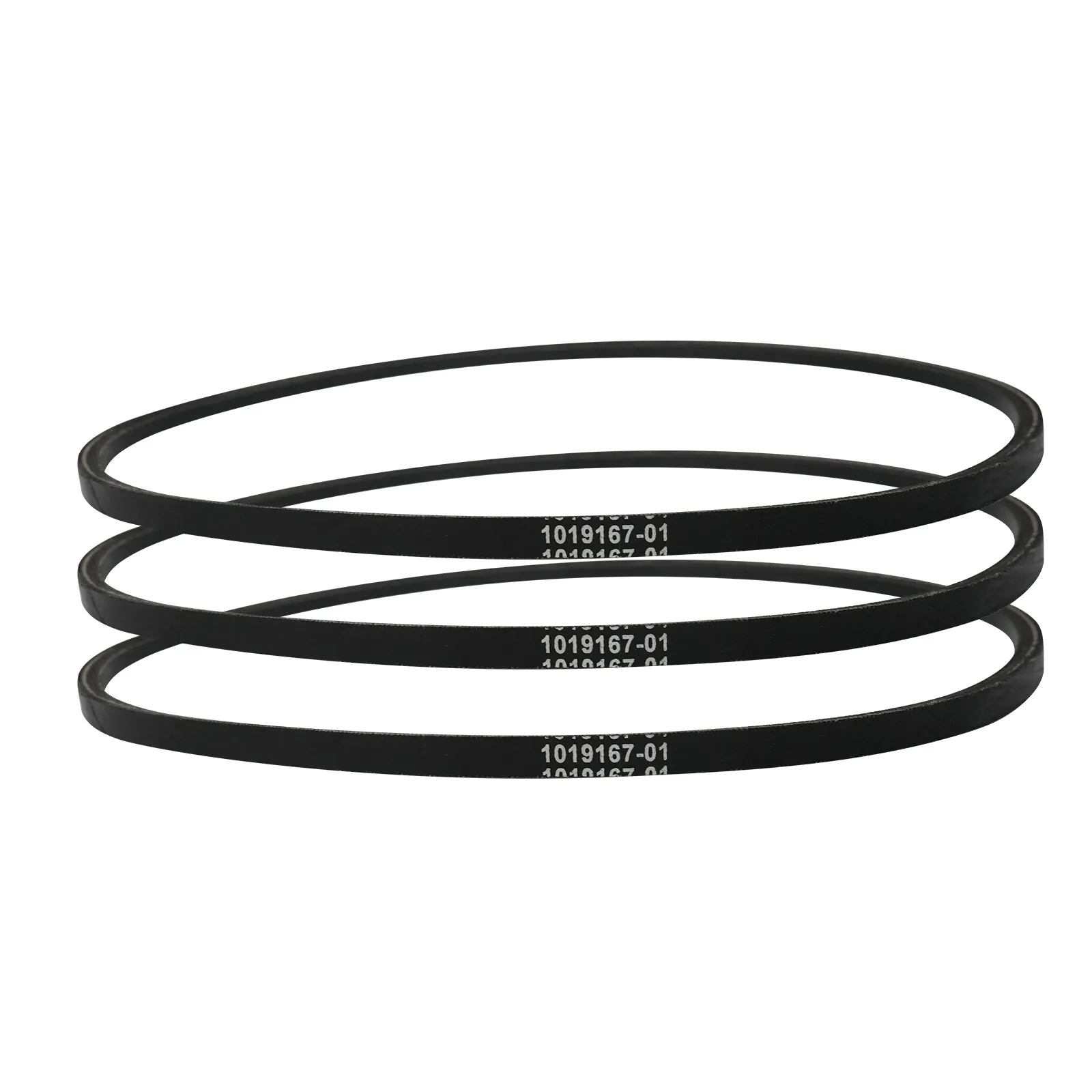

• 2 x starter/generator belts

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
