EZGO TXT 2003-up PDS Golf Cart Forward Reverse Switch Assembly for FWD REV Rocker Button, Replace OEM# 74323G01 74323-G01

Description

Forward/Reverse Rocker Switch for EZGO TXT PDS Electric — Replaces OEM 74323G01

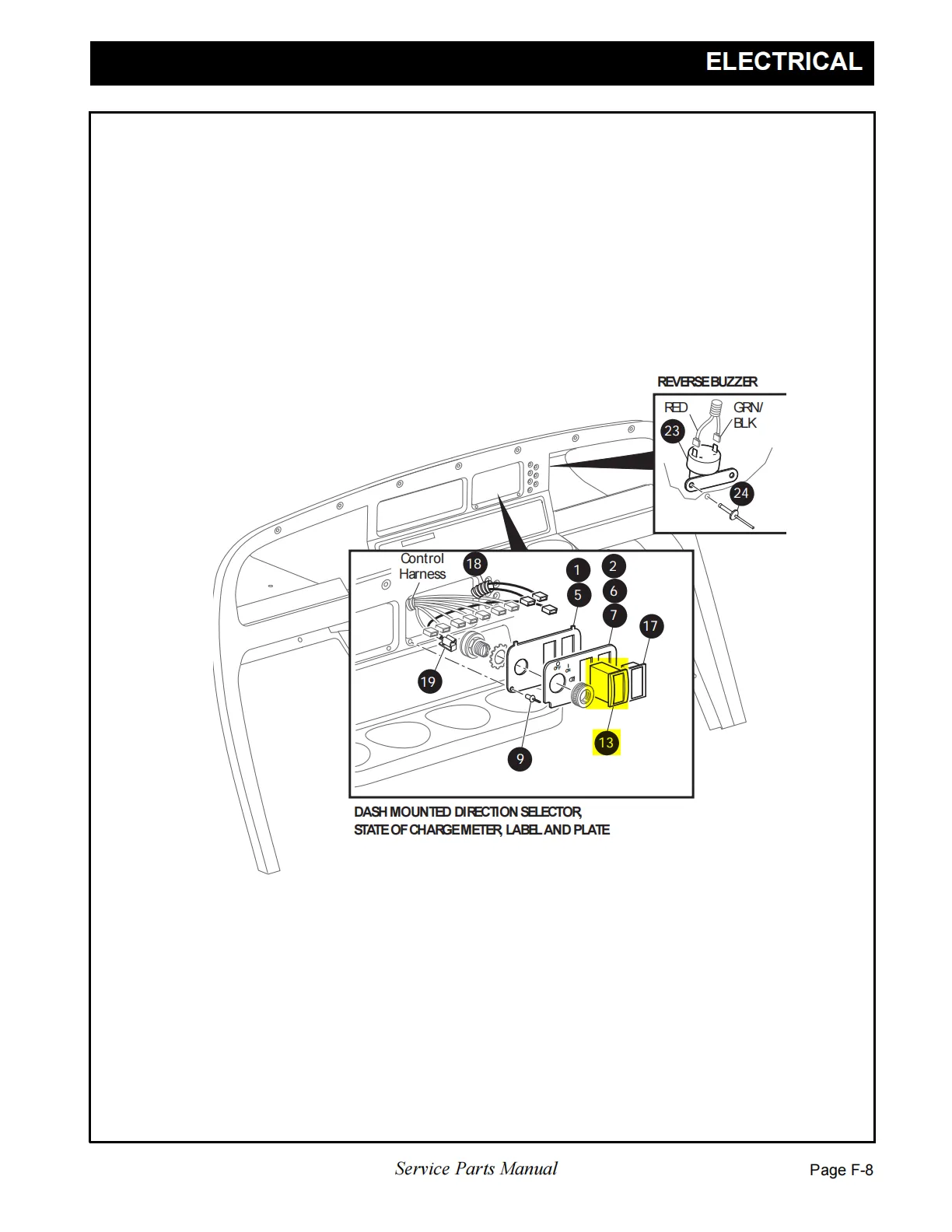

This is an aftermarket replacement forward/reverse rocker switch for EZGO TXT electric carts with PDS (Precision Drive System). The EZGO TXT electric parts manual lists OEM 74323G01 (also written 74323-G01) as "DIRECTION SELECTOR SWITCH (DASH MOUNTED)", one per cart. If the cart won’t select forward or reverse, only works when you press the switch hard, or the switch is cracked or loose in the dash, it is time to replace it.

Will it fit my cart?

• EZGO TXT PDS electric with a dash-mounted forward/reverse rocker switch (confirmed in the 2010–2013 TXT electric parts manual)
• Earlier TXT PDS carts: compare your old switch with ours, or send us a photo before ordering
• Not for gas carts, TXT carts with a lever-type forward/reverse switch, Club Car or Yamaha carts
• Not sure? Compare the part number on your old switch, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 74323G01
• Position: dash mounted
• System: EZGO TXT PDS electric
• Package: 1 piece, 2.32 x 2.32 x 1.54 inches, 2.4 oz (68 g)

Installation — difficulty: easy (about 20 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Remove the dash panel screws as needed to reach the back of the switch, and photograph the wiring.
3. Disconnect the wires and press the old switch out of the dash.
4. Snap the new switch into the dash and reconnect the wires exactly as in your photo.
5. Refit the dash panel, reconnect the battery, set the switch to RUN and test forward and reverse slowly.

What’s in the Box

• 1 x forward/reverse rocker switch

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
