EZGO TXT Golf Cart Speed Sensor Harness 48 Volt Kit High Speed Sensor 620422 and Magnet 73328G01

Description

48V Speed Sensor Harness & Magnet Kit for EZGO TXT Electric — Replaces OEM 620422, 73328G01

This aftermarket replacement kit includes the speed sensor harness (OEM 620422) and the speed sensor magnet (OEM 73328G01) used on EZGO TXT 48V electric carts. The magnet turns with the motor and the sensor reads it, so the speed controller knows how fast the motor is spinning. A failed sensor or a loose magnet can leave the cart running very slowly, surging, cutting out, or showing a speed-sensor fault.

Will it fit my cart?

• EZGO TXT electric 48V, including ELiTE models (2010-up)
• EZGO Valor electric (2020)
• Not for gas TXT, 72V TXT models, Club Car or Yamaha carts
• Not sure? Compare the part number on your old sensor, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 620422 (speed sensor harness; listed as "SPEED SENSOR, 48V" in the 2020 Valor manual), 73328G01 (speed sensor magnet)
• Position: drive motor
• Voltage: 48V
• System: EZGO TXT 48V electric drive
• Package: 1 set, 3.9 x 2.05 x 1.77 inches, 2.08 oz (0.06 kg)

Installation — difficulty: moderate (about 30–45 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.

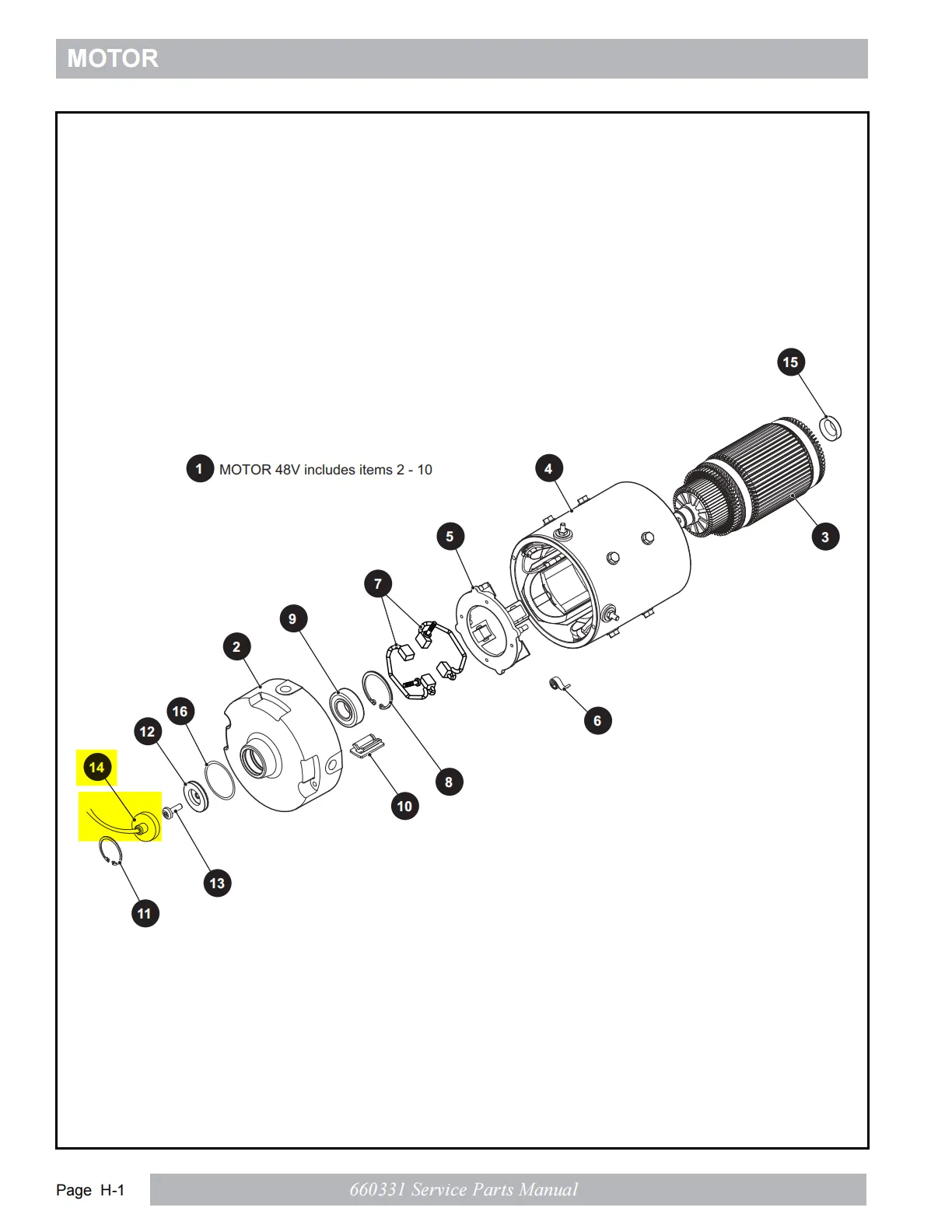

2. Find the speed sensor at the motor and follow its harness to the connector; take photos of the routing.
3. Unplug the harness, then remove the old sensor and magnet, noting how they are fitted.
4. Fit the new magnet and sensor in the same positions, route the harness the same way and plug it in.
5. Reconnect the battery, set the switch to RUN and test drive slowly.

What’s in the Box

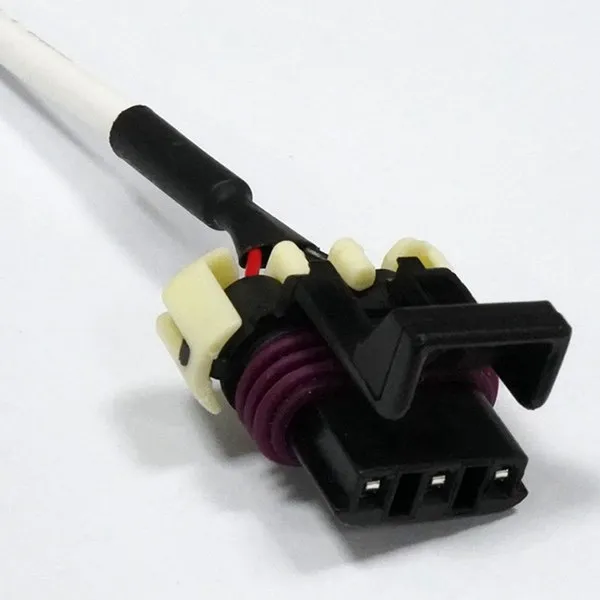

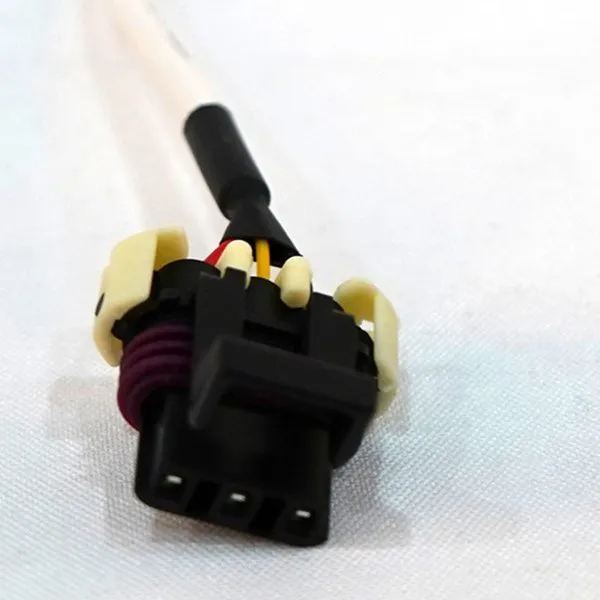

• 1 x speed sensor harness (620422)

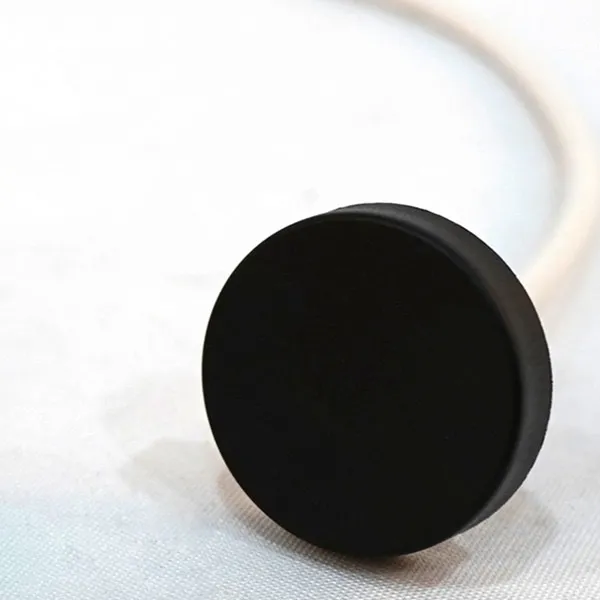

• 1 x speed sensor magnet (73328G01)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
