Club Car DS Golf Cart Speed Sensor Magnet IQ Sensor Replace OEM 102265601

Description

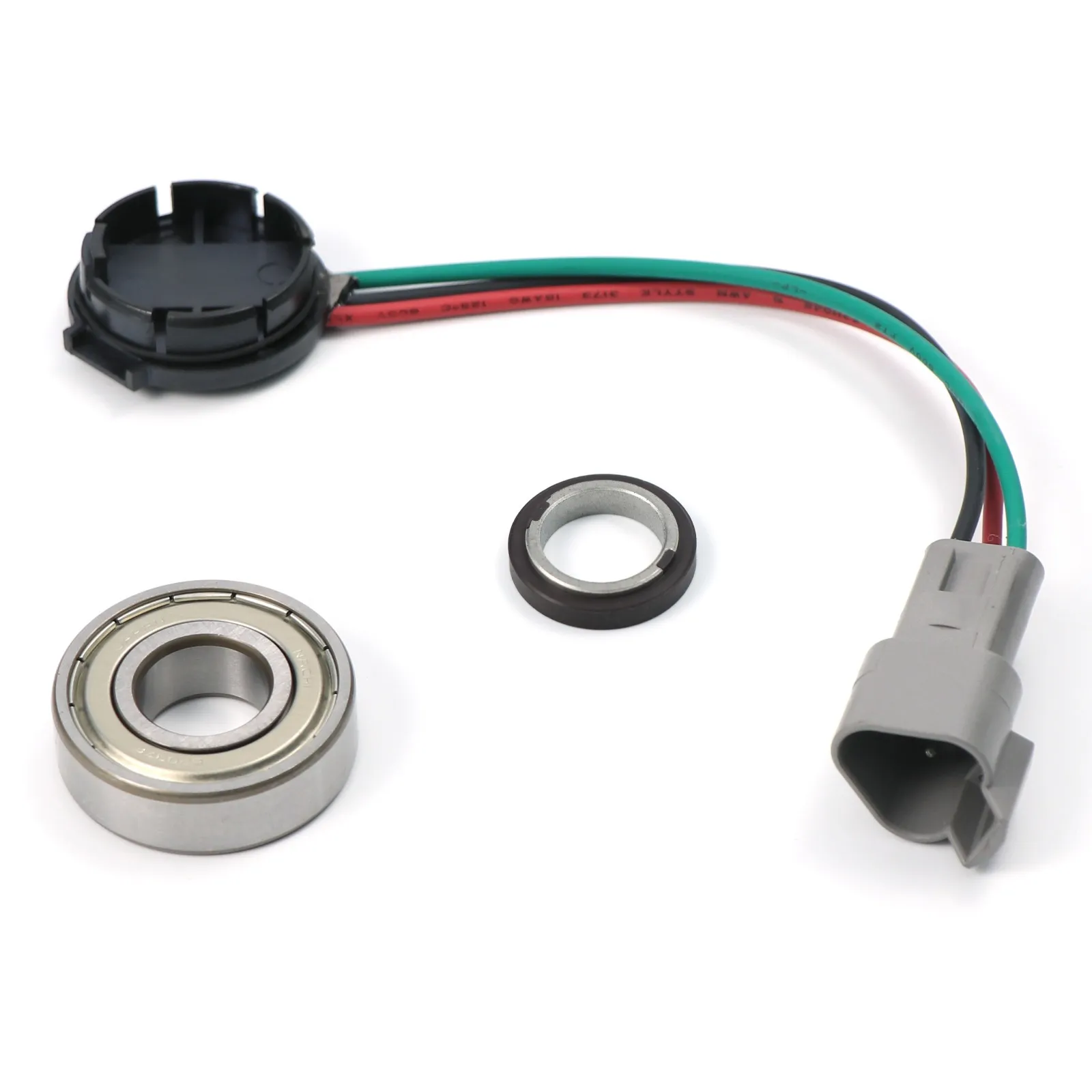

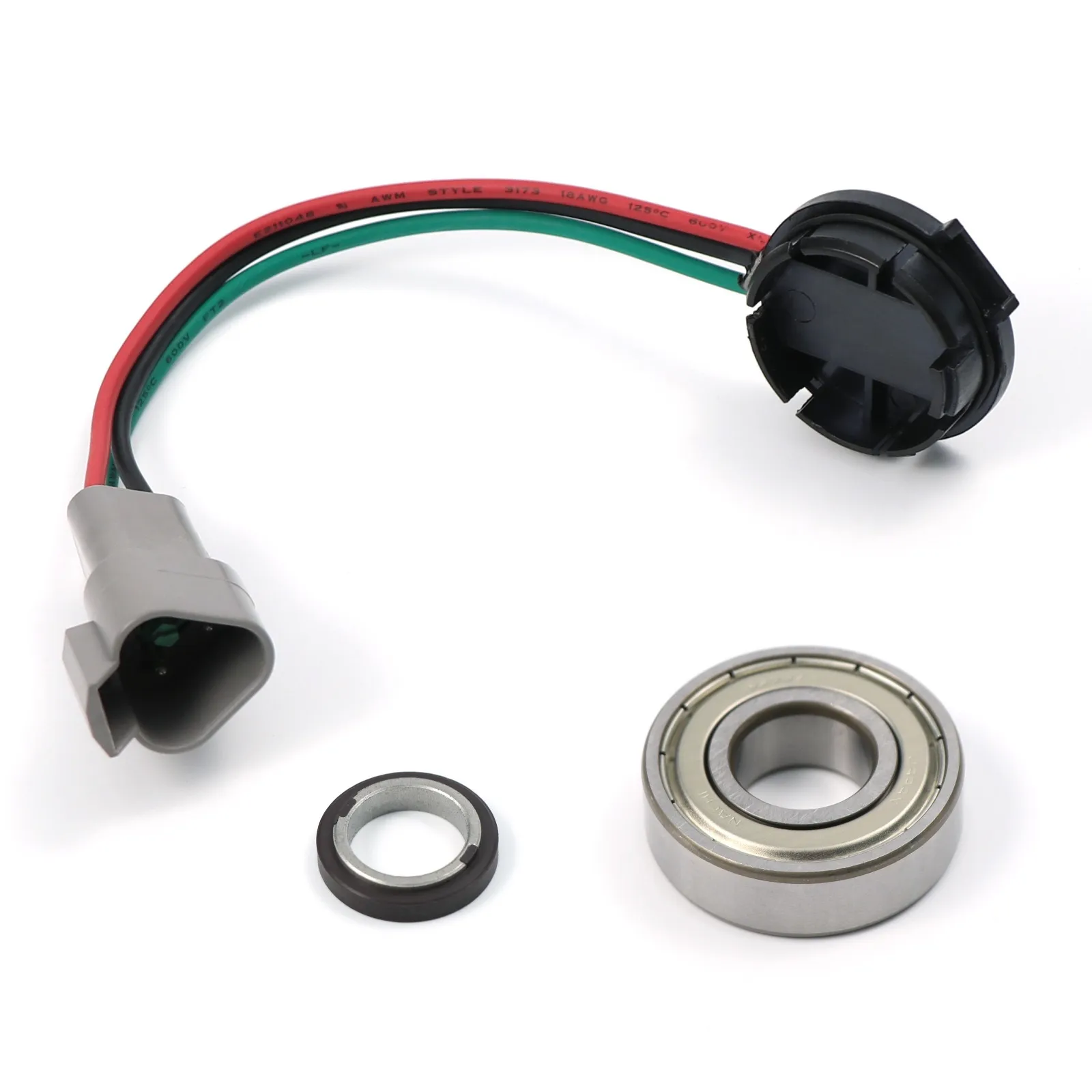

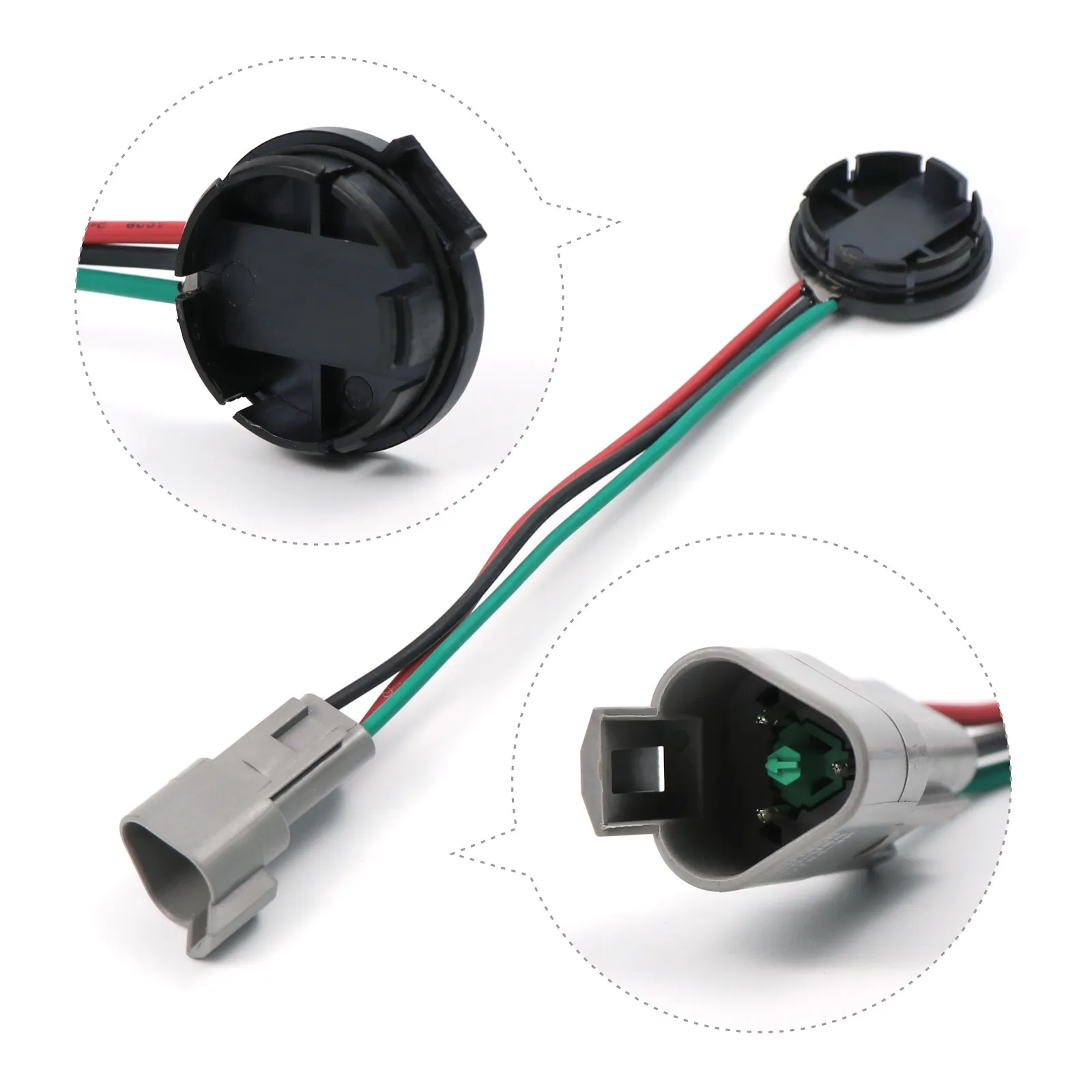

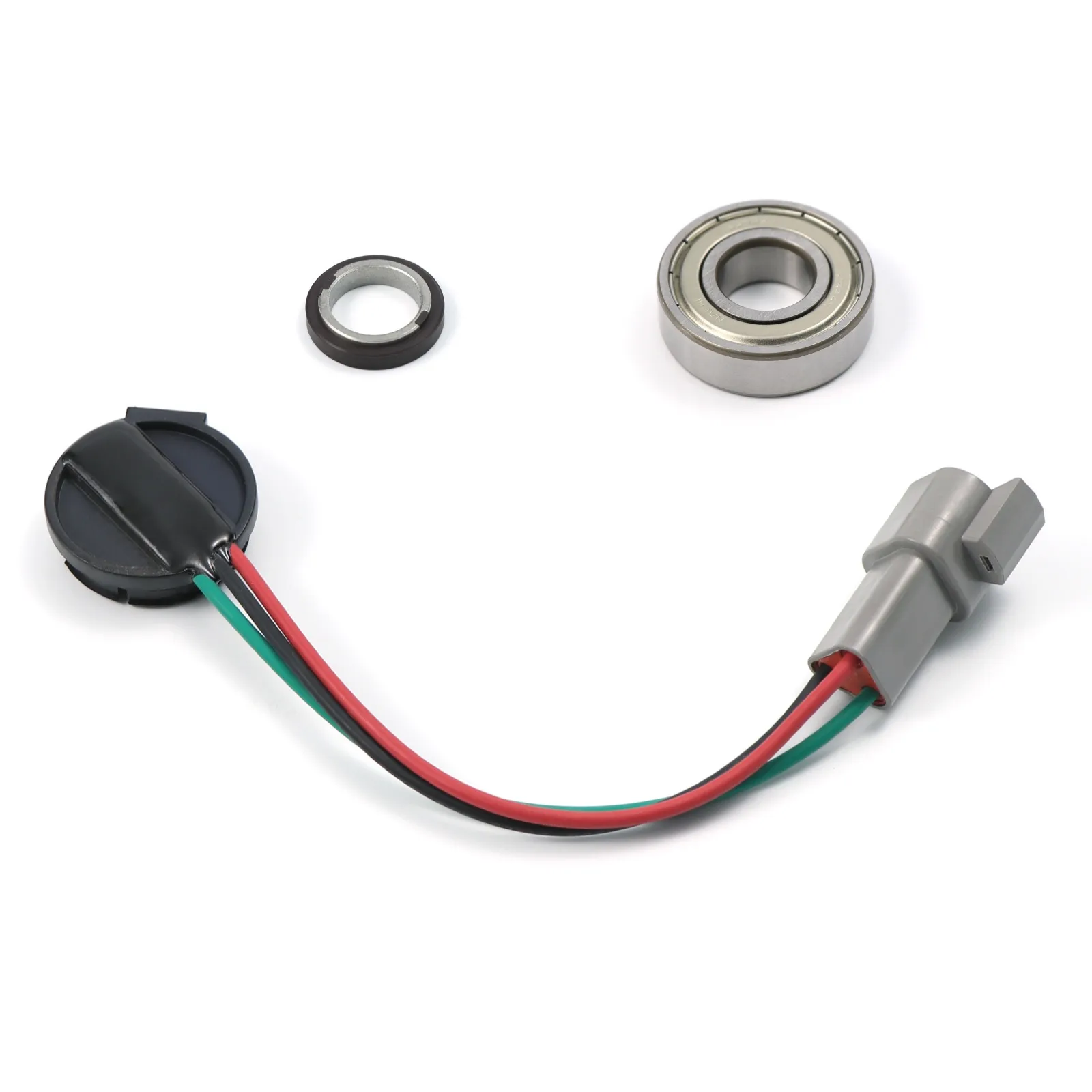

Motor Speed Sensor with Magnet for Club Car DS, Precedent, Carryall and Villager Electric — Replaces OEM 102265601

This aftermarket replacement speed sensor mounts on the end of the drive motor and reads a magnet on the motor shaft, so the speed controller knows how fast the motor is turning. It replaces Club Car OEM 102265601, listed in the parts manuals as "SENSOR, MOTOR SPEED" and "SPEED SENSOR ASSEMBLY". A failing sensor can cause slow or jerky driving, a cart that will not move, or speed sensor fault codes.

Will it fit my cart?

• Club Car DS electric with IQ system (2001–2011)
• Club Car Precedent electric (2004–2008)
• Club Car Carryall electric (2006–2009) and Villager electric (2001–2007)
• Not for gas carts, EZGO or Yamaha carts
• Not sure? Compare the part number on your old sensor, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 102265601
• Position: end of the drive motor
• Motors listed with this sensor: 5BC59JBS6365 and 5BC59JBS6390
• System: Club Car IQ / electric drive
• Quantity per cart: 1

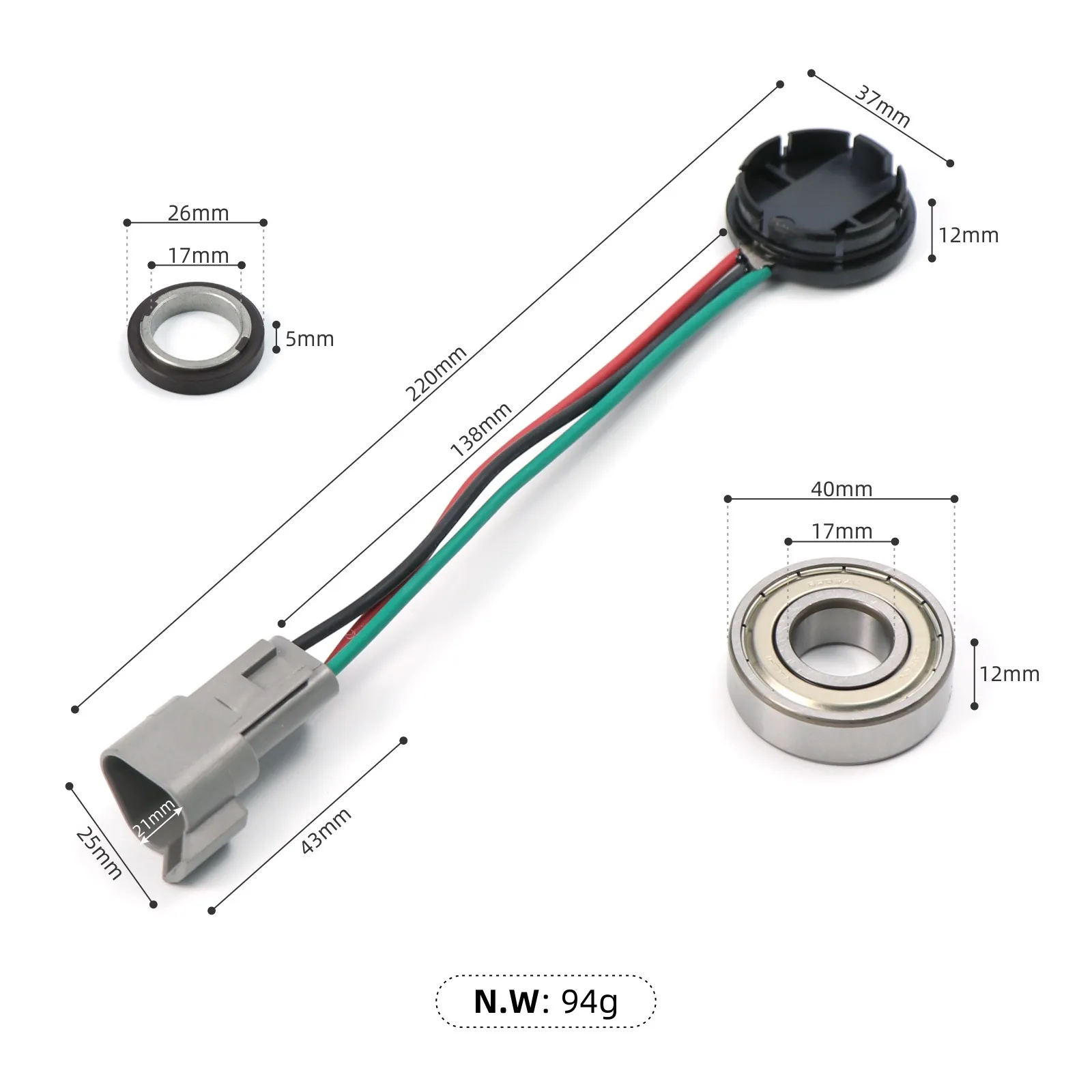

• Package: 1 piece, 4.25 x 2.01 x 1.73 inches; 3.84 oz (109 g)

Installation — difficulty: moderate (about 30–45 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Find the speed sensor on the end of the motor and unplug its connector.
3. Remove the screw holding the old sensor and take it off. If the magnet on the motor shaft is cracked or loose, replace it with the new one.
4. Fit the new sensor in the same position, refit the screw, and plug the connector back in.
5. Reconnect the battery cable, set the switch back to RUN, and test drive slowly.

What’s in the Box

• 1 x motor speed sensor with magnet

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
