Forward/Reverse Switch Assembly for Club Car DS & Carryall 48V PowerDrive — Replaces OEM 101753005

Description

Forward/Reverse Switch Assembly for Club Car DS & Carryall 48V PowerDrive — Replaces OEM 101753005

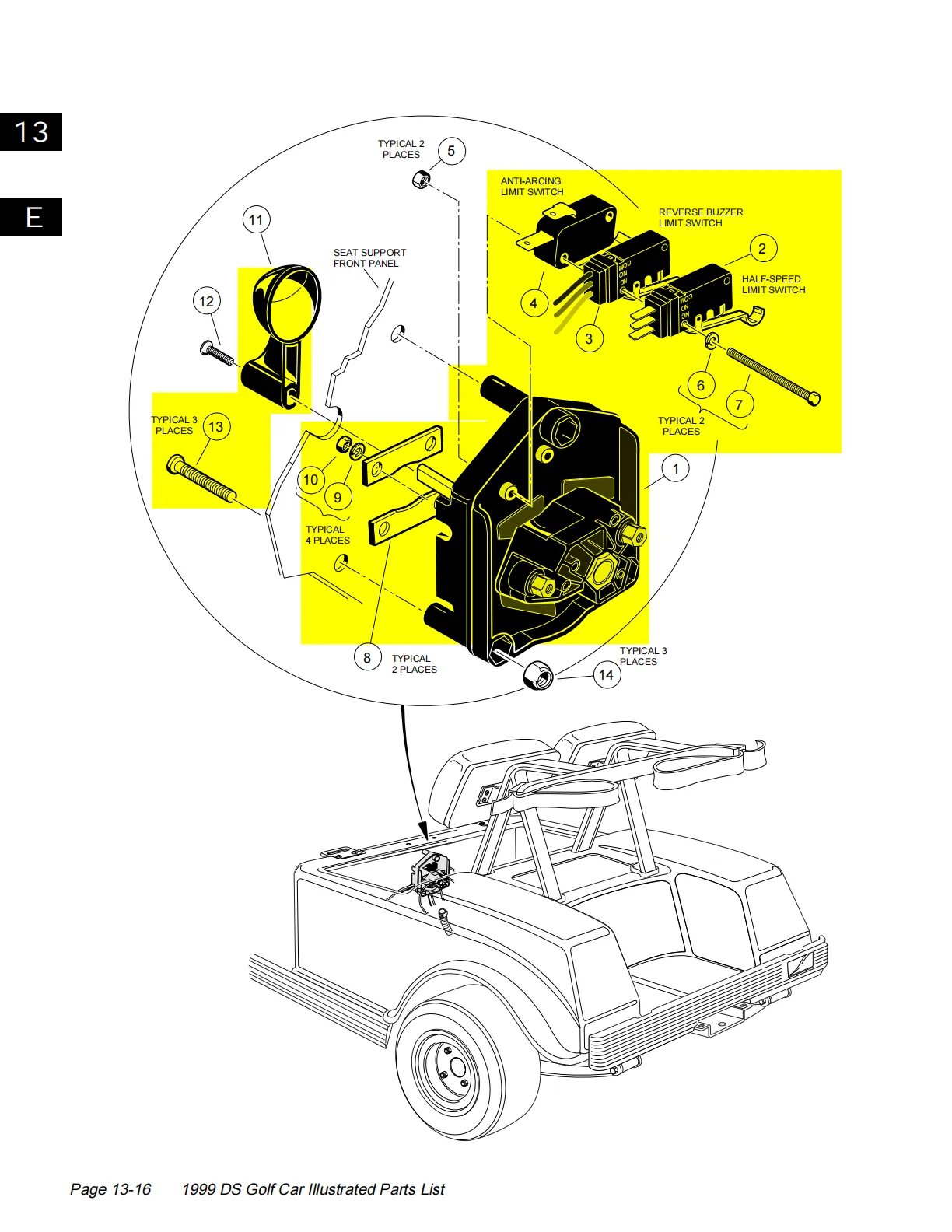

This is an aftermarket replacement forward/reverse switch assembly for Club Car 48-volt electric carts with the PowerDrive system. It matches Club Car OEM 101753005, listed in the parts manuals as "ASSEMBLY, FORWARD/REVERSE SWITCH" under "POWERDRIVE SYSTEM 48 VEHICLE". The switch reverses the motor connections when you move the F&R handle. Common signs it needs replacing: the cart won’t move in one or both directions, it only runs after you wiggle the handle, or the contacts look burnt or pitted.

Will it fit my cart?

• Club Car DS electric, 48V PowerDrive (1998–2006)
• Club Car Carryall electric, PowerDrive (1998–2006)
• Club Car Villager electric, PowerDrive 48 (1999–2006)
• Not for gas carts or 36V V-Glide carts (they use a different forward/reverse assembly), EZGO or Yamaha carts
• Not sure? Compare the part number on your old switch, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 101753005 (complete assembly)
• Component numbers listed with this part: 102250201 (sealed limit switch), 101979101 and 1014808 (limit switches), 1012987 (F&R switch handle)
• Voltage: 48V
• System: Club Car PowerDrive 48 forward/reverse switch
• Package: 1 assembly, 4.53 x 4.49 x 4.41 inches, 1.3 lb (0.59 kg)

Installation — difficulty: moderate (about 1 hour)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Photograph and label every wire on the old switch before you remove anything.
3. Disconnect the wires, remove the mounting hardware and lift out the old assembly.
4. Install the new assembly and reconnect each wire exactly as in your photos. Tighten the terminals.
5. Reconnect the battery, set the switch to RUN and test forward and reverse slowly in a clear area.

What’s in the Box

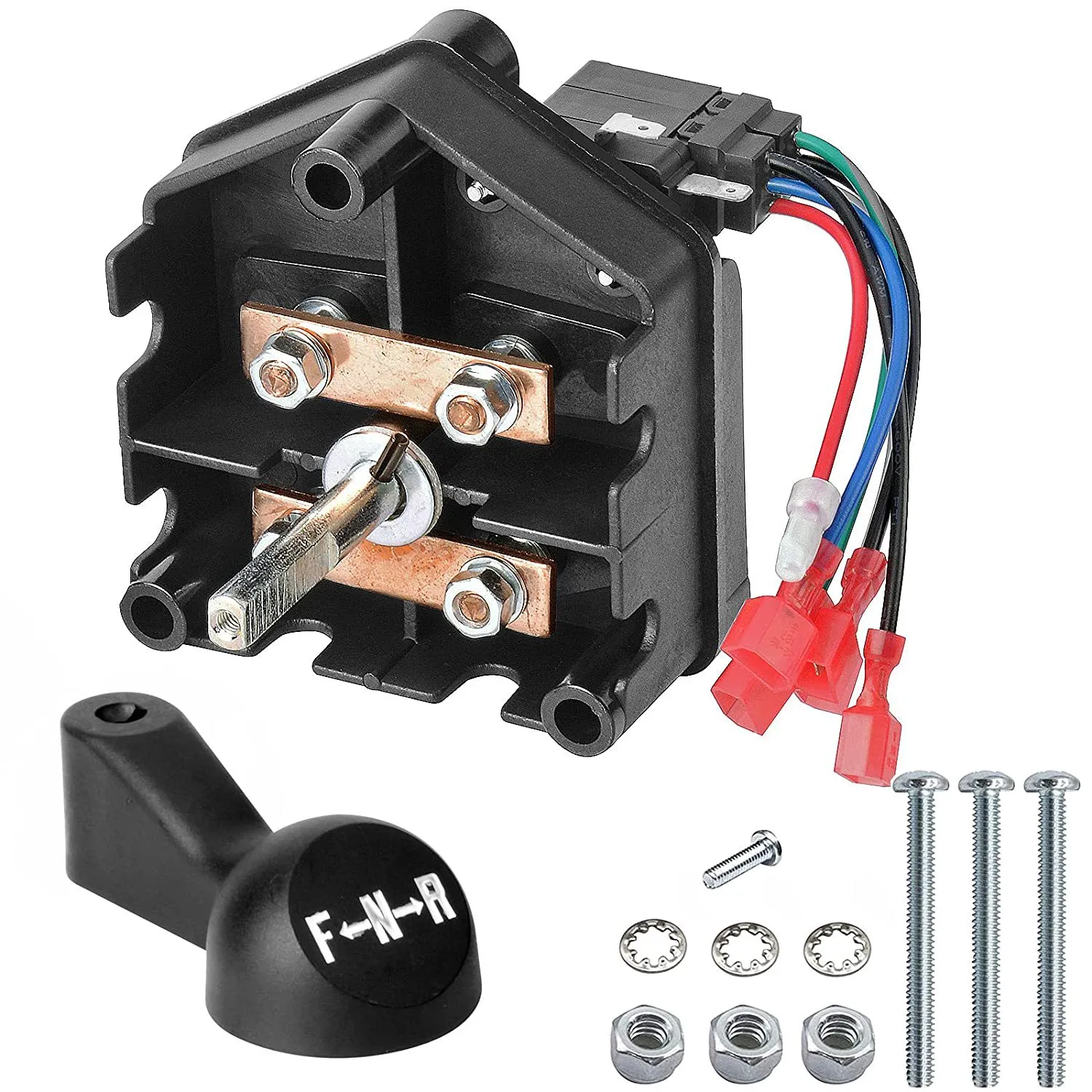

• 1 x forward/reverse switch assembly (48V PowerDrive)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
