EZGO RXV & TXT Golf Cart 48V Charger Receptacle Replace OEM# 602529 613304

Description

EZGO RXV & TXT 48V Charger Receptacle — Replaces OEM 602529, 613304

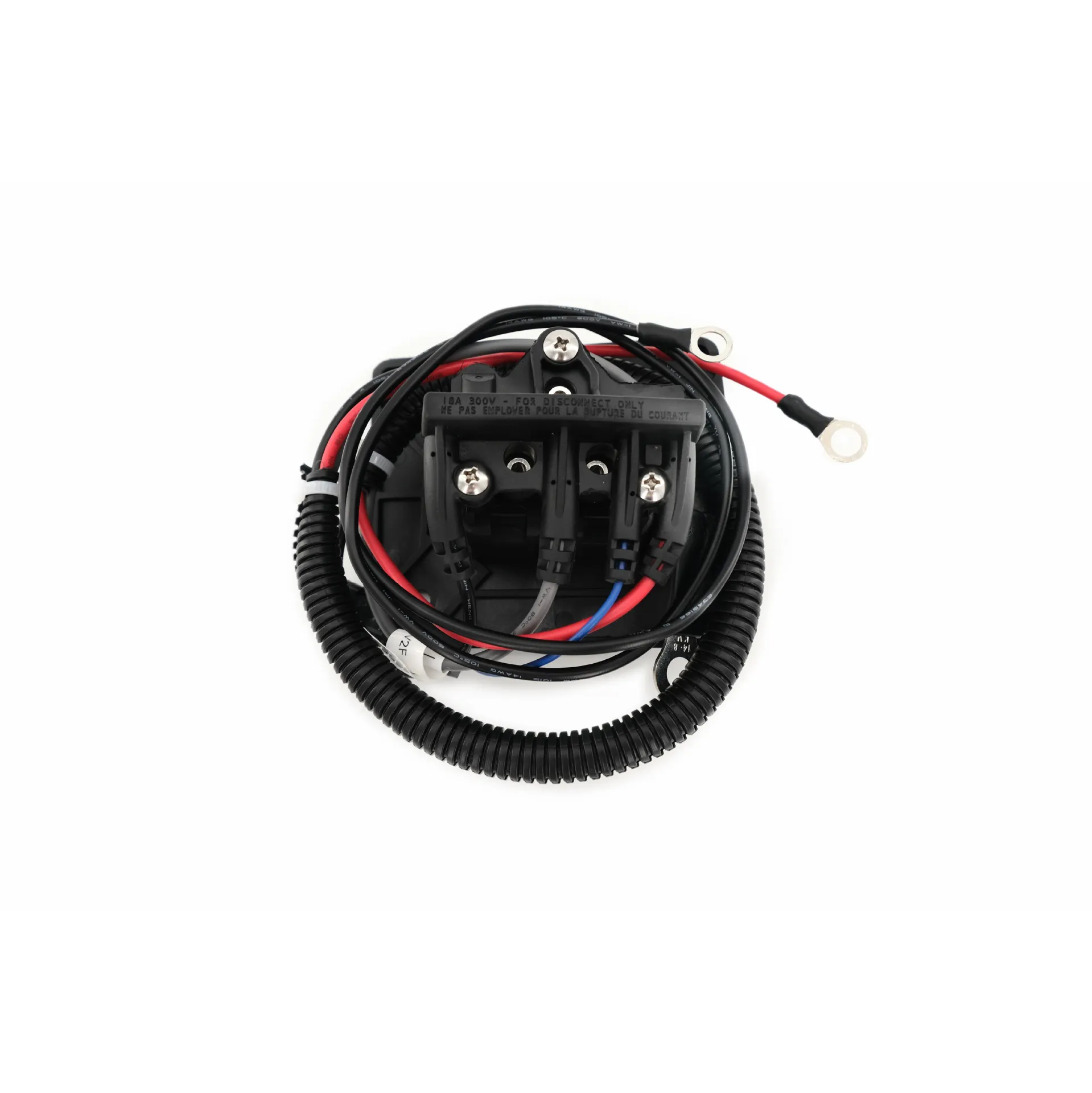

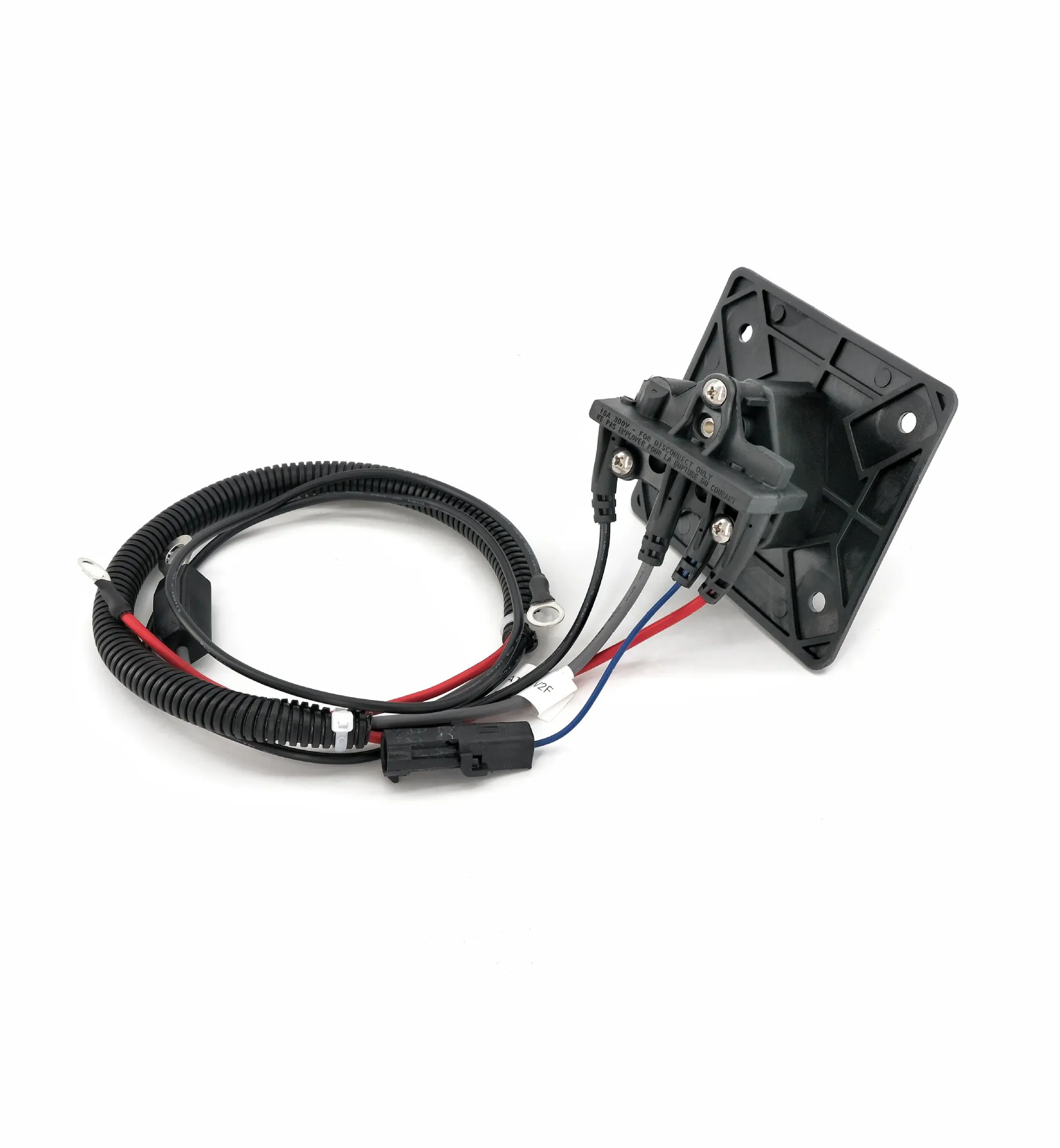

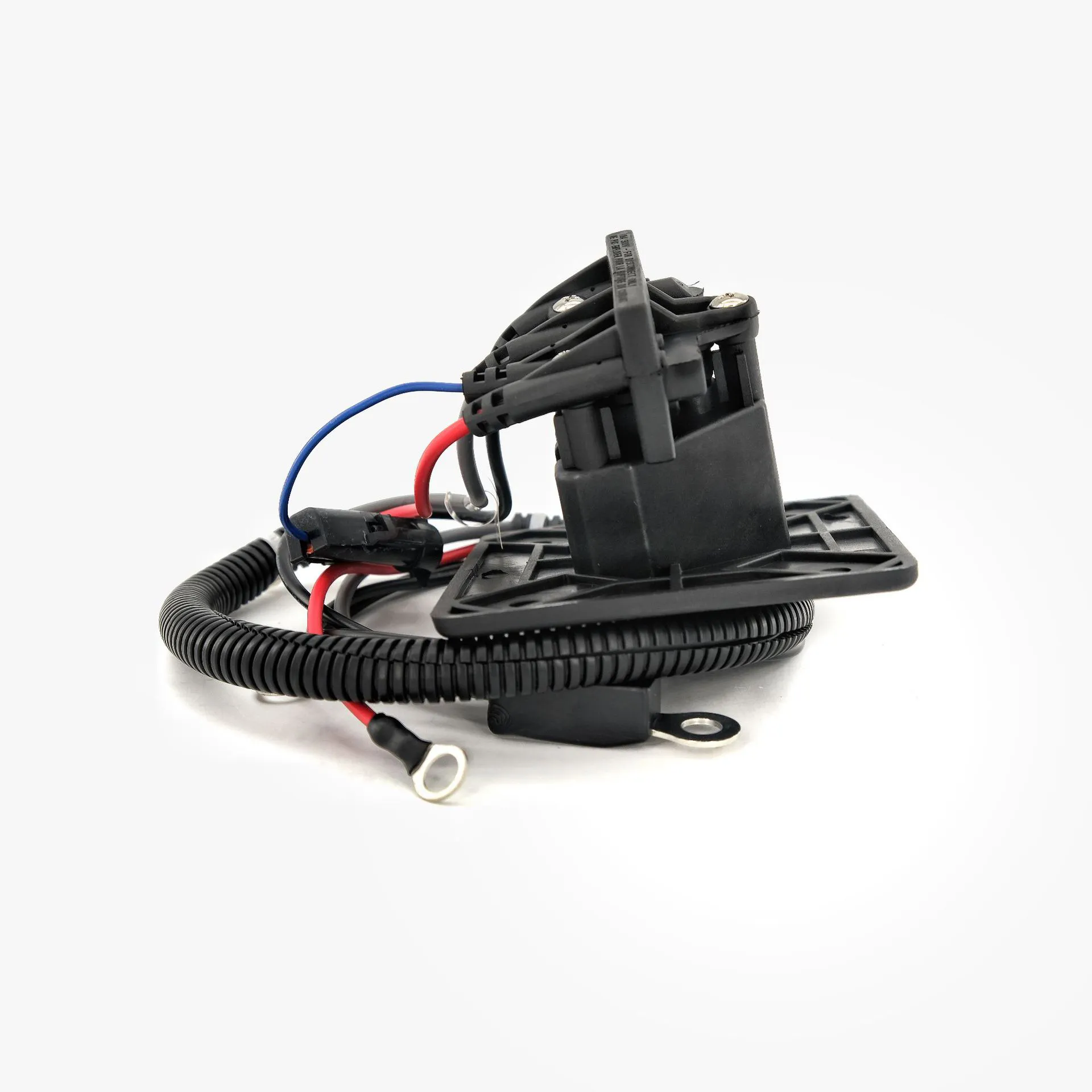

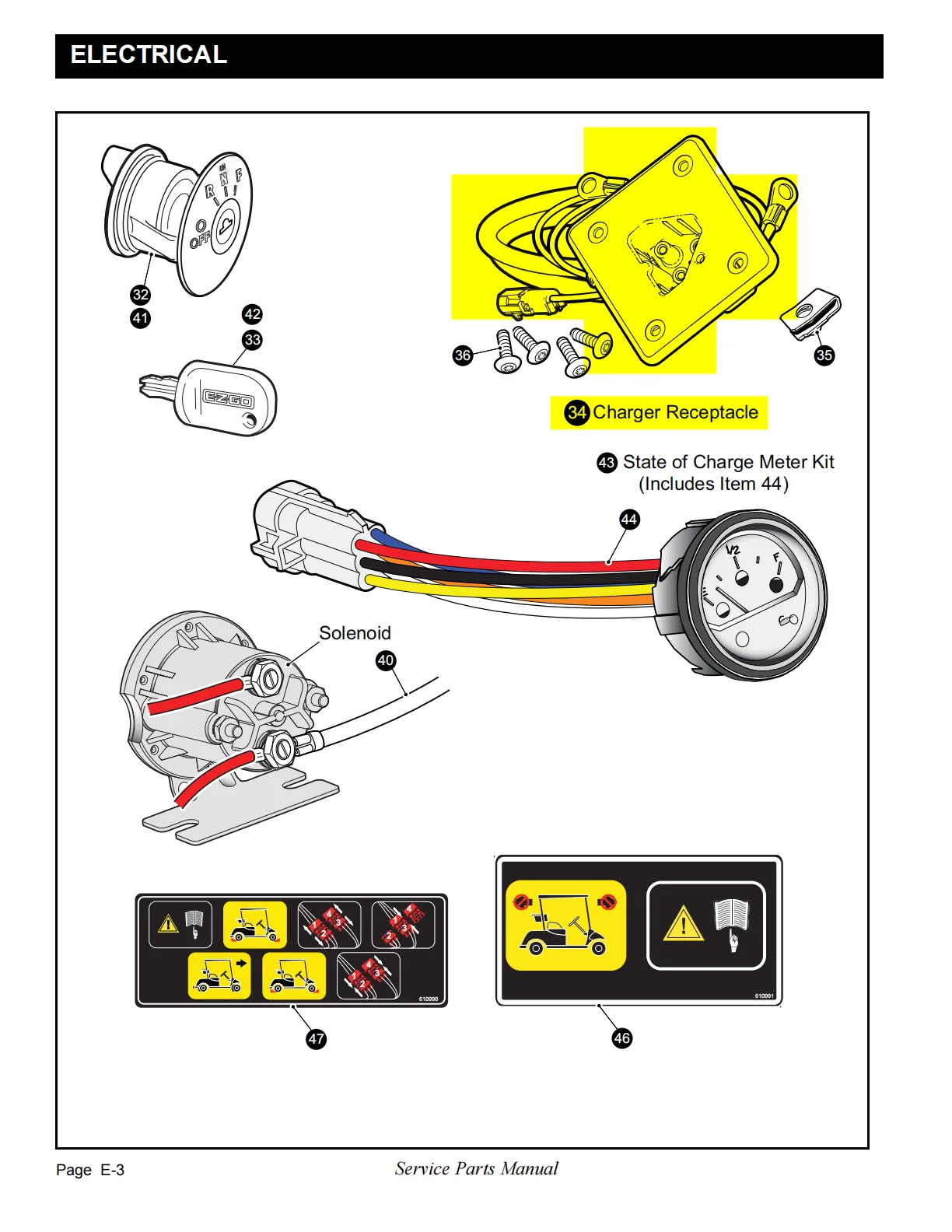

This is the aftermarket replacement cart-side charger receptacle (the port you plug your charger into) for EZGO RXV and TXT 48V electric golf carts. It replaces EZGO OEM 602529 and 613304, which EZGO parts manuals list as the 48V Delta-Q charger receptacle. If your charger won’t start, keeps cutting out, or the plug feels loose or looks burnt, a worn receptacle is a common cause.

Will it fit my cart?

• EZGO RXV electric 48V, Freedom and Shuttle 2+2 (2008-up)
• EZGO TXT electric 48V, Freedom and Shuttle 2+2 (2010–2013)
• EZGO TXT Valor electric 48V (2020)
• Not for 36V carts, gas carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old receptacle, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 602529 (RXV), 613304 (TXT)
• Position: cart side (the charger plugs into it)
• System: EZGO 48V electric with Delta-Q charging
• Package: 1 piece, 4.96 x 4.41 x 3.62 inches, 0.38 kg (0.84 lb)

Installation — difficulty: easy (about 20–30 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Take a photo of the wiring on the old receptacle, then disconnect the wires.
3. Remove the mounting screws and take out the old receptacle.
4. Fit the new receptacle, reconnect the wires exactly as in your photo, and refit the screws.
5. Reconnect the battery cable, set the switch back to RUN, and plug in your charger to check that it starts charging.

What’s in the Box

• 1 x charger receptacle (cart side)
• Not included: the plug on the charger cord

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
