4-Terminal Starter Solenoid for EZGO TXT Gas — Replaces OEM 27153G01, 612813

Description

4-Terminal Starter Solenoid for EZGO TXT Gas — Replaces OEM 27153G01, 612813

This aftermarket replacement solenoid is the switch that sends battery power to the starter/generator when you press the pedal on a gas EZGO. EZGO manuals list both 27153G01 and 612813 as the solenoid in the electrical system. Signs of a failing solenoid are a click with no cranking, no click at all, a starter that keeps running after you release the pedal, or burnt terminals.

Will it fit my cart?

• EZGO TXT gas (2003–2012)
• EZGO ST 350 gas (2002)
• Not for electric carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old solenoid, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 27153G01 / 612813
• Terminals: 4
• System: gas engine starting circuit
• Quantity per cart: 1

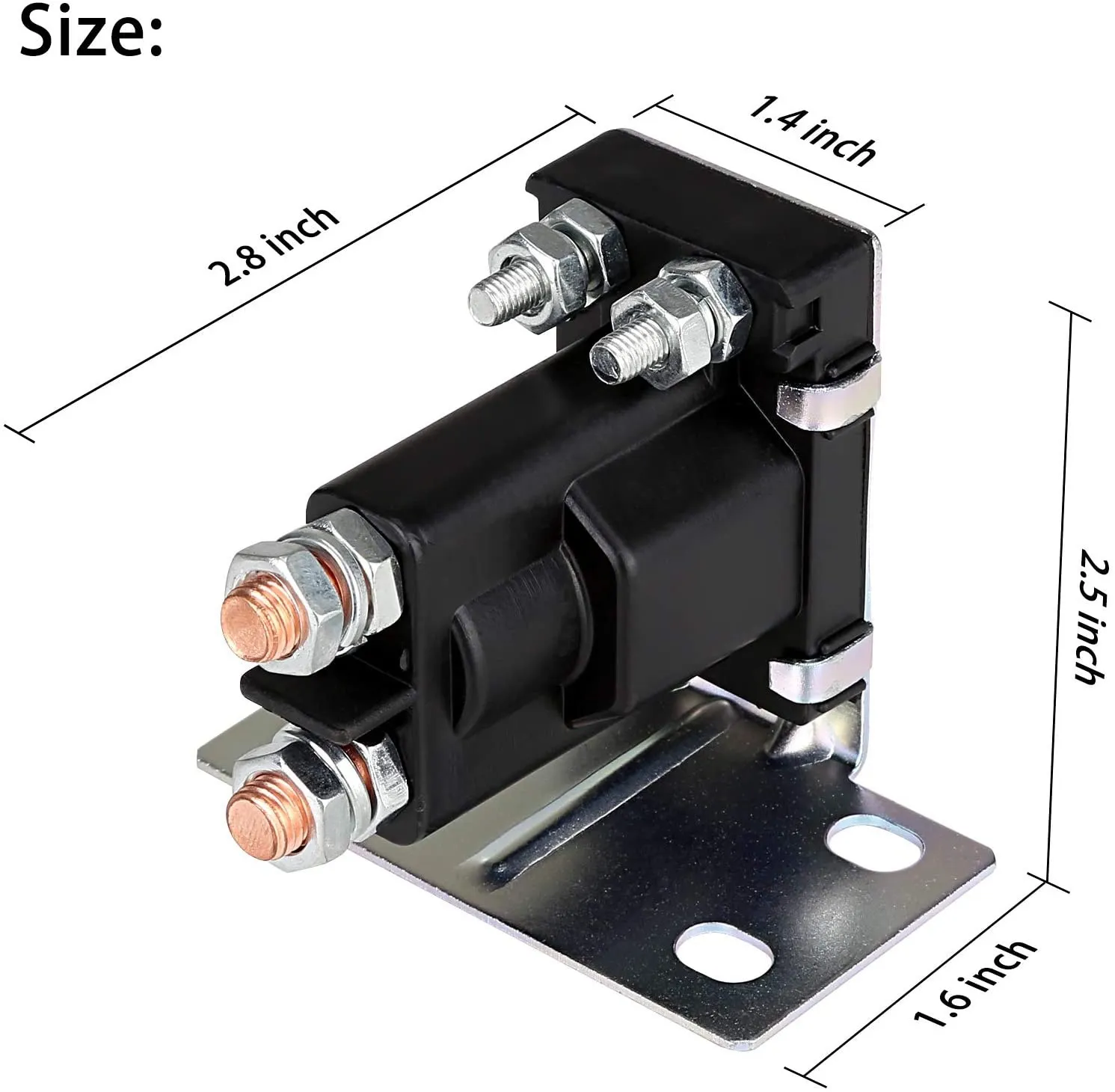

• Package: 1 piece, 3.86 x 3.07 x 2.83 inches; 8.3 oz (235 g)

Installation — difficulty: easy (about 20–30 minutes)

1. Remove the key and disconnect the battery negative cable.
2. Take a photo of the wiring on the old solenoid.
3. Disconnect the two large cables and the two small wires, then unbolt the old solenoid.
4. Fit the new solenoid in the same position and reconnect each wire exactly as in your photo.
5. Reconnect the battery and check that the engine cranks when you press the pedal.

What’s in the Box

• 1 x 4-terminal solenoid

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
