EZGO RXV Golf Cart Seat Arm Rest Hip Restraint for OEM 607532 607653

Description

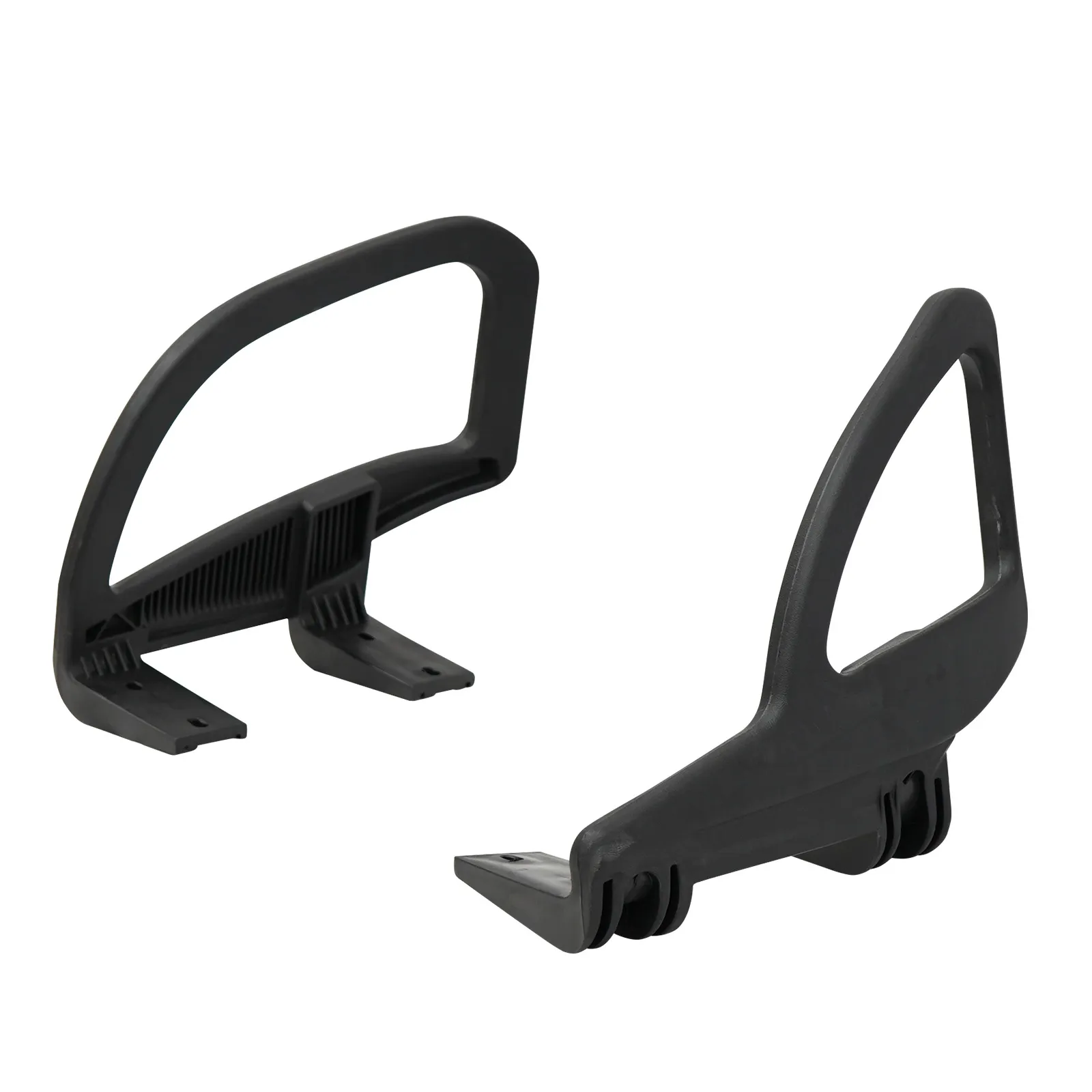

Seat Hip Restraint (Arm Rest) Pair for EZGO RXV — Replaces OEM 607532, 607653

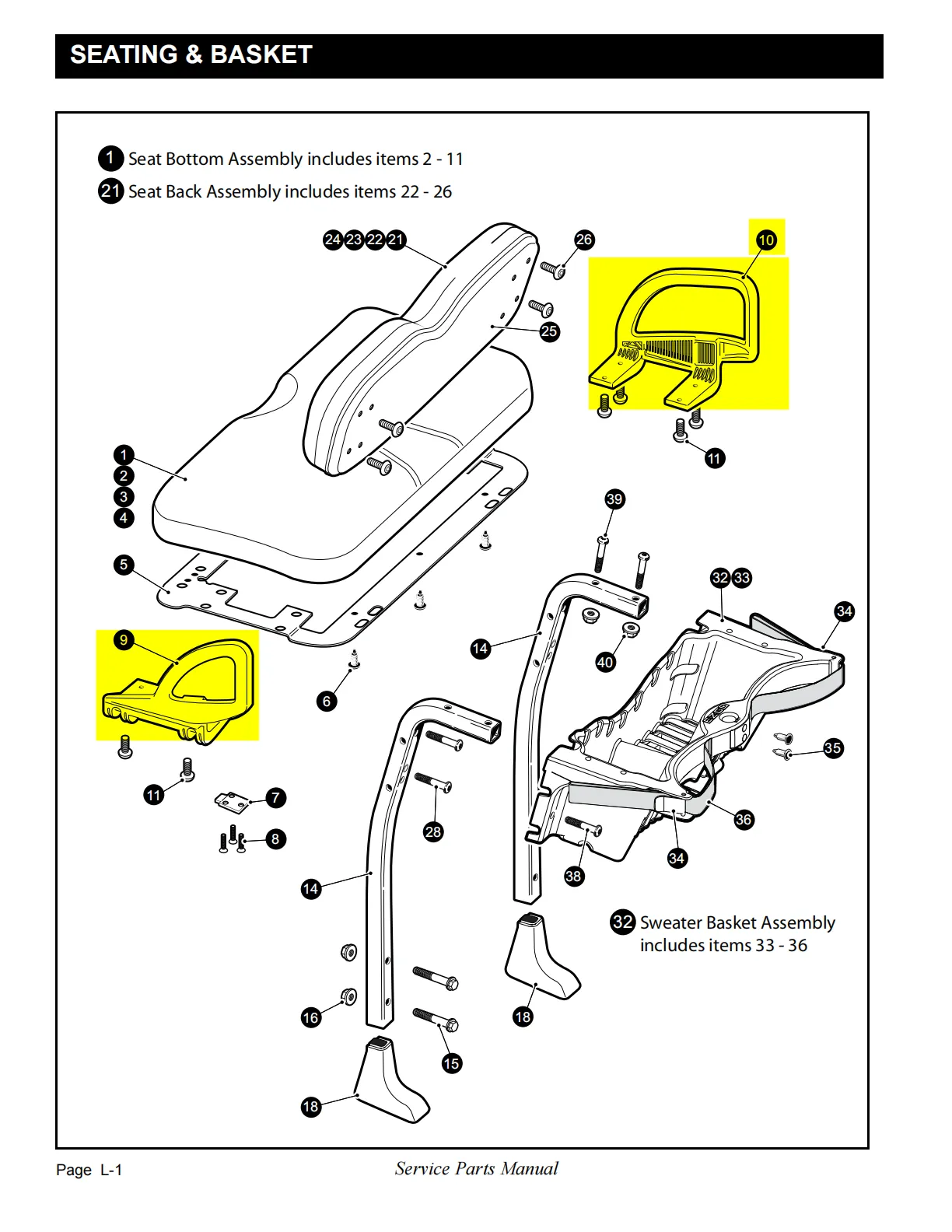

This aftermarket replacement pair includes both seat hip restraints (arm rests) for EZGO RXV golf carts: driver side EZGO 607532 and passenger side 607653, listed in EZGO RXV parts manuals as "HIP RESTRAINT, DRIVER SIDE" and "HIP RESTRAINT, PASSENGER SIDE", one each per cart. They give riders a handhold and help keep them seated in turns. Replace them if they are cracked, broken, loose or badly faded.

Will it fit my cart?

• EZGO RXV gas and electric (2008–2009)
• Later RXV carts: the later RXV parts manuals we checked do not list these numbers, so compare with your old part first
• Not for EZGO TXT (it uses hip restraints 71701G01 / 71702G01), Club Car or Yamaha carts
• Not sure? Compare the part number on your old hip restraint, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 607532 (driver side), 607653 (passenger side)
• Material: molded plastic with padded insert
• Color: black
• Package: 2 pieces (driver & passenger side), 15.75 x 13.82 x 7.76 inches, 2.38 kg (5.25 lb)

Installation — difficulty: easy (about 20–30 minutes)

1. Park the cart on level ground and remove the key. On electric carts, also set the Tow/Run switch to TOW.
2. Remove the bolts that hold the old hip restraint to the seat frame.
3. Fit the new hip restraint in the same position and tighten the original hardware.
4. Repeat on the other side and check that both are firmly attached.

What’s in the Box

• 1 x driver side hip restraint
• 1 x passenger side hip restraint

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
