Upper Front A-Arm Set for Club Car Precedent, Tempo & Onward — Replaces OEM 103388501, 102287301

Description

Upper Front A-Arm Set for Club Car Precedent, Tempo & Onward — Replaces OEM 103388501, 102287301

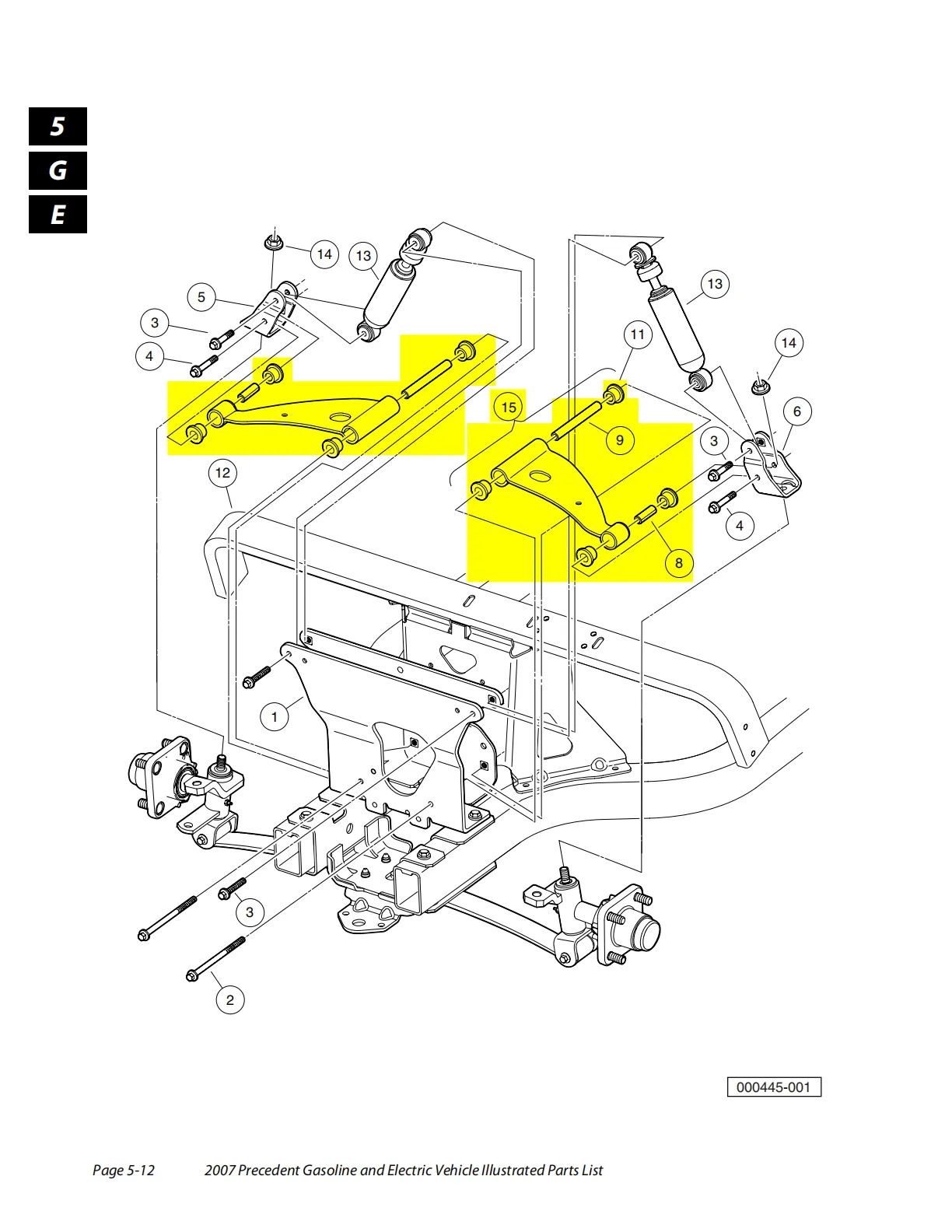

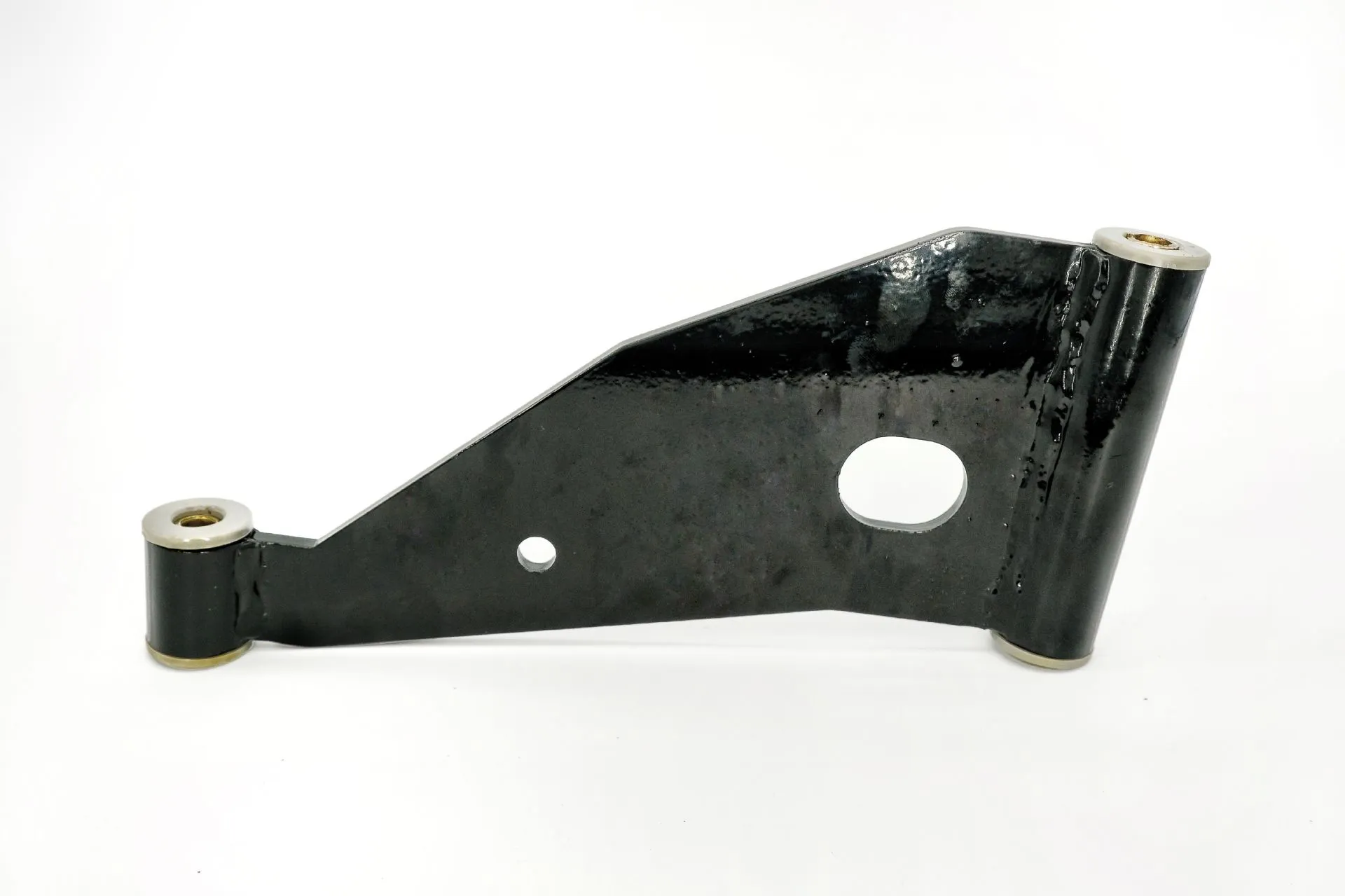

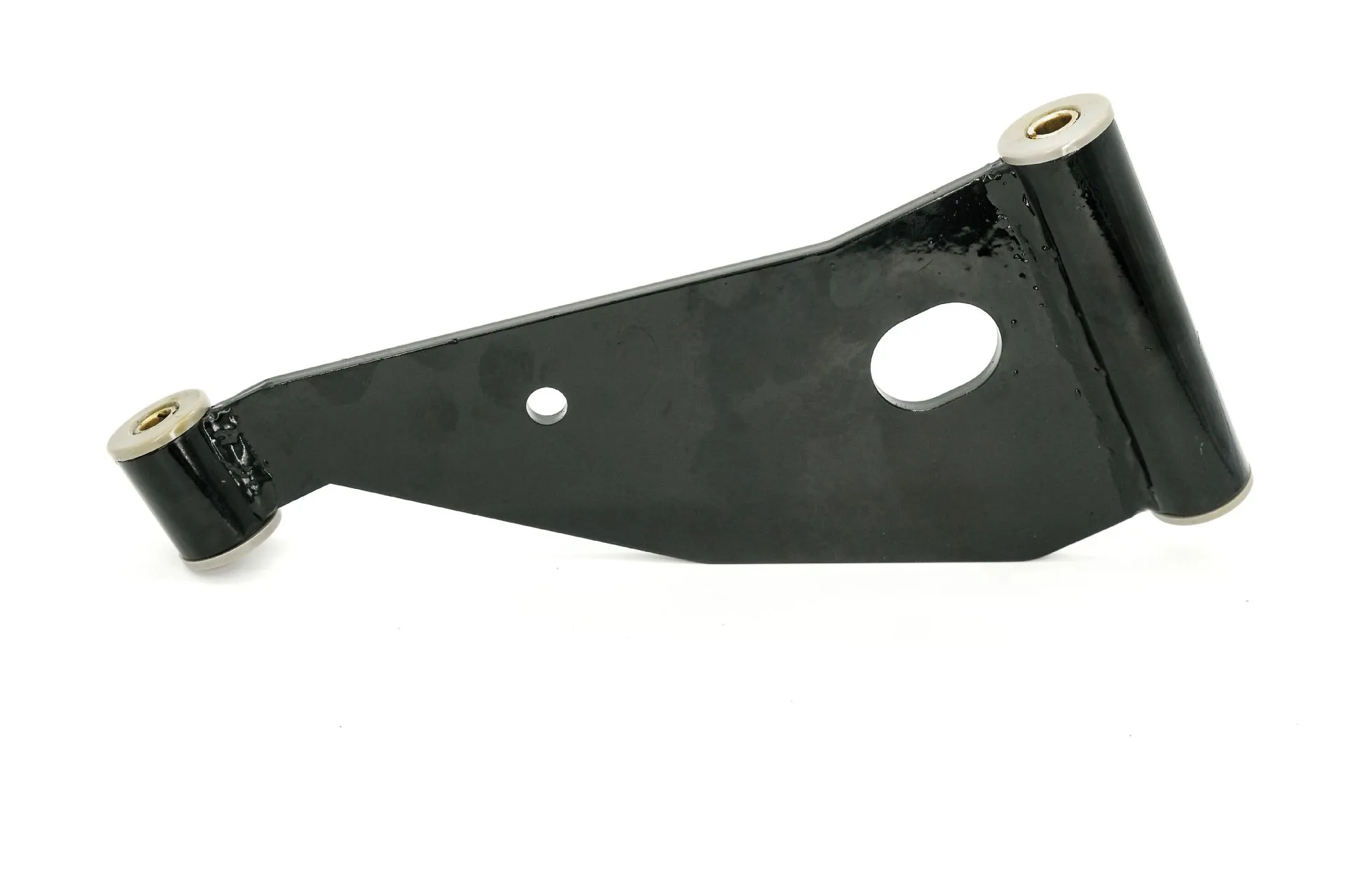

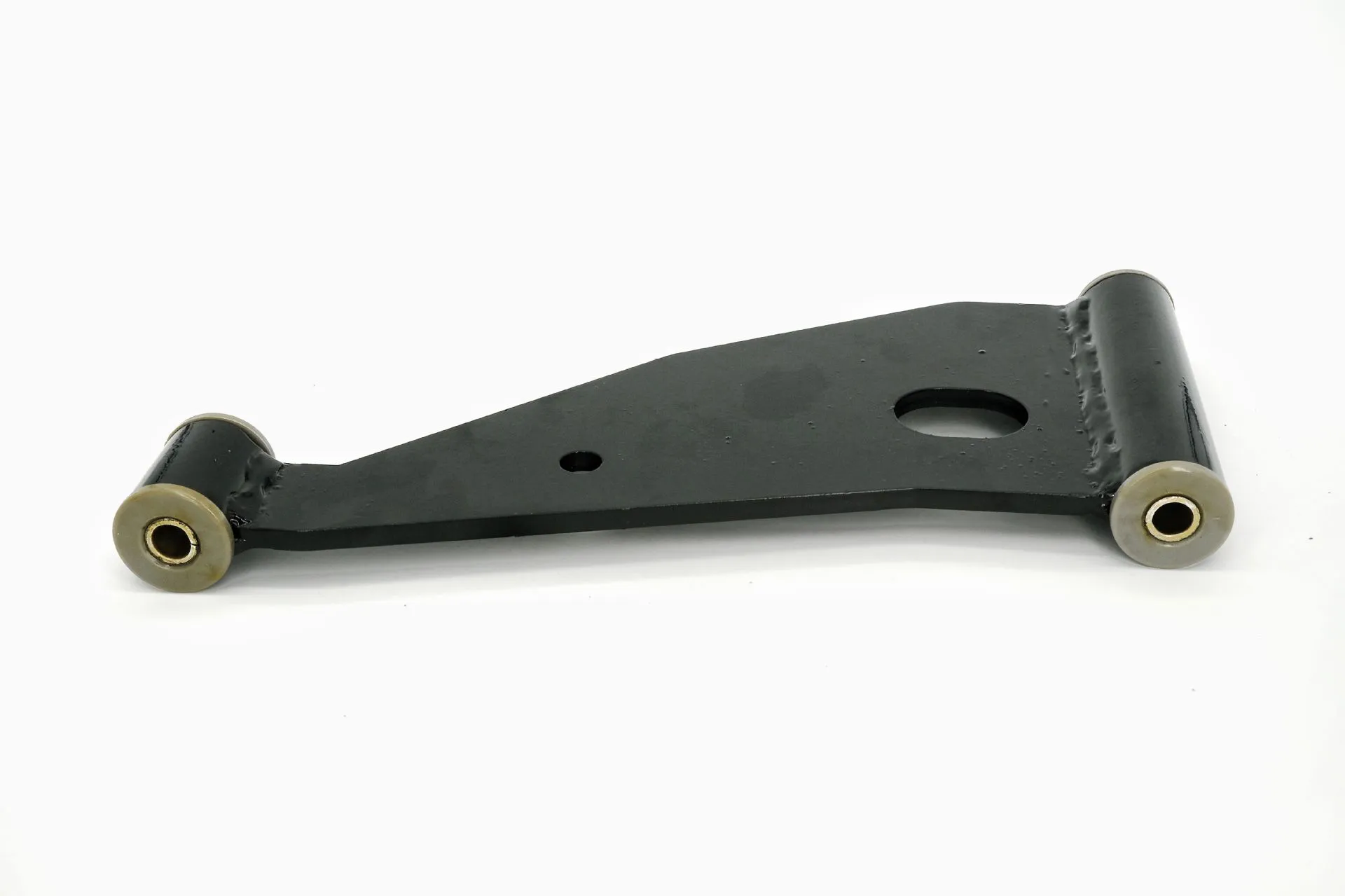

This aftermarket replacement set includes two upper front A-arms (control arms) for Club Car Precedent-style front suspension. Club Car parts manuals list OEM 103388501 as "ASM, 3 PIECE A-ARM, BUSHINGS" in the upper front suspension, two per cart. Replace them if the bushings are worn or cracked, the front end clunks over bumps, the front tires wear on one edge, or an arm is bent after a hit.

Will it fit my cart?

• Club Car Precedent gas and electric (2004–2023)
• Club Car Tempo electric (2019–2023)
• Club Car Onward gas and electric (2018–2021)
• Not for Club Car DS or Carryall (different front suspension), EZGO or Yamaha carts
• Not sure? Compare the part number on your old A-arm, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 103388501, 102287301
• Position: front suspension, upper (one left, one right)
• Quantity per cart: 2
• Package: 2 pieces (1 set), 13.3 x 5.79 x 3.23 inches, 2.36 kg (5.2 lb)

Installation — difficulty: moderate (about 1–2 hours)

1. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable. Gas carts: remove the key and disconnect the battery negative cable.
2. Lift the front of the cart, support the frame on jack stands and remove the front wheels.
3. Support the spindle, then remove the bolts that hold the old A-arm to the frame and the spindle.
4. Fit the new A-arm with the original hardware and tighten to the values in your service manual.
5. Repeat on the other side, refit the wheels, lower the cart and have the front-end alignment checked.

What’s in the Box

• 2 x upper front A-arm (one per side)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
