Club Car DS & Carryall Gas Voltage Regulator — Replaces OEM 1015777, 102711201

Description

Club Car DS & Carryall Gas Voltage Regulator — Replaces OEM 1015777, 102711201

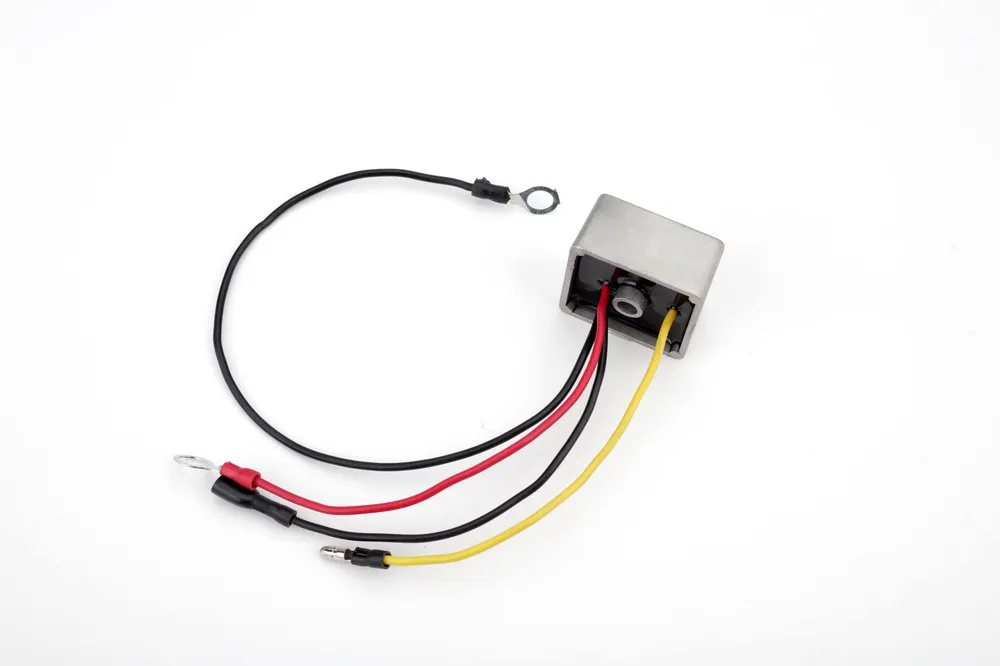

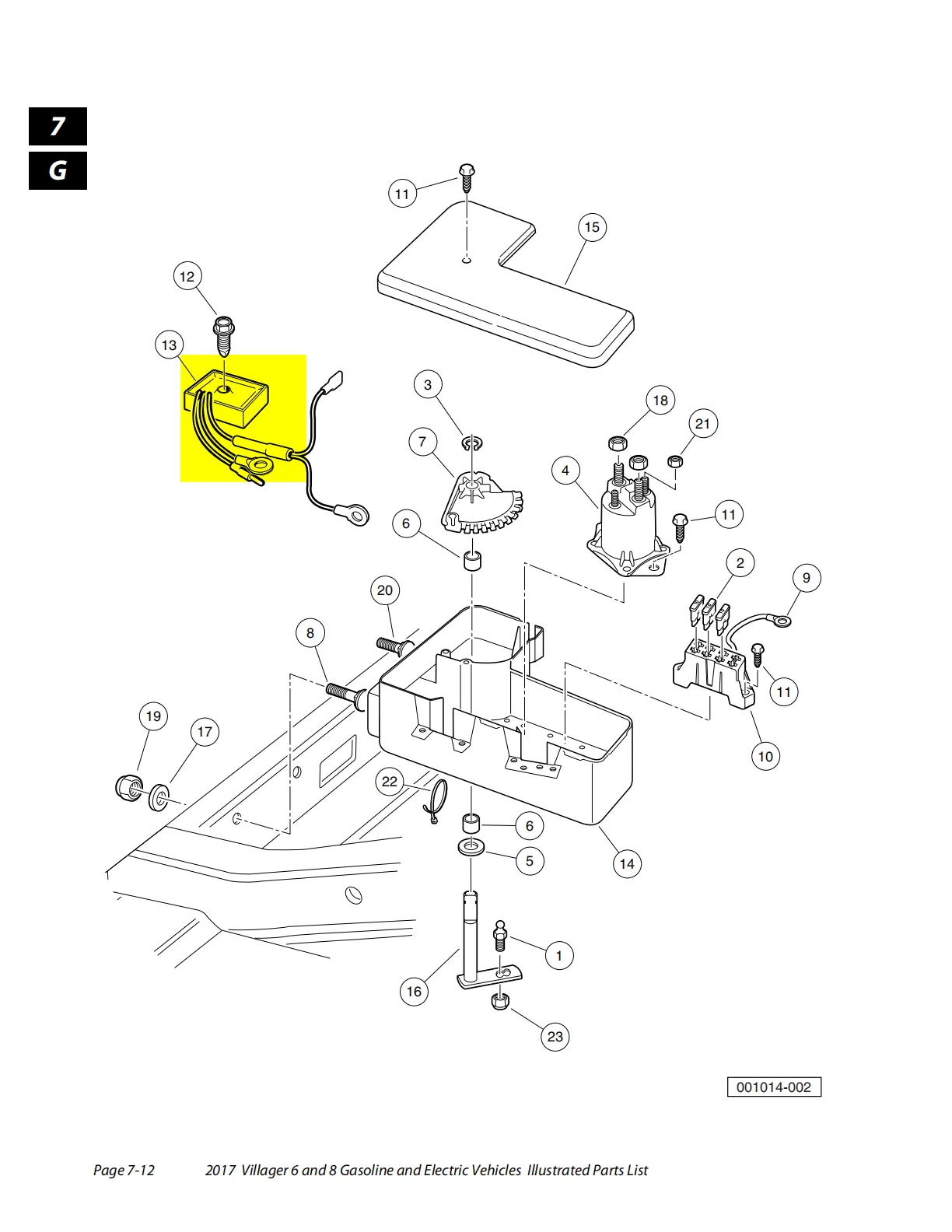

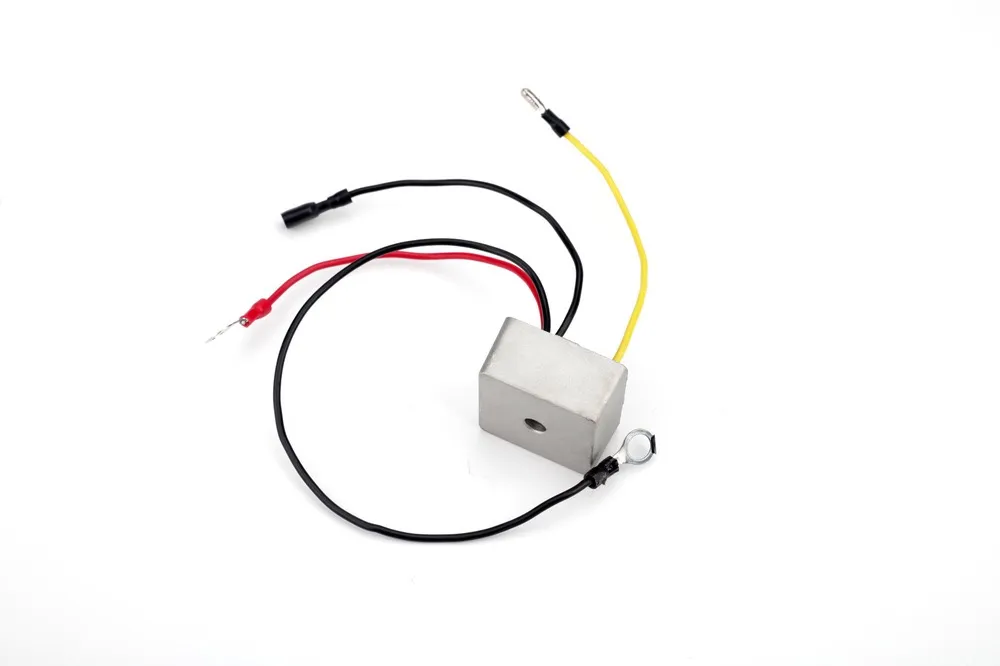

This aftermarket replacement voltage regulator controls the charging output on gas Club Car carts, so the battery stays charged without being overcharged. It replaces Club Car OEM 1015777 and 102711201, which Club Car parts manuals list as the voltage regulator in the gasoline electrical component box. A battery that keeps going flat, or one that boils over and smells of acid, often points to a failed regulator.

Will it fit my cart?

• Club Car DS gas (1994–2002, OEM 1015777; 2009–2011, OEM 102711201)
• Club Car Carryall gas (1995–2001 and 2006–2014)
• Club Car Villager gas (1995–2007) and Villager 6/8 with EX40 engine (2014–2018)
• Not for electric carts, EZGO or Yamaha carts
• Not sure? Compare the part number on your old regulator, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 1015777, 102711201
• Location: electrical component box (gas vehicles)
• System: Club Car gas engine charging system
• Quantity per cart: 1
• Package: 1 piece, 1.97 x 1.97 x 1.97 inches, 3.2 ounces (91 g)

Installation — difficulty: easy (about 20–30 minutes)

1. Remove the key and disconnect the battery negative cable.
2. Open the electrical component box and take a photo of the wires on the old regulator.
3. Disconnect the wires, remove the mounting screws and take out the old regulator.
4. Mount the new regulator, reconnect the wires exactly as in your photo and refit the screws.
5. Reconnect the battery, start the engine and check that the battery is charging (a voltmeter across the battery makes this easy).

What’s in the Box

• 1 x voltage regulator

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
