Front Wheel Hub Assembly for EZGO — Replaces OEM 19932-G1

Description

Front Wheel Hub Assembly for EZGO — Replaces OEM 19932-G1

This aftermarket replacement front wheel hub assembly is for older EZGO carts that use hub OEM 19932-G1. Replace the hub when the front wheel wobbles, the bearings are noisy or rough, or the hub is damaged.

Will it fit my cart?

• EZGO carts that use front hub 19932-G1, including TXT models up to 2001 (per our listing)
• Not for Club Car or Yamaha carts
• Not sure? Compare the part number on your old hub, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 19932-G1 (also listed: 19058-G2)
• Position: front wheel hub
• Package: 1 piece, 9.4 x 4.6 x 4.2 inches, 1 kg (2.2 lb)

Installation — difficulty: moderate (about 30–45 minutes per side)

1. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable. Gas carts: remove the key and disconnect the battery negative cable.
2. Lift the front of the cart and support it securely on jack stands, then remove the wheel.

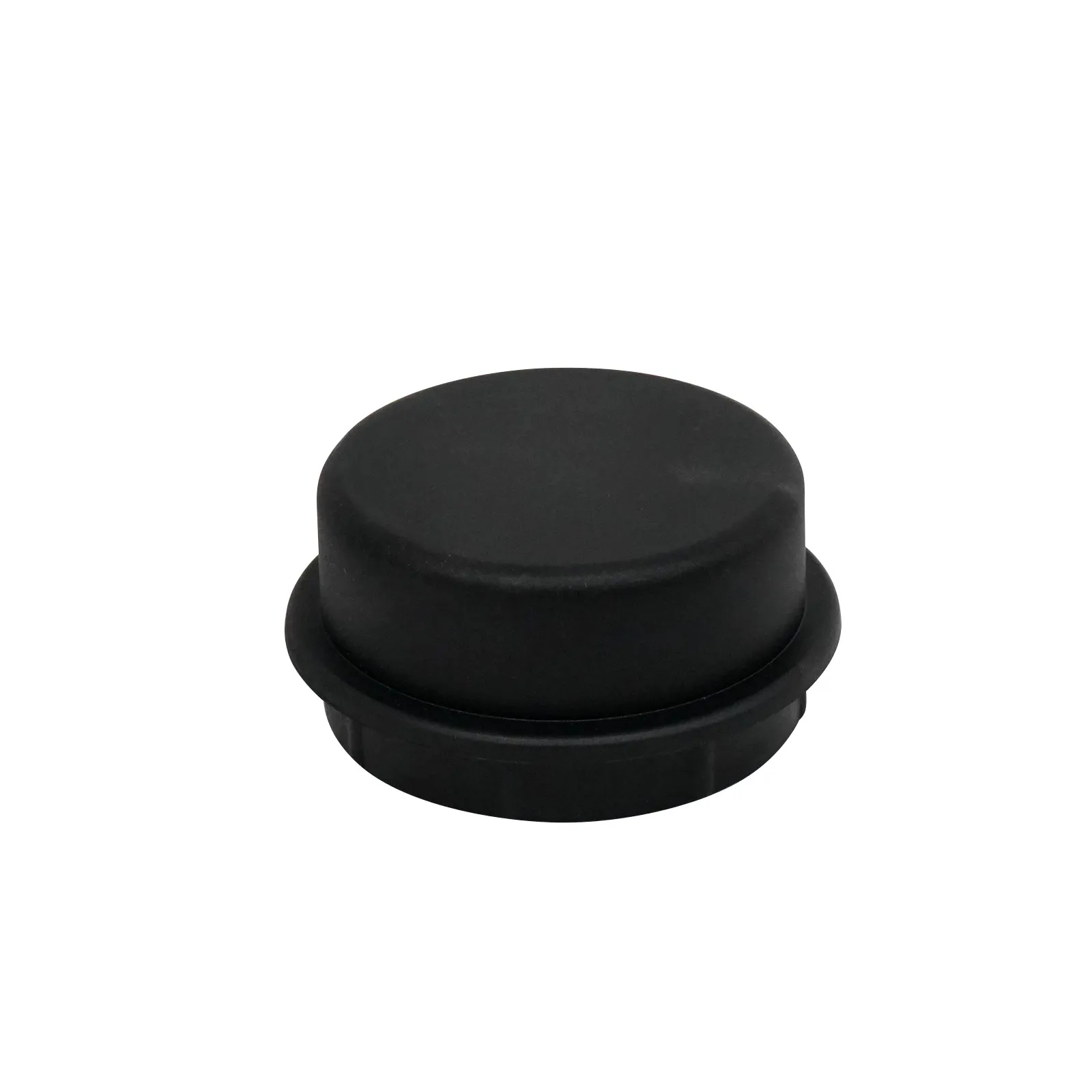

3. Remove the dust cap, cotter pin and spindle nut, and slide the old hub off the spindle.
4. Clean the spindle, slide on the new hub and fit the spindle nut, tightening it as described in your service manual; fit a new cotter pin.
5. Refit the dust cap and wheel, then spin the wheel to check that it turns smoothly without play.

What’s in the Box

• 1 x front wheel hub assembly

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
