Club Car Precedent Charger Receptacle — Replaces OEM 103375501

Description

Club Car Precedent Charger Receptacle — Replaces OEM 103375501

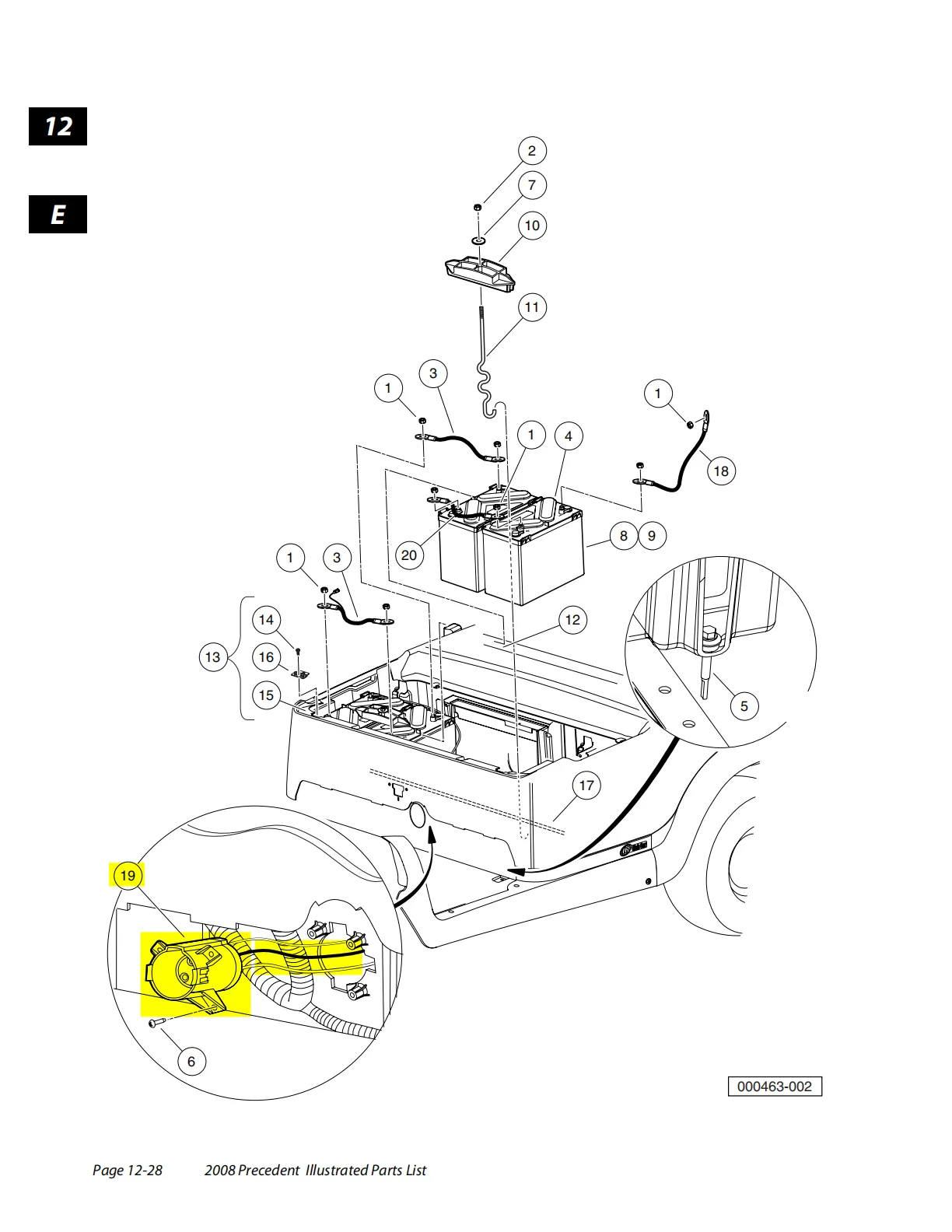

This is the aftermarket replacement cart-side charger receptacle (the port you plug your charger into) for Club Car Precedent electric 48V golf carts. It replaces Club Car OEM 103375501, listed in Club Car parts manuals as "ASM, PREC RESTYLE RECEPTACLE". If your charger won’t start, keeps cutting out, or the plug feels loose or looks burnt, a worn receptacle is a common cause.

Will it fit my cart?

• Club Car Precedent electric 48V with IQ or Excel drive system (2008–2011)
• Not for gas carts, EZGO or Yamaha carts
• Not sure? Compare the part number on your old receptacle, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 103375501
• Position: cart side (the charger plugs into it)
• System: Club Car Precedent 48V electric (IQ and Excel systems)
• Package: 1 piece, 7.24 x 4.06 x 3.07 inches, 8.9 ounces (0.25 kg)

Installation — difficulty: easy (about 20–30 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Take a photo of the wiring on the old receptacle, then disconnect the wires.
3. Remove the mounting screws and take out the old receptacle.
4. Fit the new receptacle, reconnect the wires exactly as in your photo, and refit the screws.
5. Reconnect the battery cable, set the switch back to RUN, and plug in your charger to check that it starts charging.

What’s in the Box

• 1 x charger receptacle assembly (cart side)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
