Club Car DS 1993-UP Gas & Electric LED Lighting 12V Headlight Tail Light Kit

Description

12V LED Headlight and Tail Light Kit for Club Car DS

This aftermarket 12V LED light kit adds headlights and tail lights to a Club Car DS golf cart, or replaces old lights that are dim, cracked or broken. LEDs use less power than halogen bulbs, which helps on electric carts. Fit it if your cart has no lights for dusk and early-morning driving, the old lenses are yellowed, or the lights flicker or keep burning out.

Will it fit my cart?

• Club Car DS gas and electric golf carts
• Not for Club Car Precedent, Tempo or Onward, or EZGO and Yamaha carts
• Not sure? Compare your cart with the product photos, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 101988001 / 101988002 (Club Car headlight assemblies, driver and passenger side)
• Voltage: 12V
• Lights: LED headlights and LED tail lights
• Package: 1 set, 12.76 x 11.54 x 6.02 inches; 4 kg (8.8 lb)

Installation — difficulty: moderate (about 1–2 hours)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Lay out the kit and check all parts before you start.
3. Fit the headlights to the front of the cart and the tail lights to the rear body.
4. Route the wiring along the frame, away from moving parts and hot engine parts, and secure it with cable ties.
5. Connect the kit to a 12V supply (gas carts have a 12V battery; 36V or 48V electric carts need a 12V source such as a voltage reducer), then reconnect the battery and test all lights.

What’s in the Box

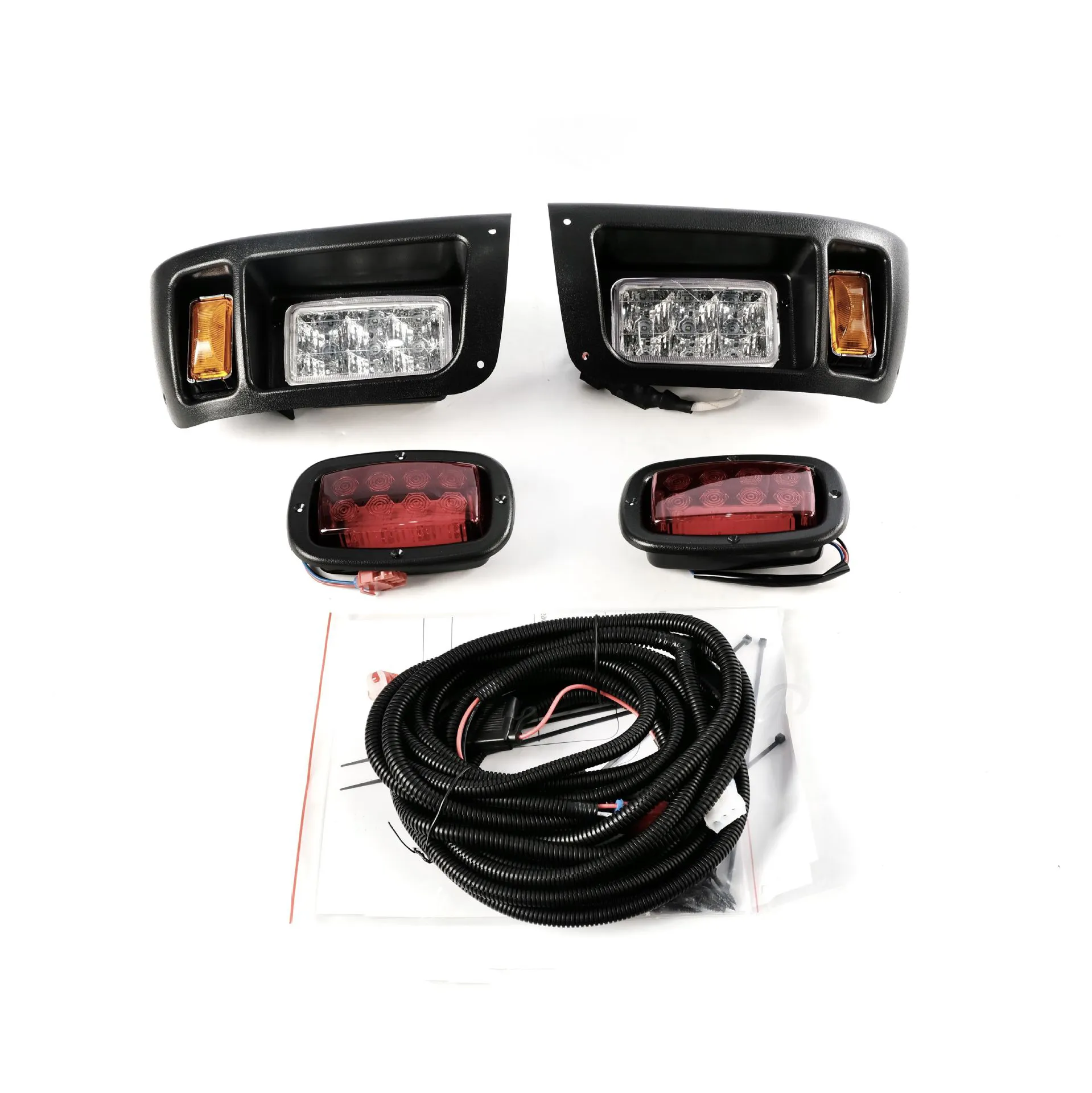

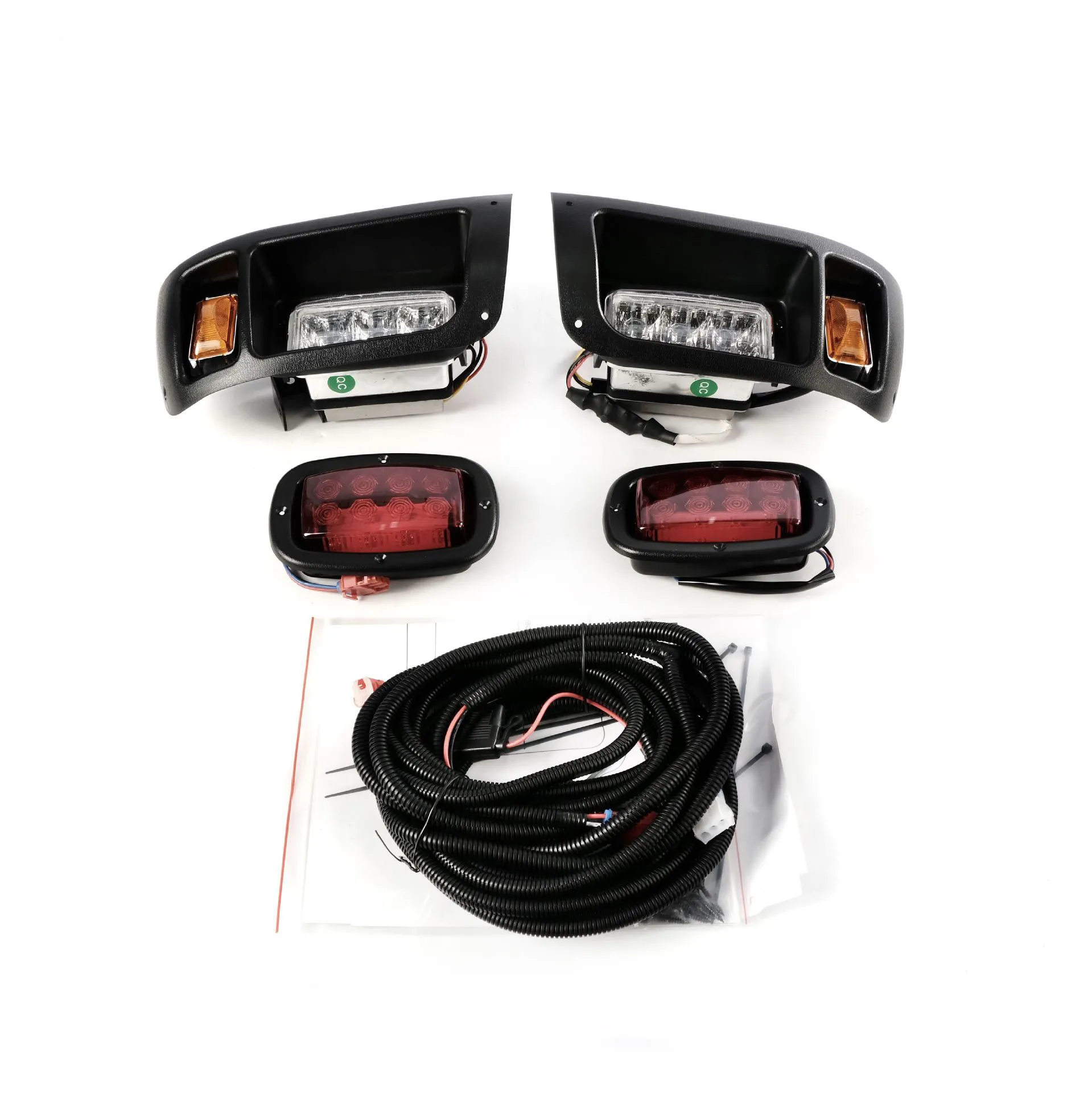

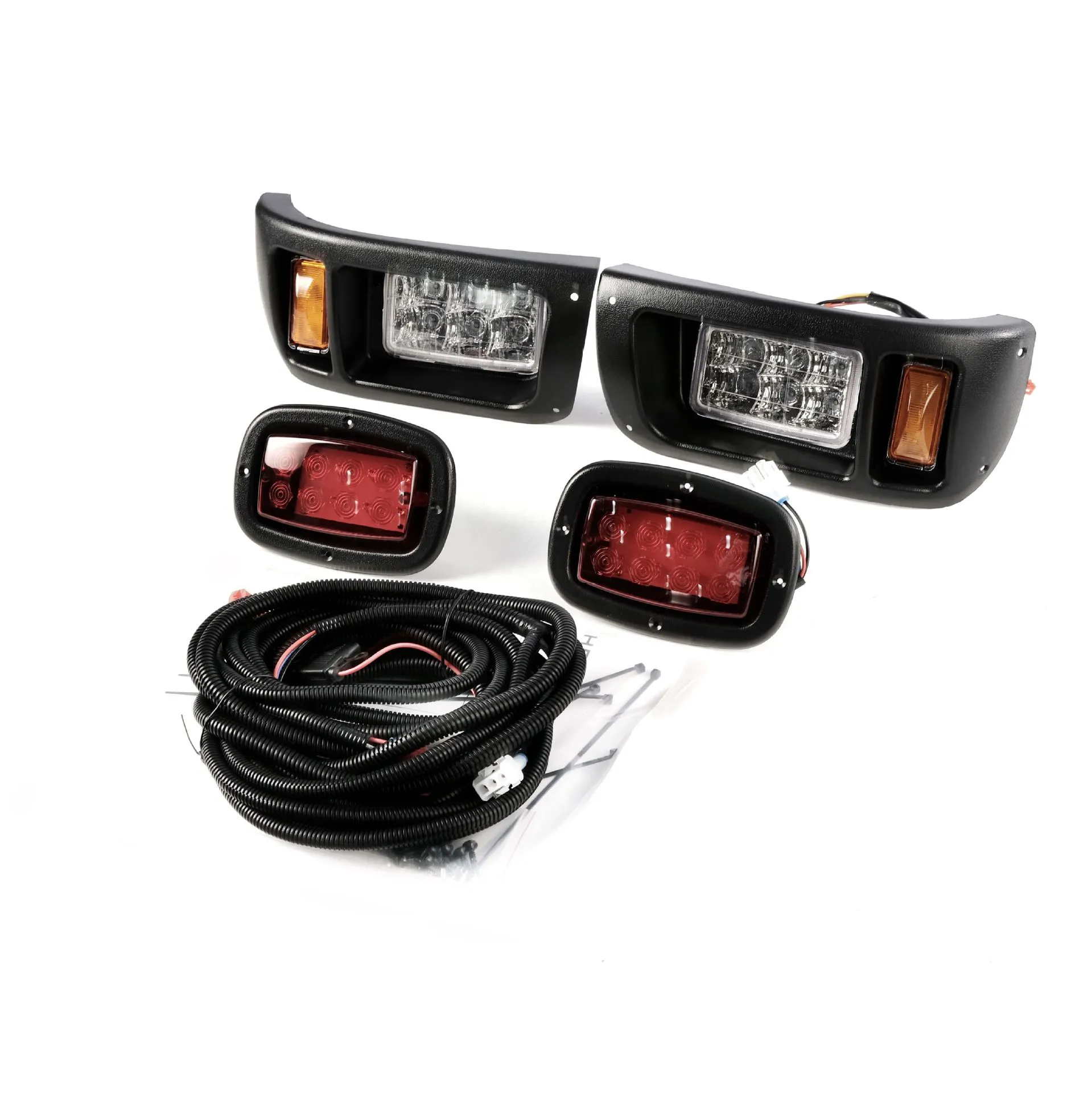

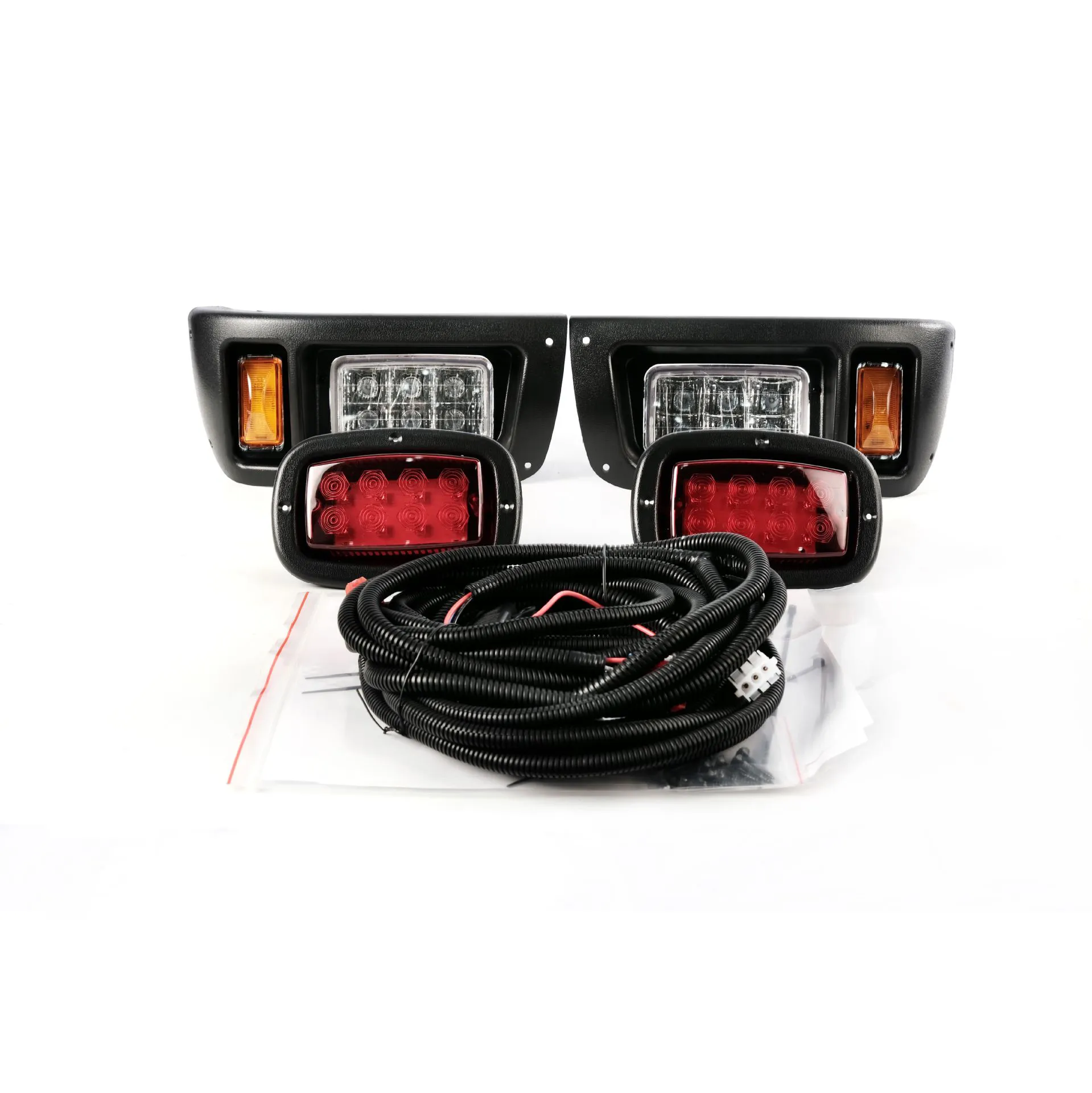

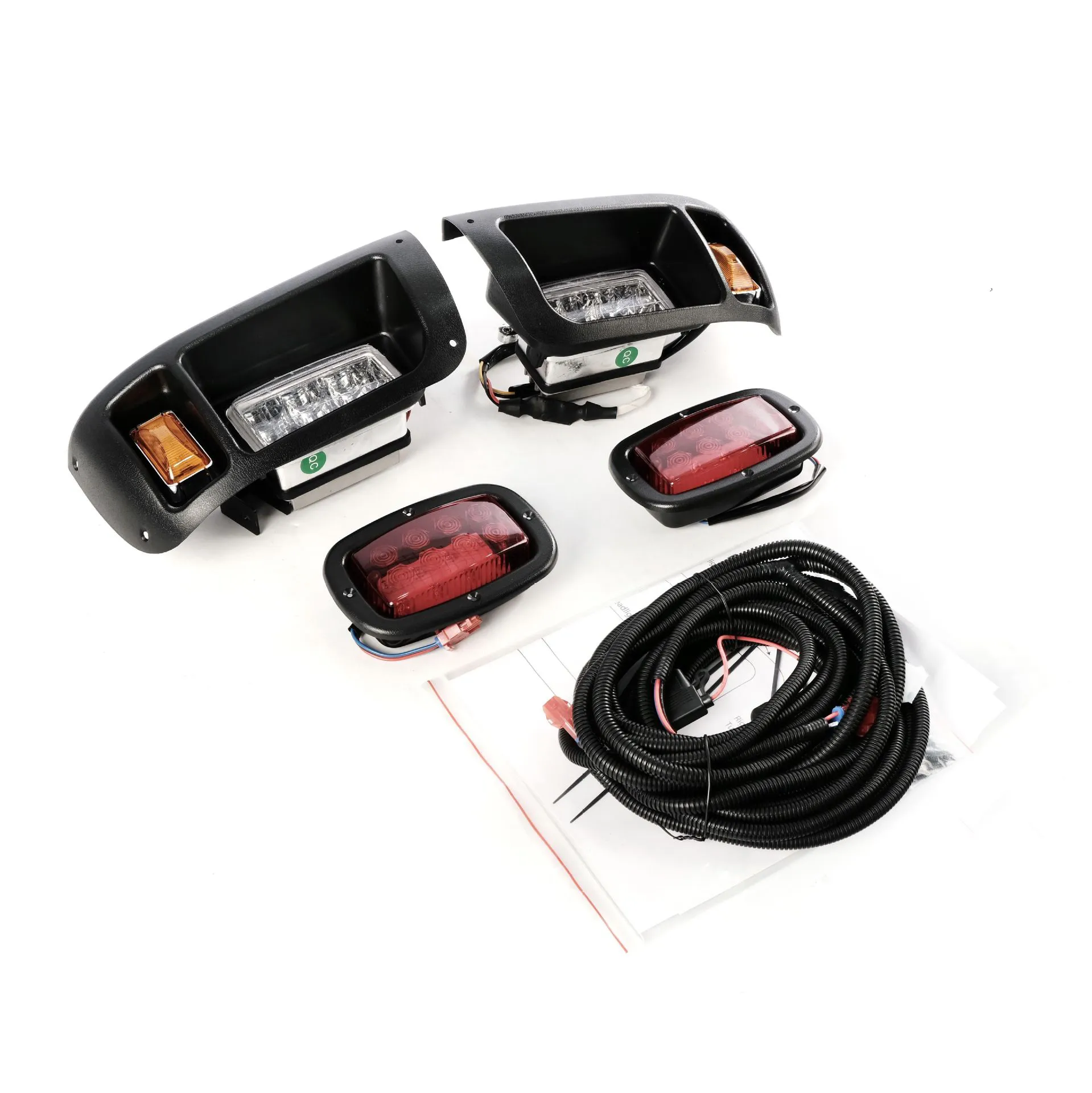

• 1 x LED headlight and tail light kit (1 set)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
