Club Car DS Brake Cable Kit Driver & Passenger Side Cables Replace OEM 102022101

Description

Rear Brake Cable Kit for Club Car DS — Replaces OEM 102022101

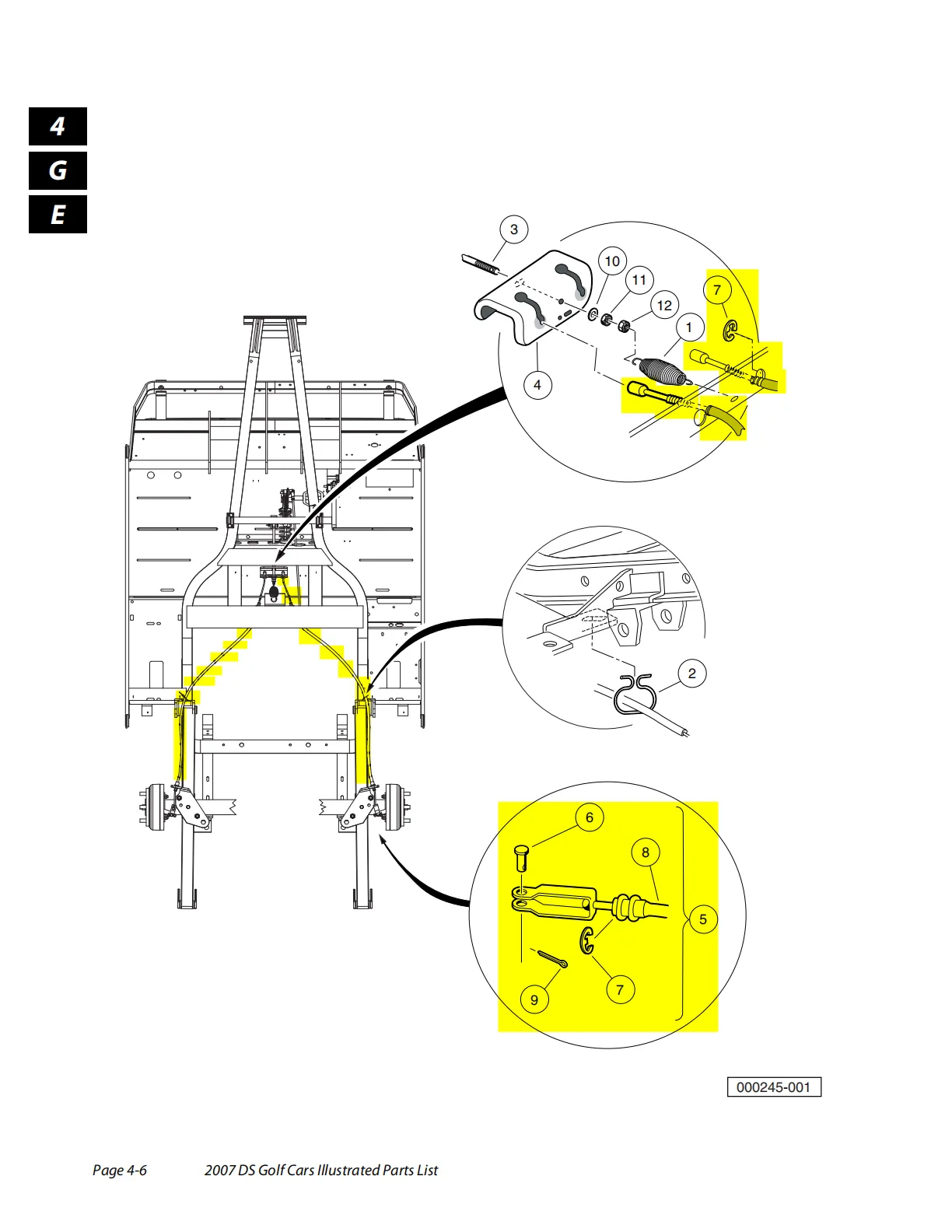

This aftermarket replacement kit includes two rear brake cables, one for the driver side and one for the passenger side. They connect the brake pedal linkage to the rear brakes; the manuals list kit 102022101 twice per cart, one per rear wheel. Replace them if the pedal feels soft or goes too far down, the brakes drag, or the cables are frayed, kinked or rusted.

Will it fit my cart?

• Club Car DS gas and electric (2000–2011)
• Club Car Carryall (1999–2009) and Villager (1999–2011), gas and electric
• Not for Club Car Precedent, Tempo or Onward (they use different brake cables), EZGO or Yamaha carts
• Not sure? Compare the part number on your old cables, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 102022101 (listed as "KIT, BRAKE CABLE")
• Position: rear brakes, driver and passenger side
• Quantity per cart: 2
• Type: mechanical brake cable

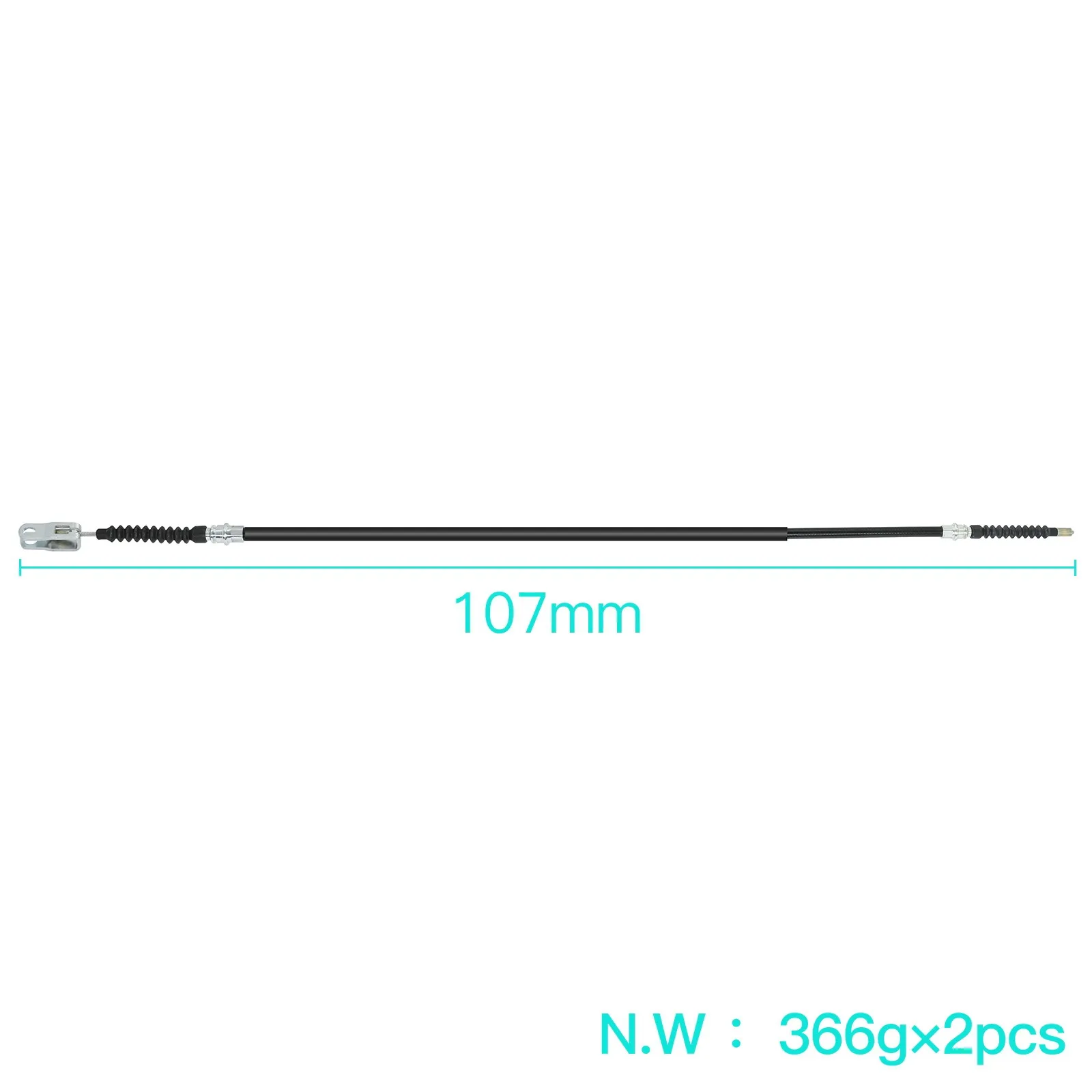

• Package: 2 pieces, 12.02 x 8.86 x 2.05 inches; 1.98 lb (0.9 kg)

Installation — difficulty: moderate (about 45–60 minutes)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Chock the front wheels, lift the rear of the cart and support it on jack stands, then remove the rear wheels and brake drums.
3. Disconnect the old cables at the brake pedal equalizer and at the rear brake assemblies.
4. Route the new cables along the original path and connect them at both ends.
5. Adjust the brakes as described in your service manual, refit the drums and wheels, and test the brakes at low speed before normal driving.

What’s in the Box

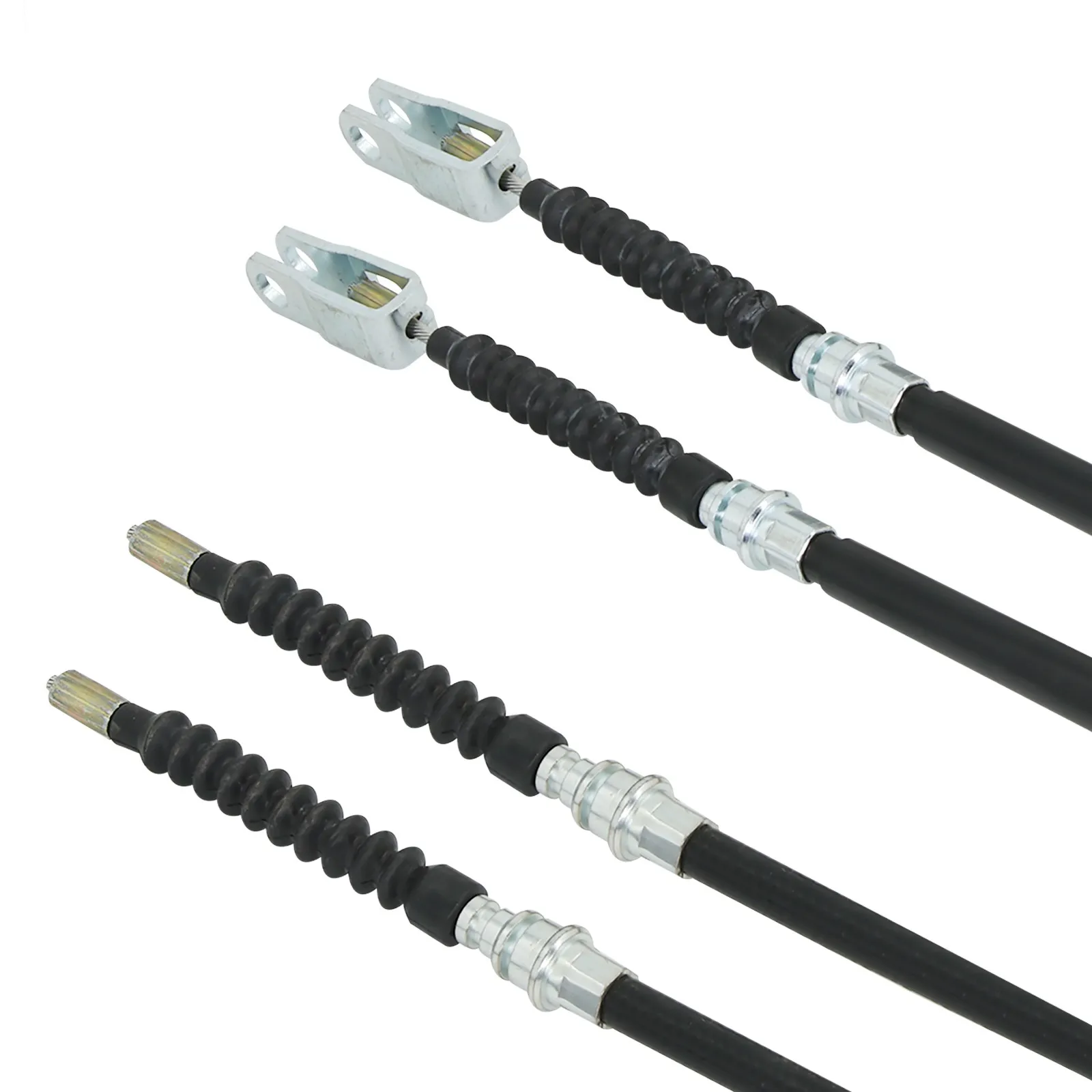

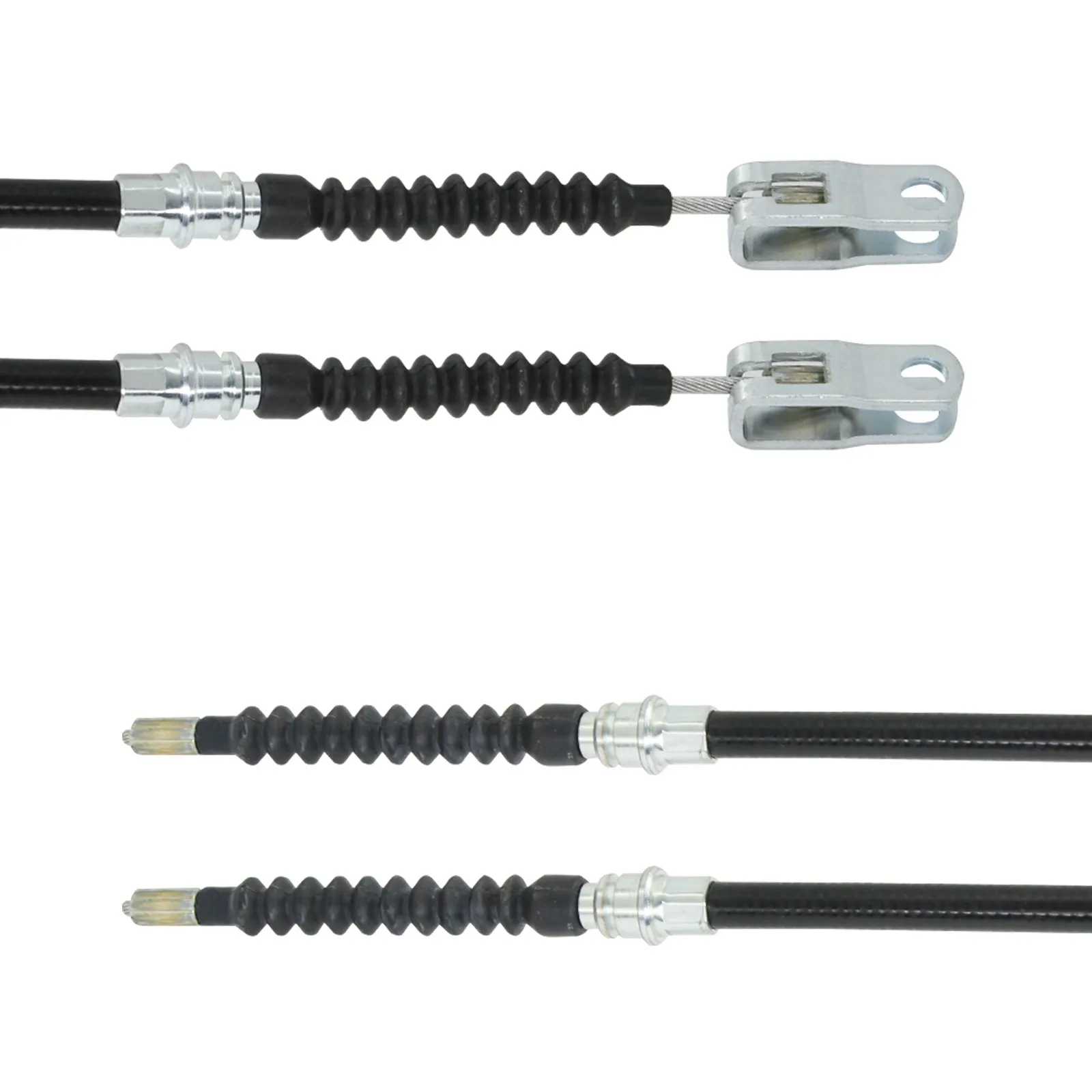

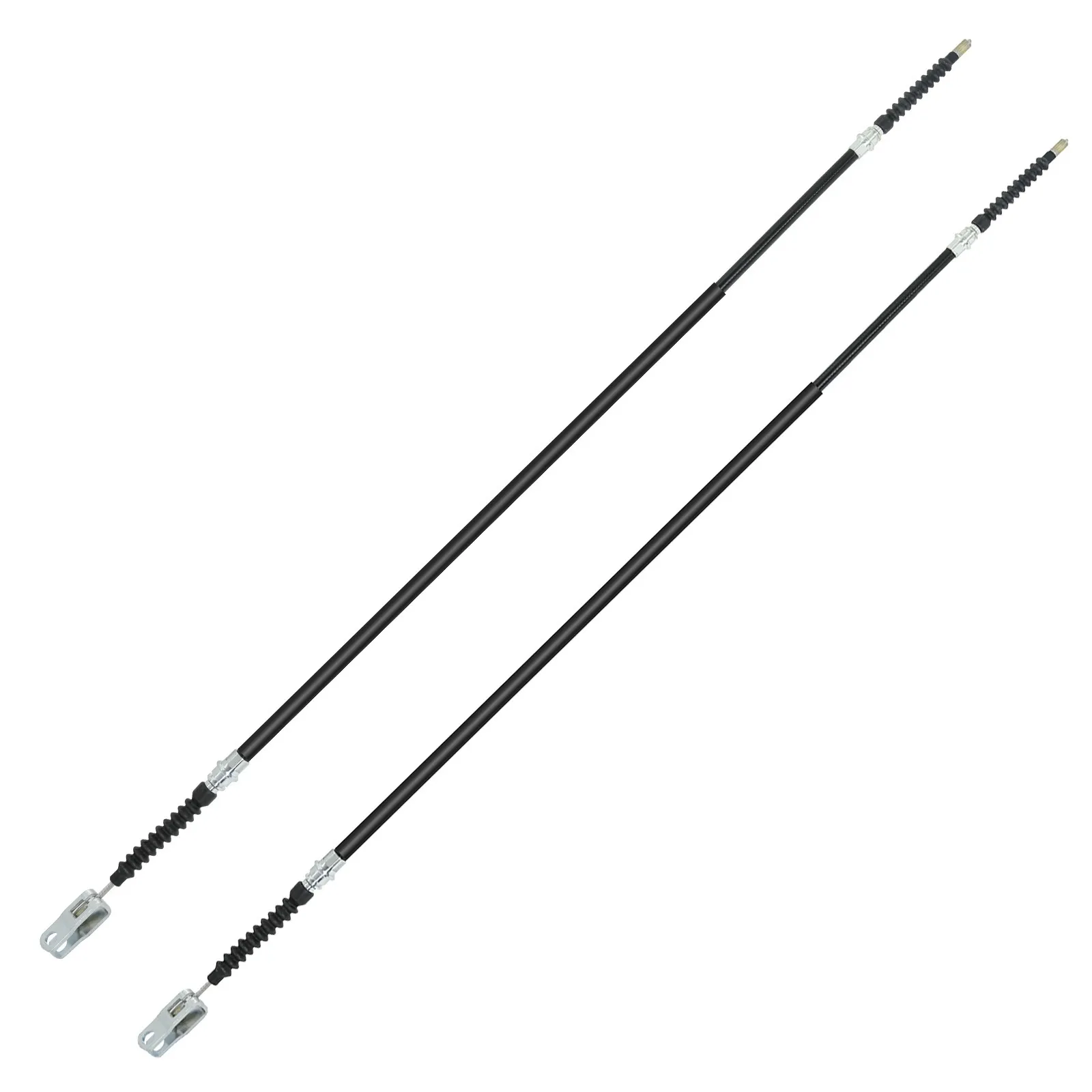

• 1 x driver side brake cable
• 1 x passenger side brake cable

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
