Club Car DS Delta A-Plate Assembly — Replaces OEM 1016353

Description

Club Car DS Delta A-Plate Assembly — Replaces OEM 1016353

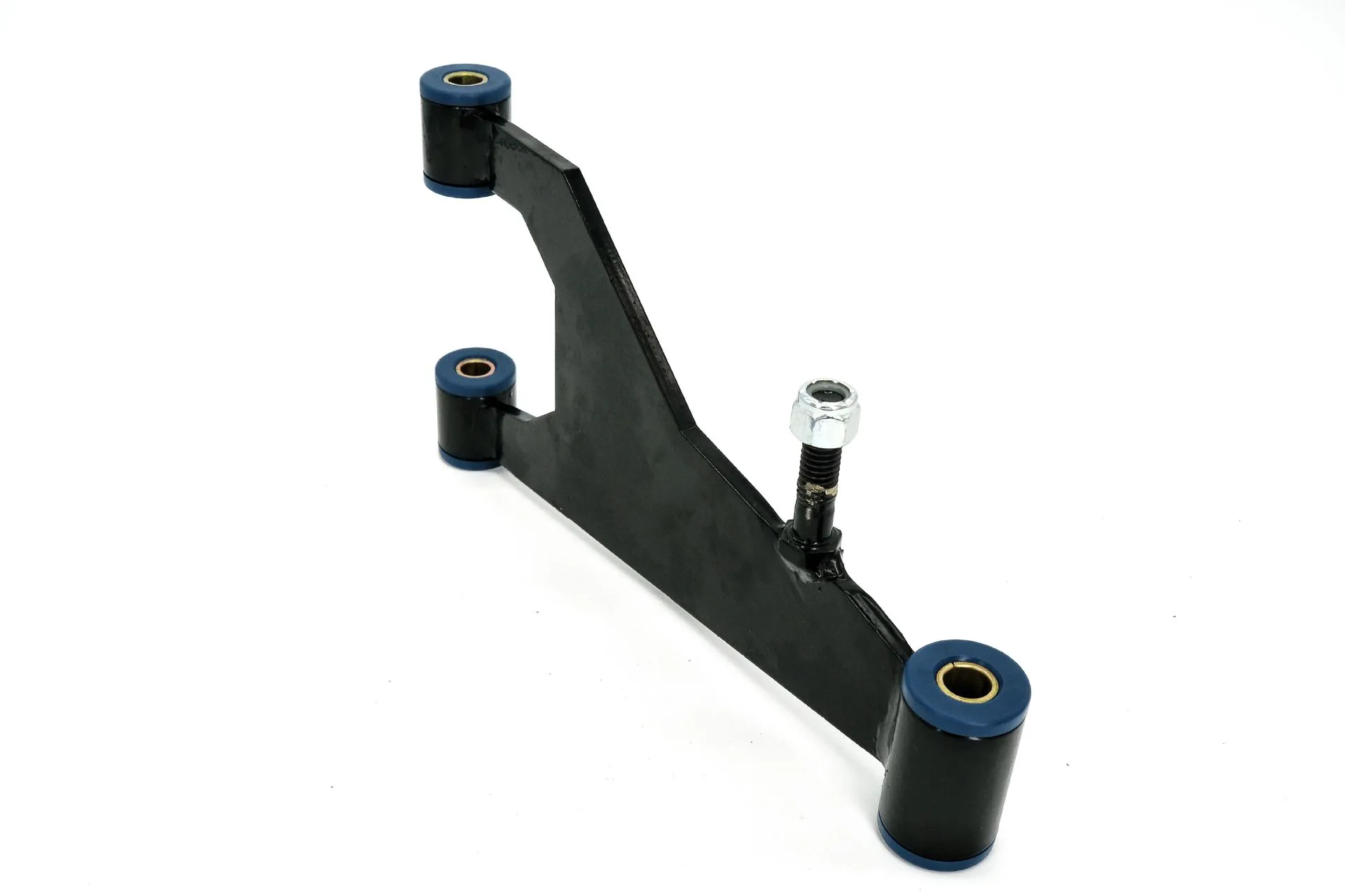

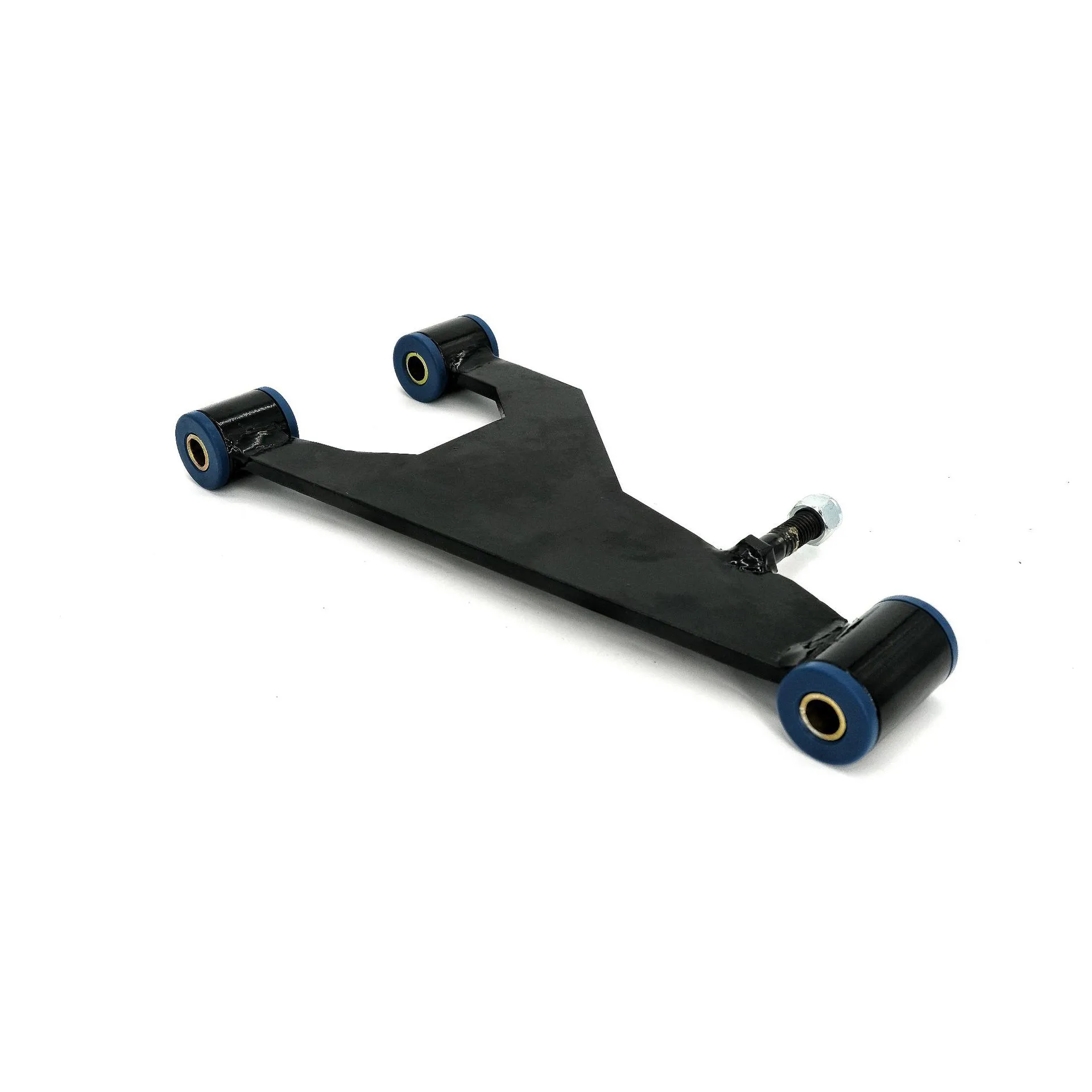

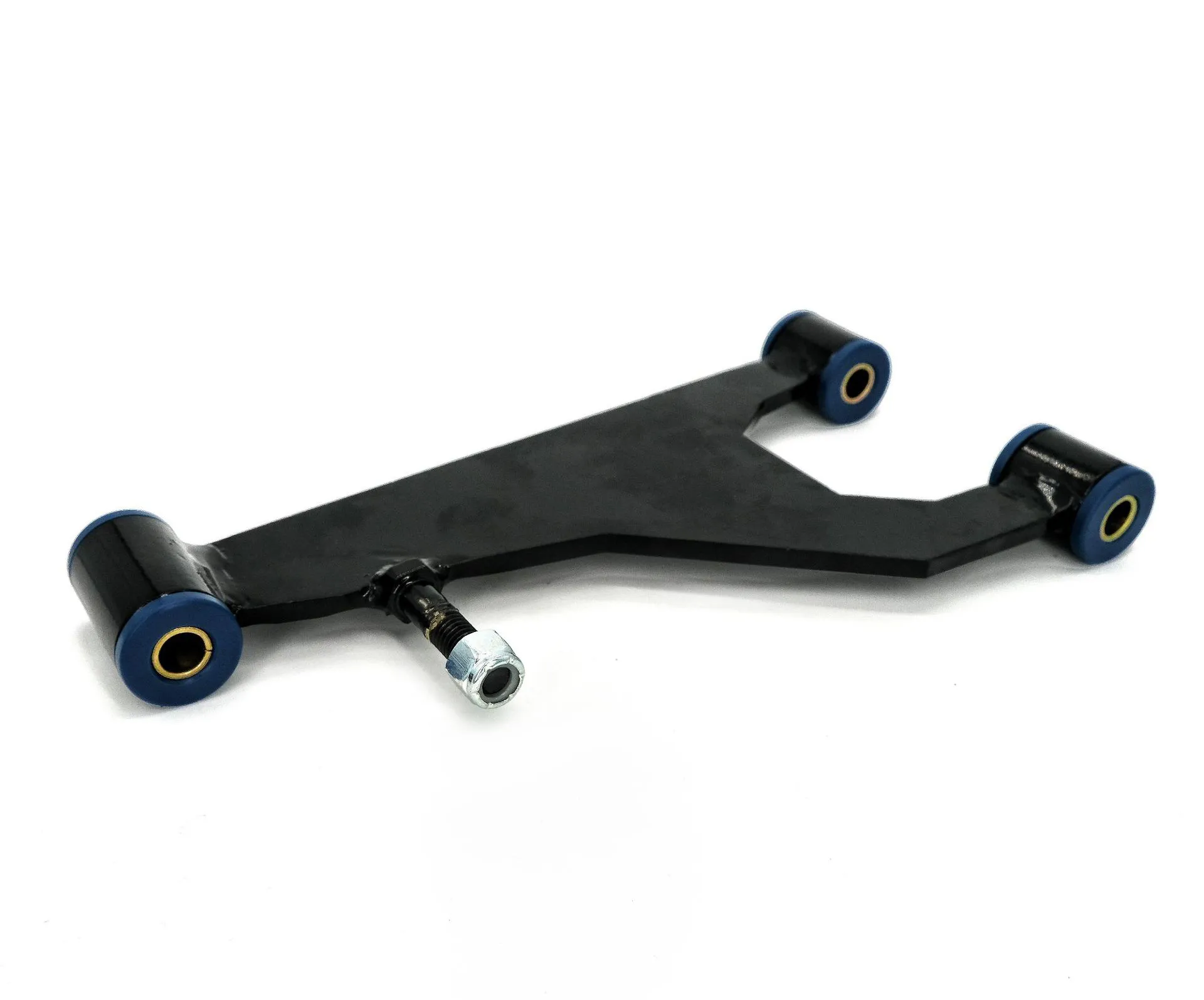

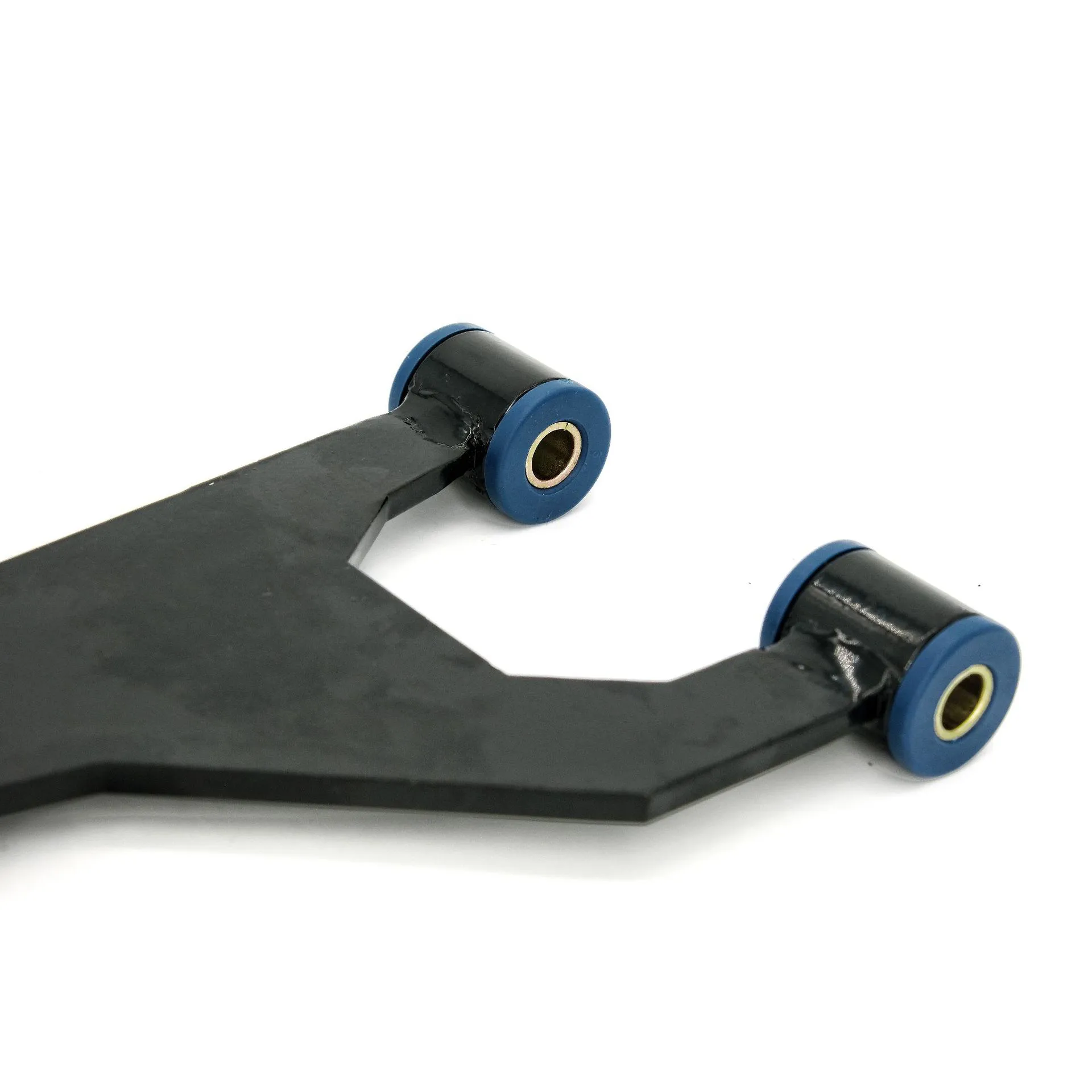

This aftermarket replacement delta A-plate is the plate-style arm in the upper front suspension of Club Car DS-style carts, one on each side. It replaces Club Car OEM 1016353, which Club Car parts manuals list as "ASSEMBLY, DELTA A-PLATE", two per cart. Replace it if the plate is bent after hitting a curb, the mounting points are worn or cracked, or the front end clunks and the steering pulls or wanders.

Will it fit my cart?

• Club Car DS gas and electric (1994–2011)
• Club Car Carryall (1995–2014)
• Club Car Villager (1995–2018)
• Not for Club Car Precedent, Tempo or Onward (different front suspension), EZGO or Yamaha carts
• Not sure? Compare the part number on your old A-plate, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 1016353
• Position: upper front suspension, left or right (same part both sides)

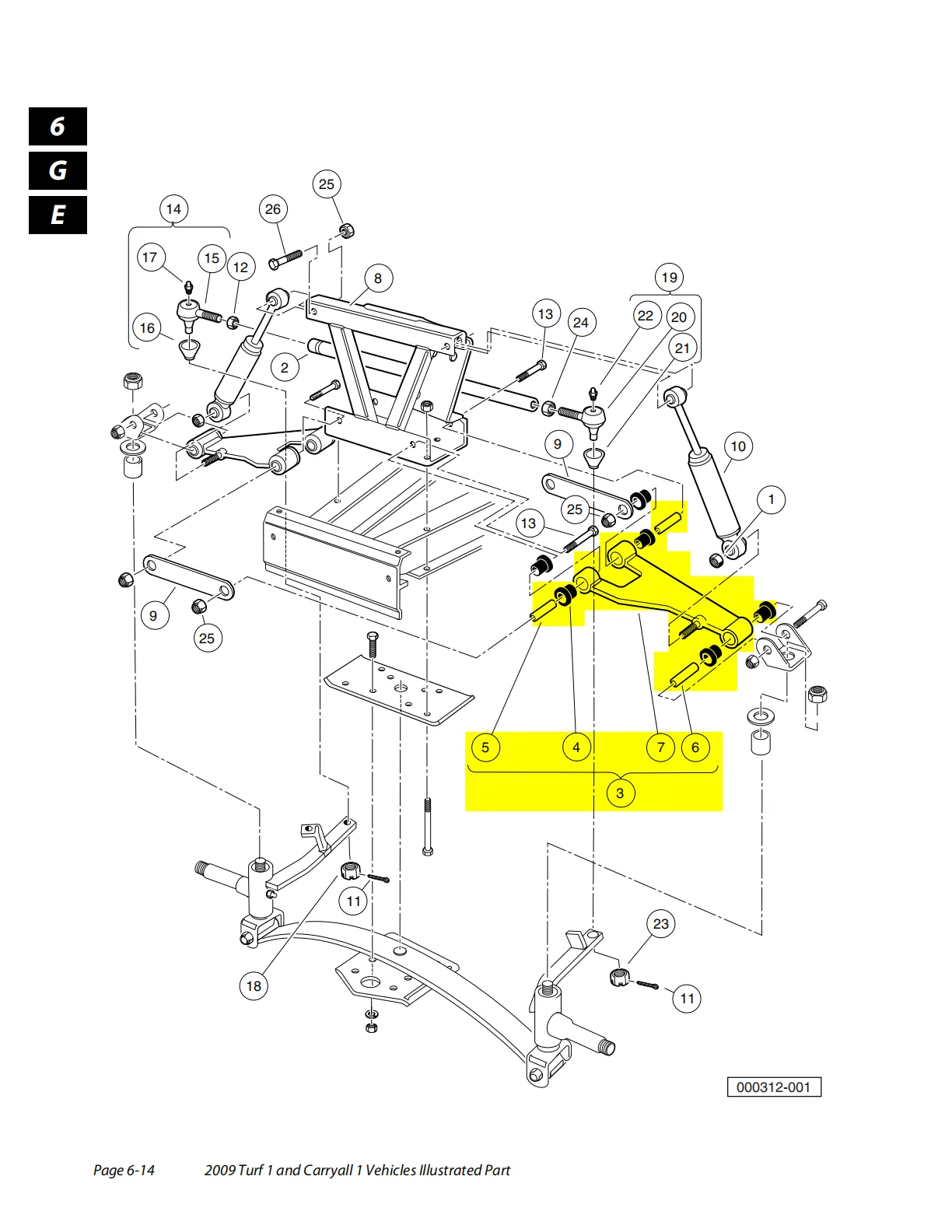

• Quantity per cart: 2 (per Club Car parts lists)
• Package: 1 piece, 12.71 x 6.54 x 2.28 inches, 1.06 kg (2.34 lb)

Installation — difficulty: advanced (about 1–2 hours per side)

1. On electric carts, put the Tow/Run switch in TOW and disconnect the main negative battery cable; on gas carts, remove the key and disconnect the battery negative cable.
2. Lift the front, support it on jack stands and remove the wheel.
3. Note the order of bolts, washers and bushings, then unbolt the old A-plate.
4. Fit the new A-plate with the hardware in the same order and tighten to your service manual’s values.
5. Refit the wheel, reconnect the battery and have the alignment checked.
6. If you’re not comfortable doing this yourself, a golf cart mechanic can do it.

What’s in the Box

• 1 delta A-plate assembly (one side — order 2 to do both sides)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
