EZGO TXT PDS Golf Cart Accelerator Pedal Box Assembly 73333-G05 Fit for Model 2000-up

Description

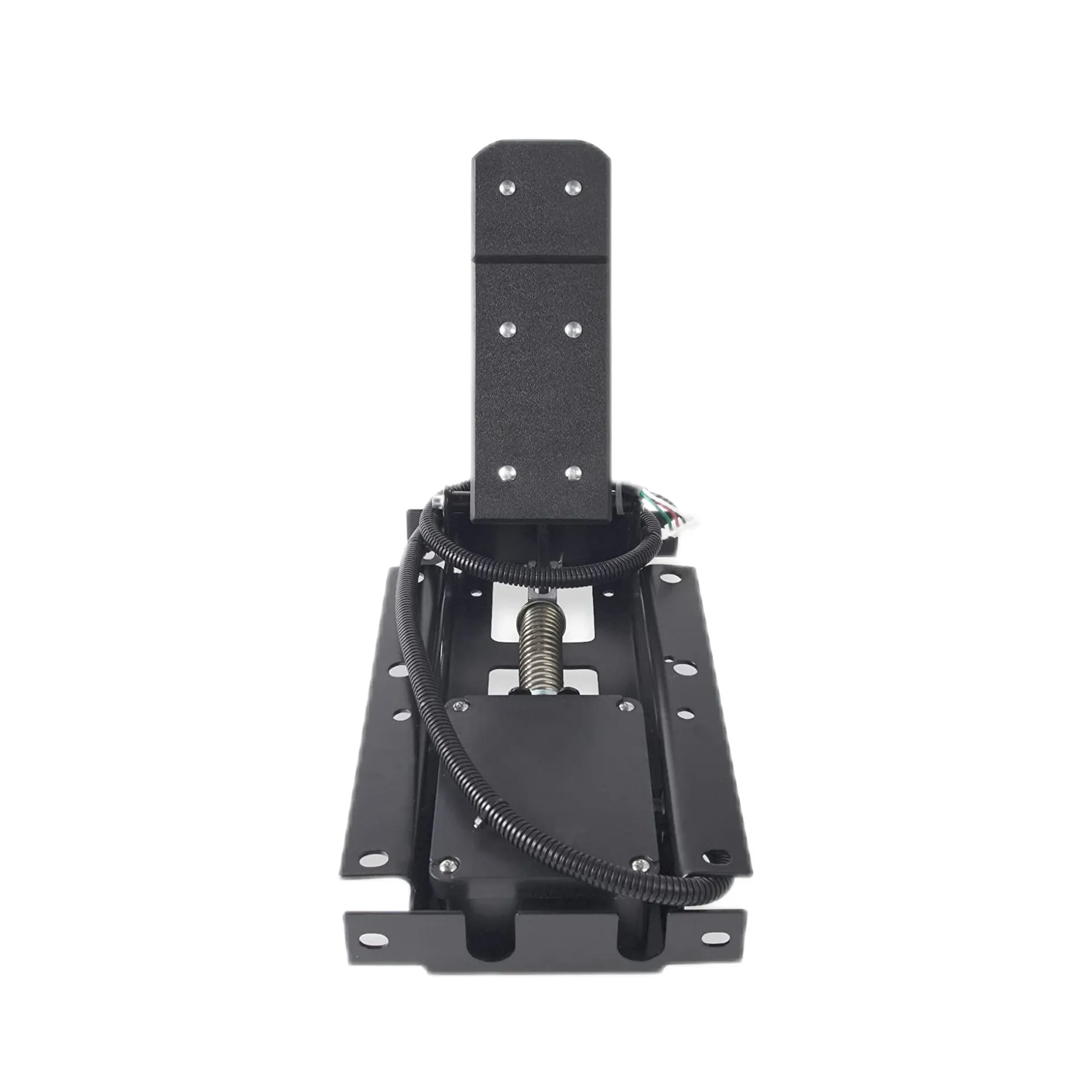

Accelerator Pedal Box Assembly for EZGO TXT PDS — Replaces OEM 73333-G05

This aftermarket replacement accelerator pedal box assembly is for EZGO TXT electric carts with the PDS (Precision Drive System). It is listed as replacing EZGO OEM 73333-G05 and includes the pedal, housing, return spring and throttle sensor. Replace it when acceleration is jerky or the cart will not move, the pedal sticks, or the throttle sensor fails.

Will it fit my cart?

• EZGO TXT electric with the PDS system (per our listing)
• Not for DCS-system or gas carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old pedal box, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 73333-G05
• System: PDS (Precision Drive System)
• Includes: pedal, housing, return spring and throttle sensor
• Package: 1 set, 15.63 x 13.03 x 7.83 inches, 4.5 kg (9.9 lb)

Installation — difficulty: moderate (about 30–45 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Unplug the wiring connector from the old pedal box.
3. Unbolt the old pedal box from the floor and lift it out.
4. Fit the new pedal box in the same place with the original bolts and plug in the connector.
5. Reconnect the battery, set the switch to RUN and test the pedal at low speed before driving.

What’s in the Box

• 1 x accelerator pedal box assembly with throttle sensor

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
