Front Wheel Hub Assembly for EZGO TXT & Medalist — Replaces OEM 70895G01

Description

Front Wheel Hub Assembly for EZGO TXT & Medalist — Replaces OEM 70895G01

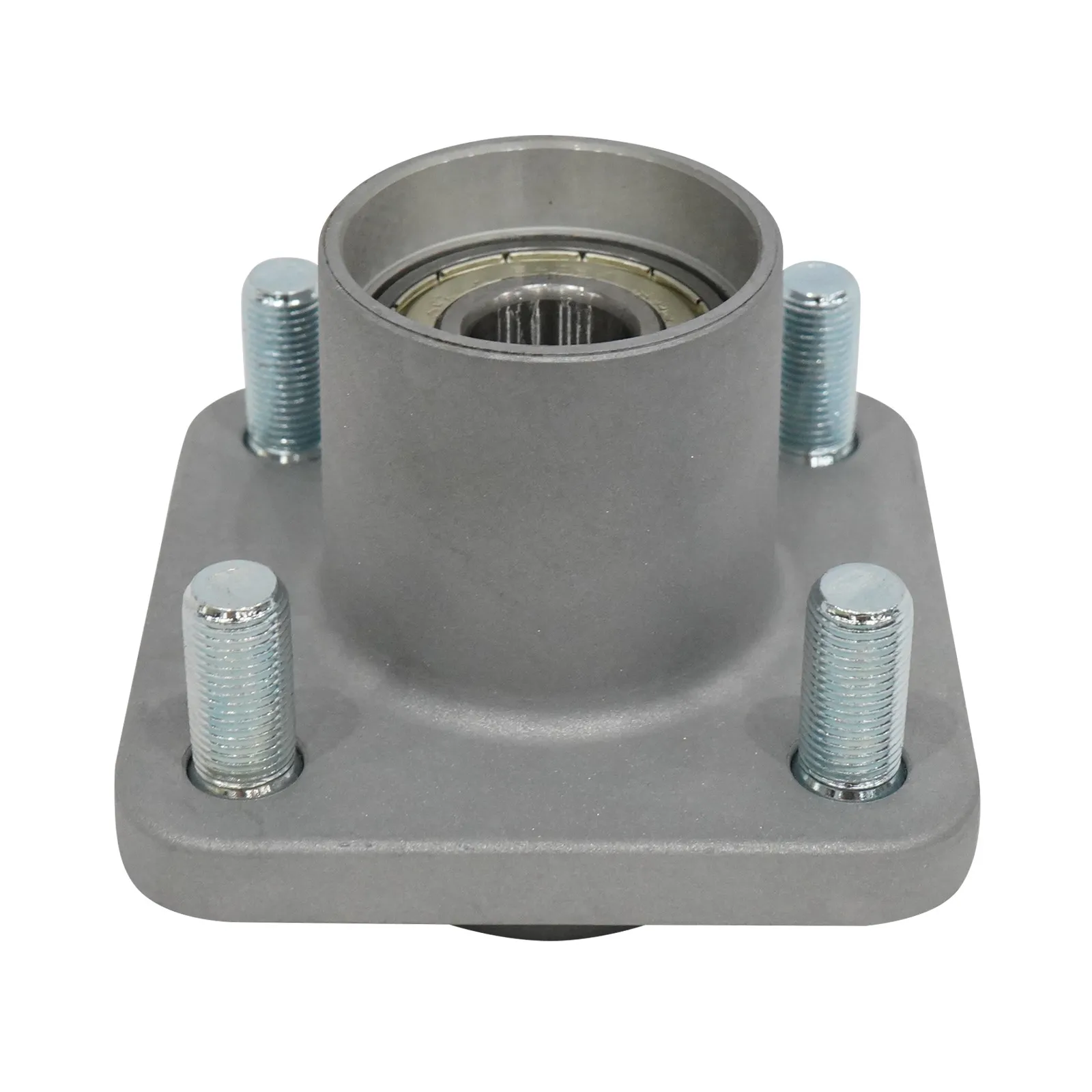

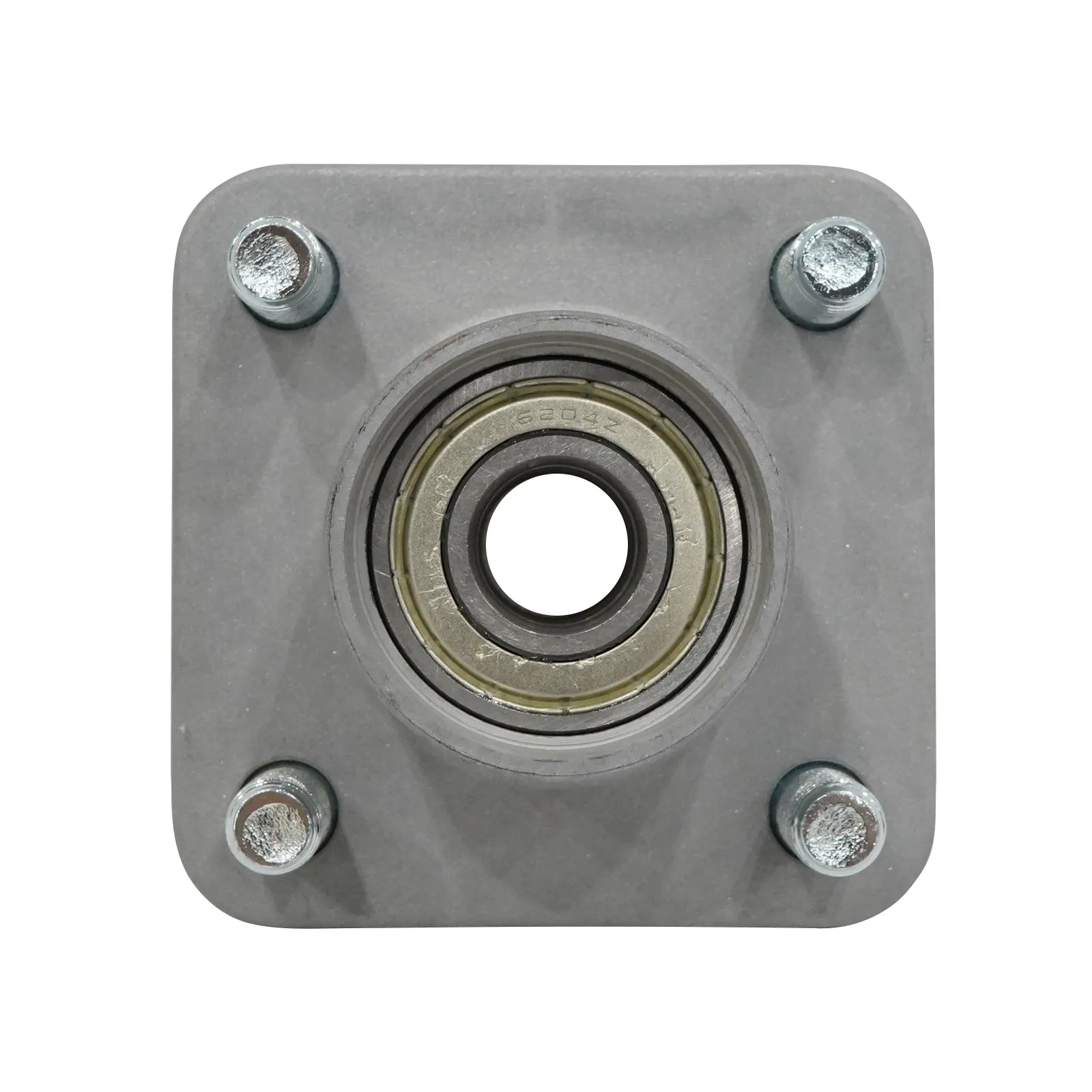

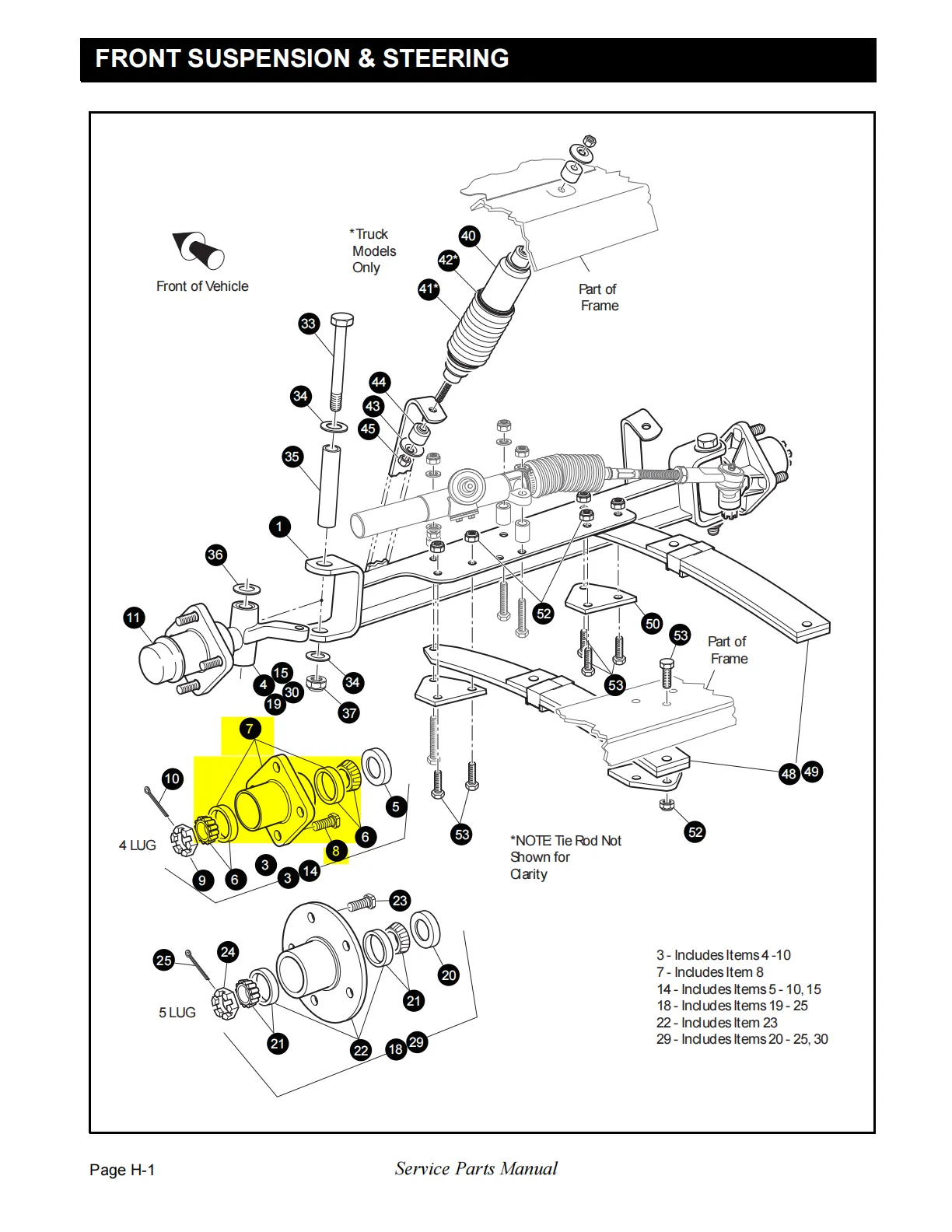

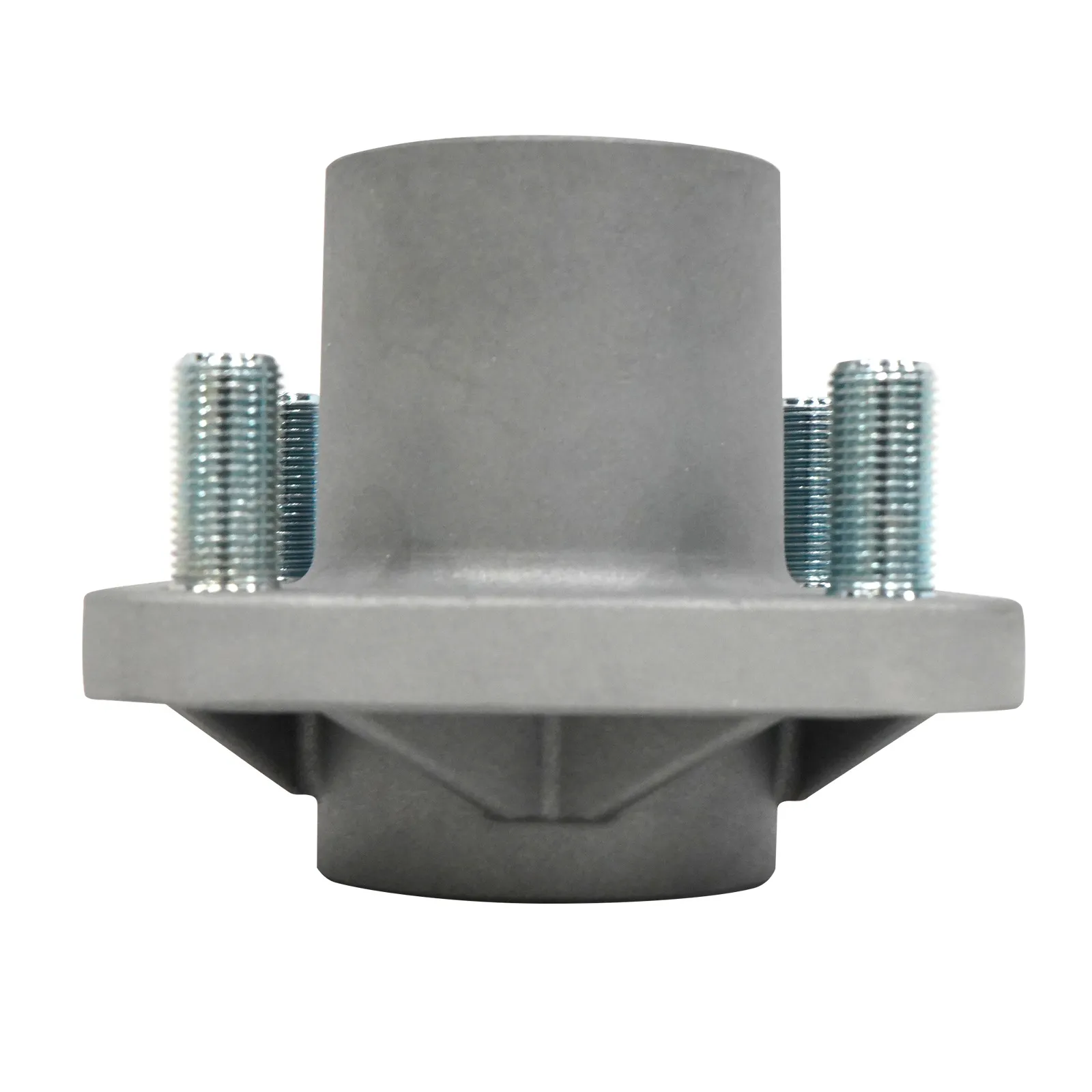

This is an aftermarket replacement front wheel hub assembly for EZGO TXT golf carts, matching EZGO OEM 70895G01, listed in EZGO parts manuals as "WHEEL HUB ASSEMBLY WITH RACES, 4 LUG". The front wheel bolts to the hub, which turns on bearings on the spindle. Replace it if the wheel wobbles or has play, the bearing races are pitted, or a stud hole is damaged.

Will it fit my cart?

• EZGO TXT, including PDS (2003–2013)
• EZGO Medalist: not confirmed in our parts manuals, so compare with your old hub first
• Not for EZGO RXV, Club Car or Yamaha carts
• Not sure? Compare the part number on your old hub, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 70895G01; also referenced: L44643
• Lug pattern: 4 lug
• Position: front, left or right (sold individually; order 2 to do both sides)
• Package: 1 piece, 9.4 x 4.6 x 4.2 inches, 1 kg (2.2 lb)

Installation — difficulty: moderate (about 45–60 minutes per side)

1. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable. Gas carts: remove the key and disconnect the battery negative cable.
2. Lift the front of the cart, support it on jack stands and remove the wheel.
3. Remove the dust cap, cotter pin and spindle nut, then slide the old hub off the spindle.
4. Fit the new hub with clean, greased bearings and seal, then refit and adjust the nut as described in your service manual, with a new cotter pin.
5. Refit the dust cap and wheel, lower the cart and spin the wheel to check it turns smoothly without play.

What’s in the Box

• 1 x front wheel hub assembly (4 lug)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
