EZGO RXV Golf Carts Resistor Control Assembly Replace OEM 608148

Description

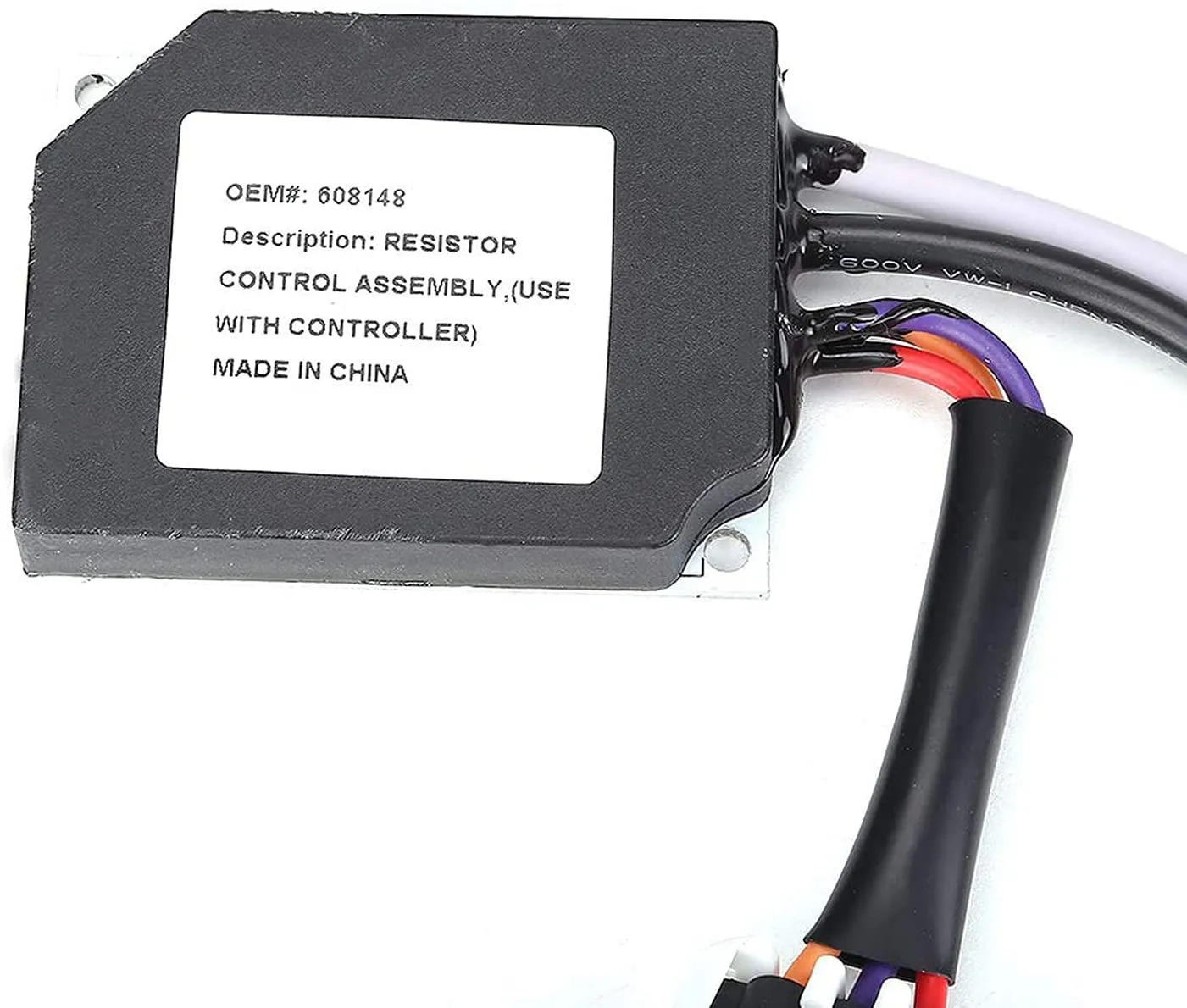

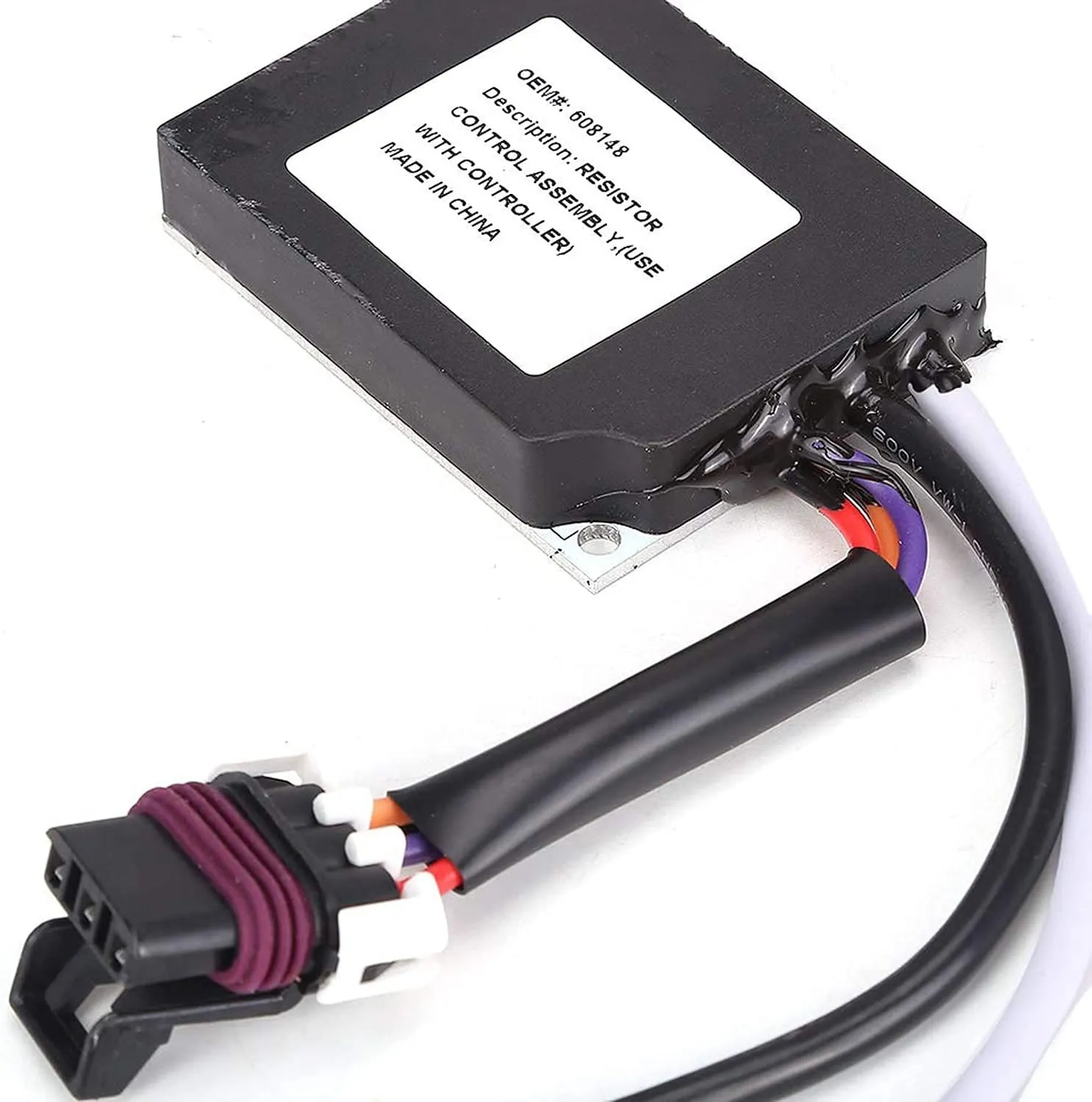

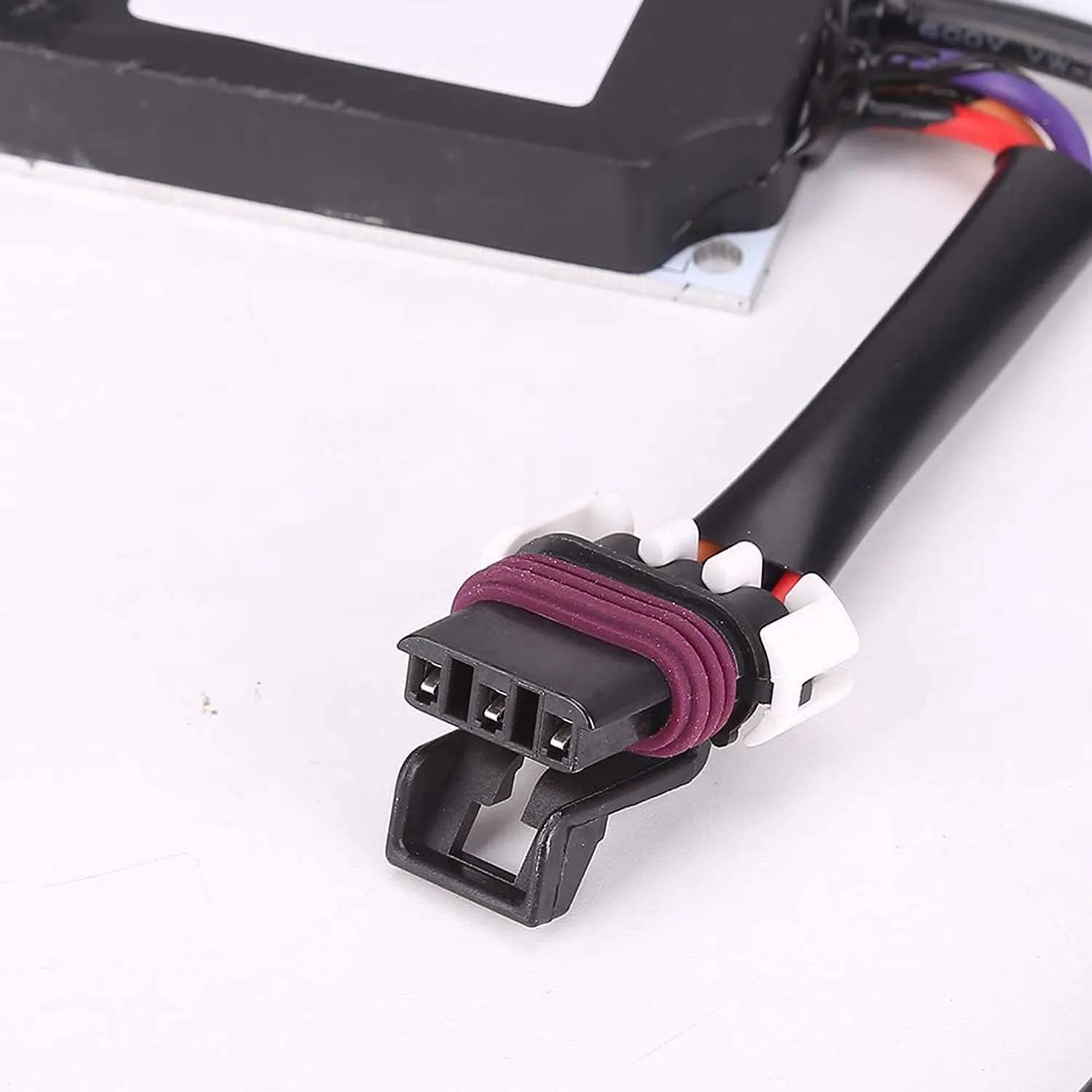

Resistor Control Assembly for EZGO RXV Electric — Replaces OEM 608148

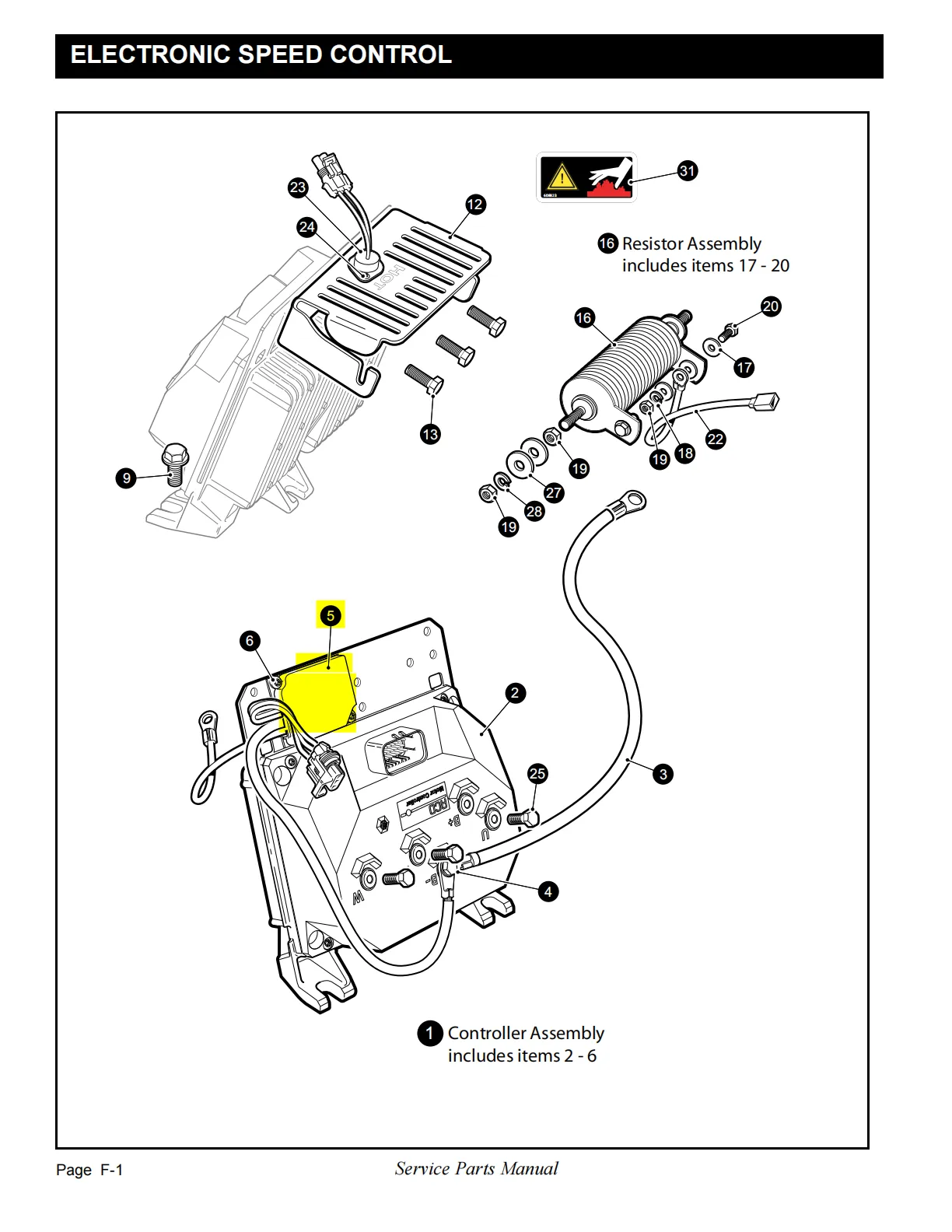

This is an aftermarket replacement for the EZGO RXV resistor control, OEM 608148, listed in the electronic speed control section of the RXV electric parts manual. It is part of the cart’s speed control circuit. Replace it if the old one is cracked, burnt or corroded, or if a technician has traced a speed control fault to it.

Will it fit my cart?

• EZGO RXV electric, Freedom and Shuttle 2+2 (2008–2009)
• Not for gas carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old part, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 608148 (listed as "RESISTOR CONTROL")
• System: EZGO RXV electric, electronic speed control
• Quantity per cart: 1
• Package: 1 piece, 6.57 x 5.43 x 0.63 inches; 0.15 kg (5.3 oz)

Installation — difficulty: moderate (about 30 minutes)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Find the resistor control in the speed control area and take a photo of its wiring.
3. Disconnect the wires and remove the mounting screws.
4. Fit the new part in the same position and reconnect the wires exactly as in your photo.
5. Reconnect the battery cable, set the switch back to RUN, and test drive slowly.
6. If you are not comfortable with this job, a golf cart mechanic can fit it for you.

What’s in the Box

• 1 x resistor control assembly

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
