Club Car Precedent Front Spring & A-Arm Bushing Sleeve Kit — Replaces OEM 102289901, 102956201

Description

Club Car Precedent Front Spring & A-Arm Bushing Sleeve Kit — Replaces OEM 102289901, 102956201

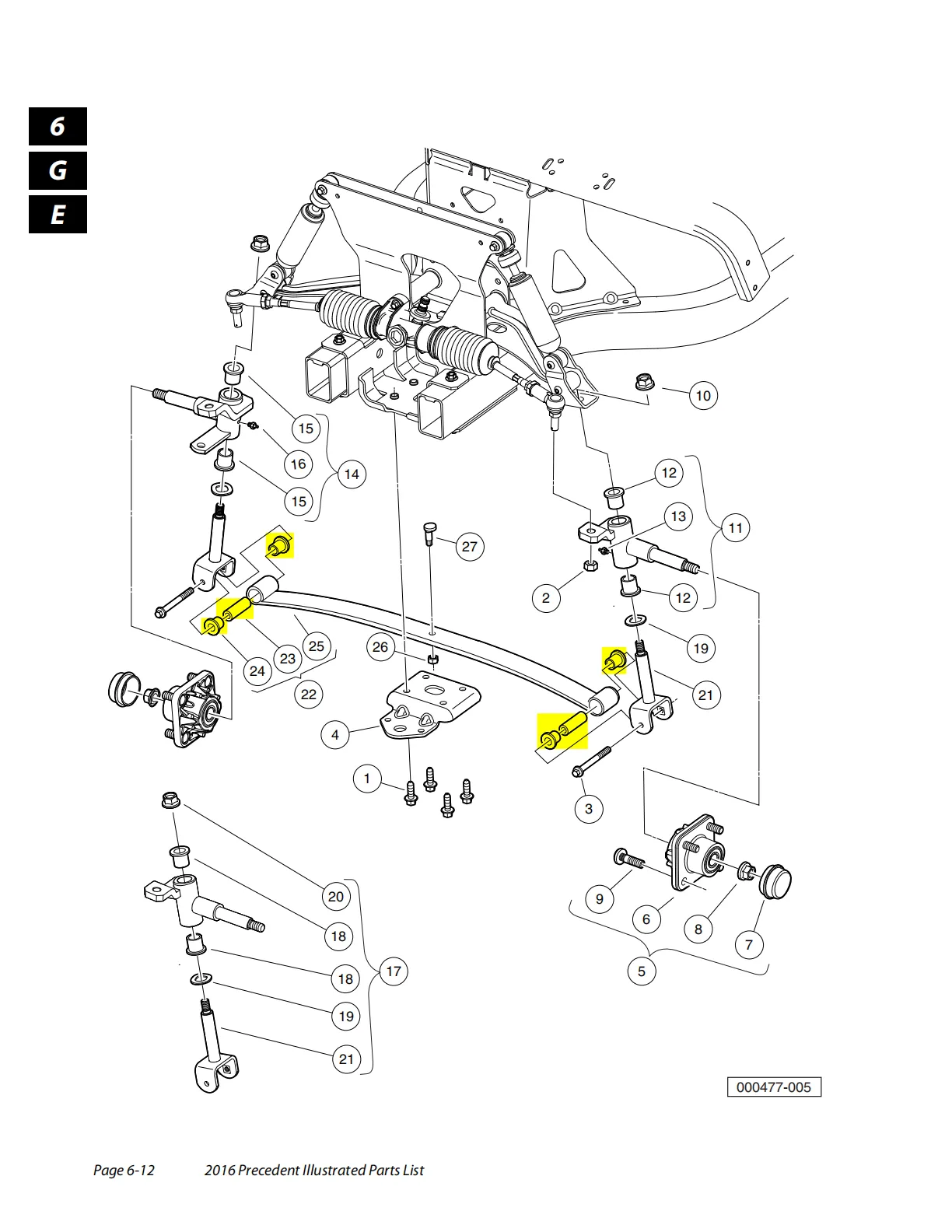

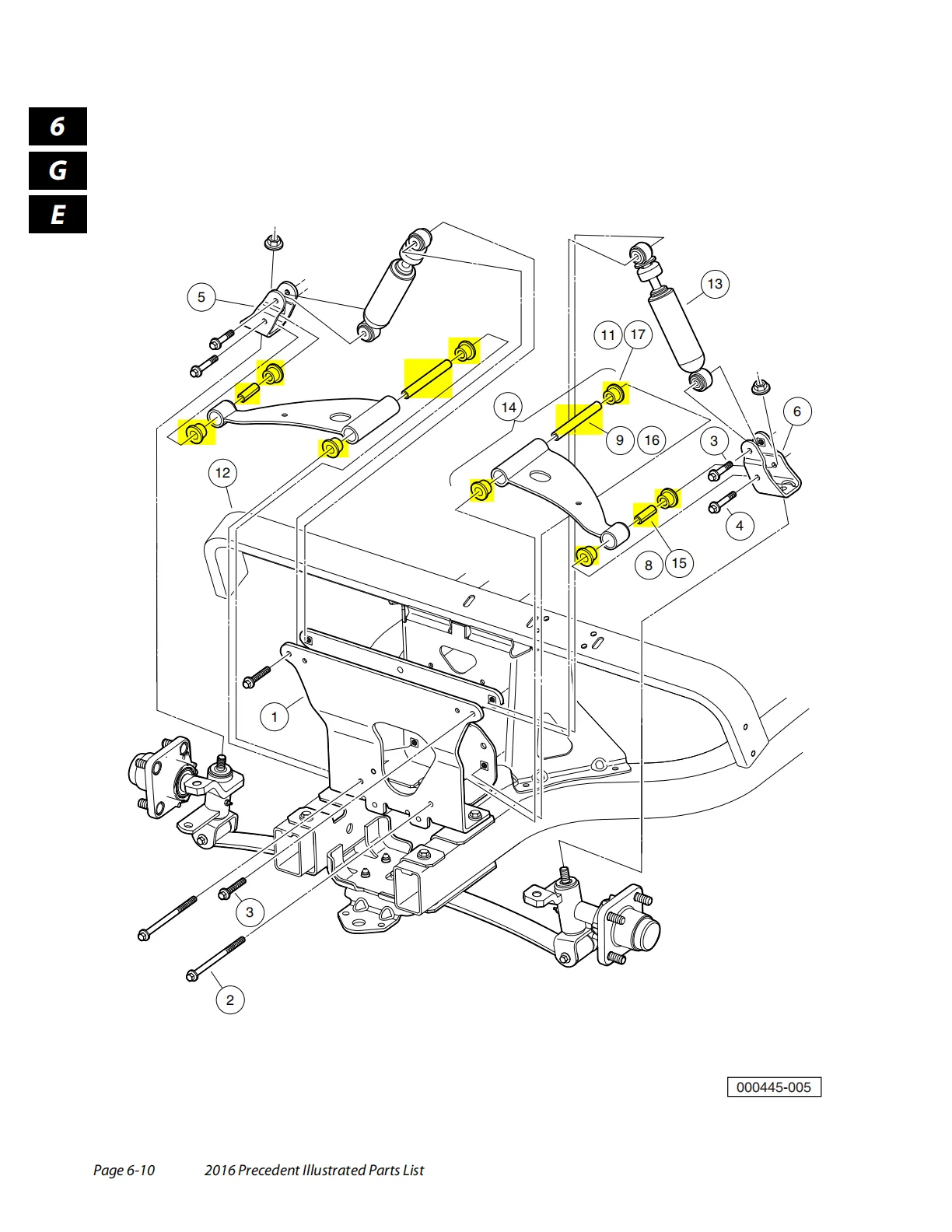

This aftermarket replacement kit renews the urethane bushings and sleeves in the front suspension of Club Car Precedent, Tempo and Onward carts. It replaces Club Car OEM 102289901 ("KIT, SUSP, BUSHING JOINTS") and 102956201 ("BUSHING, URETHANE, SHORT"), both listed in Club Car parts manuals for the front suspension. Clunks over bumps, loose or wandering steering and uneven front tire wear are the usual signs that these bushings are worn out.

Will it fit my cart?

• Club Car Precedent (2004–2023)
• Club Car Tempo (2019–2023)
• Club Car Onward (2018–2021)
• Not for Club Car DS, EZGO or Yamaha carts
• Not sure? Compare the part number on your old bushings, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 102289901, 102956201
• Position: front suspension — A-arm and front spring bushings
• Material: urethane bushings with sleeves
• Package: 1 set, 5.4 x 3.47 x 1.73 inches, 12.3 ounces (349 g)

Installation — difficulty: moderate (about 1.5–2 hours)

1. On electric carts, put the Tow/Run switch in TOW and disconnect the main negative battery cable; on gas carts, remove the key and disconnect the battery negative cable.
2. Lift the front of the cart, support it on jack stands under the frame and remove the front wheels.
3. Working one side at a time, unbolt the A-arm and spring mounts you are servicing.
4. Push out the old bushings and sleeves, clean the bores and fit the new ones.
5. Reassemble, tighten all bolts to the values in your service manual, refit the wheels and reconnect the battery.
6. Have the front alignment checked after the job.

What’s in the Box

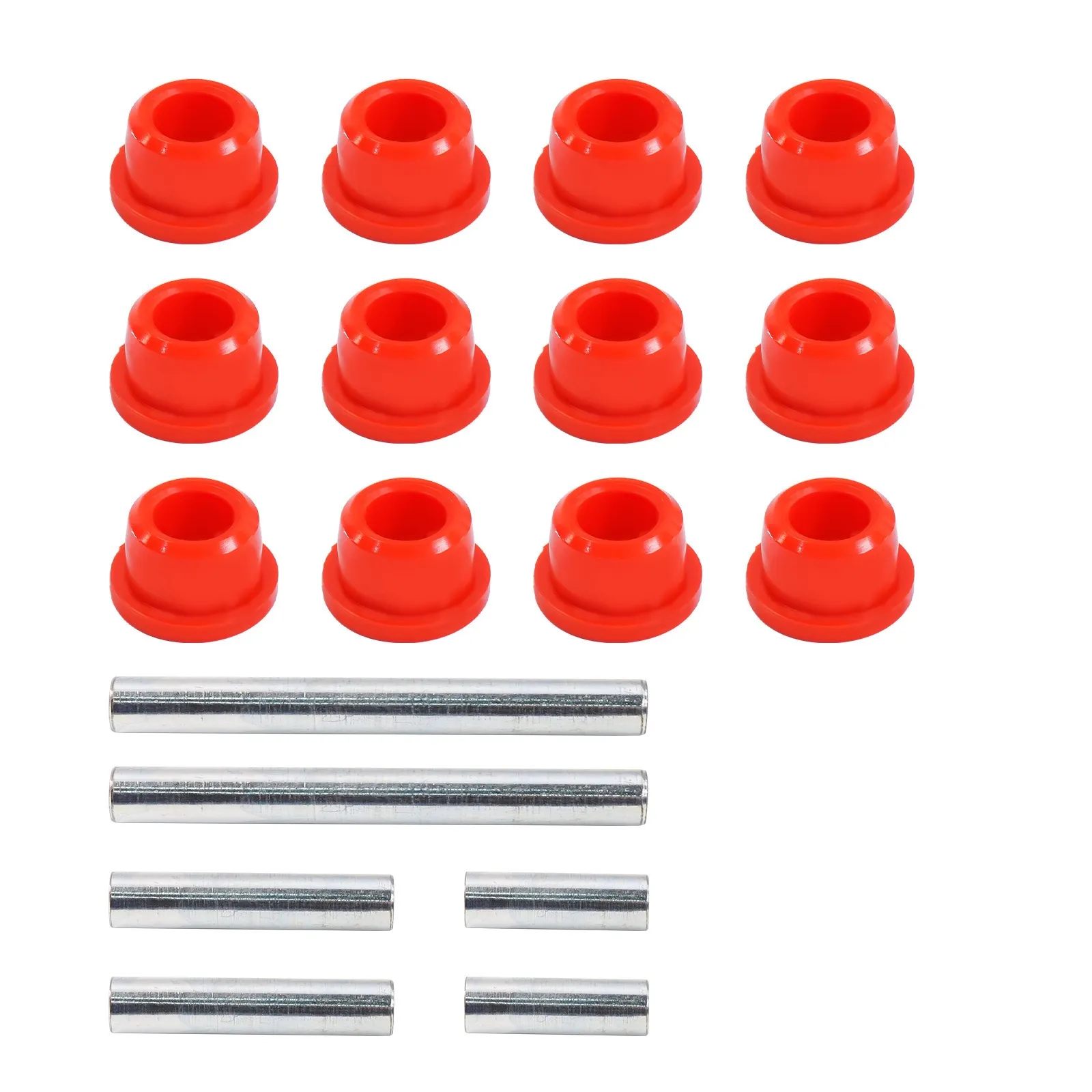

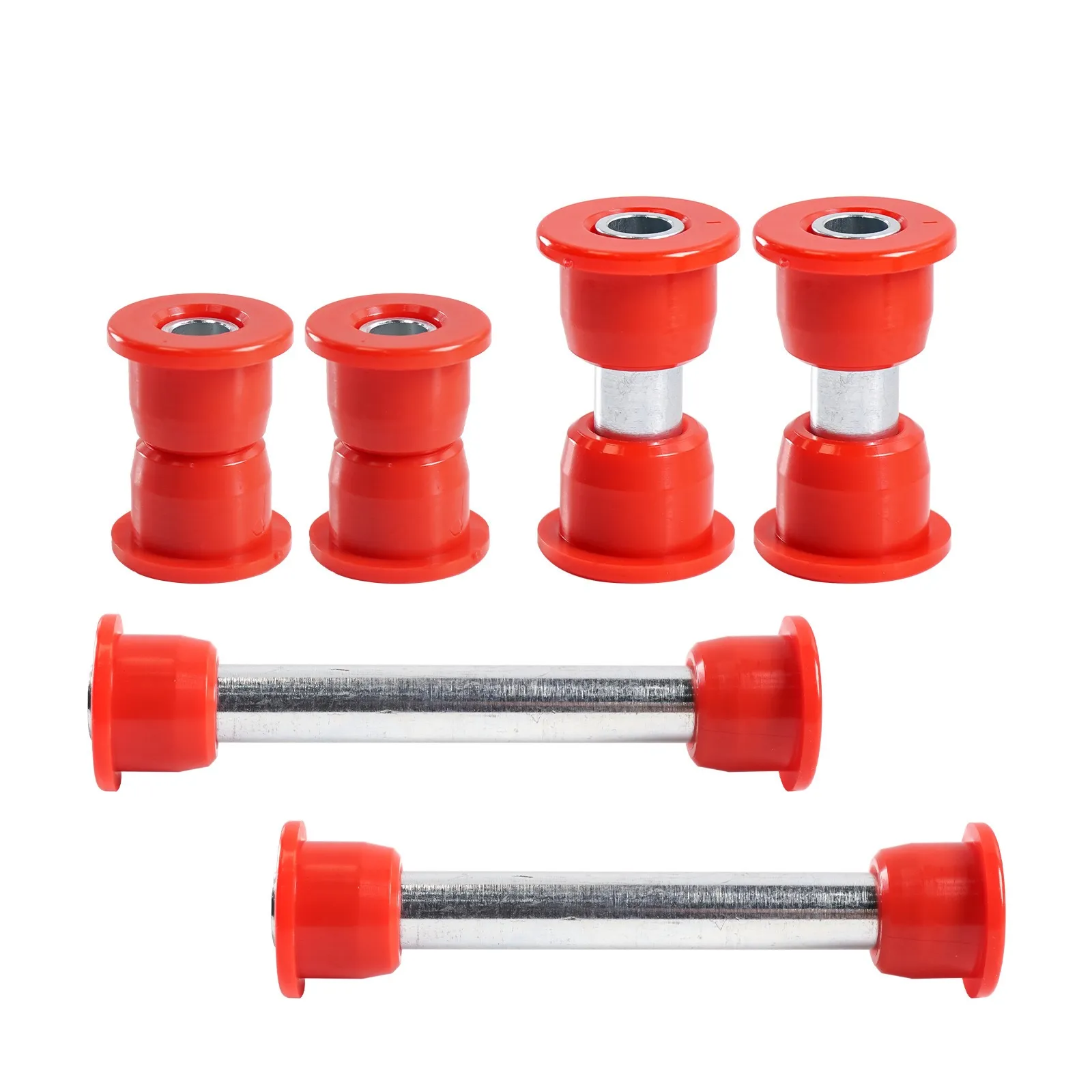

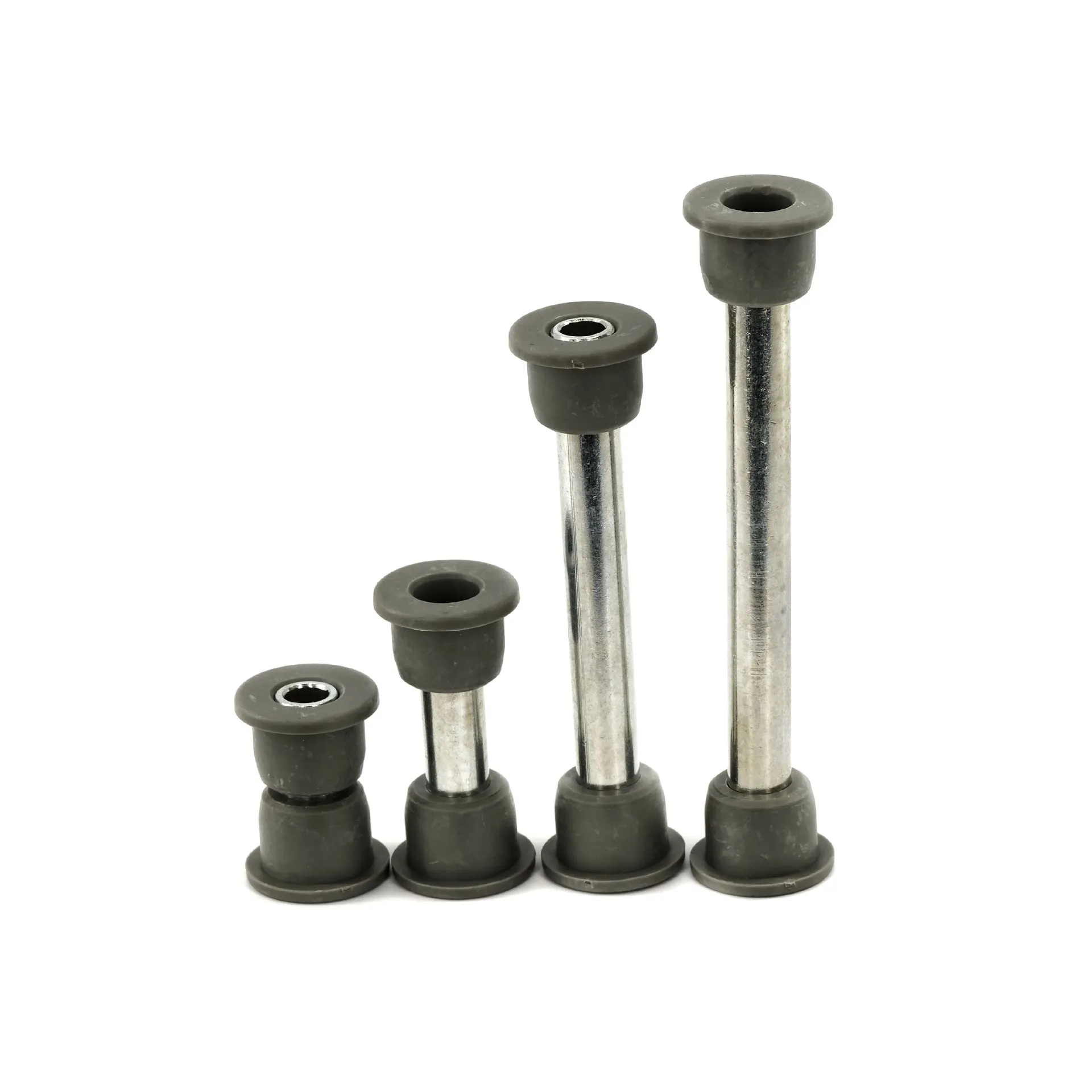

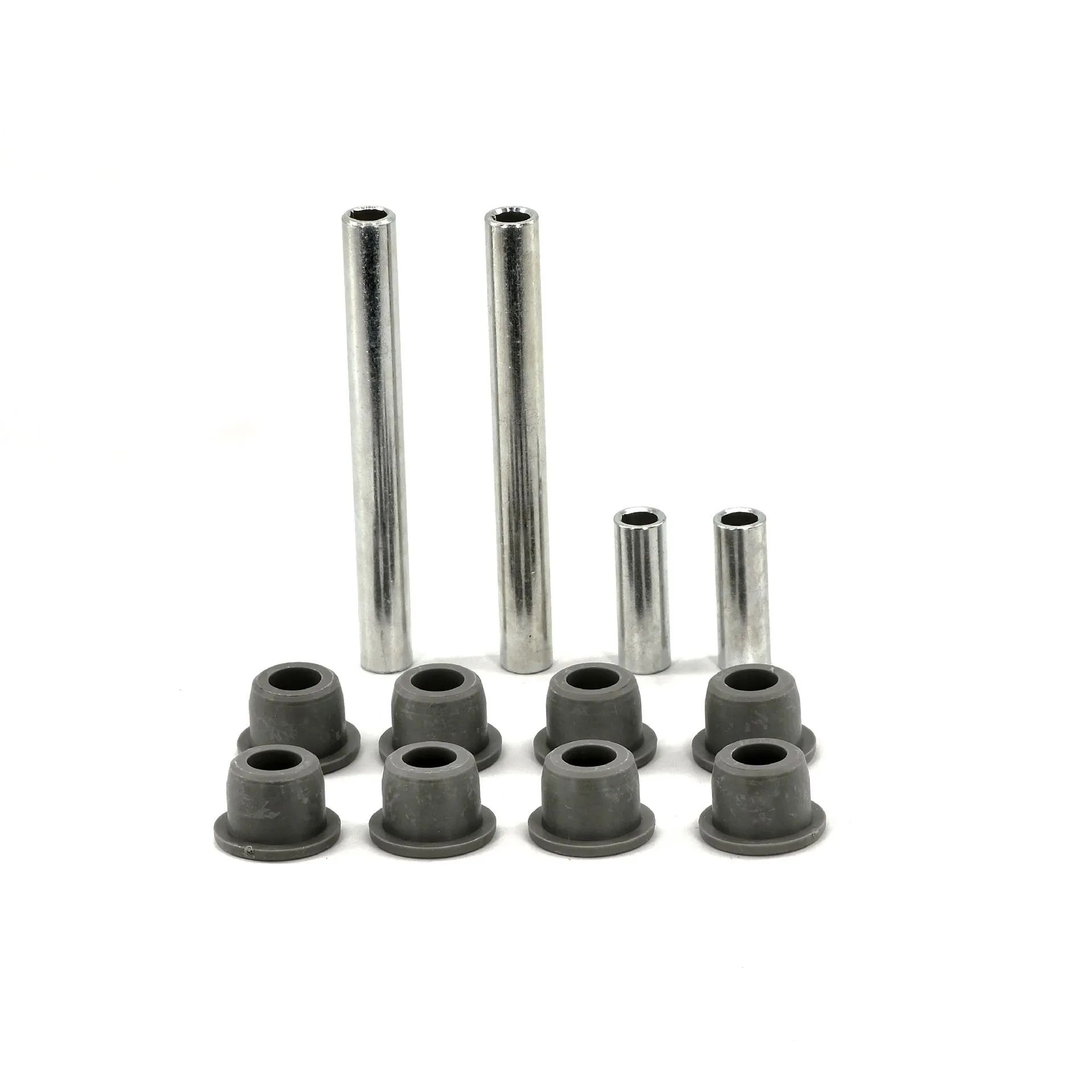

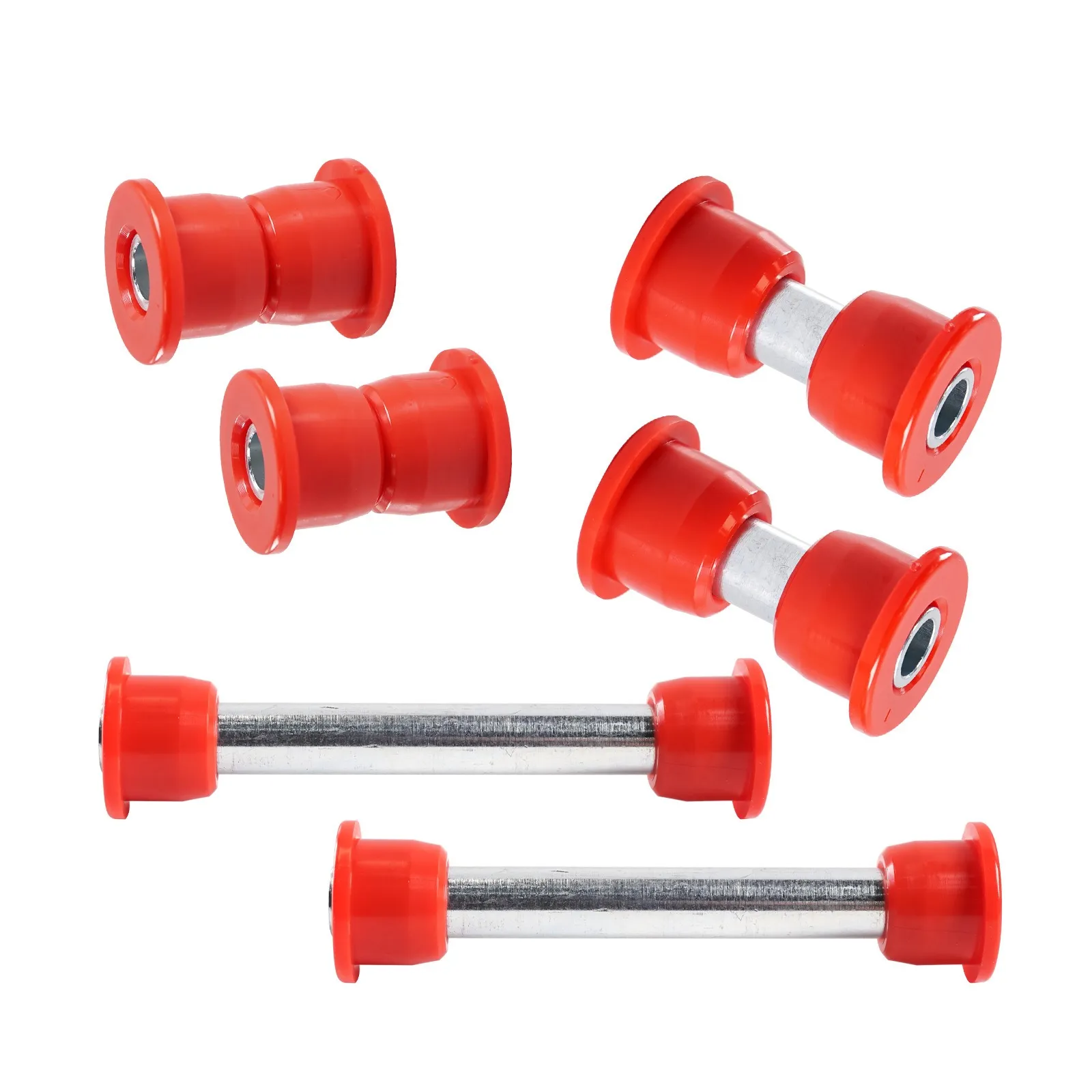

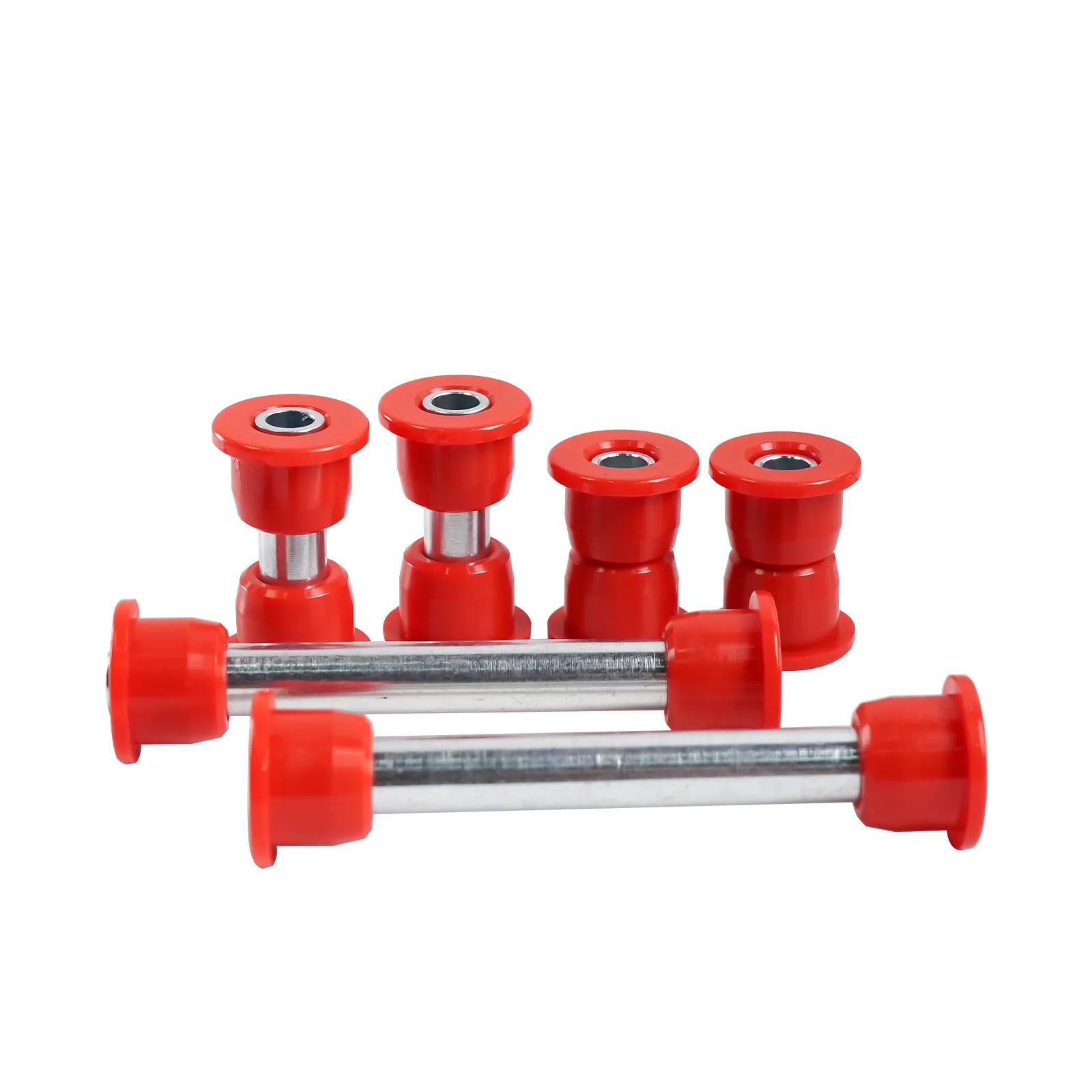

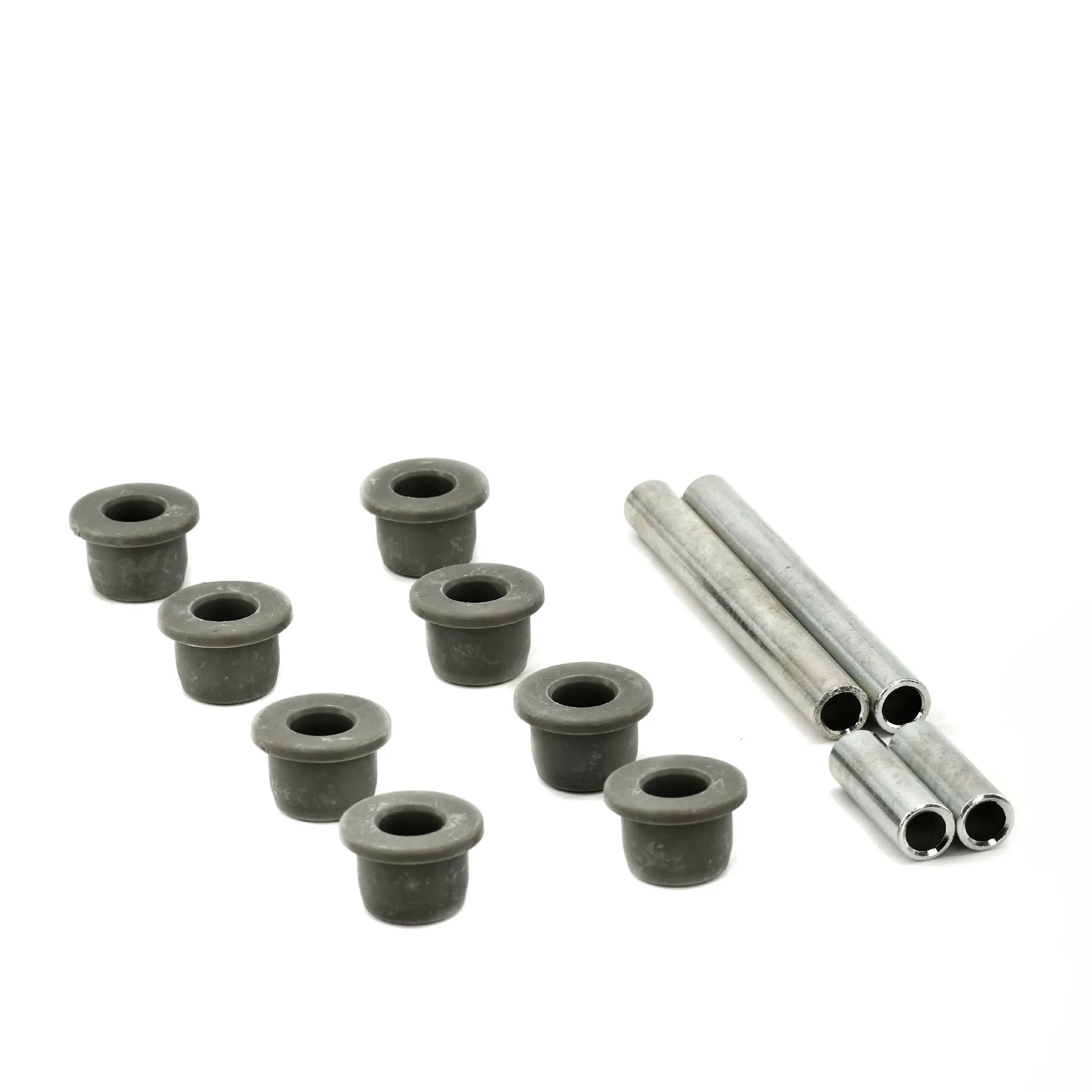

• 1 front spring & A-arm bushing and sleeve set

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
