EZGO Medalist & TXT 1206 Series Model (Year 1994 Up) Curtis Golf Cart 1206-4301 36V 350A 5-Pin Replacement OEM 25864G05 25864G09 25864g03

Description

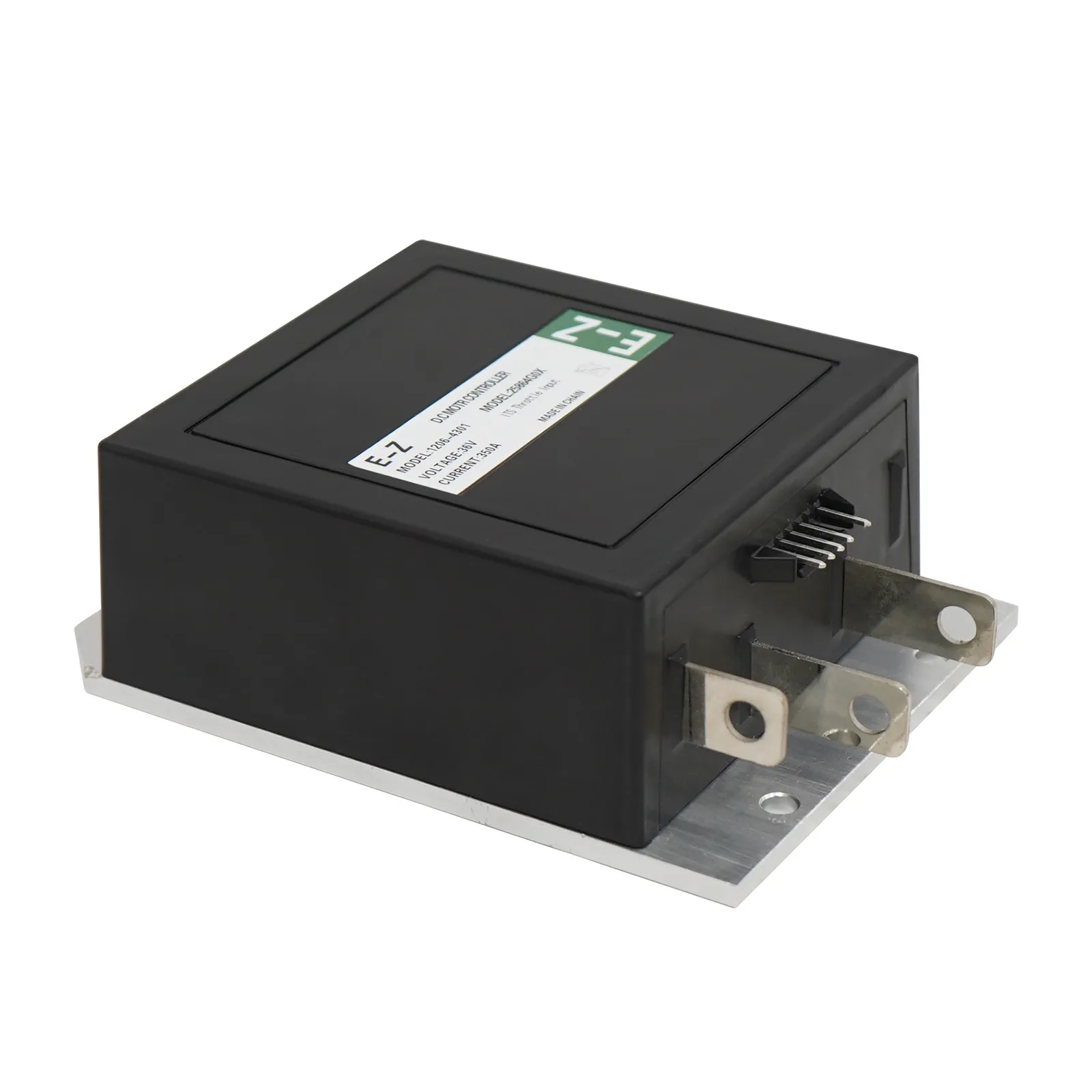

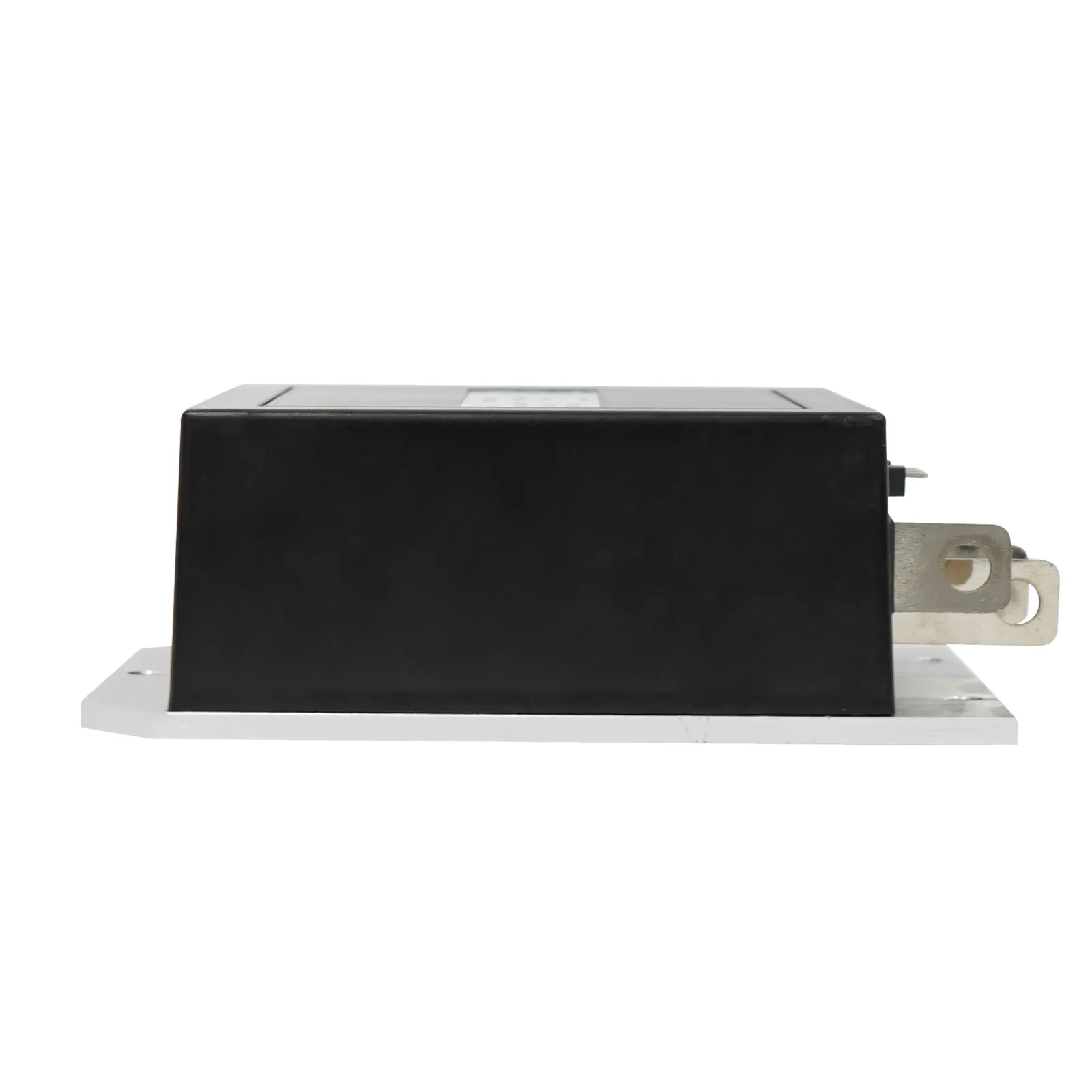

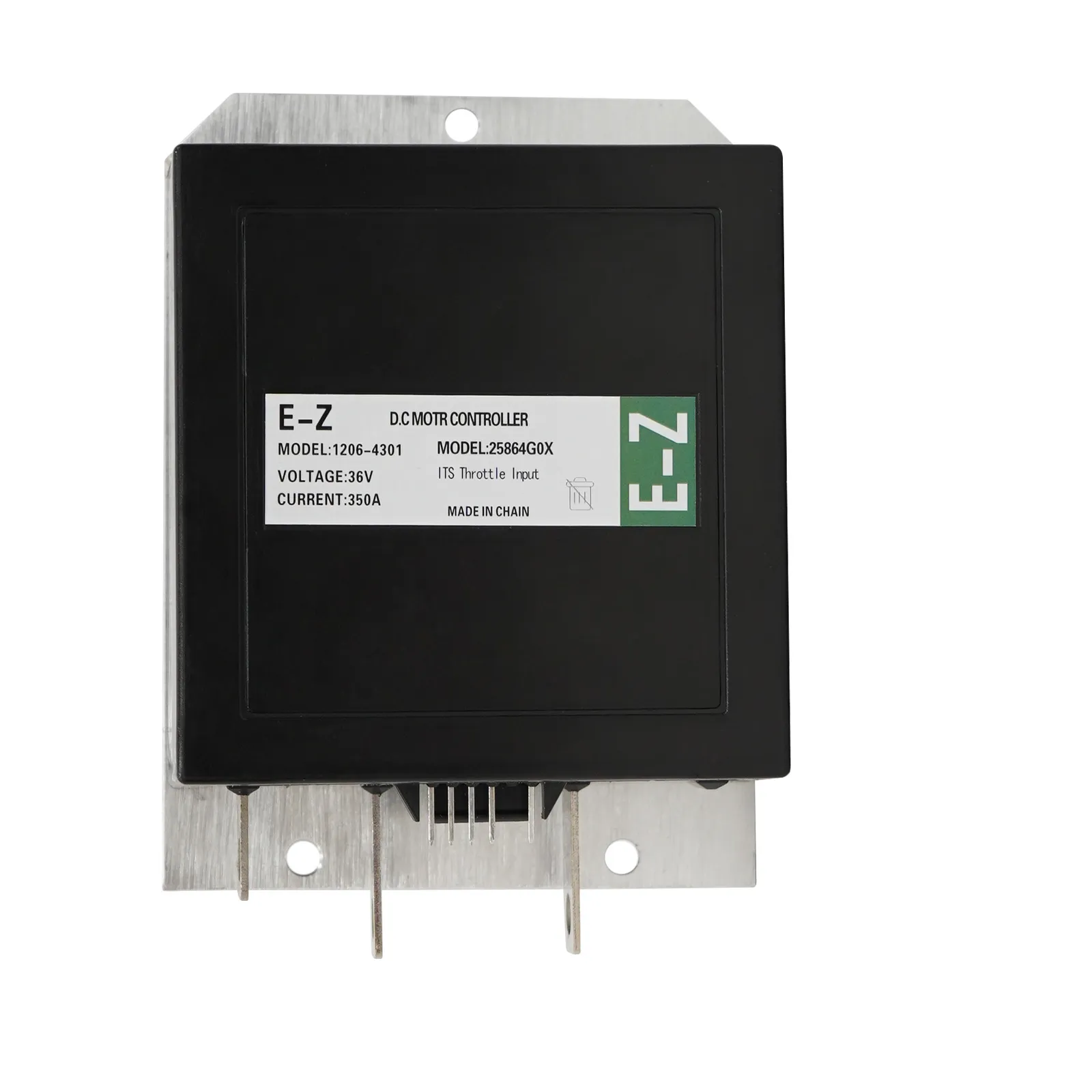

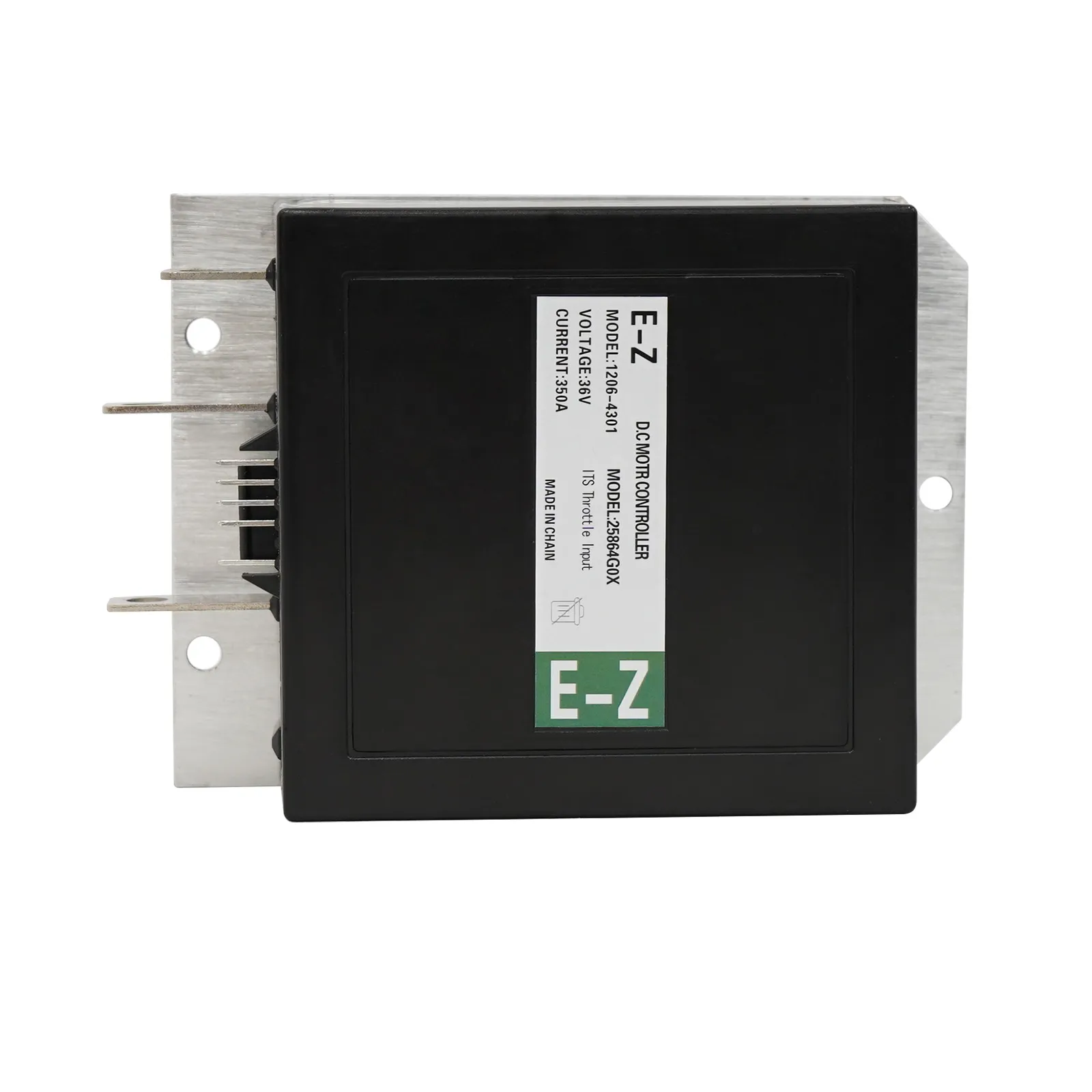

Curtis 1206-4301 Type 36V 350A Controller for EZGO TXT & Medalist — Replaces OEM 25864-G03, 25864-G05, 25864-G09

This aftermarket replacement 36-volt, 350-amp motor controller is the Curtis 1206-4301 type with a 5-pin connector, for EZGO TXT and Medalist electric carts. It is listed as replacing EZGO OEM 25864-G03, 25864-G05 and 25864-G09. A failing controller often shows up as no movement, jerky acceleration, cutting out under load or a very hot controller.

Will it fit my cart?

• EZGO TXT and Medalist 36V electric carts that use a Curtis 1206-series controller (per our listing; check the label on your old controller)
• Not for 48V carts, gas carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old controller, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 25864-G03, 25864-G05, 25864-G09
• Model: Curtis 1206-4301 type
• Voltage: 36V
• Current: 350A
• Connector: 5-pin
• Package: 1 piece, 6.5 x 4.7 x 4.6 inches, 2.7 lb (1.22 kg)

Installation — difficulty: advanced (about 1–2 hours)

1. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Take clear photos of every cable and wire on the old controller and label them.
3. Disconnect the cables and the 5-pin plug, then unbolt the old controller.
4. Mount the new controller in the same place and reconnect everything exactly as in your photos.
5. Reconnect the battery, lift the drive wheels off the ground and test forward and reverse slowly before driving.
6. If you are not comfortable doing this job, have a golf cart mechanic install it.

What’s in the Box

• 1 x motor controller

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
