Rear Brake Cluster Assemblies for Club Car DS, Precedent, Onward and Tempo — Replaces OEM 101823301, 103380202

Description

Rear Brake Cluster Assemblies for Club Car DS, Precedent, Onward and Tempo — Replaces OEM 101823301, 103380202

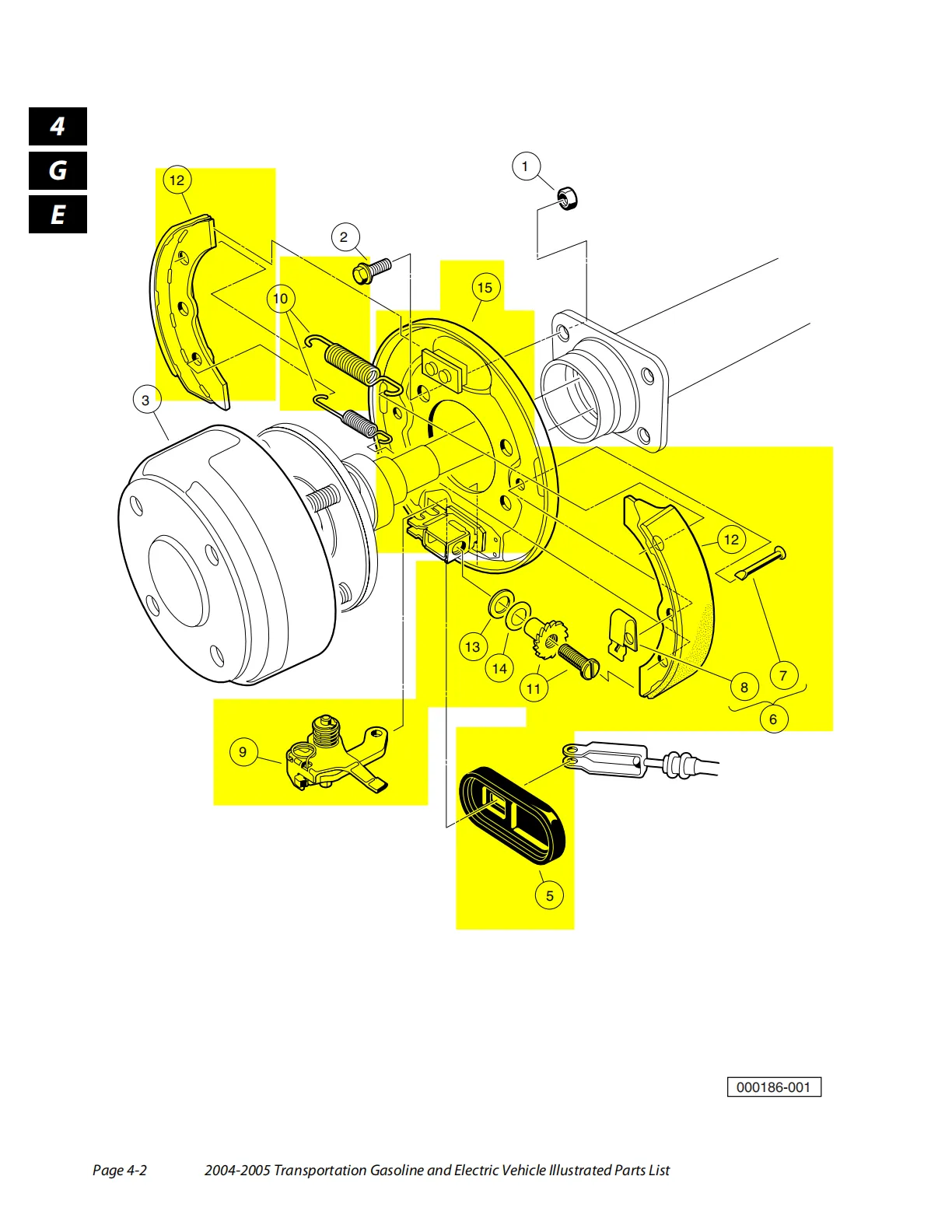

This aftermarket replacement set contains two rear brake clusters: complete, pre-assembled drum brake units (backing plate, shoes, springs and self-adjuster). Replace them if braking is weak, the brakes grind, the shoes are worn down, or the adjuster or springs are broken or seized.

Will it fit my cart?

• Club Car DS gas and electric (1998–2011)
• Club Car Precedent gas and electric (2004–2023)
• Club Car Onward (2018–2020) and Tempo (2019–2023)
• Club Car Carryall with two-wheel brakes (1998–2009) and Villager (1999–2003, plus 2023 Villager 2), gas and electric
• Not for EZGO or Yamaha carts
• Not sure? Compare the part number on your old brake cluster, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 101823301 and 103380202 (both listed in the manuals as passenger-side brake cluster assemblies)
• System: Club Car self-adjusting mechanical rear drum brakes
• Package: 1 set of 2 pieces, 8.15 x 8.11 x 5.55 inches; 2.61 kg (5.75 lb)

Installation — difficulty: advanced (about 1–2 hours)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Lift the rear onto jack stands and remove the wheel, hub and brake drum.
3. Disconnect the brake cable and unbolt the old cluster from the axle housing.
4. Fit the new cluster with the original bolts, reconnect the cable, and refit the drum, hub and wheel.
5. Adjust the brakes as described in your service manual and test them at low speed before normal driving.
6. If you are not comfortable with this job, a golf cart mechanic can fit it for you.

What’s in the Box

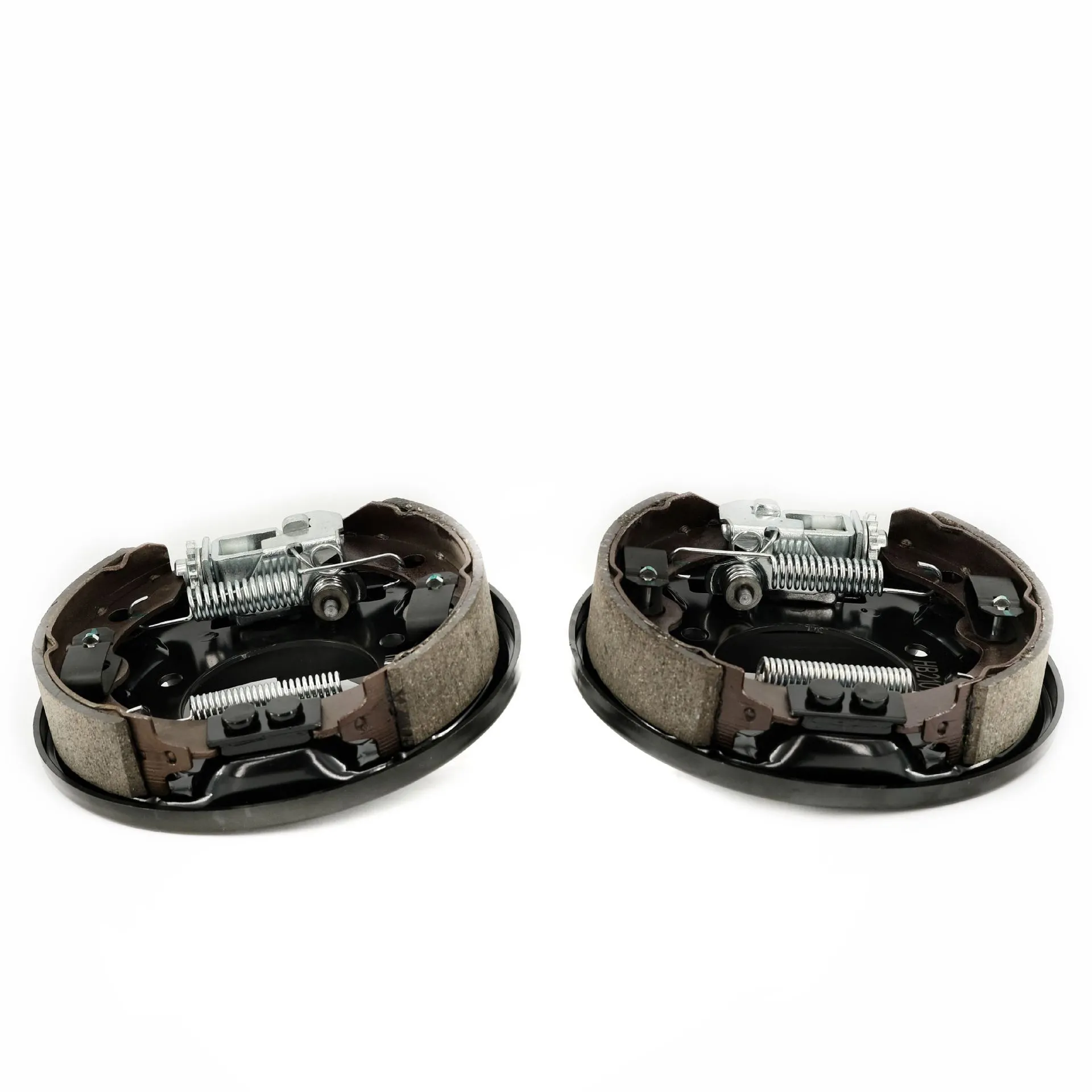

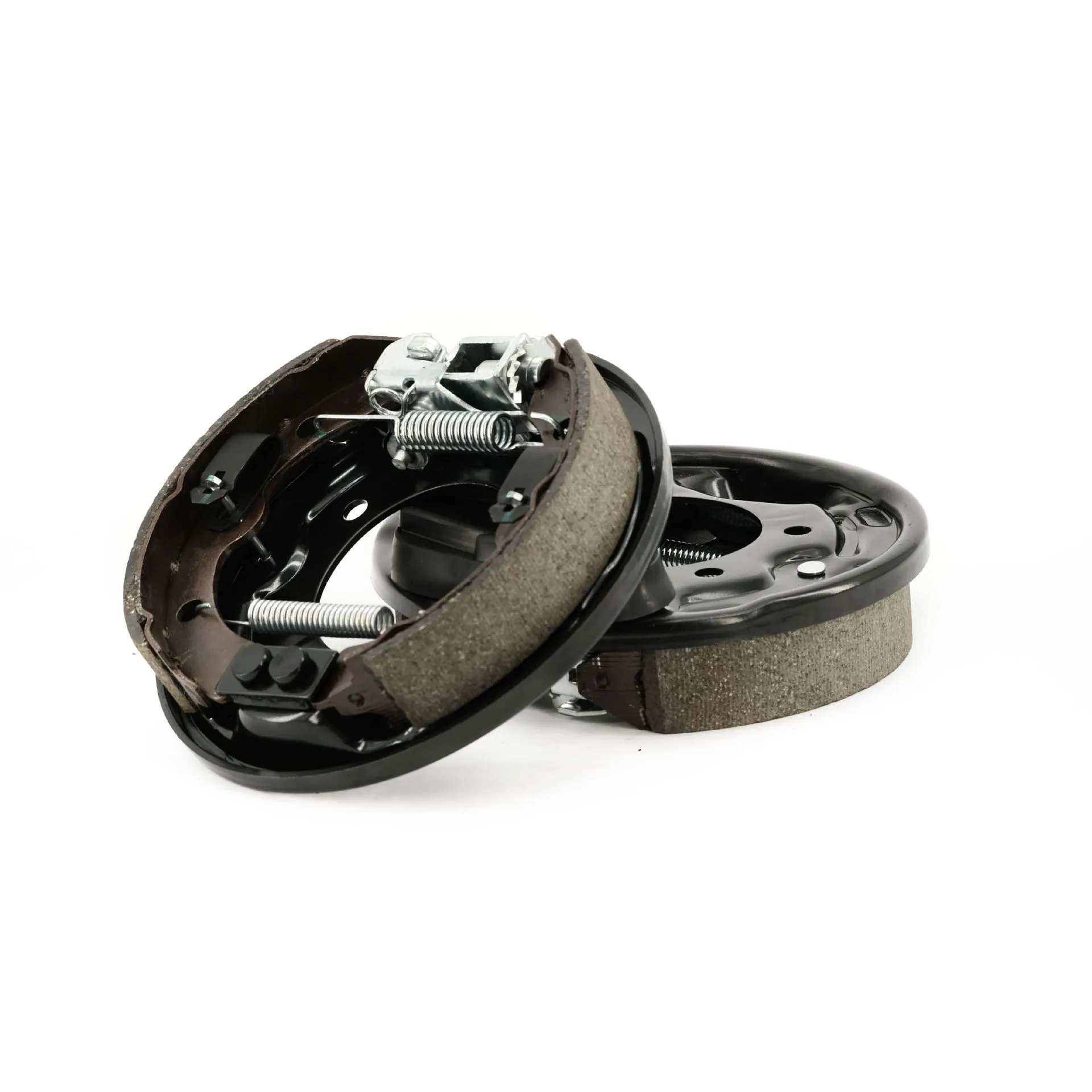

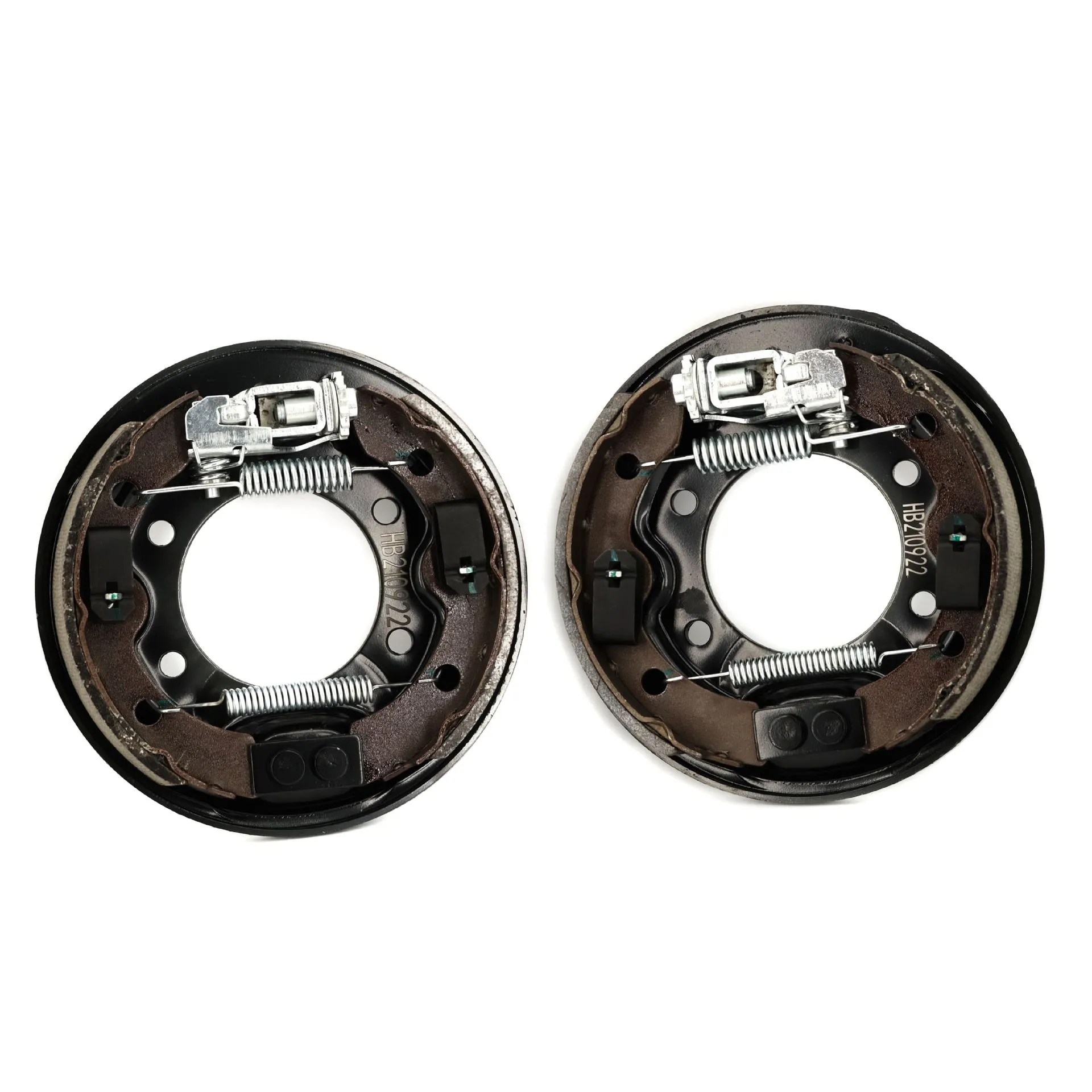

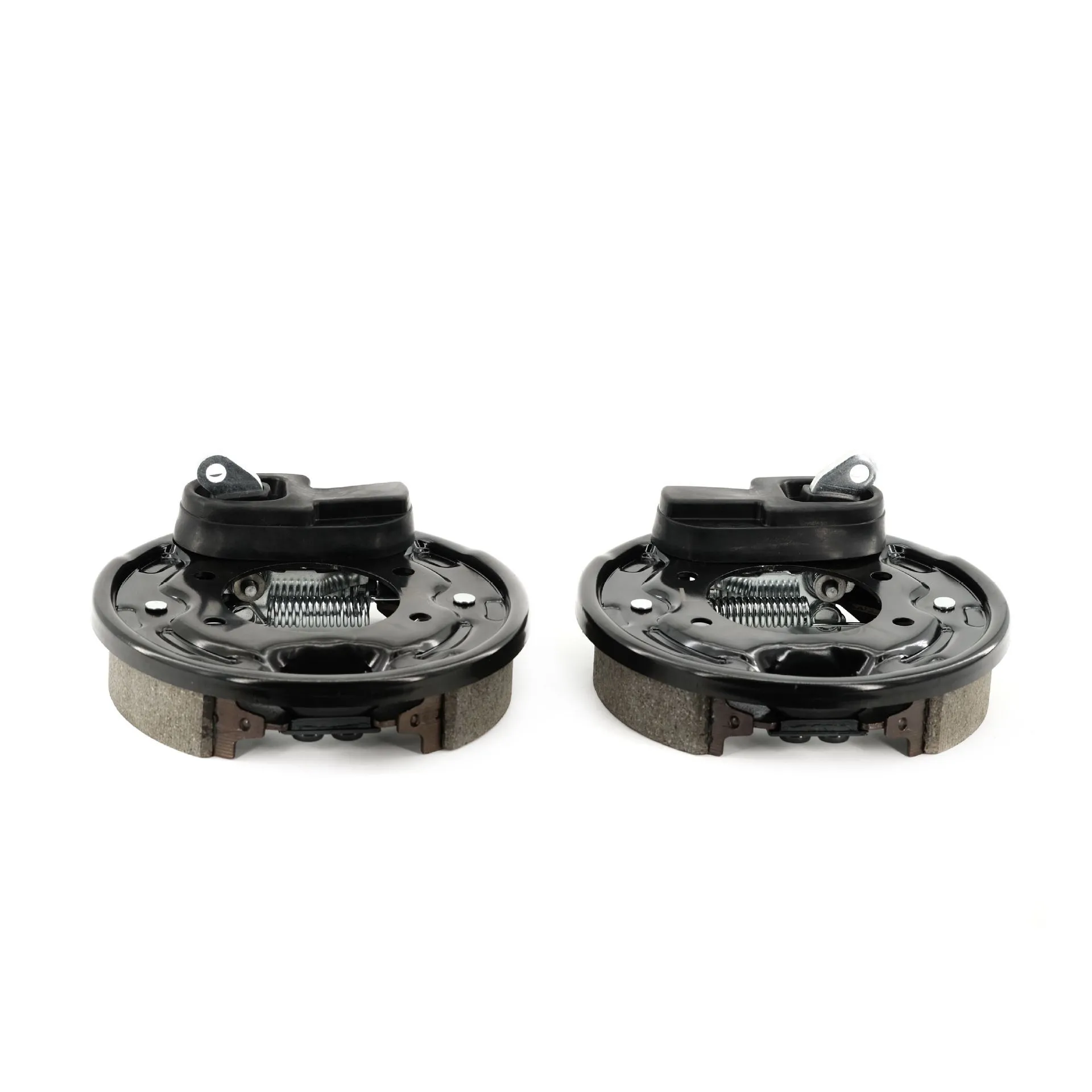

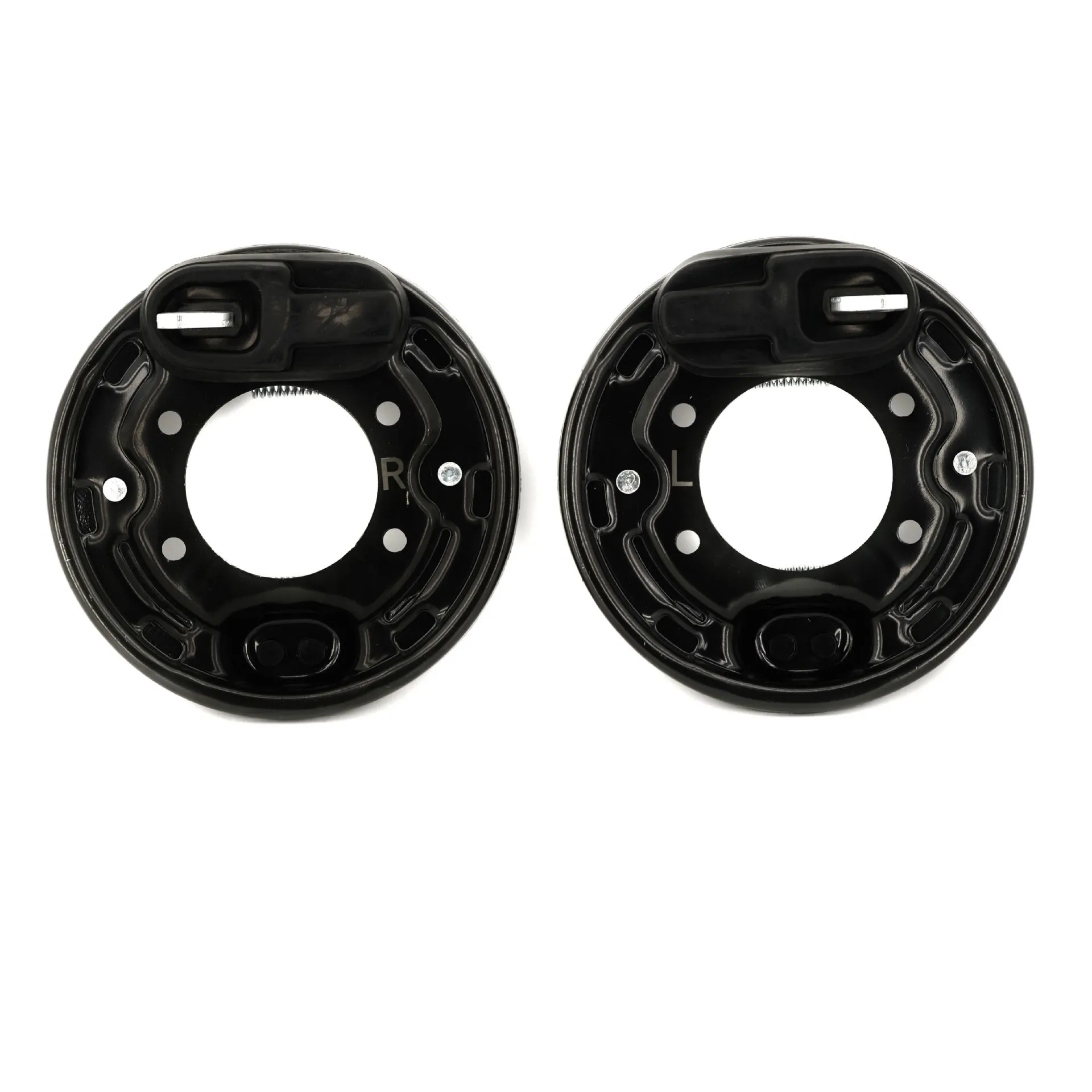

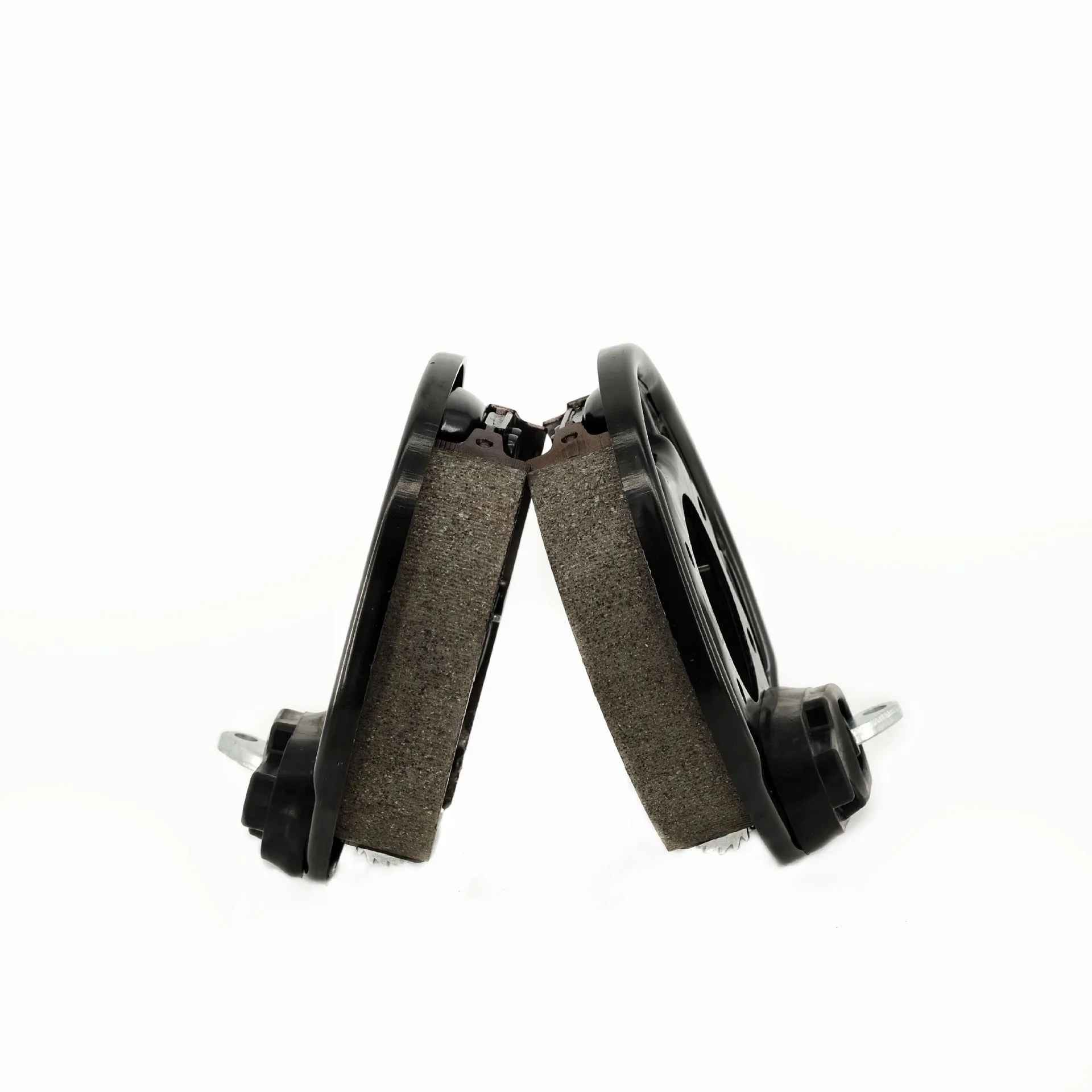

• 2 x rear brake cluster assemblies (1 set)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
