Club Car DS Precedent Tempo Golf Cart Reverse Buzzer 12-48V OEM 1016851

Description

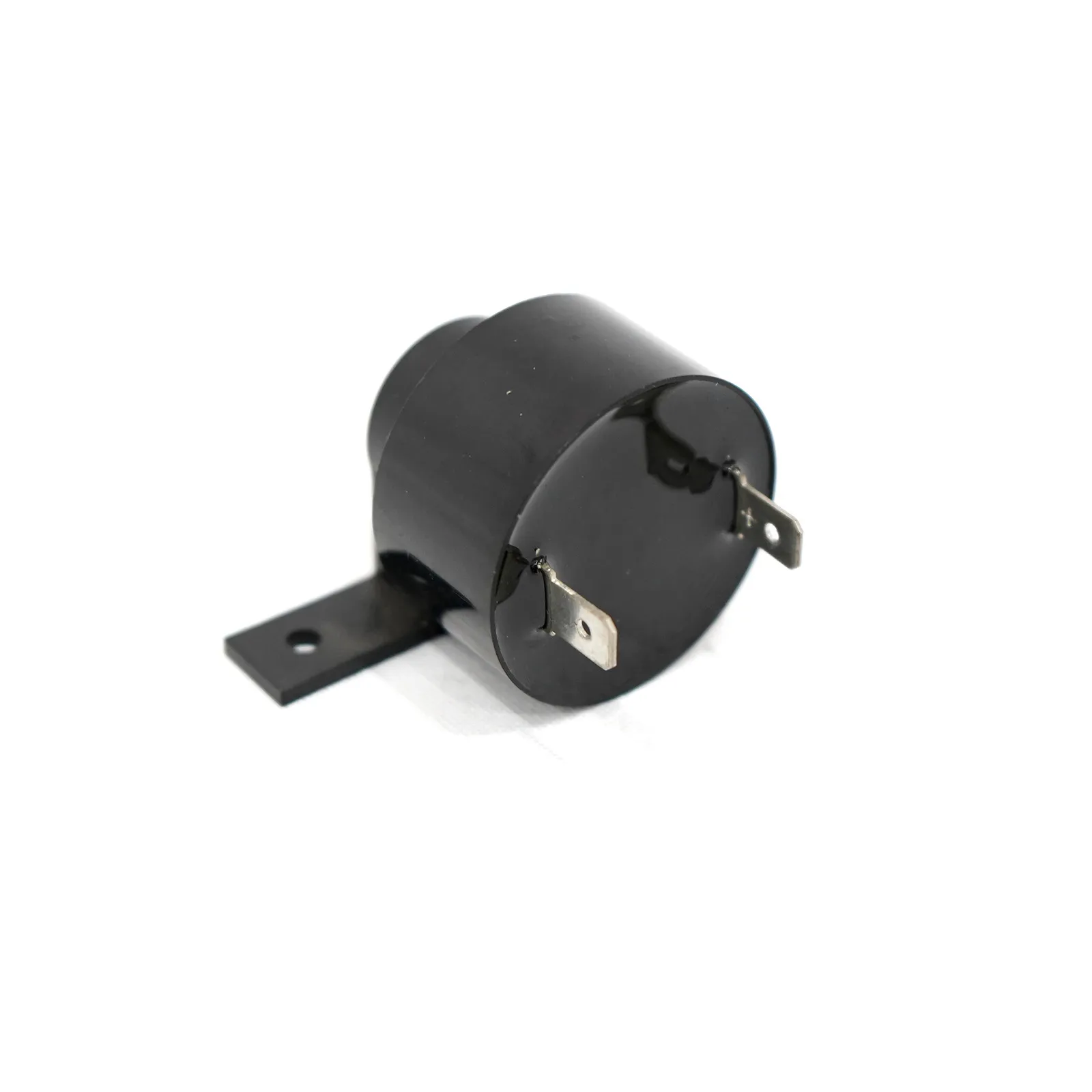

Reverse Buzzer for Club Car DS, Precedent, Tempo and Onward — Replaces OEM 1016851

The reverse buzzer beeps whenever the cart is in reverse, warning people behind you. This aftermarket replacement matches Club Car OEM 1016851, listed in the manuals as "BUZZER, REVERSE (9-48 VDC)". Replace it if there is no beep in reverse, the sound is weak or crackly, or the housing is cracked or water-damaged.

Will it fit my cart?

• Club Car DS gas (1995–2011)
• Club Car Precedent gas and electric (2004–2023)
• Club Car Tempo electric (2019–2023) and Onward electric (2018–2021)
• Club Car Carryall (1992–2014) and Villager (1995–2023), gas and electric
• Not sure? Compare the part number on your old buzzer, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 1016851
• Voltage: 12–48V DC (the OEM part is listed as 9-48 VDC)

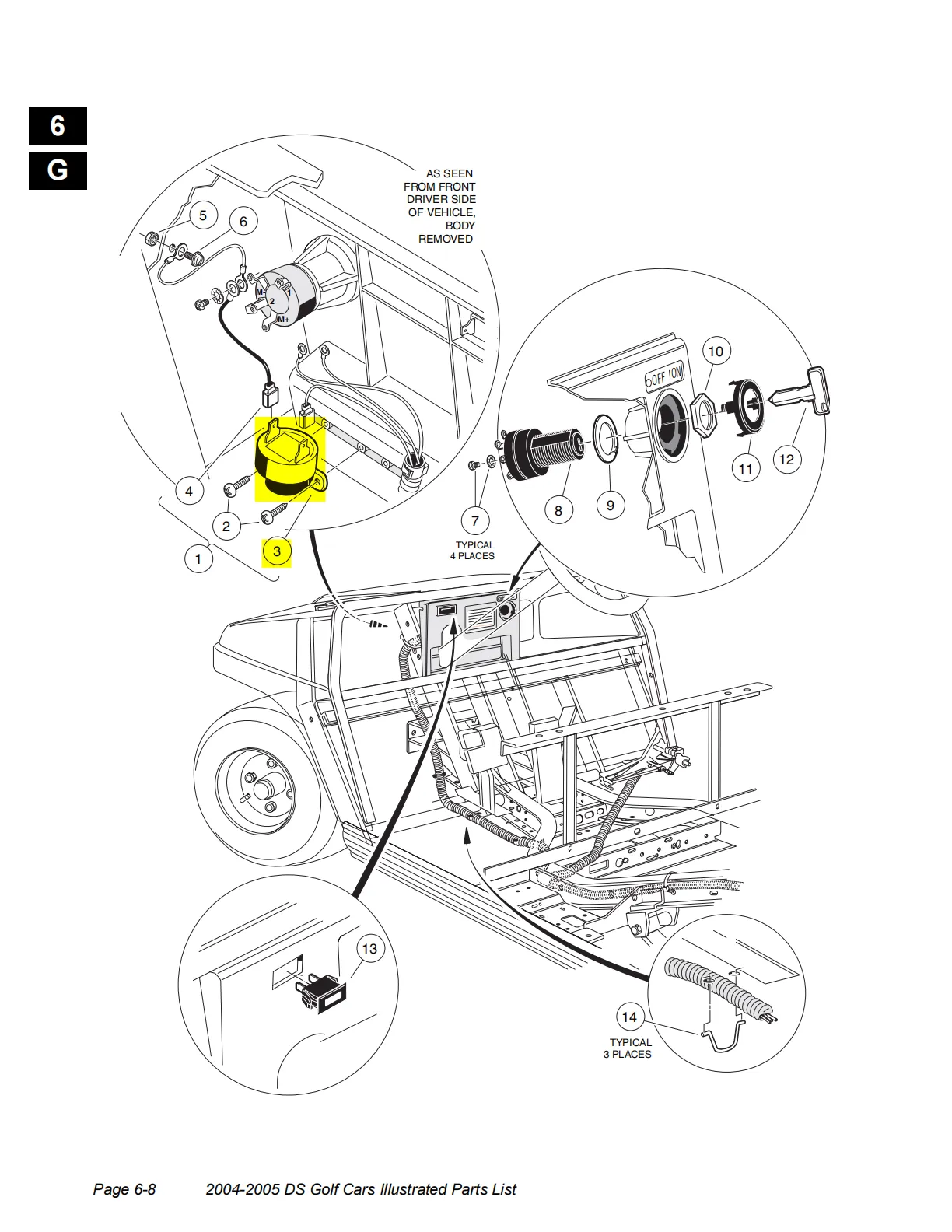

• Location: under the dash or in the front body electrical area, depending on model
• Quantity per cart: 1
• Package: 1 piece, 2 x 1 x 1 inches; 0.2 kg (7.1 oz)

Installation — difficulty: easy (about 10–20 minutes)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Find the old buzzer under the dash or in the front body electrical area.
3. Take a photo of the wiring, then disconnect the wires and remove the old buzzer.
4. Mount the new buzzer in the same place and connect the wires as in your photo, positive to positive and negative to negative.
5. Reconnect the battery (and set the switch back to RUN on electric carts), select reverse, and check that it beeps.

What’s in the Box

• 1 x reverse buzzer

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
