Club Car DS Gas/Electric Golf Cart Brake Block Set Package, Brake Mounting Block Replace OEM #1011402

Description

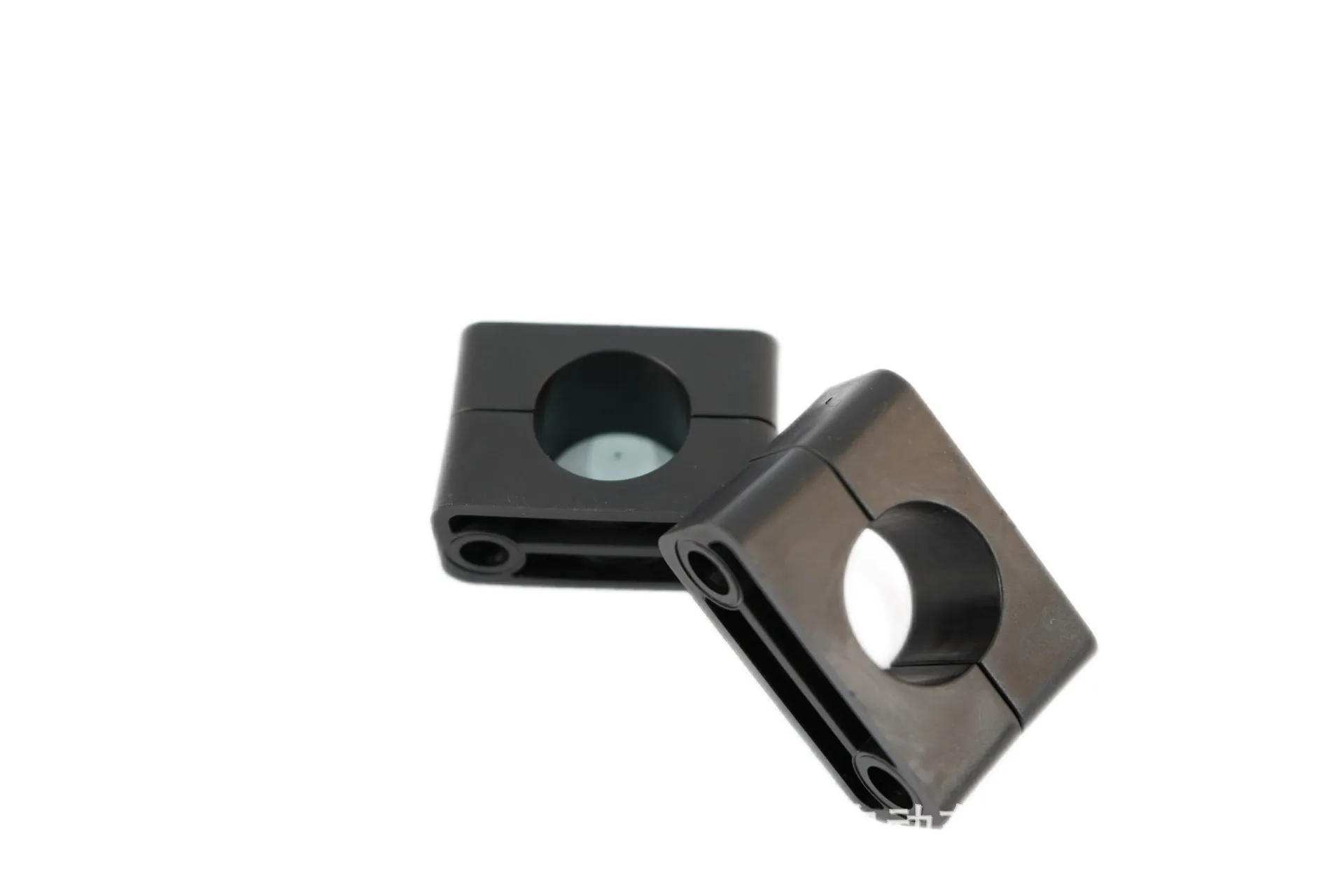

Brake Pedal Mounting Block Set for Club Car DS & Carryall — Replaces OEM 1011402

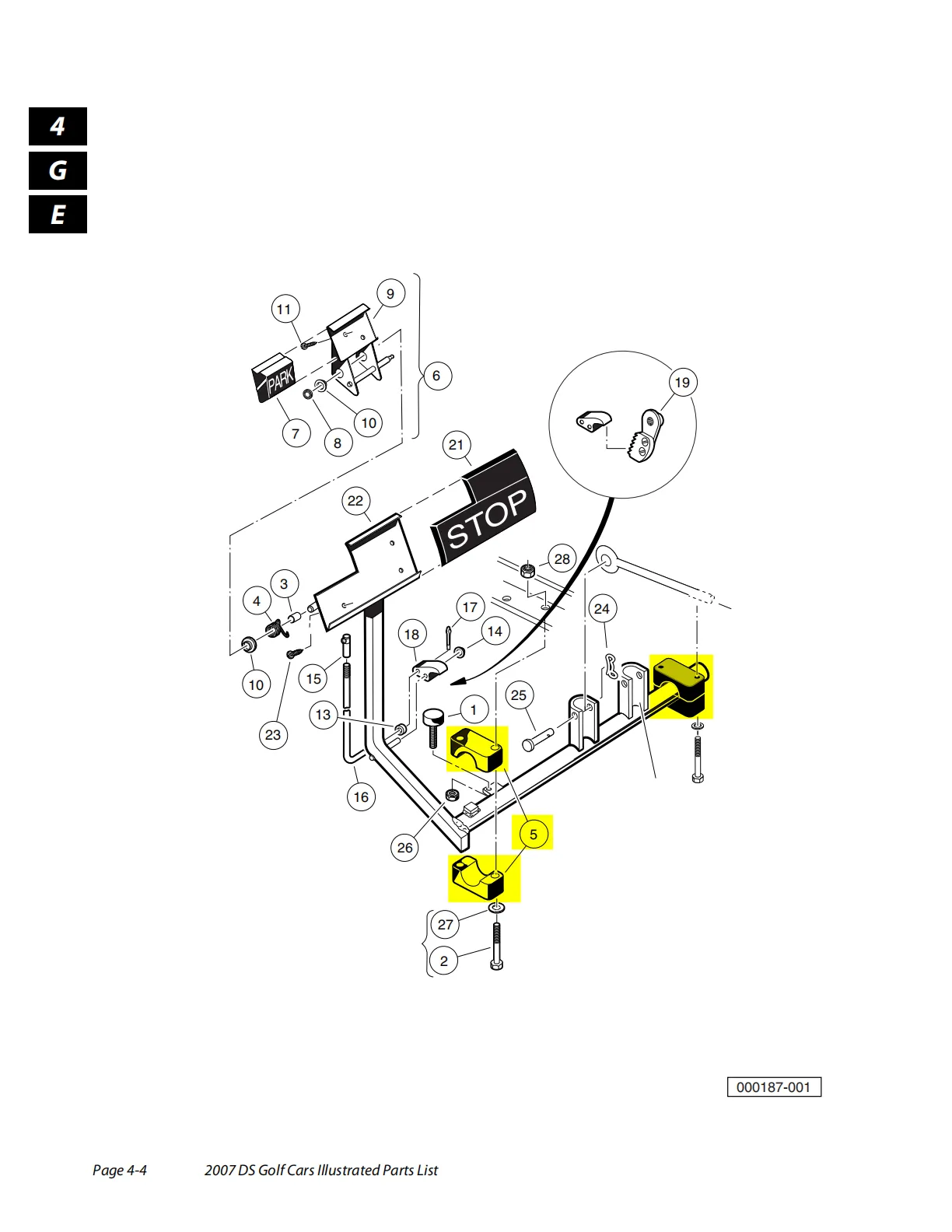

This aftermarket replacement set contains the upper and lower brake mounting blocks that hold the brake pedal assembly in place. Club Car lists it as OEM 1011402, "PACKAGE, BRAKE MOUNTING BLOCK (CONTAINS UPPER AND LOWER…)", in the Brake Pedal section of its parts manuals, one package per cart. Worn blocks let the brake pedal wobble side to side, clunk, squeak or sit crooked, and the brake can feel less precise.

Will it fit my cart?

• Club Car DS gas and electric (1981–2011)
• Club Car Carryall gas and electric (1995–2014)
• Club Car Villager (1995–2018)
• Not for Club Car Precedent, EZGO or Yamaha carts
• Not sure? Compare the part number on your old mounting blocks, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 1011402
• Position: brake pedal assembly (upper and lower blocks)
• System: Club Car DS / Carryall brake pedal
• Quantity per cart: 1 package
• Package: 4 pieces, 3.94 x 3.78 x 1.5 inches, 0.08 kg (0.18 lb)

Installation — difficulty: moderate (about 1 hour)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable. Chock the wheels.
2. Remove the floor mat or access cover so you can reach the brake pedal mounting.
3. Support the pedal, then unbolt the old upper and lower blocks, noting how they sit.
4. Fit the new blocks in the same positions and tighten the bolts securely.
5. Check that the pedal moves freely and returns fully, then test the brakes at low speed before normal use.

What’s in the Box

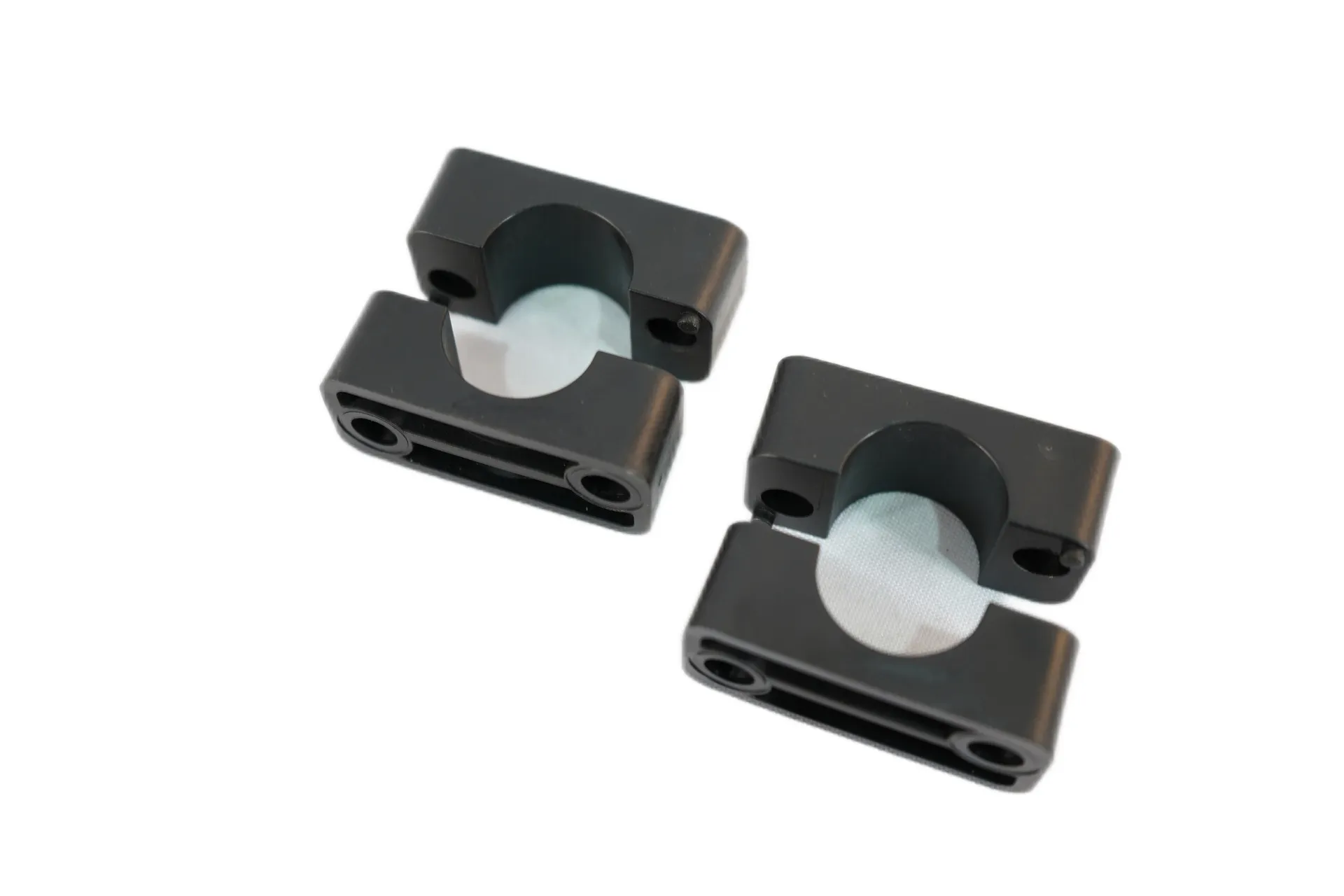

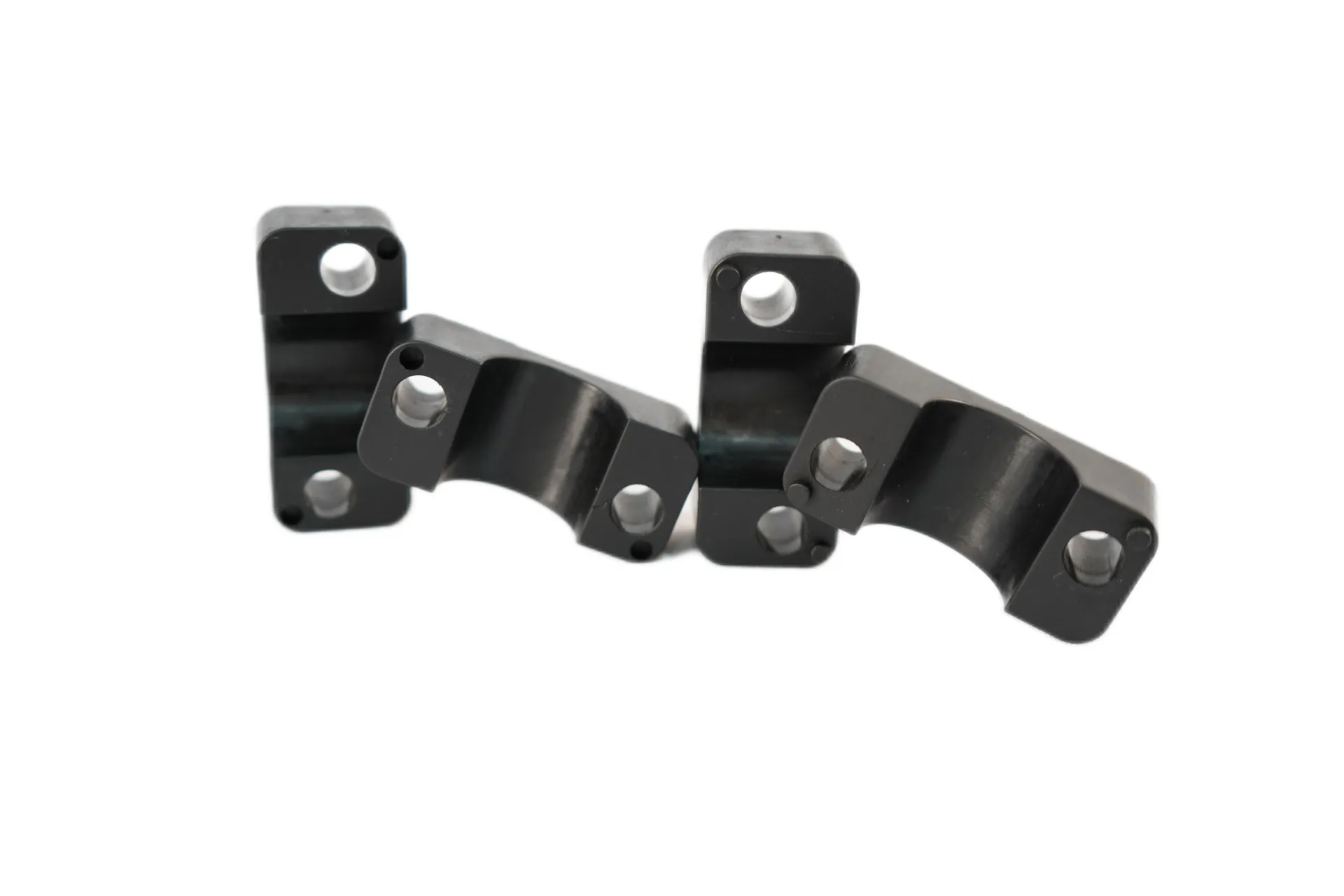

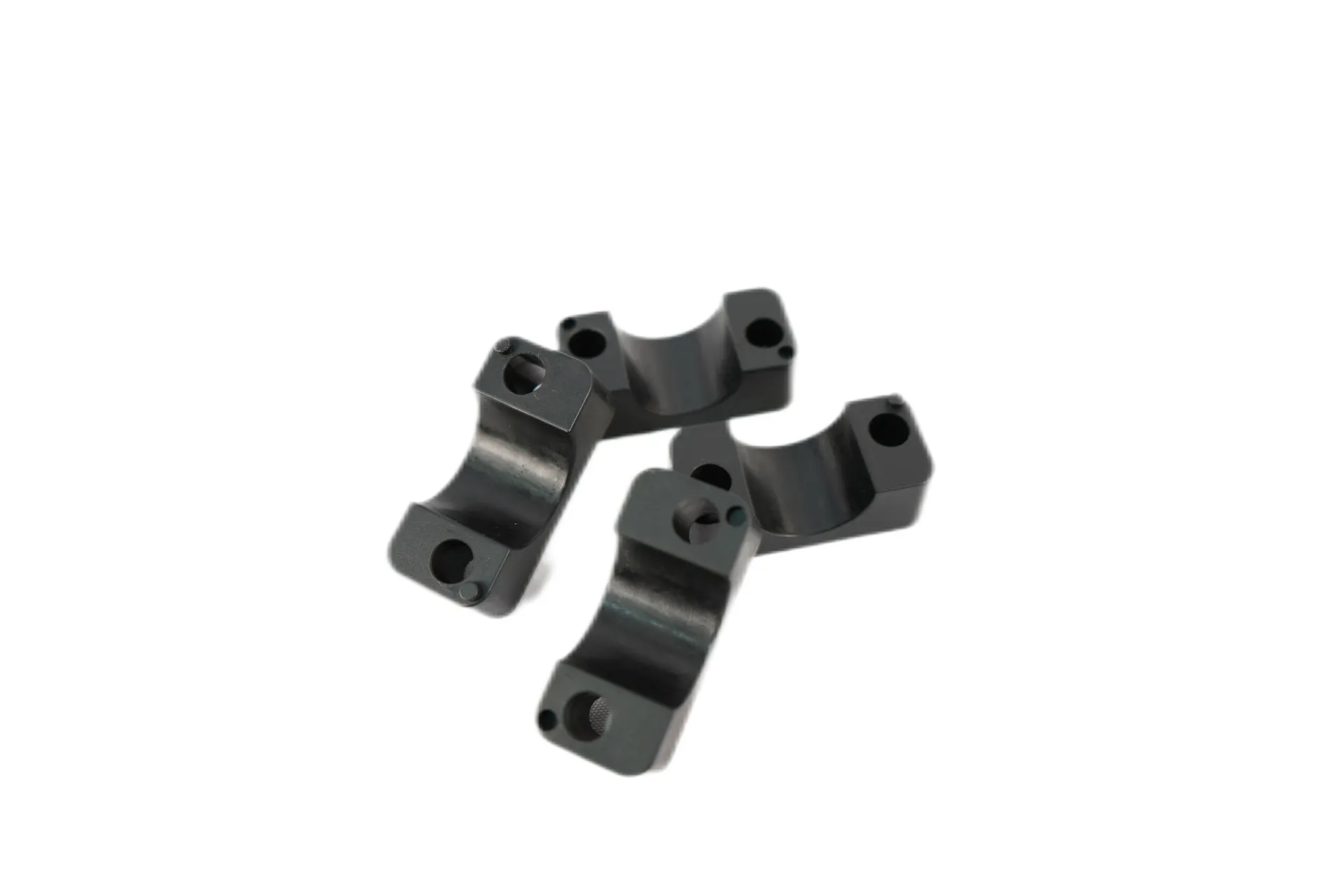

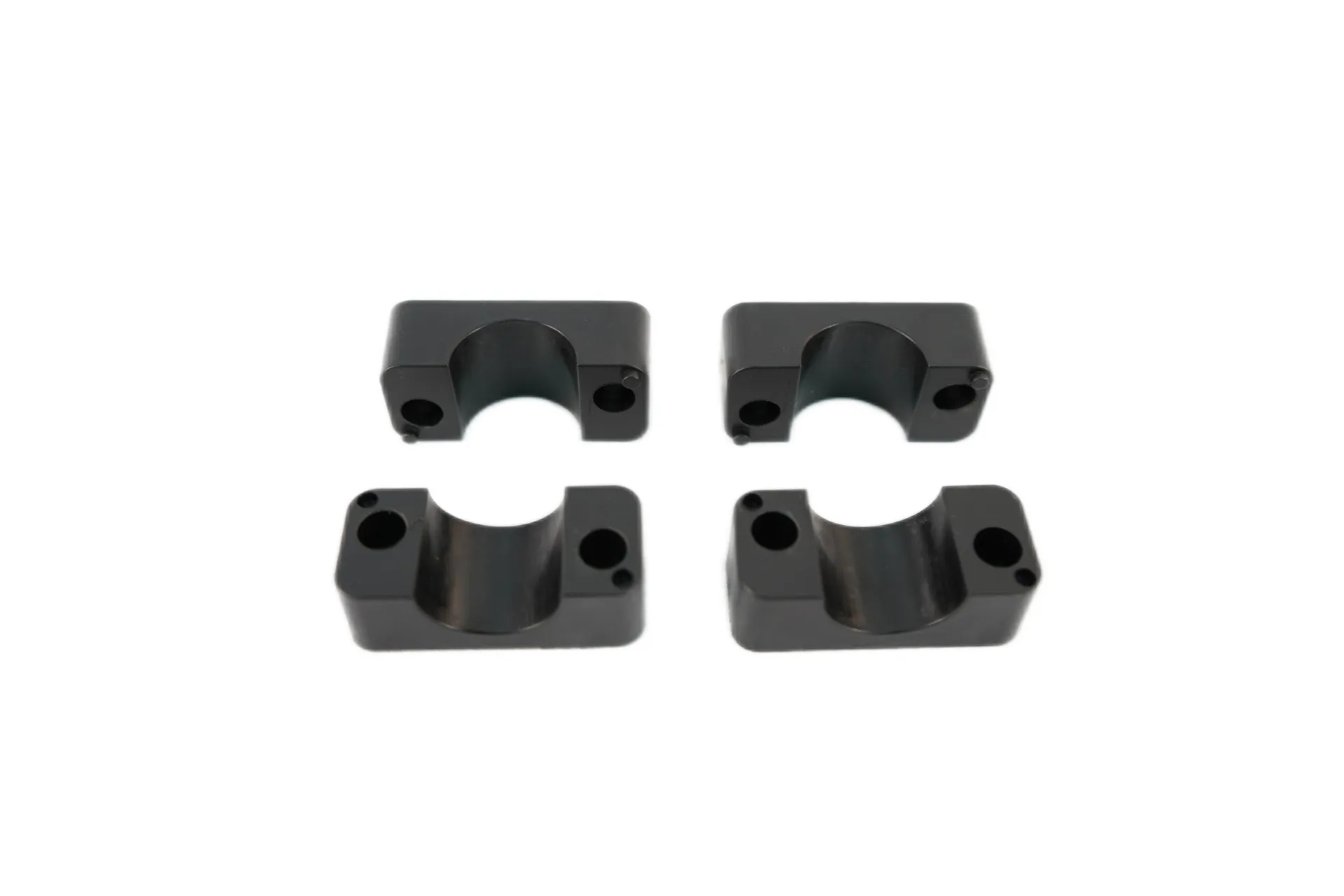

• 4 x brake mounting block pieces (upper and lower blocks)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
