Club Car Front Wheel Hub Assembly for Precedent, Tempo, Onward & DS — Replaces OEM 102357701

Description

Club Car Front Wheel Hub Assembly for Precedent, Tempo, Onward & DS — Replaces OEM 102357701

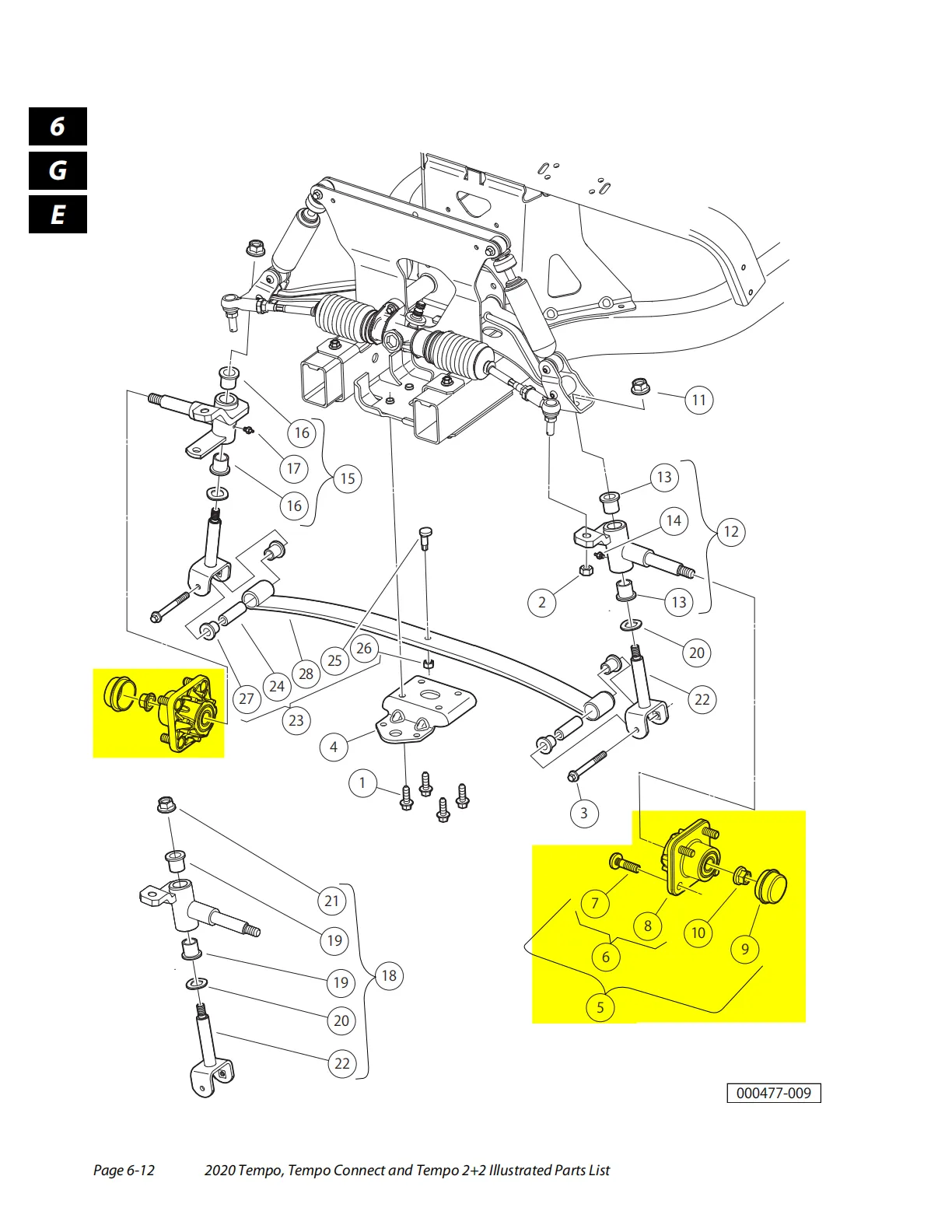

This aftermarket replacement front hub assembly is the part your front wheel bolts to and spins on. It replaces Club Car OEM 102357701, which Club Car parts manuals list as "REPLACEMENT KIT, FRONT HUB" in the front suspension. Replace it if a front wheel wobbles or has play when you rock it, you hear grinding or humming from the front end, or the hub gets hot after a drive.

Will it fit my cart?

• Club Car Precedent (2005–2023)
• Club Car Tempo (2019–2023) and Onward (2018–2020)
• Club Car Villager 4 (2004–2007) and Villager 2 (2019–2023)
• Club Car DS (2004–2011)
• Not for EZGO or Yamaha carts
• Not sure? Compare the part number on your old hub, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 102357701
• Position: front wheel, left or right (same part both sides)
• Package: 1 piece, 4.5 x 4.5 x 4.4 inches, 1.7 pounds (0.77 kg)

Installation — difficulty: moderate (about 45–60 minutes per side)

1. On electric carts, put the Tow/Run switch in TOW and disconnect the main negative battery cable; on gas carts, remove the key and disconnect the battery negative cable.
2. Lift the front, support it on jack stands and remove the wheel.

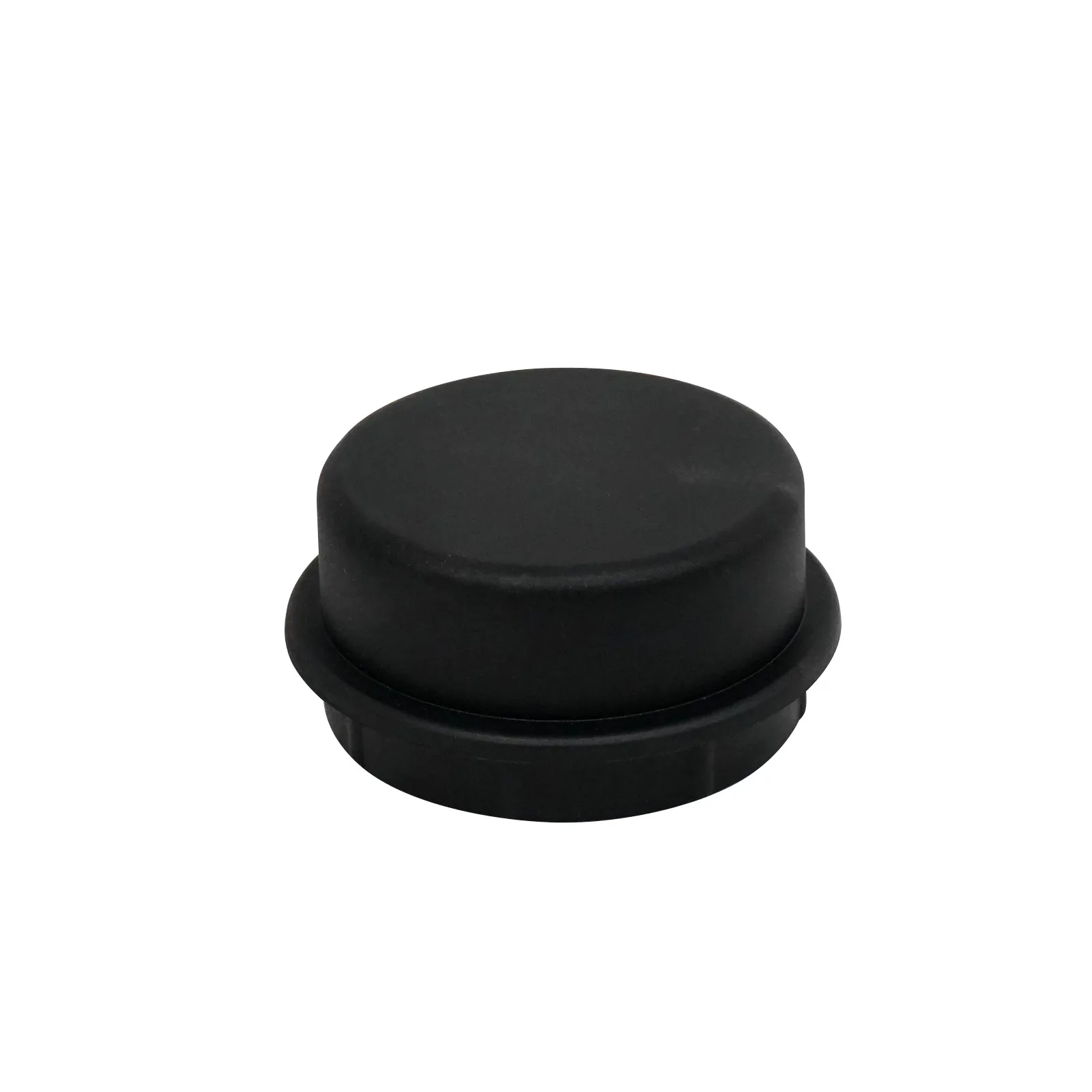

3. Remove the dust cap, cotter pin and spindle nut, then slide the old hub off.
4. Clean the spindle, fit the new hub, washer and nut, tighten as your service manual describes and fit a new cotter pin.
5. Refit the dust cap and wheel, check the wheel spins freely without play, then lower the cart and reconnect the battery.

What’s in the Box

• 1 front wheel hub assembly (order 2 to do both front wheels)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
