King Pin Repair Kit for Club Car DS & Carryall — Replaces OEM 1016386, 1010150, 1016389

Description

King Pin Repair Kit for Club Car DS & Carryall — Replaces OEM 1016386, 1010150, 1016389

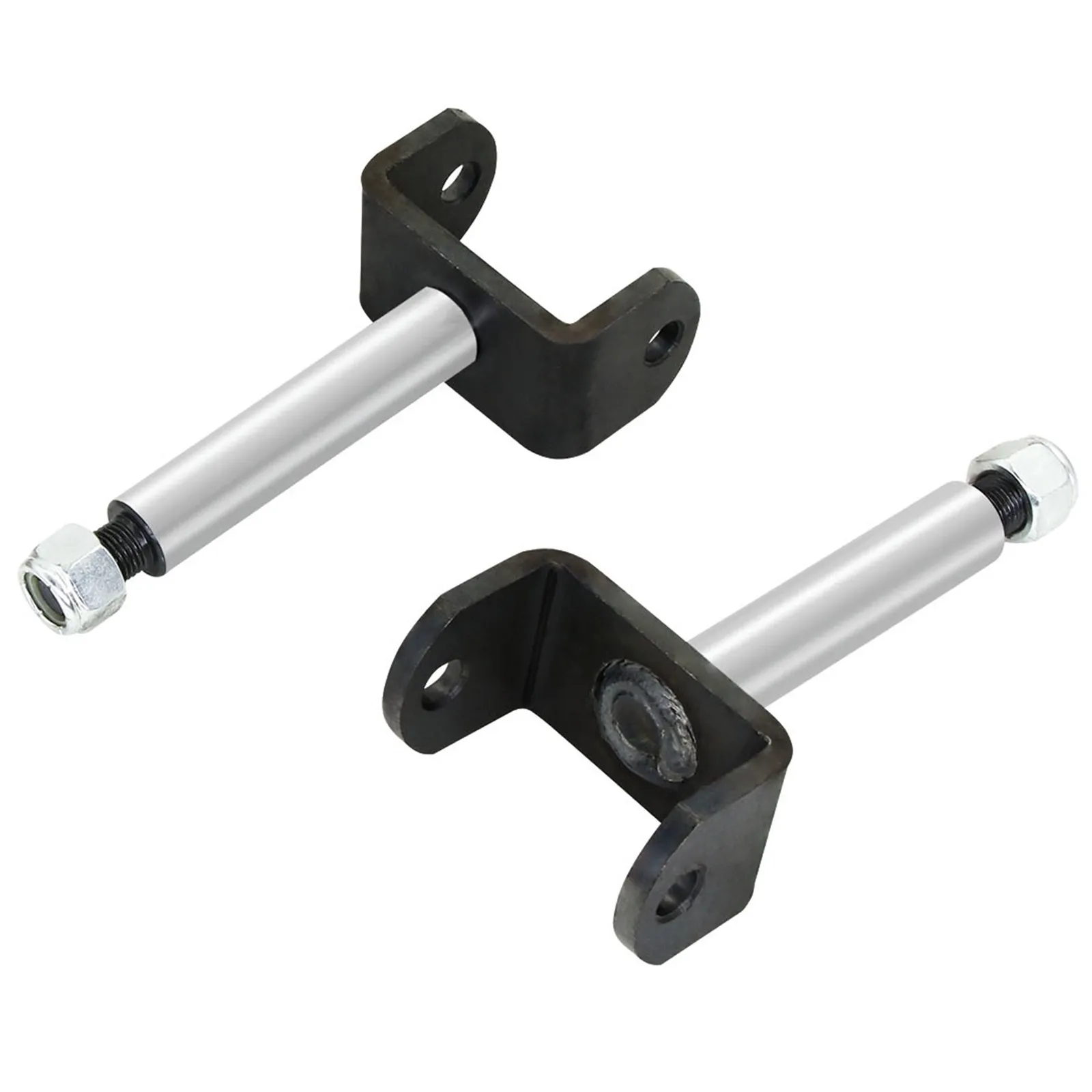

King pins are the pivots the front spindles turn on. This aftermarket replacement kit covers the Club Car lower front suspension parts: king pin (OEM 1016386), thrust bearing (OEM 1010150) and king pin wave washer (OEM 1016389), each used 2 per cart. Worn king pins cause loose or wandering steering, clunks over bumps and uneven front tire wear.

Will it fit my cart?

• Club Car DS gas and electric (1994–2011)
• Club Car Carryall gas and electric (1992–2014)
• Club Car Villager (1995–2018)
• Not for Club Car Precedent, EZGO or Yamaha carts
• Not sure? Compare the part number on your old king pin, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

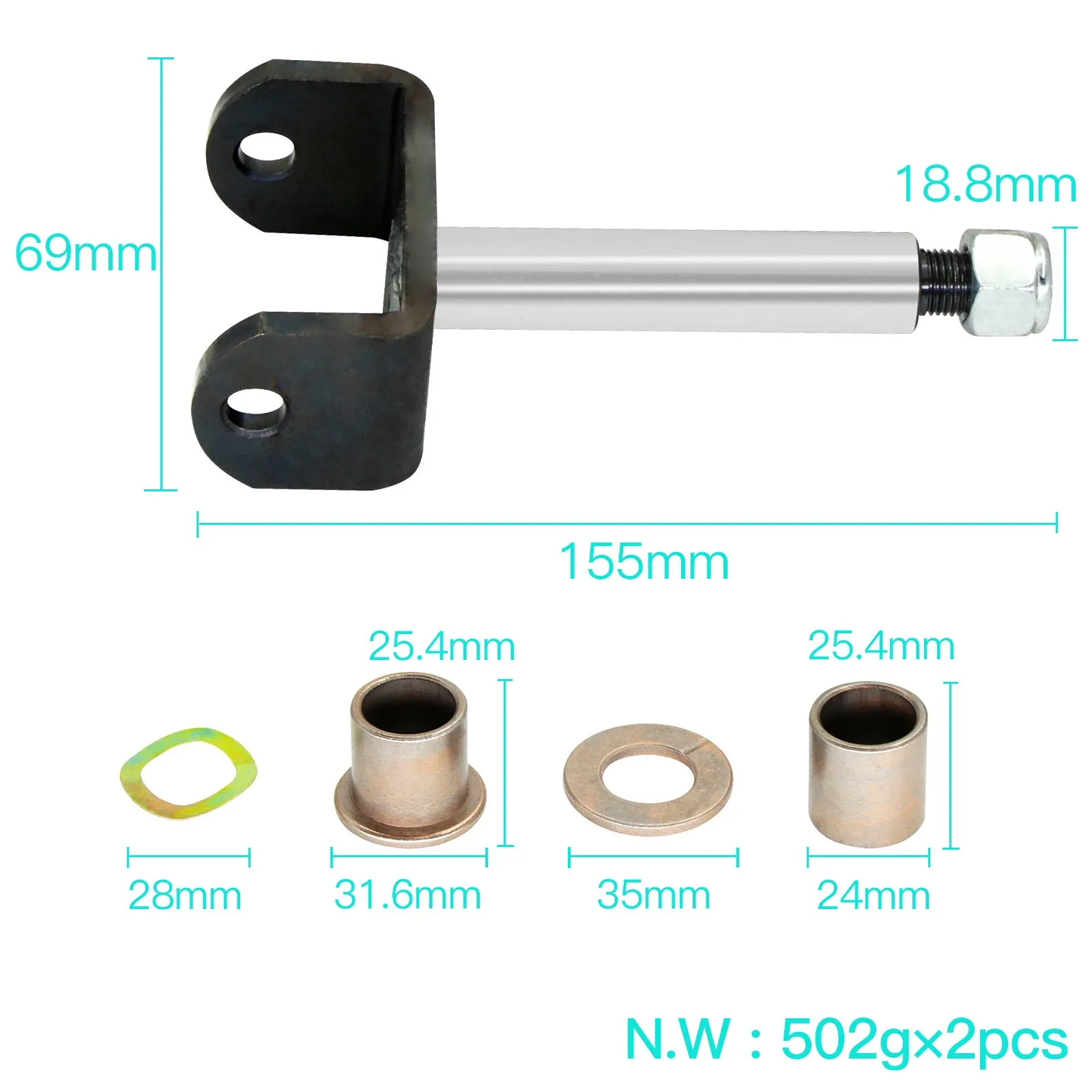

• OEM reference: 1016386 (king pin), 1010150 (thrust bearing), 1016389 (wave washer, 1.125 in OD)
• Also listed in our title: 8067 (Club Car bronze spindle bushing)

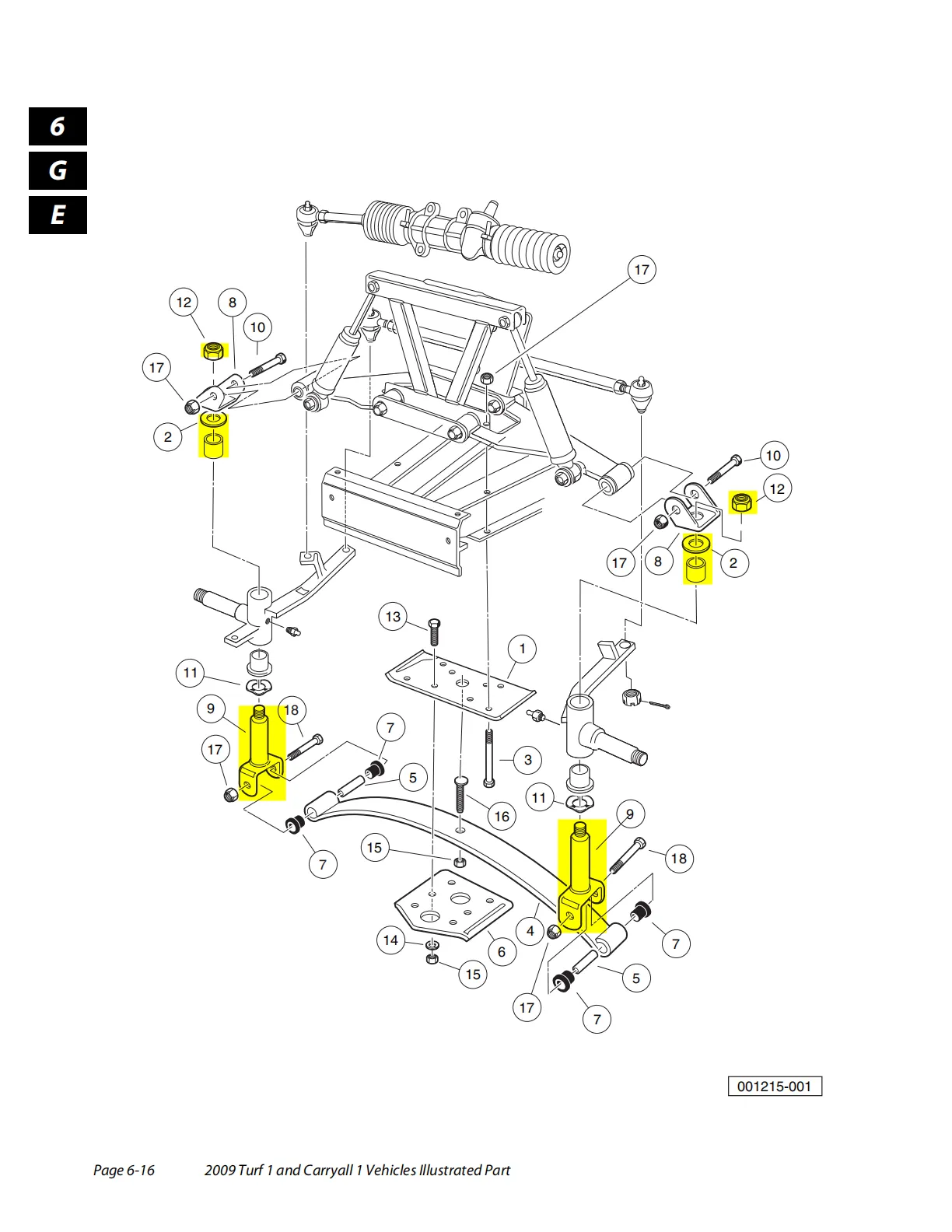

• Position: lower front suspension, both sides
• Package: 2 packs, 6.5 x 3.82 x 3.11 inches, 1.11 kg (2.45 lb)

Installation — difficulty: advanced (about 2–3 hours)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Lift the front onto jack stands and remove the front wheels.
3. Remove the king pin nut and drive out the old pin, noting the order of the thrust bearing and wave washer.
4. Fit the new king pin, thrust bearing and wave washer in the same order and refit the nut.
5. Refit the wheels, check the spindles turn smoothly without play, and have the alignment checked. A mechanic can do this if you prefer.

What’s in the Box

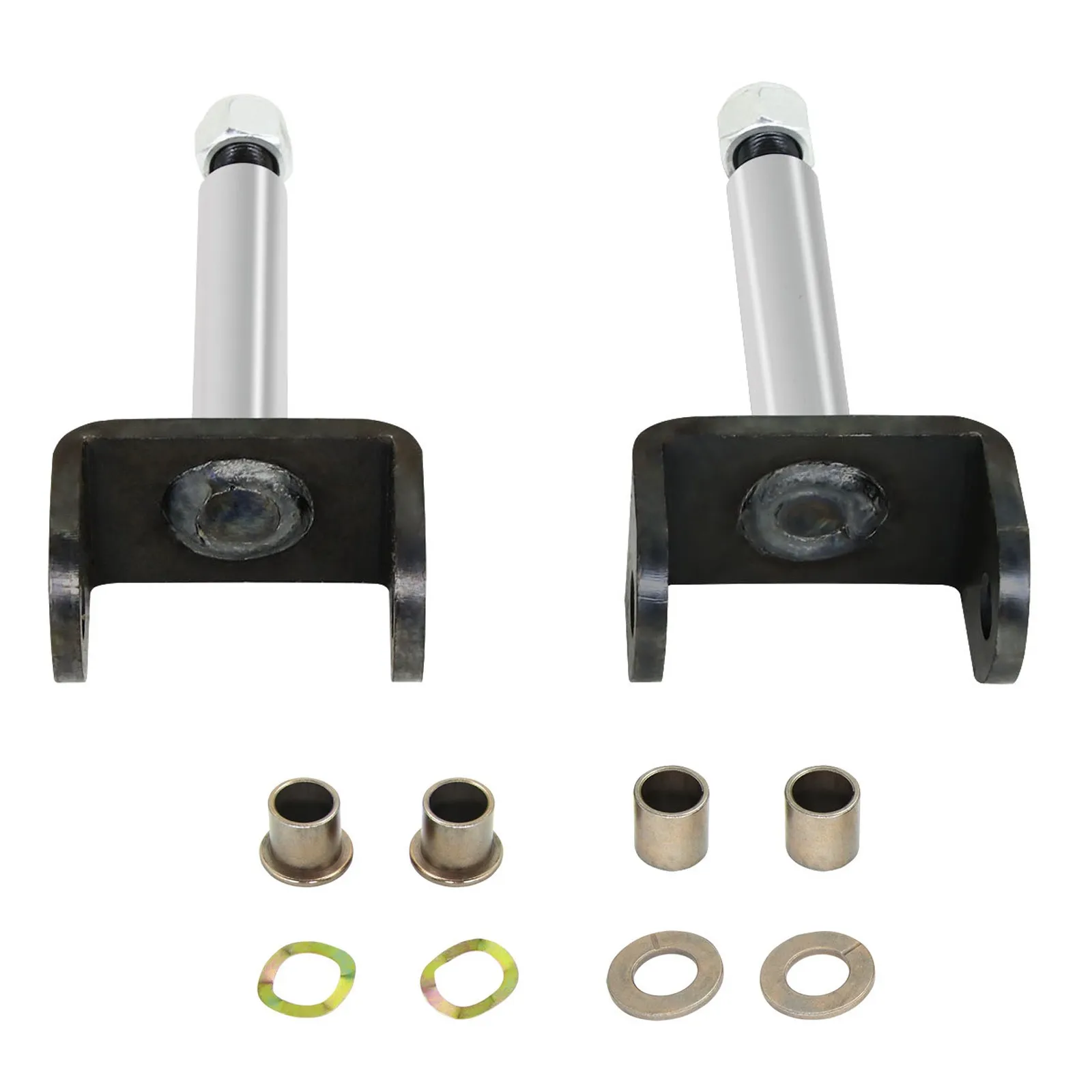

• 2 packs (one per side): king pins, thrust bearings and wave washers

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
