Stainless Steel Seat Hinge Set for Club Car DS, Villager & Carryall — Replaces OEM 1011652, 1012412

Description

Stainless Steel Seat Hinge Set for Club Car DS, Villager & Carryall — Replaces OEM 1011652, 1012412

This aftermarket replacement hinge set joins the seat bottom to the body so the seat can tip forward. It covers two Club Car parts: the seat hinge plate, OEM 1011652 ("PLATE, SEAT HINGE, STAINLESS STEEL"), and the body hinge plate, OEM 1012412 ("PLATE, BODY HINGE"). Replace them when the seat wobbles, a hinge is bent or rusted through, or the seat no longer sits square on the body.

Will it fit my cart?

• Club Car DS gas and electric (1994–2011)
• Club Car Villager (1995–2018)
• Club Car Carryall (2000–2009)
• Not for Club Car Precedent, EZGO or Yamaha carts
• Not sure? Compare the part number on your old hinge, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 1011652 (seat hinge plate), 1012412 (body hinge plate)
• Material: stainless steel (the seat hinge plate is listed as stainless steel in the manuals)

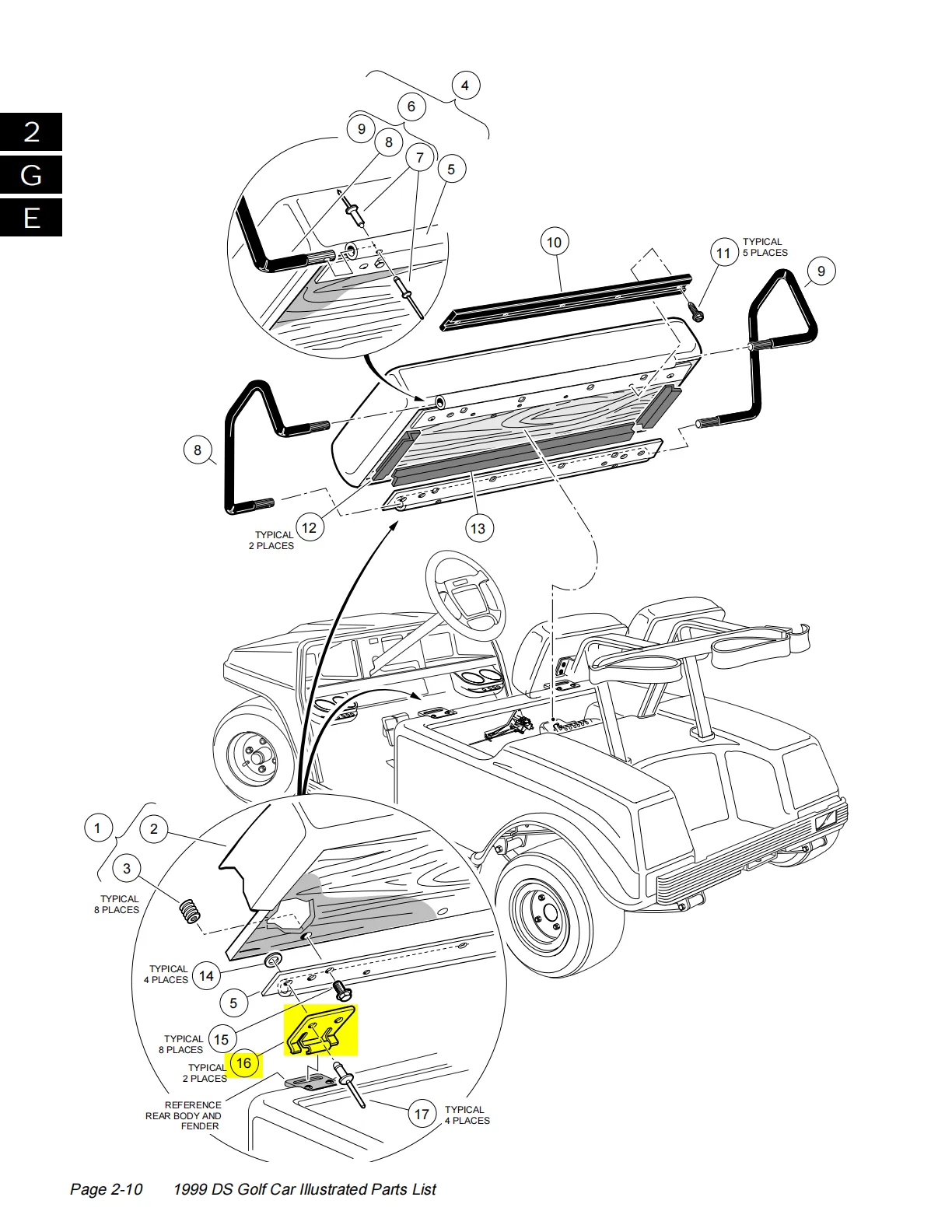

• Position: under the front seat bottom, joining the seat to the body
• Quantity per cart: 2 seat hinge plates and 2 body hinge plates (DS parts lists)
• Package: 1 set, 2.83 x 2.52 x 2.13 inches, 0.19 kg (0.42 lb)

Installation — difficulty: easy (about 20–30 minutes)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Tip the seat bottom forward and lift it off.
3. Unbolt the old hinge plates from the seat bottom and the body.
4. Bolt the new plates on in the same positions.
5. Refit the seat, check that it opens and closes squarely, then reconnect the battery.

What’s in the Box

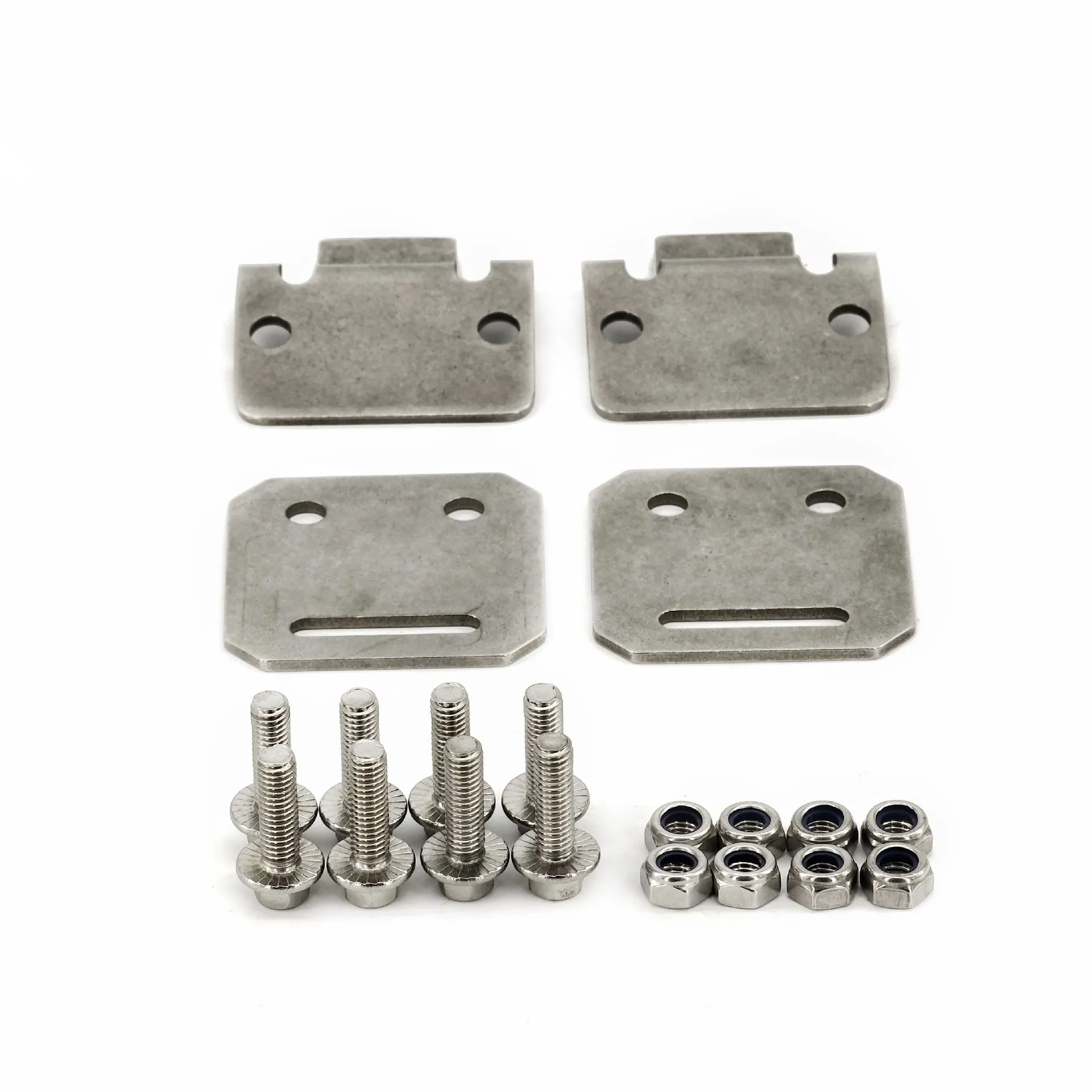

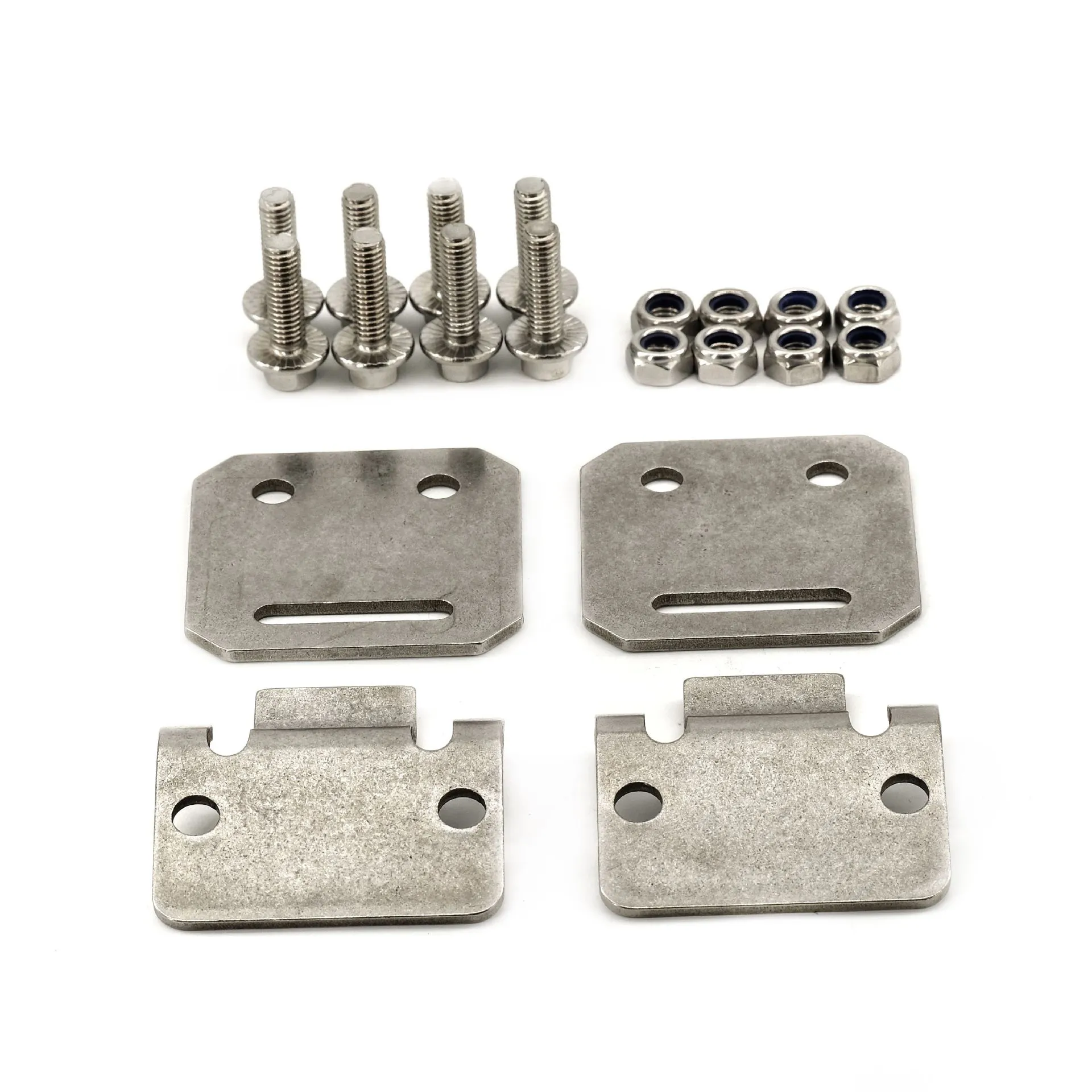

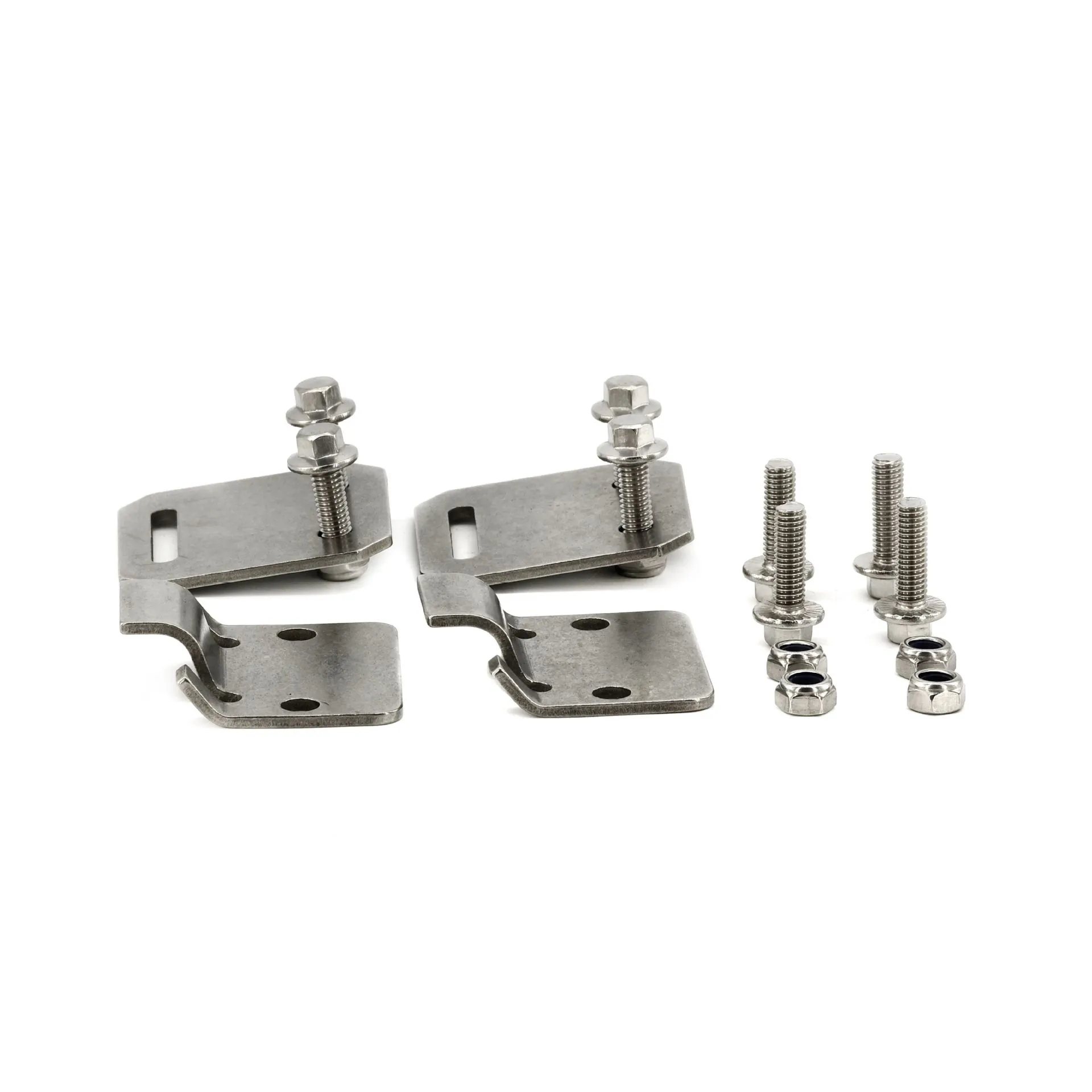

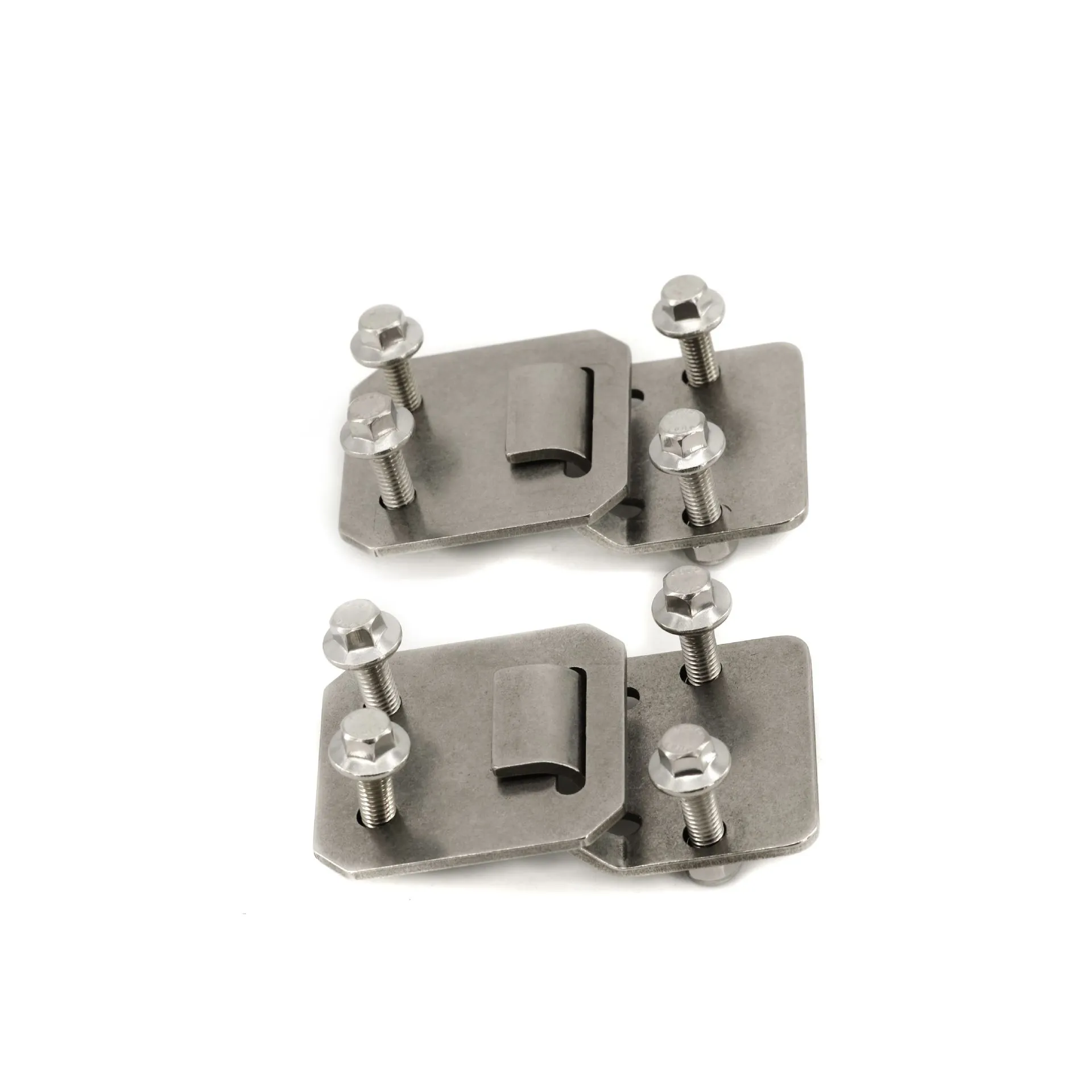

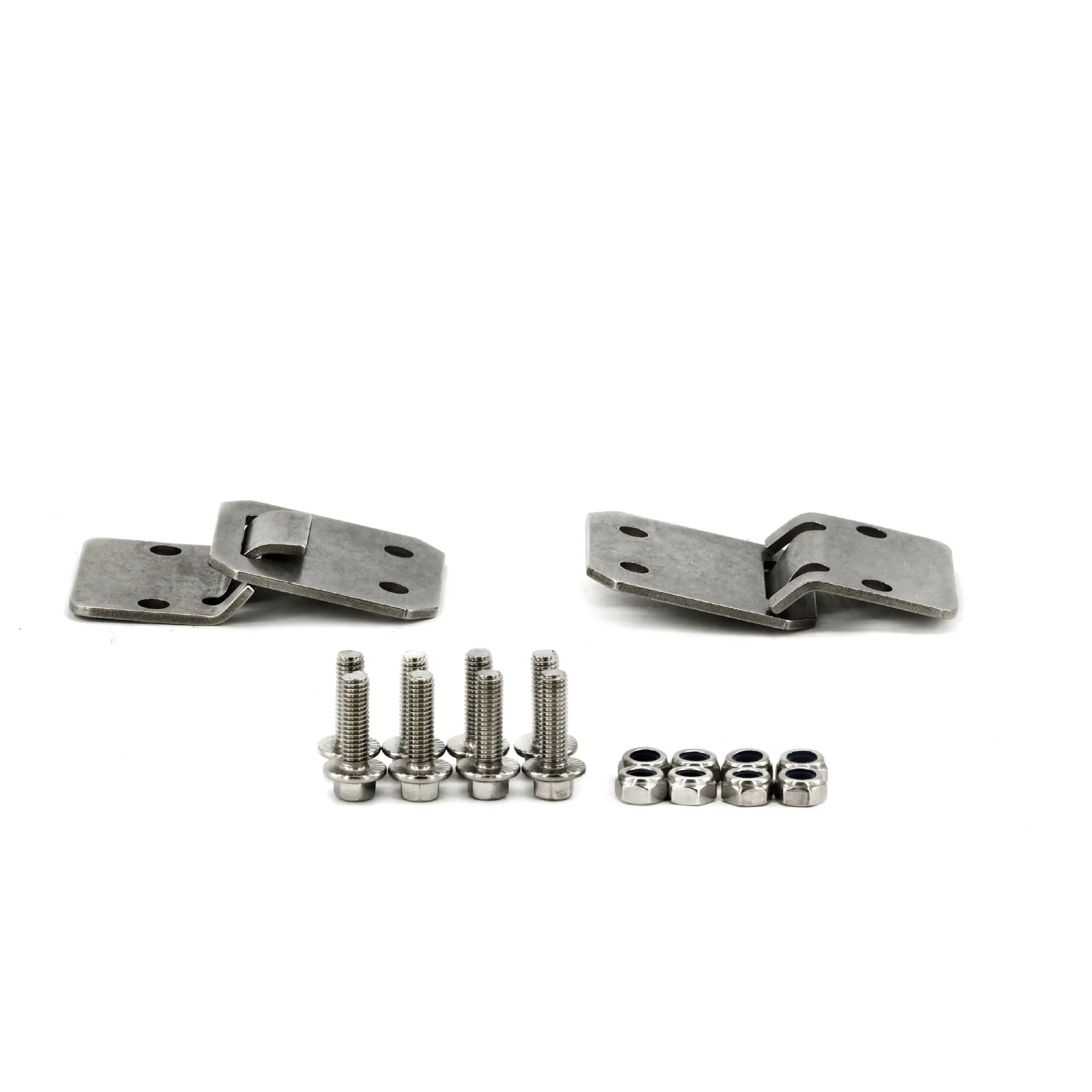

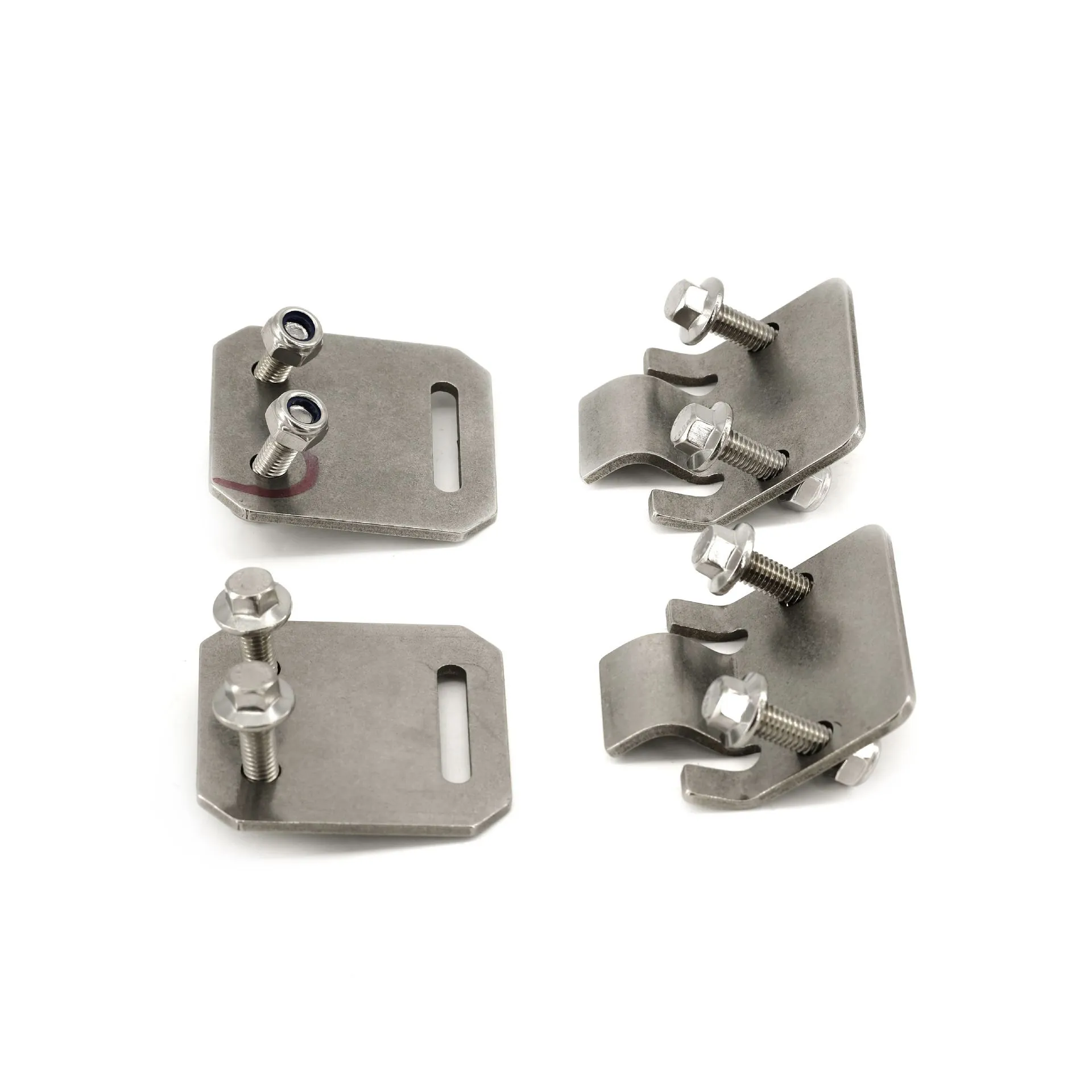

• 1 set of seat hinge plate and body hinge plate (stainless steel)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
