Club Car Tie Rod End Kit, Ball Joint Left & Right Thread for Replacement OEM# 1011895, 7540, 1011893, 7539

Description

Tie Rod Ball Joint Kit (Left & Right Thread) for Club Car DS, Carryall & Villager — Replaces OEM 7539, 7540, 1011893, 1011895

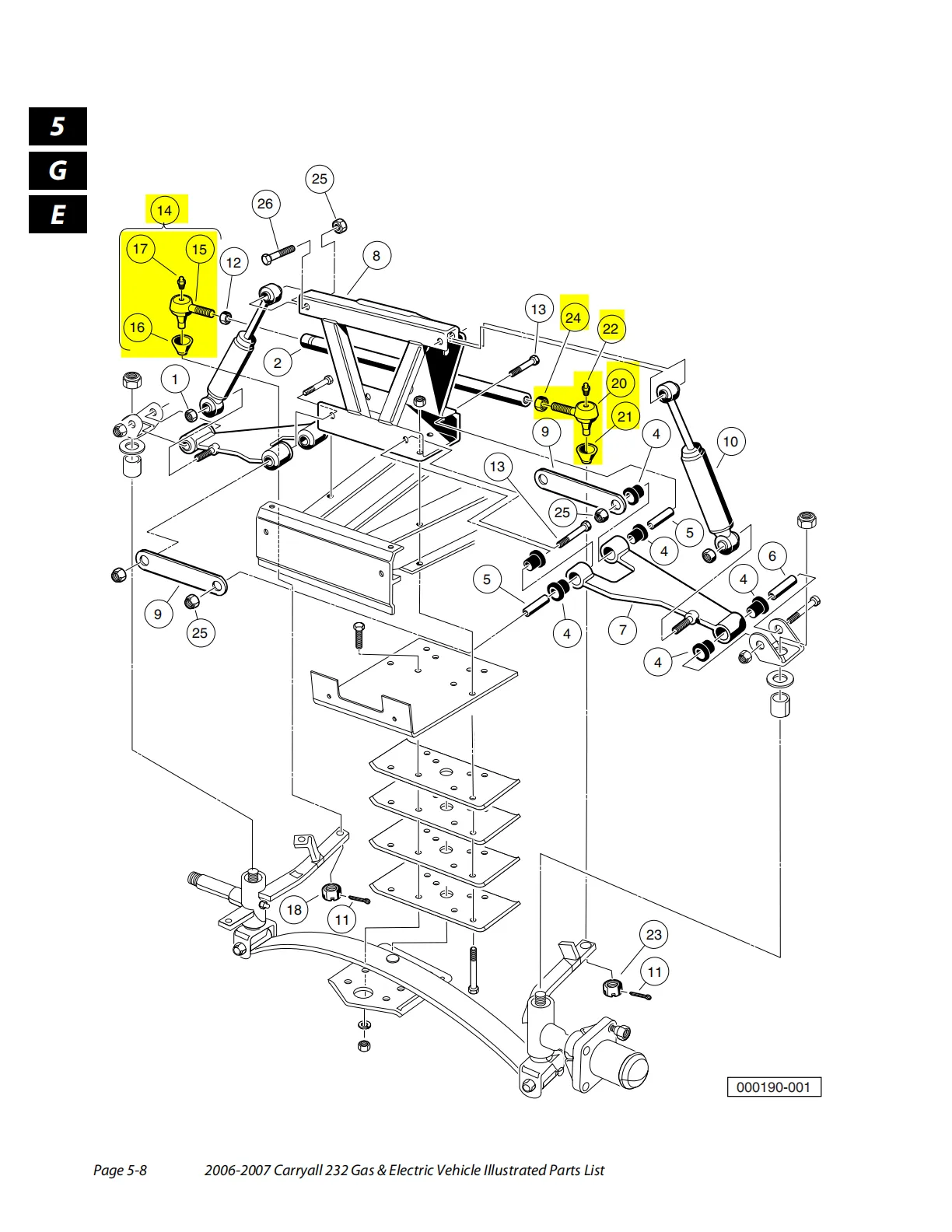

This aftermarket replacement kit has one left-hand-thread and one right-hand-thread ball joint (tie rod end) for Club Car carts. Club Car parts manuals list 7540 as "BALL JOINT, LEFT-HAND THREAD" and 7539 as the right-hand ball joint; Replace them when the steering feels loose, the cart wanders, the front tires wear unevenly, or a boot is torn and the joint has play.

Will it fit my cart?

• Club Car DS gas and electric (1994–2007)
• Club Car Carryall gas and electric (1992–2011)
• Club Car Villager (1999–2011)
• Not for Club Car Precedent, EZGO or Yamaha carts
• Not sure? Compare the part number on your old ball joints, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 7540 (left-hand thread), 7539 (right-hand thread), 1011895 (left vertical socket), 1011893 (right vertical socket)
• Position: steering tie rod ends
• Package: 2 pieces (1 left-hand, 1 right-hand thread), 9 x 3 x 2 inches, 1.2 lb (0.54 kg)

Installation — difficulty: moderate (about 45–60 minutes)

1. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable. Gas carts: remove the key and disconnect the battery negative cable.
2. Lift the front of the cart and support it securely on jack stands.
3. Count the turns as you unscrew the old ball joint so you can set the new one the same way.
4. Remove the nut and separate the ball joint stud from the steering arm.
5. Screw in the new ball joint the same number of turns, fit it to the steering arm and tighten the nut; fit a new cotter pin if your cart uses one.
6. Check or set the front-wheel alignment (toe) before driving.

What’s in the Box

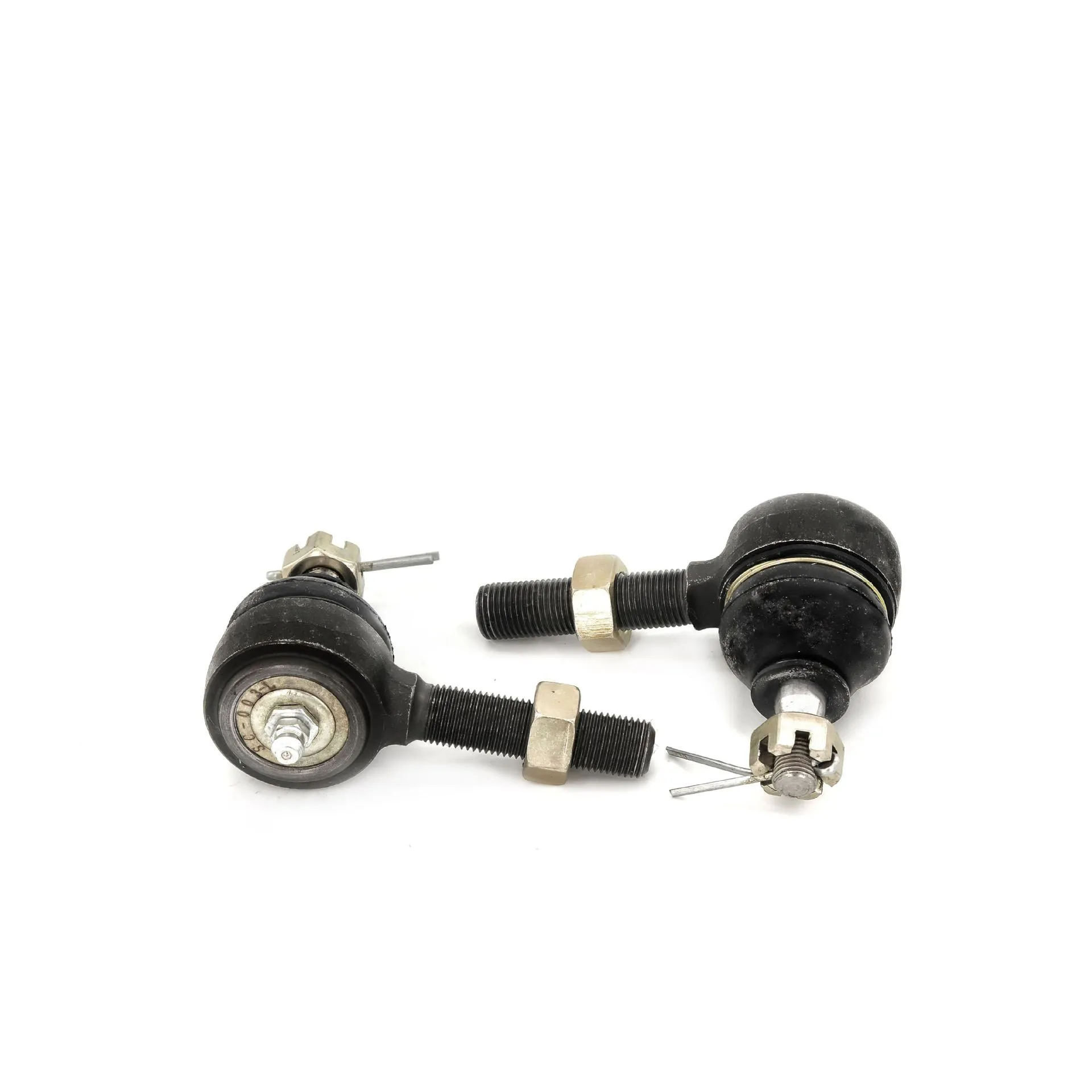

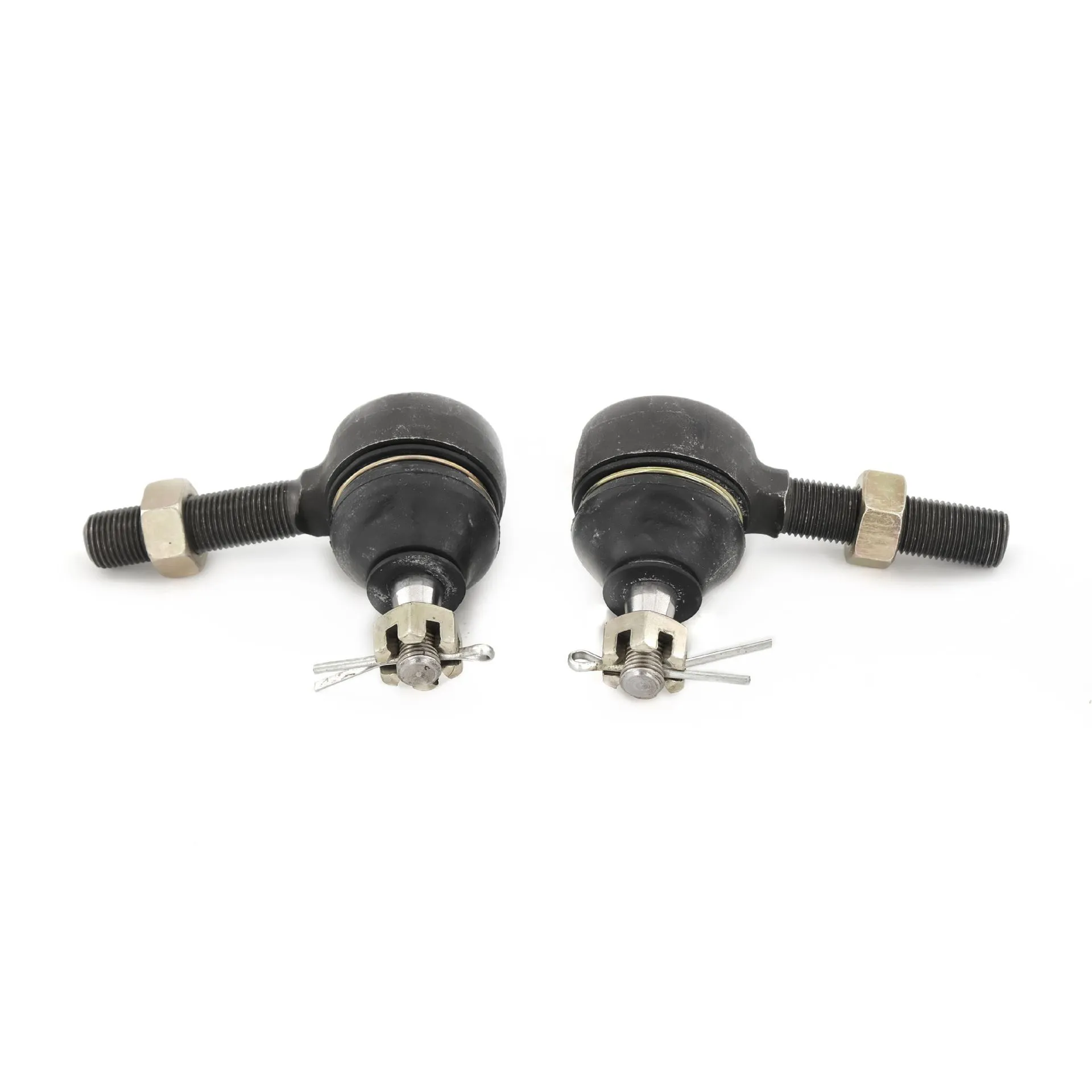

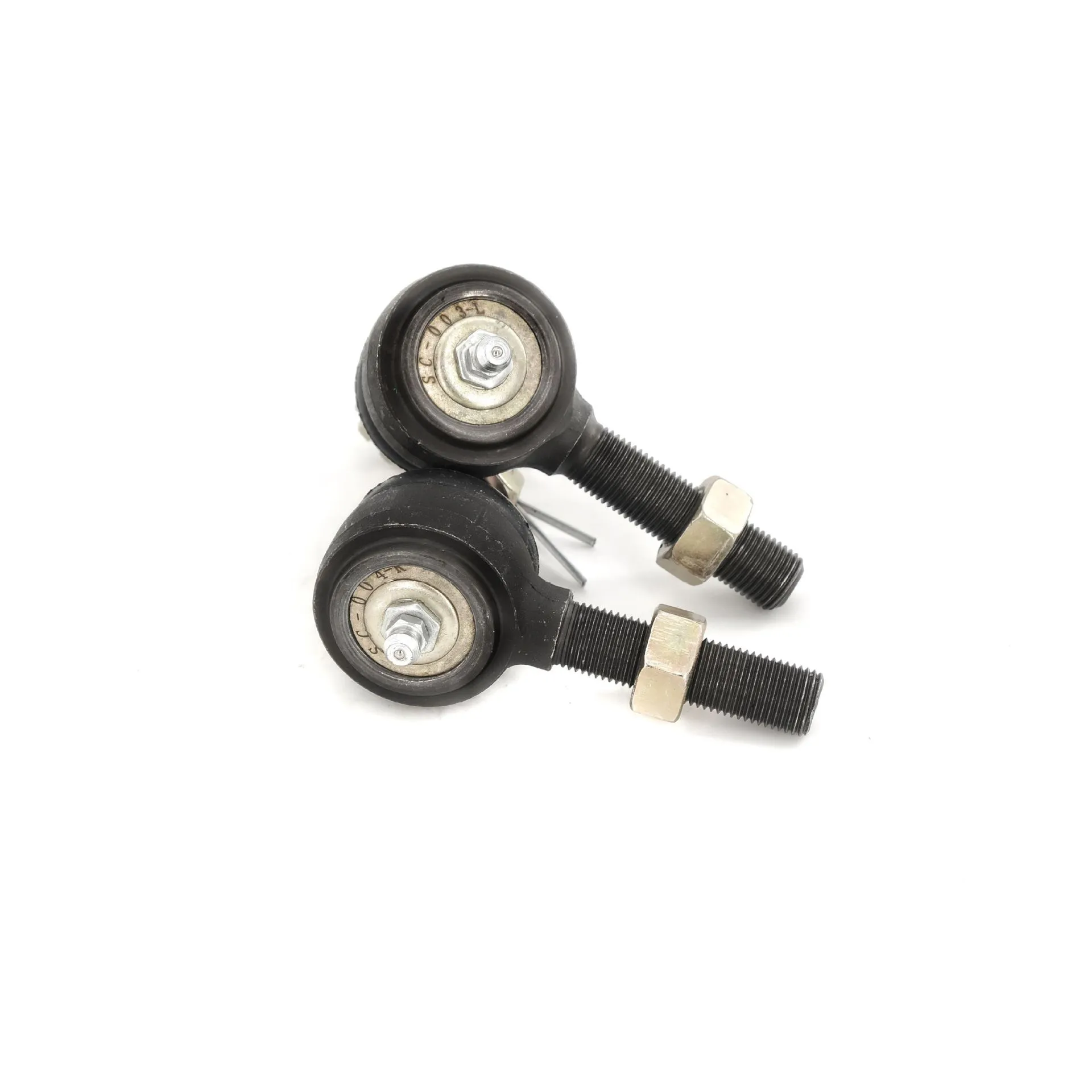

• 1 x left-hand-thread ball joint
• 1 x right-hand-thread ball joint

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
