EZGO TXT Medalist 36V Power Wise Charger Receptacle and W/Handle Plug Replace 73345G01, 73063-G01

Description

36V PowerWise Charger Receptacle & Plug for EZGO TXT & Medalist — Replaces OEM 73063-G01, 73345G01

This aftermarket replacement set is for 36-volt EZGO electric carts with PowerWise charging: the cart-side charger receptacle and the matching plug with handle, as listed in our title. EZGO lists OEM 73063G01 as "CHARGER RECEPTACLE ASSEMBLY". If the charger will not start, cuts out when you move the cord, or the pins look burnt or loose, a worn receptacle or plug is a common cause.

Will it fit my cart?

• EZGO TXT and Medalist 36V electric with PowerWise charging (per our listing; not confirmed in the parts manuals we have)

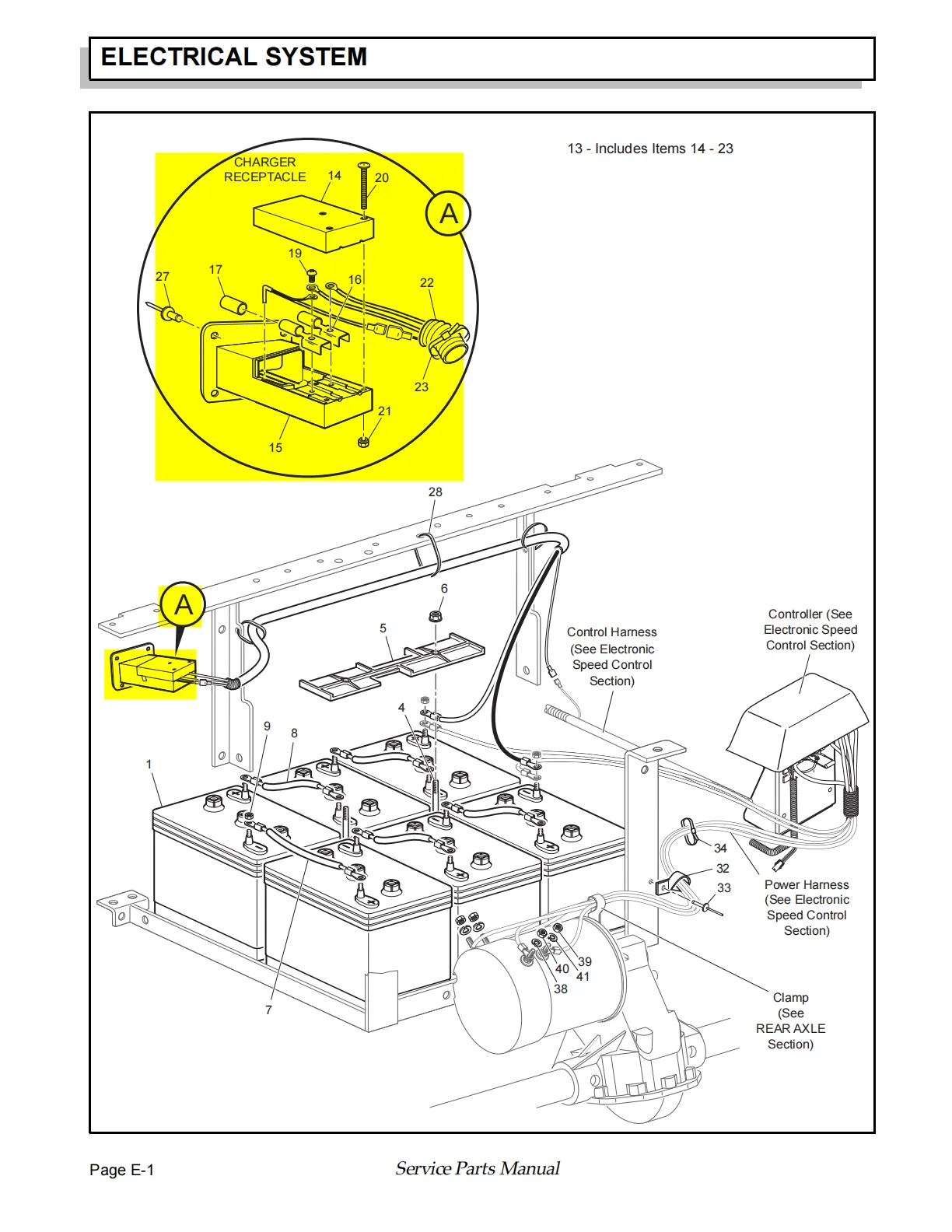

• EZGO ST Sport II electric (2009-up): receptacle 73063G01 is listed in its parts manual
• Not for gas carts, Club Car or Yamaha carts
• Not sure? Compare the part number on your old receptacle and plug, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 73063-G01 (charger receptacle assembly); 73345G01 (in our title; not found in the manuals we checked)
• System: EZGO 36V PowerWise charging
• Package: 1 set, 11.1 x 4.3 x 2.7 inches, 1.19 lb (0.54 kg)

Installation — difficulty: easy (about 30 minutes)

1. Unplug the charger from the wall. Put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Photograph the wiring on the old receptacle, then disconnect the wires.
3. Remove the mounting screws and take out the old receptacle.
4. Fit the new receptacle, reconnect the wires as in your photo and refit the screws. To replace the charger-cord plug, match the old wiring or ask a technician.
5. Reconnect the battery, set the switch to RUN and plug in the charger to check that it charges.

What’s in the Box

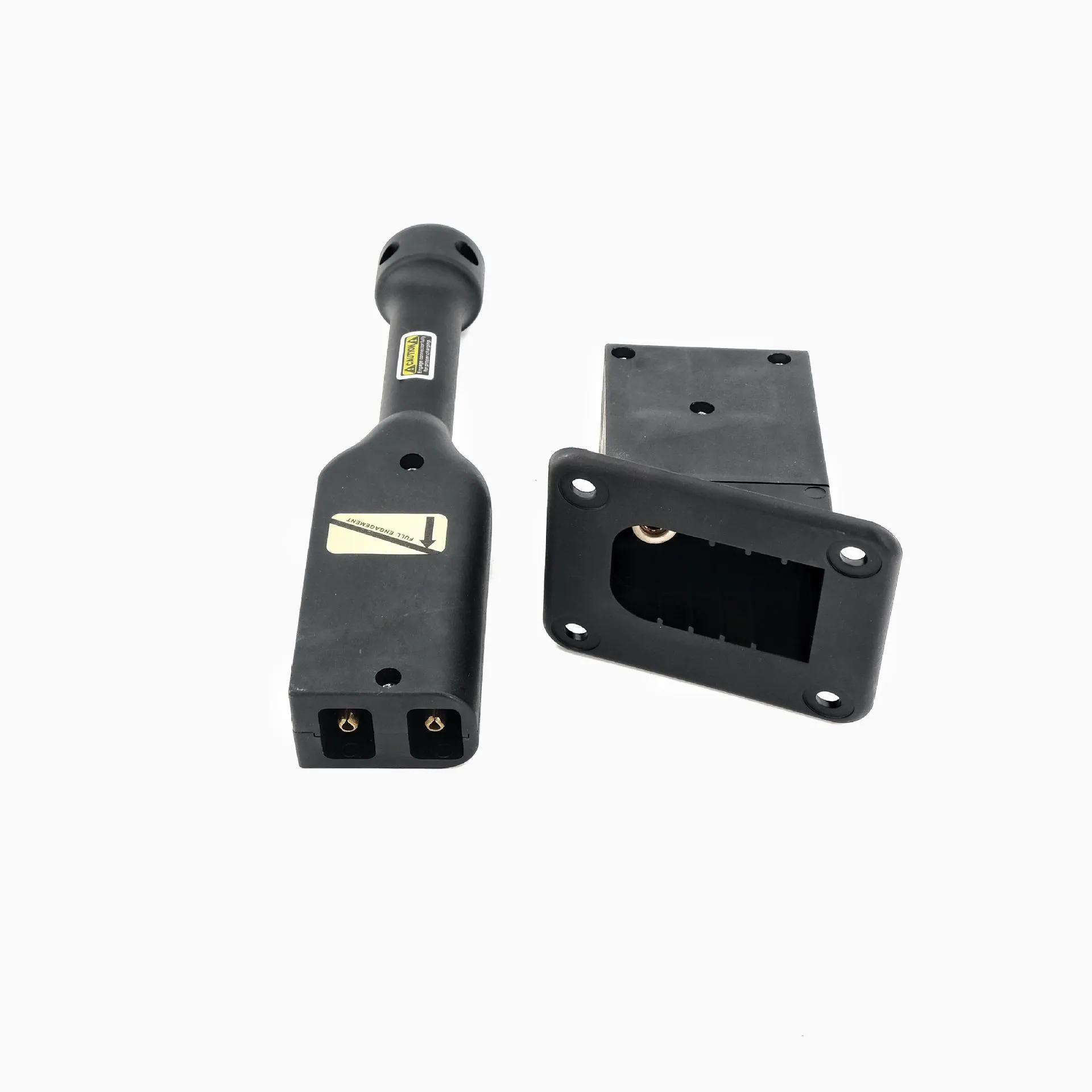

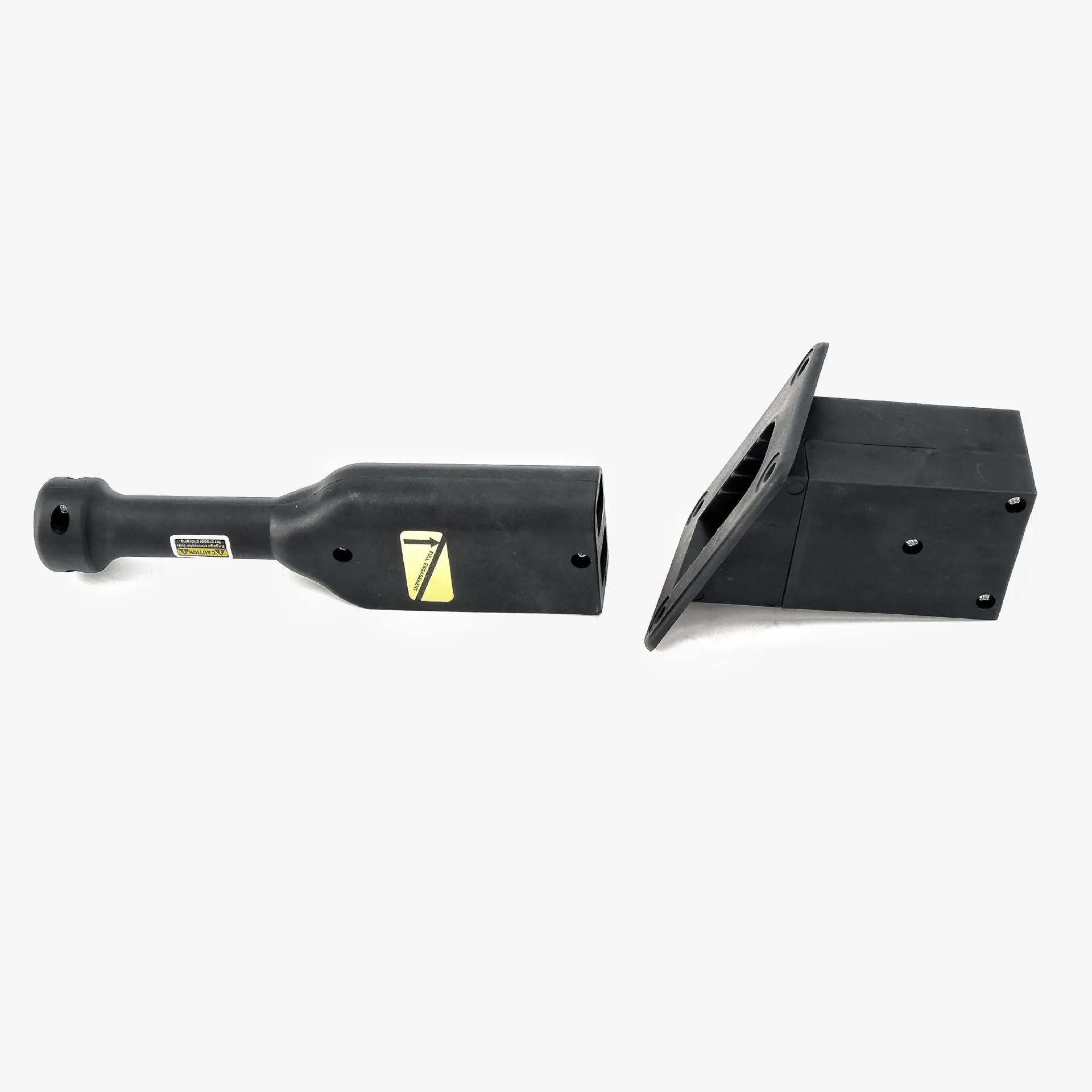

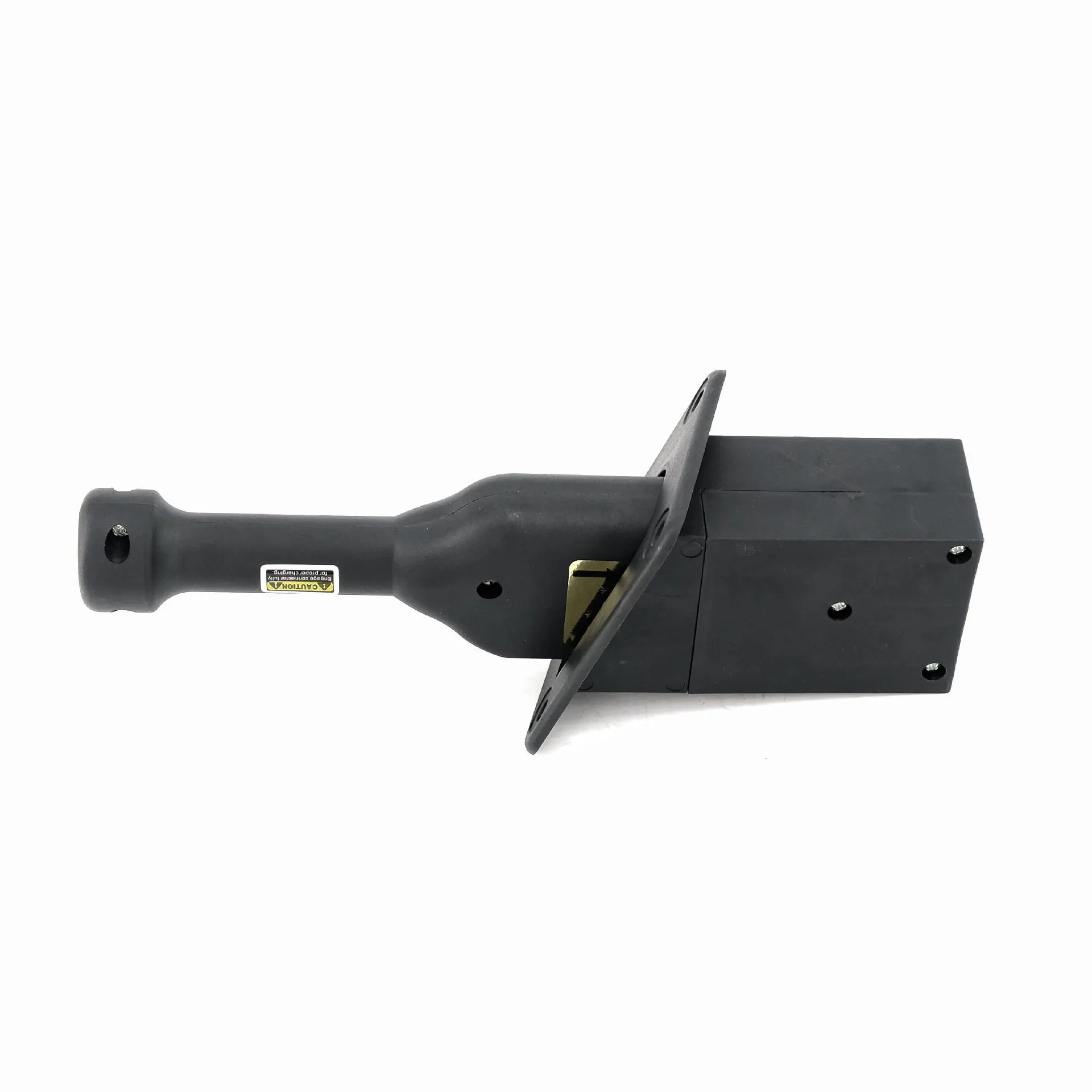

• 1 x charger receptacle (cart side)
• 1 x charger plug with handle

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
