Micro Switch for EZGO TXT & Marathon — Replaces OEM 10606G1, 10606G2, 17928G1, 31535G1

Description

Micro Switch for EZGO TXT & Marathon — Replaces OEM 10606G1, 10606G2, 17928G1, 31535G1

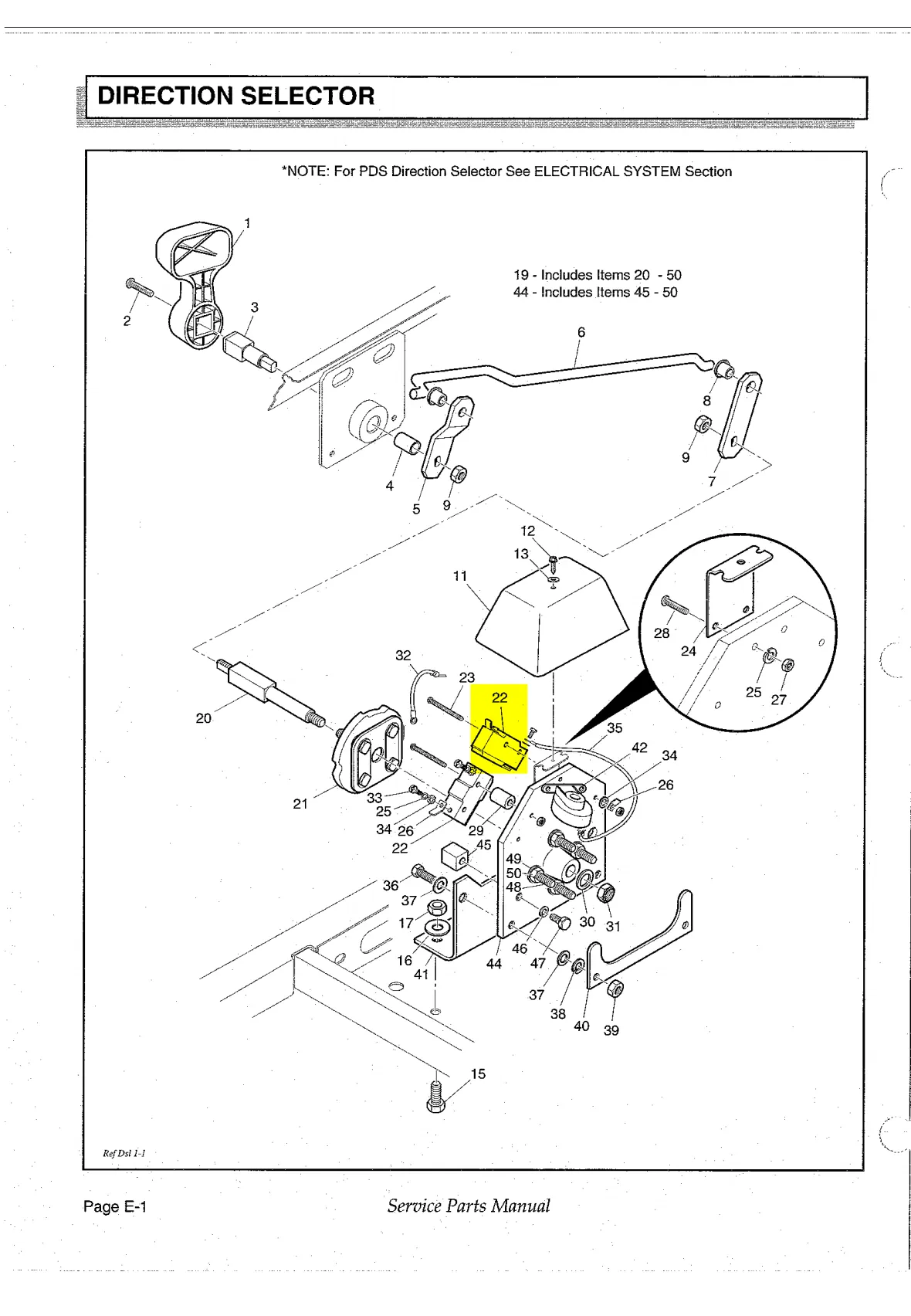

This is an aftermarket replacement micro switch for EZGO carts. We list it as an accelerator micro switch for TXT and Marathon carts; in the EZGO parts manual we have, OEM 10606-G1 appears as "MICRO SWITCH" in the dual-cable direction selector of the 2002 ST 350 gas. A micro switch that sticks, clicks without making contact, or works only some of the time can leave the cart dead or hesitant.

Will it fit my cart?

• EZGO TXT and Marathon (per our listing; not confirmed in the parts manuals we have, so please compare your old switch)
• EZGO ST 350 gas (2002): 10606-G1 is listed in the direction selector
• Not for Club Car or Yamaha carts
• Not sure? Compare the part number on your old switch, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 10606G1, 10606G2, 17928G1, 31535G1 (only 10606G1 was found in a parts manual)
• Type: micro switch
• Package: 1 piece, 1.18 x 1.18 x 1.18 inches, 0.2 kg (0.44 lb)

Installation — difficulty: easy (about 20–30 minutes)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Find the micro switch you are replacing and take a photo of its wires and mounting.
3. Disconnect the wires and remove the mounting screws.
4. Fit the new switch in the same position and reconnect the wires as in your photo.
5. Check that the switch clicks cleanly when the pedal or lever presses it, reconnect the battery and test before driving.

What’s in the Box

• 1 x micro switch

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
