EZGO TXT Front and Rear Shocks Absorbers 1994-Up Gas & Electric Models Golf Cart Replaces OEM #76418-01, 70928-G01

Description

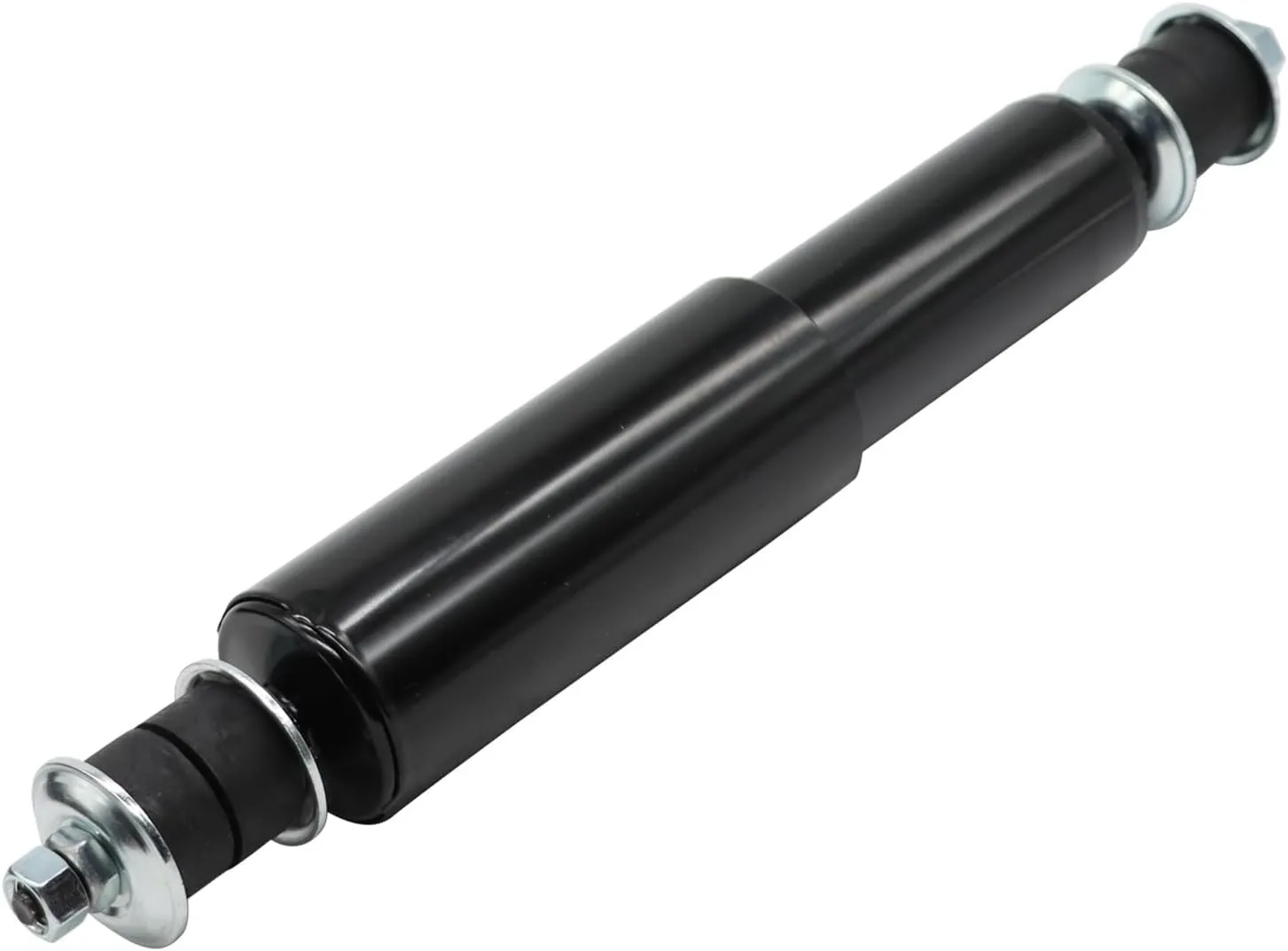

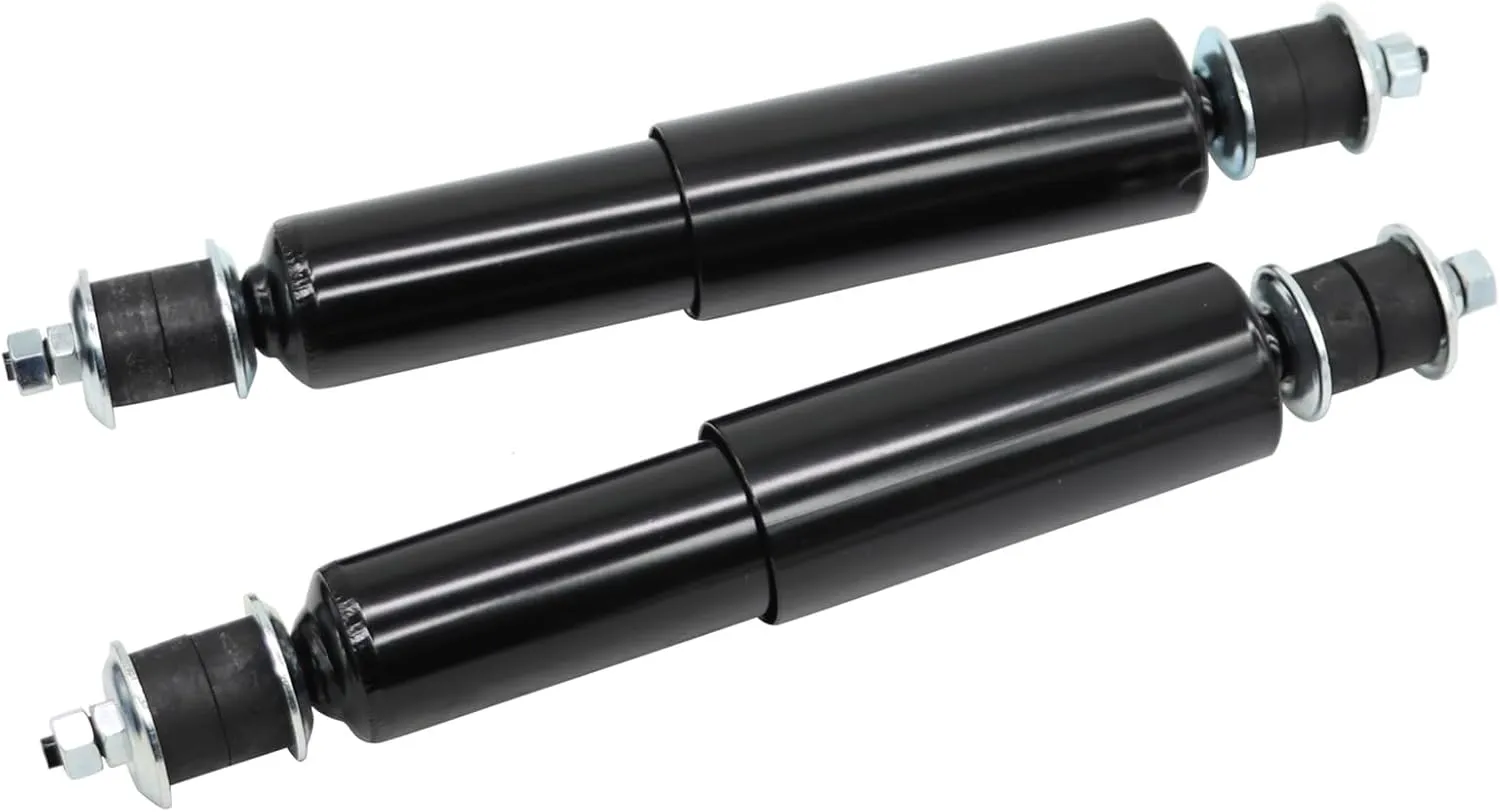

Front & Rear Shock Absorbers for EZGO TXT — Replaces OEM 70928-G01, 76418-01

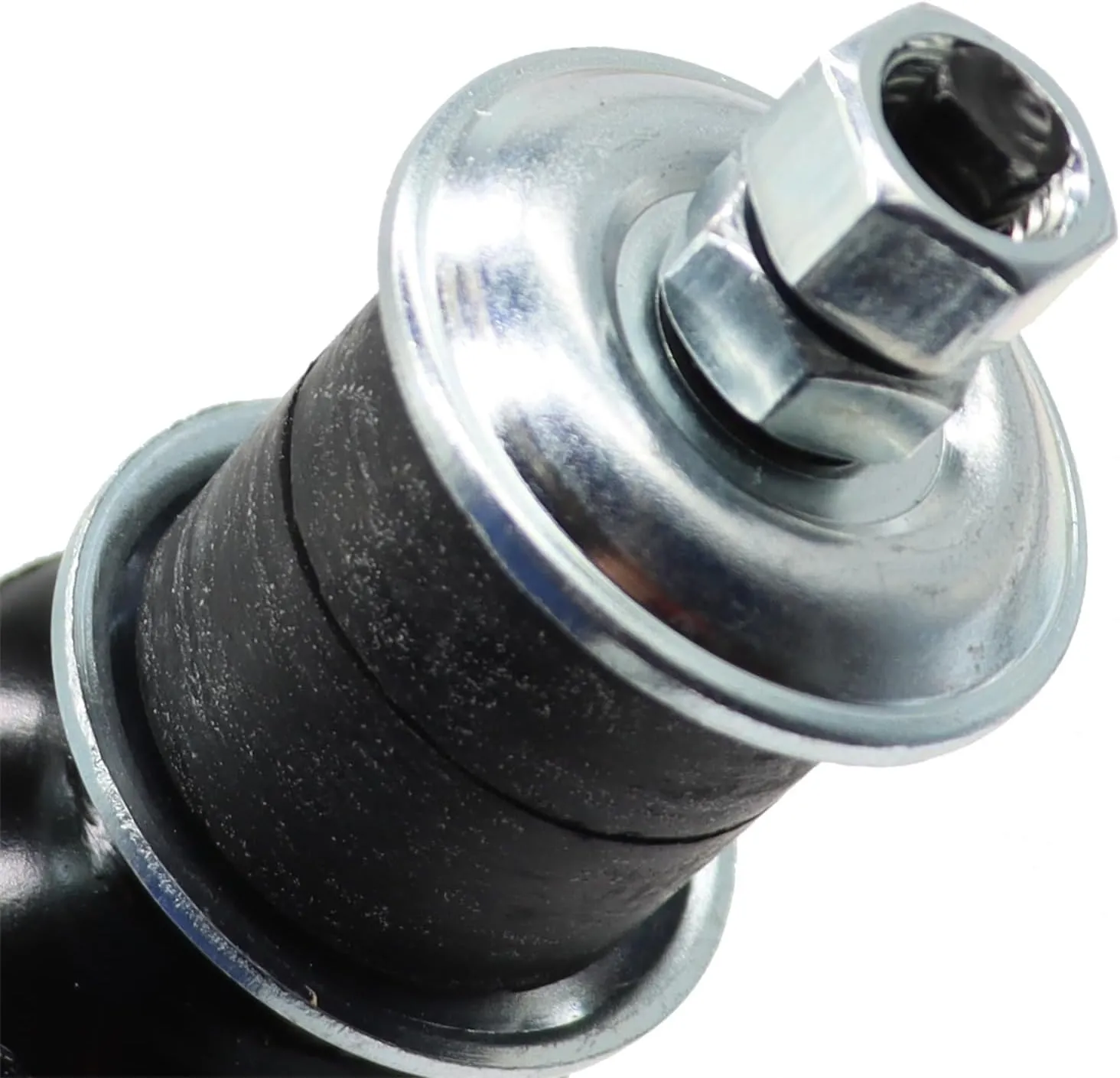

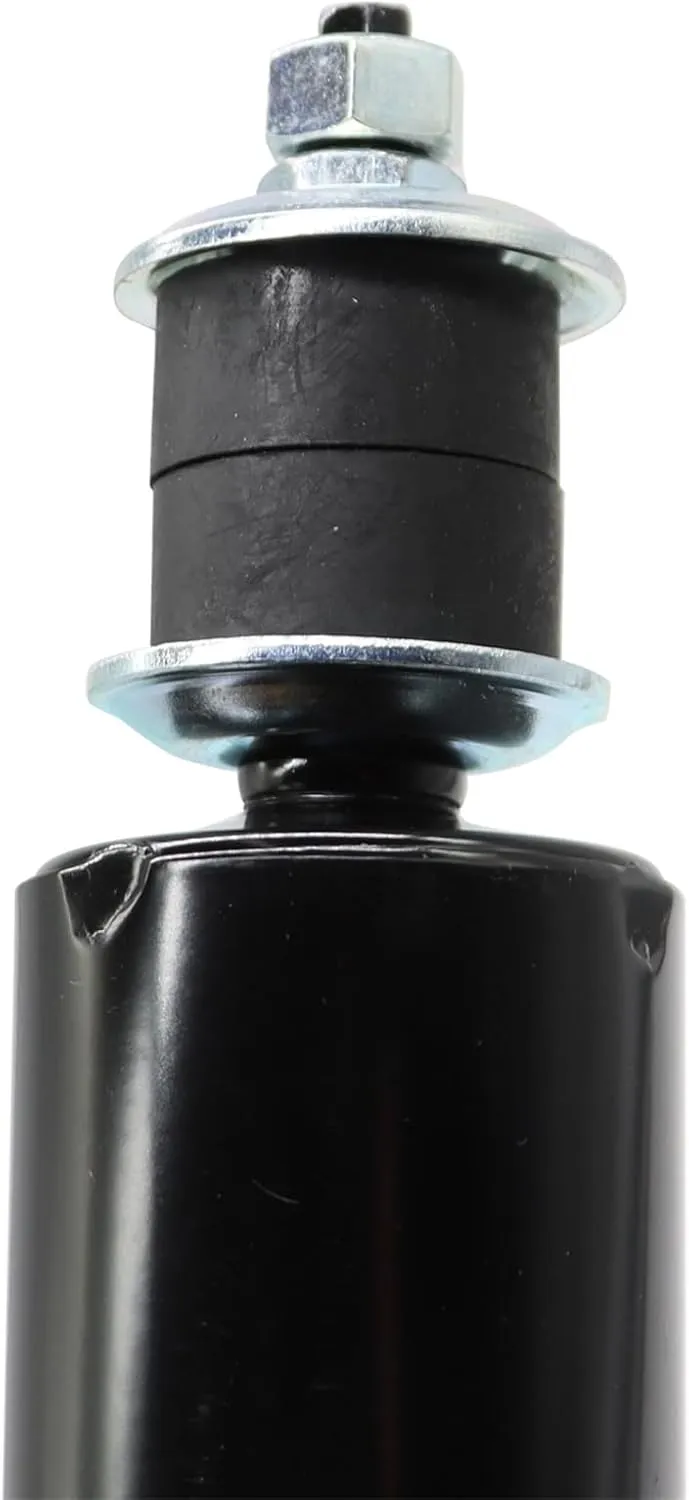

This aftermarket replacement set has four shock absorbers to cover the front and rear of an EZGO TXT. Shocks damp the up-and-down movement of the suspension; worn ones let the cart bounce, bottom out and wander over bumps, and they wear tires faster. Look for oil leaking from a shock, a cart that keeps bouncing after a bump, or worn rubber bushings at the mounts.

Will it fit my cart?

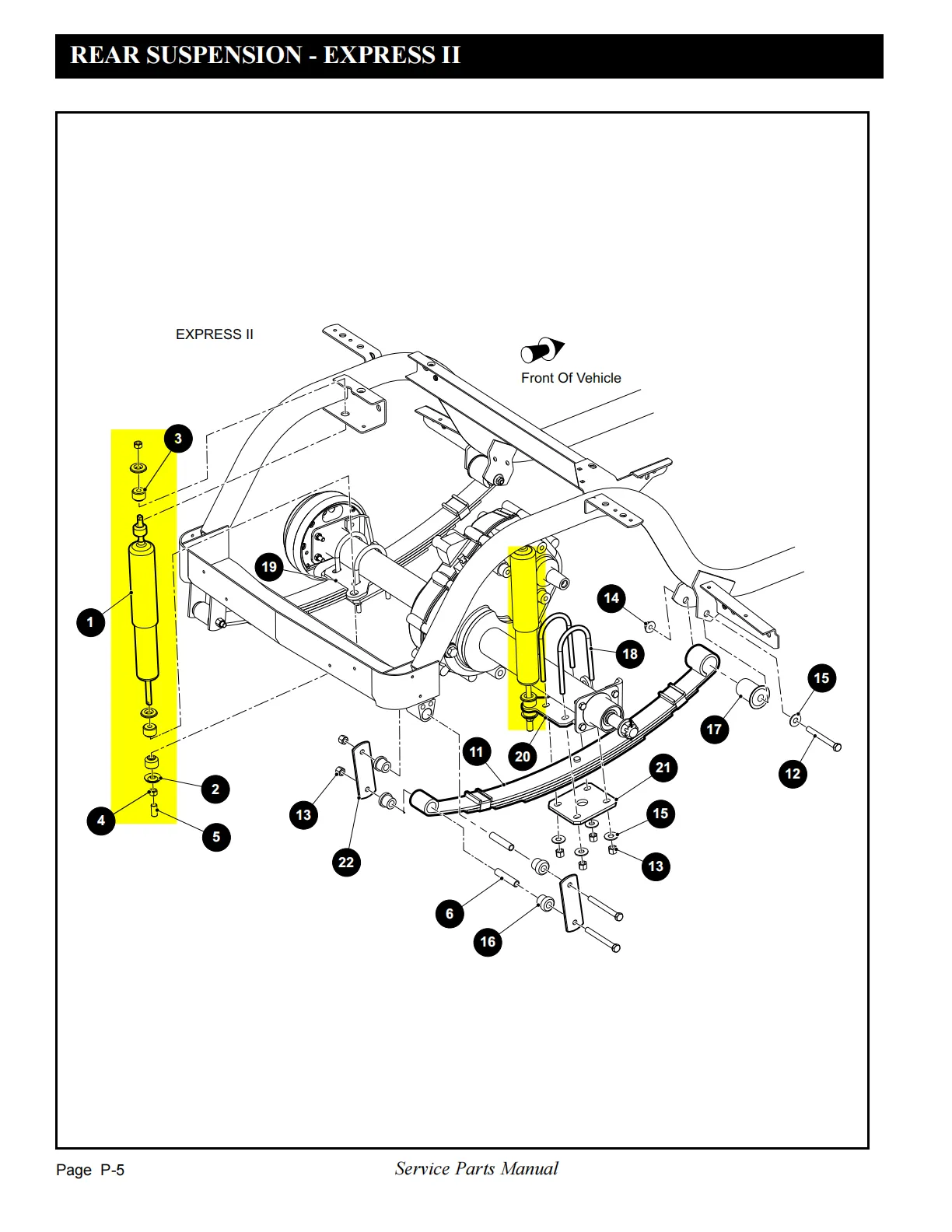

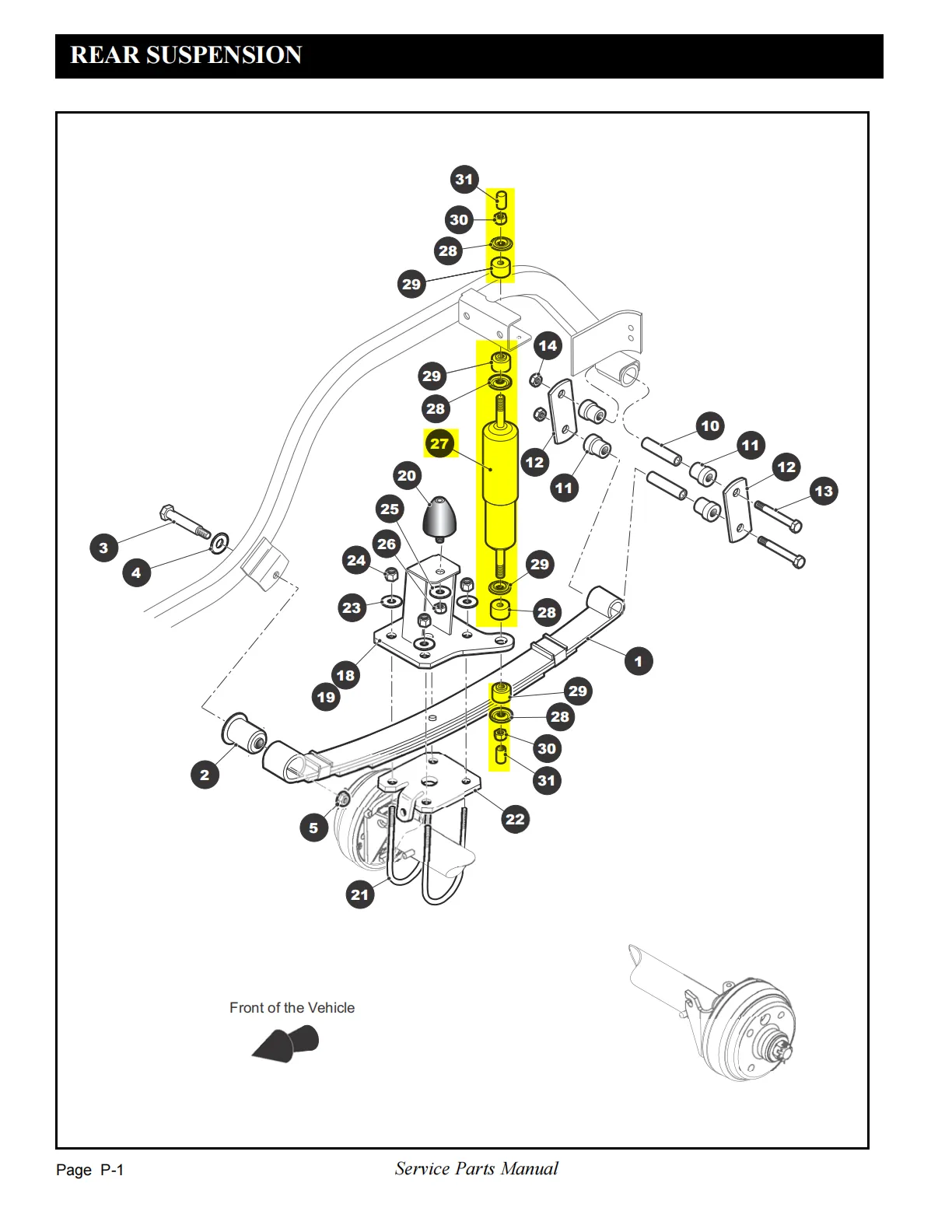

• EZGO TXT gas and electric (the front shock, 70928-G01, is listed in the 2003 TXT parts manual)
• Not for Club Car or Yamaha carts
• Not sure? Compare the part number on your old shocks, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 70928-G01 (front shock, 2 per cart in the 2003 TXT manual); 76418-01 (as listed in our title; not found in the manuals we checked)
• Position: front and rear suspension
• Package: 4 pieces, 14.65 x 5.12 x 4.65 inches, 10.16 lb (4.61 kg)

Installation — difficulty: moderate (about 1–1.5 hours for all four)

1. Gas carts: remove the key and disconnect the battery negative cable. Electric carts: put the Tow/Run switch in TOW and disconnect the main negative battery cable.
2. Lift the cart and support the frame on jack stands, with a jack under the suspension corner you are working on.
3. Remove the upper and lower mounting nuts and bolts and take out the old shock.
4. Fit the new shock with the bushings and washers in the same order and tighten the nuts.
5. Repeat for each corner, lower the cart and take a short test ride.

What’s in the Box

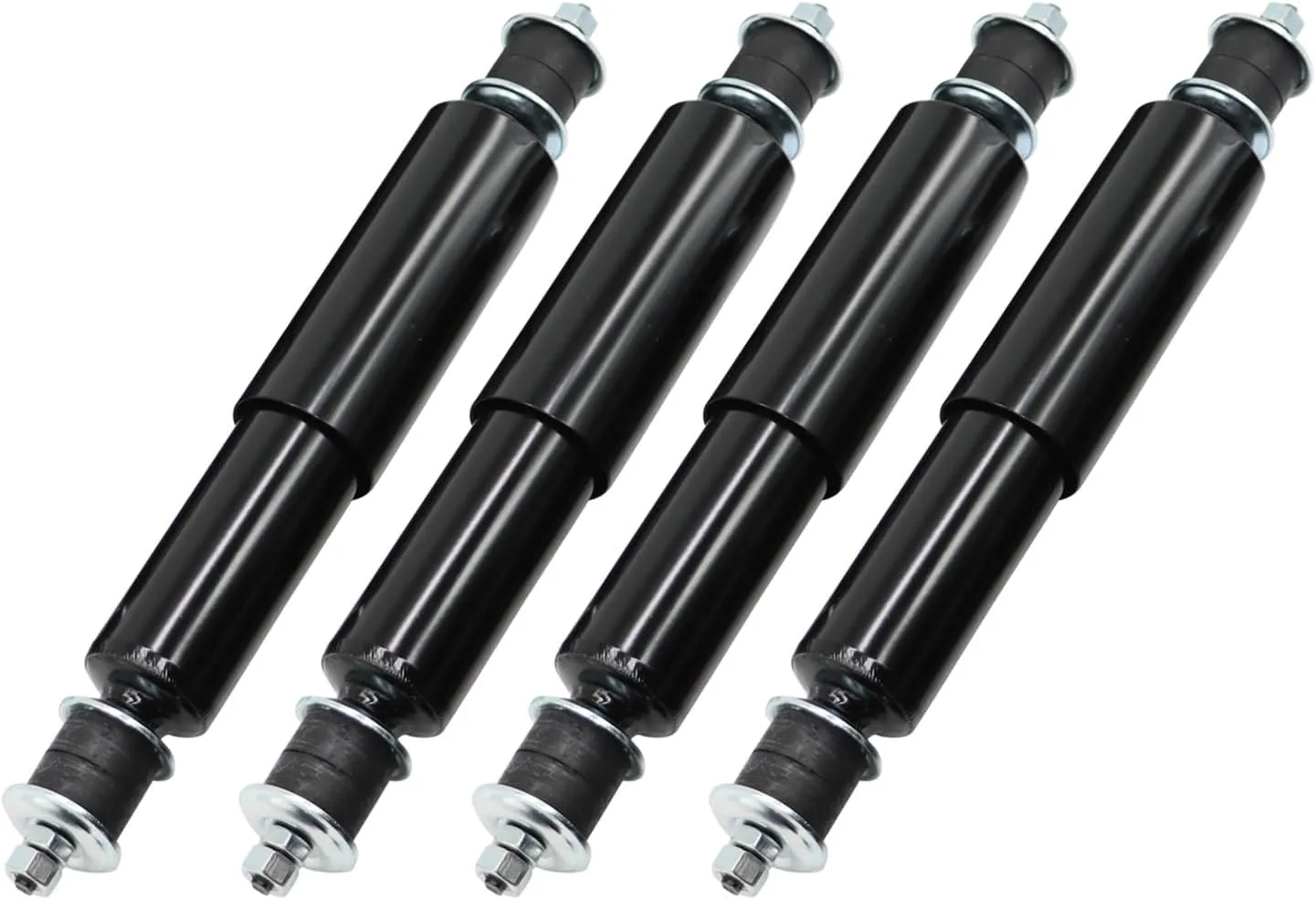

• 4 x shock absorbers (front and rear)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
