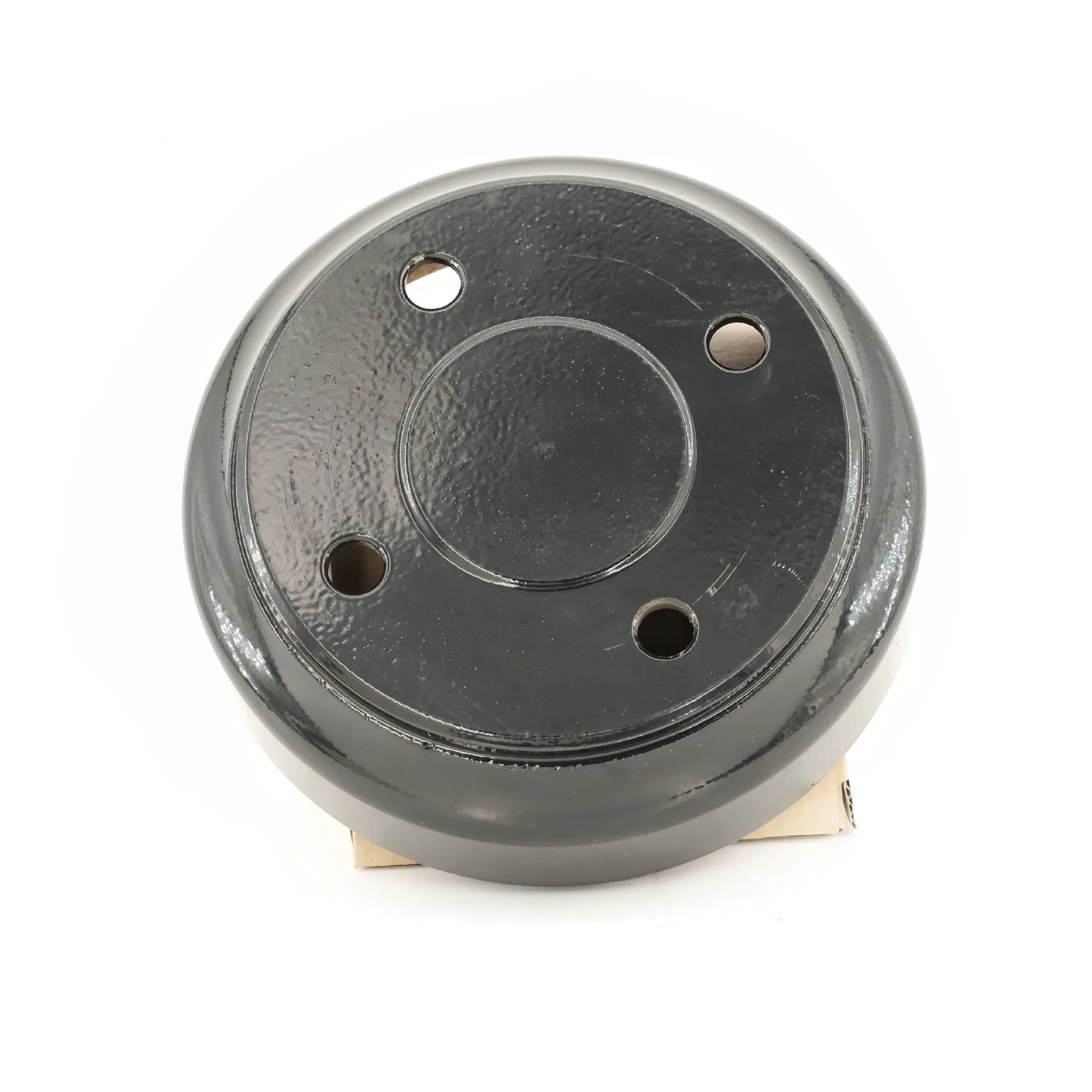

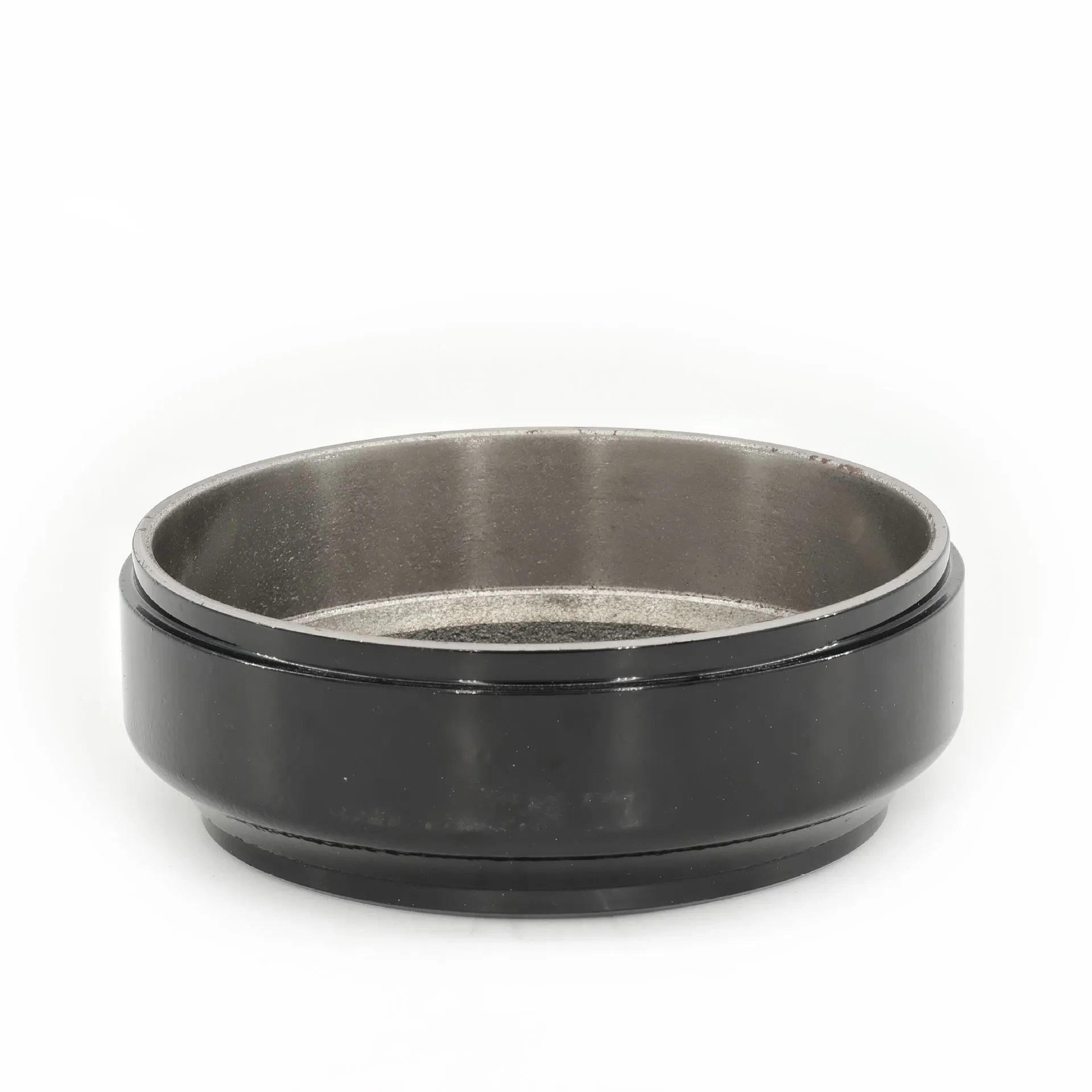

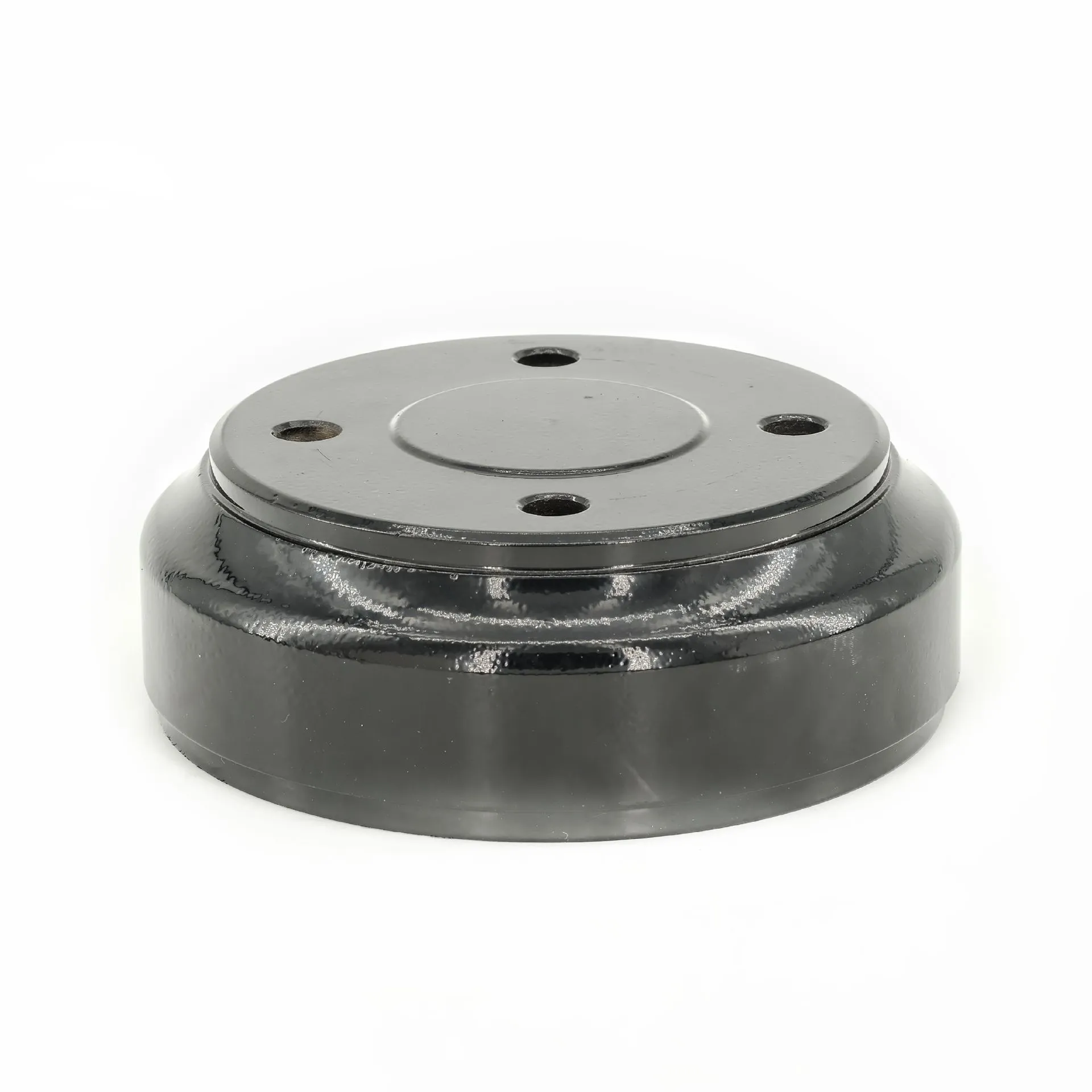

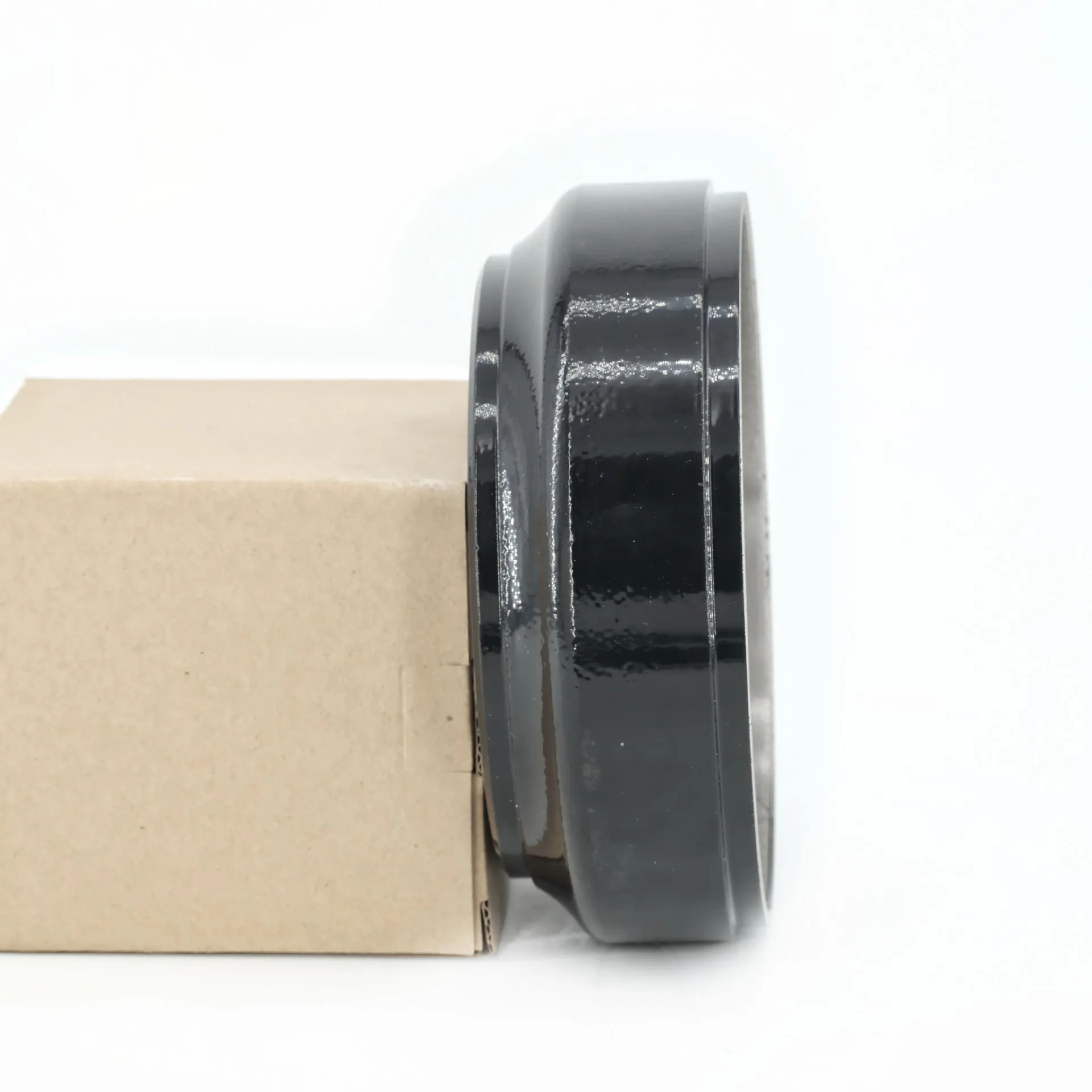

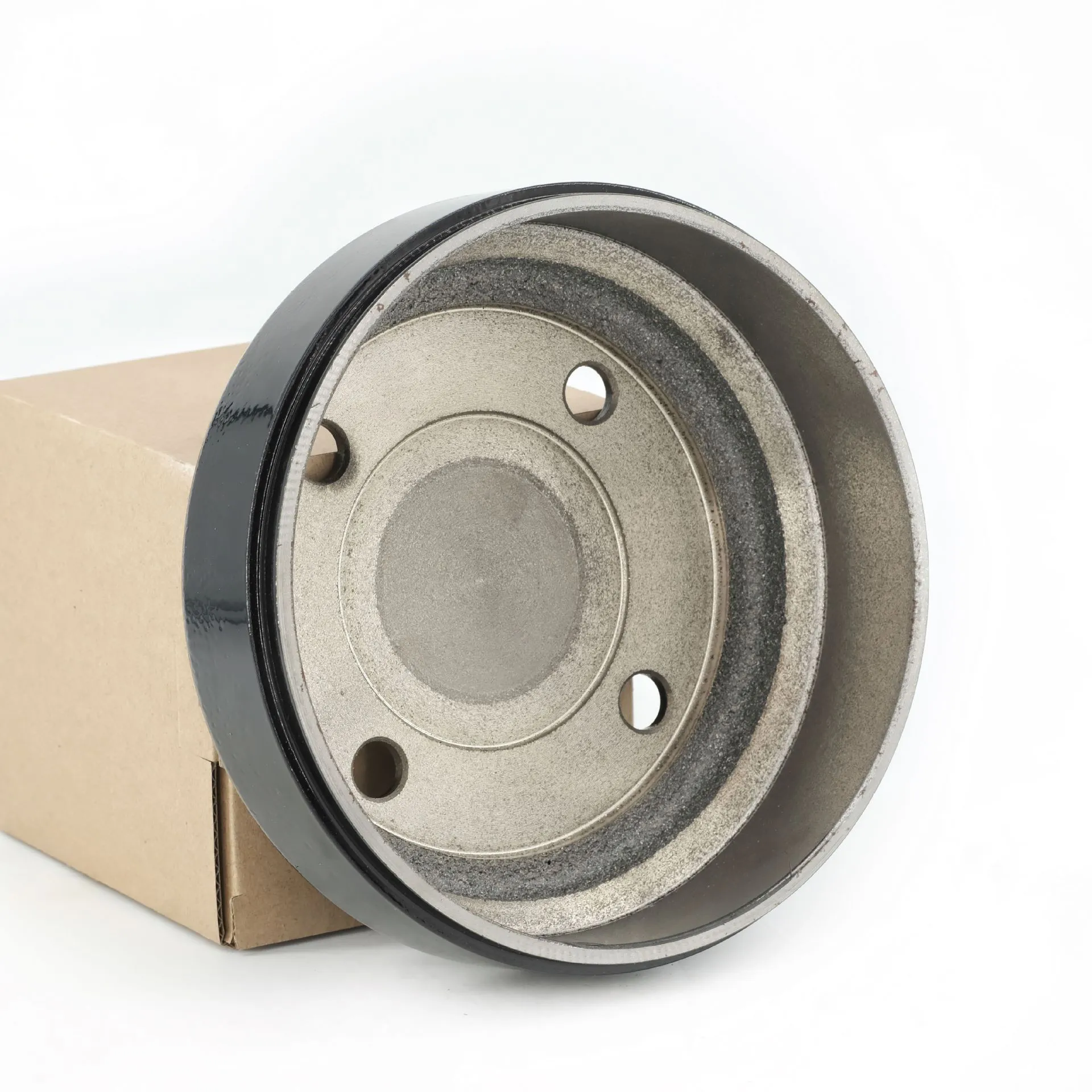

Club Car Rear Brake Drum — Fits DS, Precedent & Carryall — OEM Replacement

Replace your worn or scored rear brake drum to restore full braking power and safety. A damaged brake drum causes reduced stopping power, brake noise, and uneven wear on brake shoes.

Compatibility

• Club Car DS models, 1995 and up (gas and electric)
• Club Car Precedent models, 2004 and up (gas and electric)
• Club Car Carryall utility vehicles
• Direct replacement for OEM part numbers: 1017911-01 / 101791101

Specifications

• OEM Reference: 1017911-01 / 101791101
• Material: High-grade cast iron
• Type: Rear brake drum
• Finish: Precision-machined braking surface

Features

• High-grade cast iron for excellent heat dissipation and wear resistance
• Precision-machined inner surface for consistent brake shoe contact
• Balanced construction reduces vibration during braking
• Direct OEM-spec replacement — no modifications needed

Installation

Jack up the rear of the cart and remove the rear wheel. Remove the retaining nut or cotter pin and slide the old brake drum off the axle. Inspect the brake shoes for wear — replace if necessary. Slide the new drum onto the axle and secure it. Reinstall the wheel and torque the lug nuts to specification. Installation time: approximately 30-45 minutes per side.

What’s in the Box

• 1 x Rear Brake Drum

Warranty

Backed by our 1-2 year quality warranty. Free replacement for any manufacturing defects during the warranty period.
