Hinged Windshield Clip & Hinge Kit for Club Car DS 1982–2000 (Non-ICS Canopy) — Replaces OEM 102005801

Description

Hinged Windshield Clip & Hinge Kit for Club Car DS 1982–2000 (Non-ICS Canopy) — Replaces OEM 102005801

This aftermarket replacement kit has the retaining clips, sash clips and flex hinge parts that hold a hinged windshield on Club Car DS carts with the older (non-ICS) canopy top. Club Car lists the upper rubber clip as OEM 102005801 in its hinged windshield kit for 1982–2000 non-ICS canopy tops. Replace the set when the windshield rattles, will not stay closed or open, or the old clips and hinges are cracked.

Will it fit my cart?

• Club Car DS 1982–2000 with the non-ICS canopy top and a hinged windshield
• Not for DS carts with the ICS canopy top (2000 and later), which use a different hinged windshield kit
• Not for EZGO or Yamaha carts
• Not sure? Compare the part number on your old clips, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

• OEM reference: 102005801 (upper rubber clip)

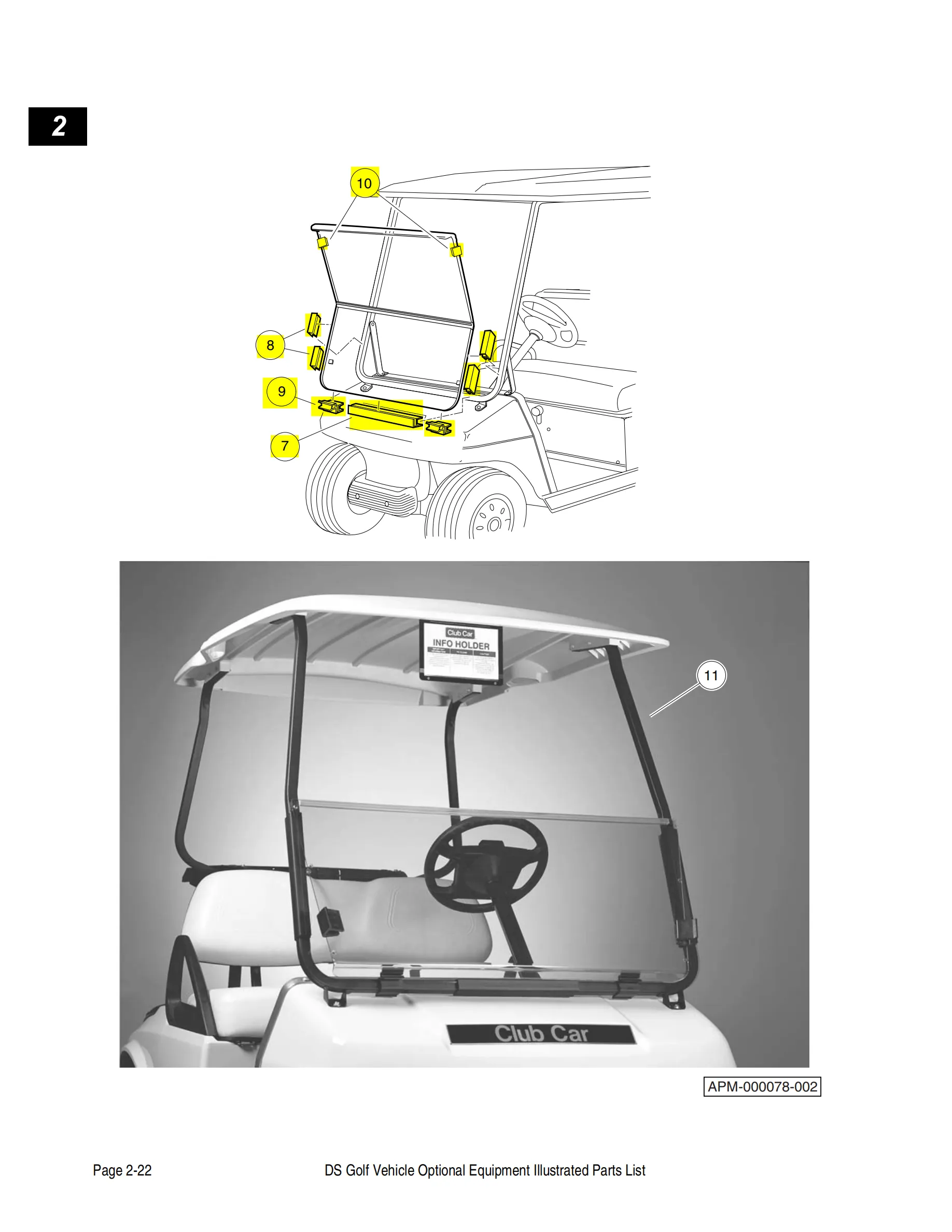

• Matching Club Car kit: 101728602 hinged windshield for 1982–2000 non-ICS canopy tops
• Package: 1 set, 12.05 x 6.02 x 3.5 inches, 0.79 kg (1.74 lb)

Installation — difficulty: easy (about 20–30 minutes)

1. Park the cart and support the windshield so it cannot fall.
2. Note how the old clips, channels and hinge parts are fitted, or take photos.
3. Remove the old parts and fit the new ones in the same positions.
4. Close and open the windshield and check that it holds firmly in both positions without rattling.

What’s in the Box

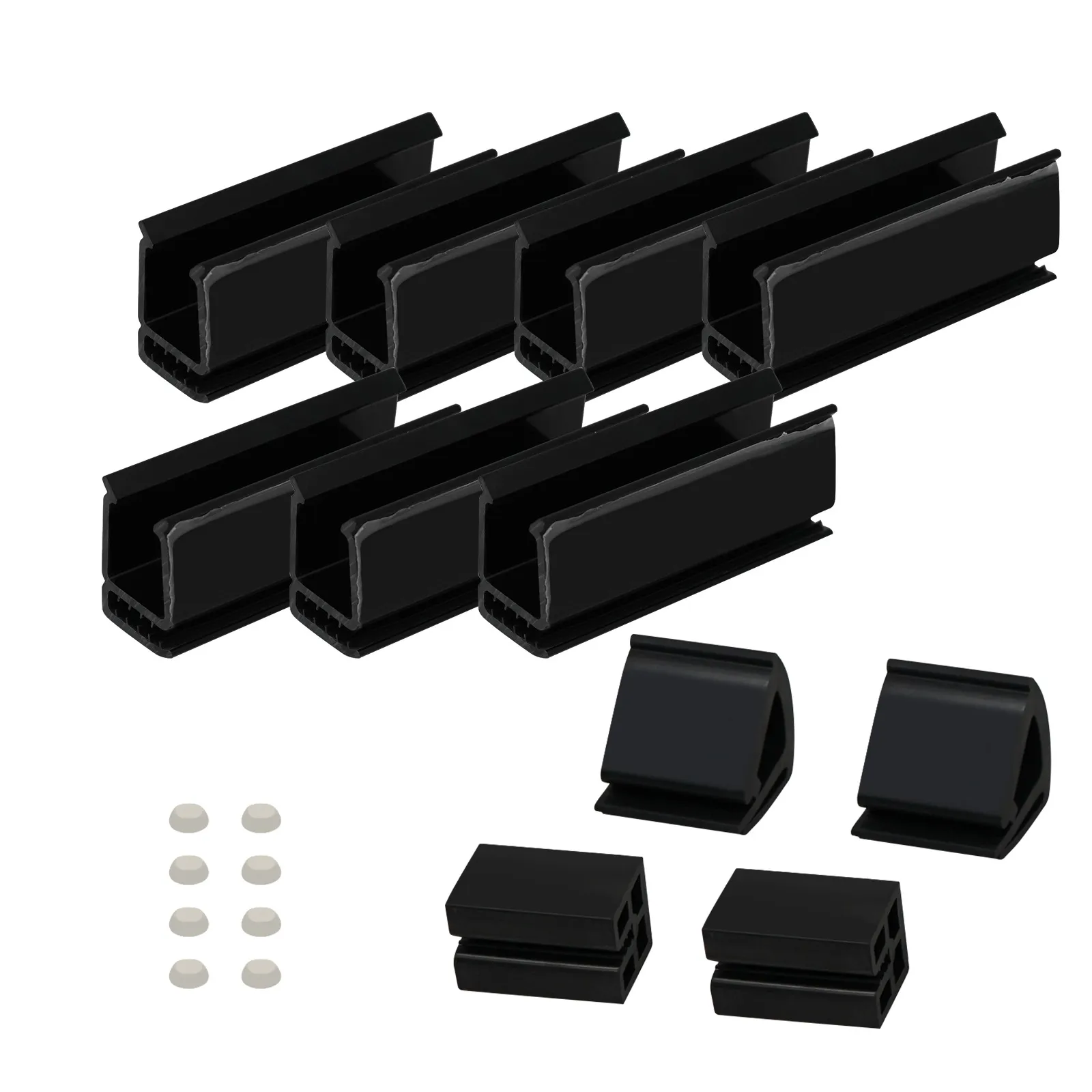

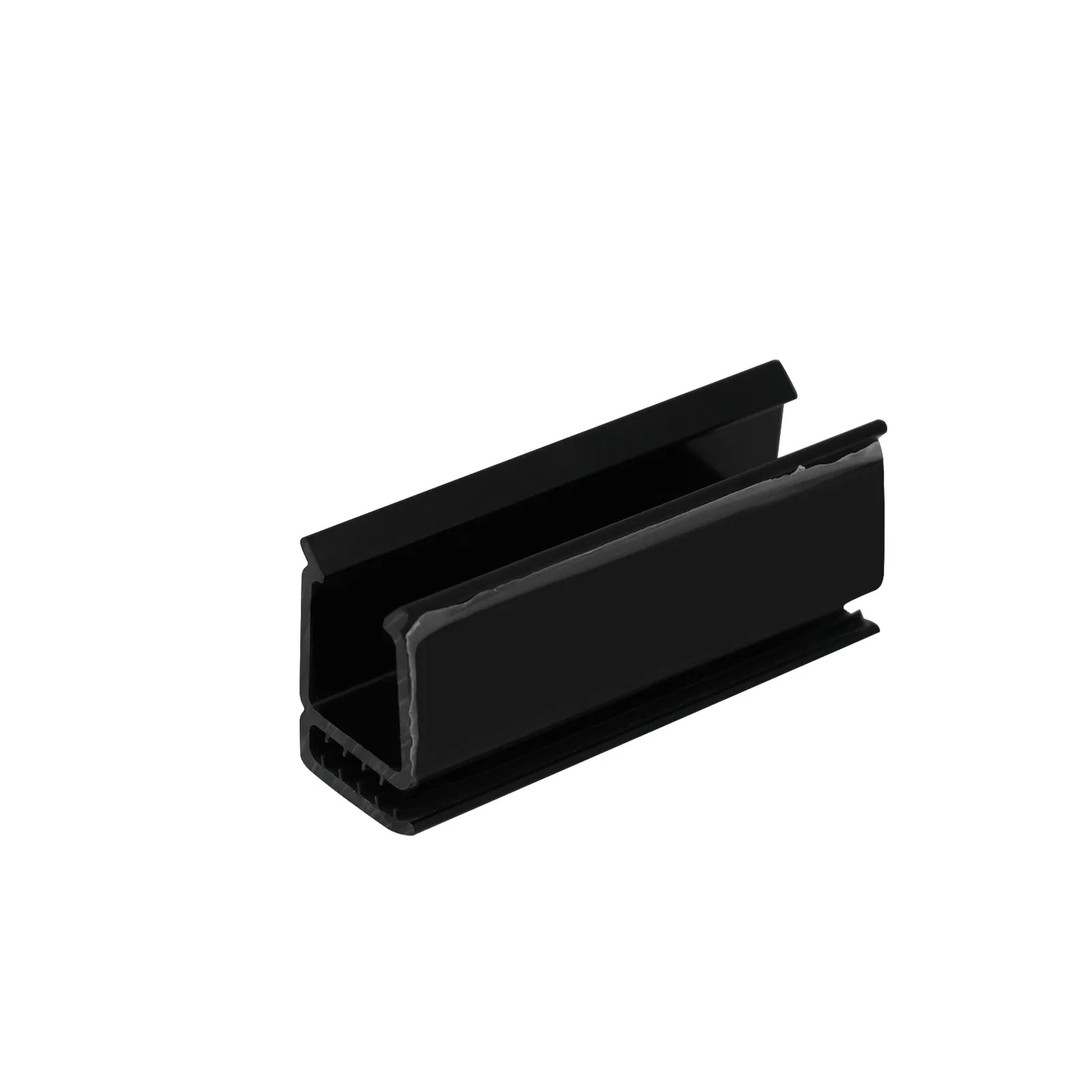

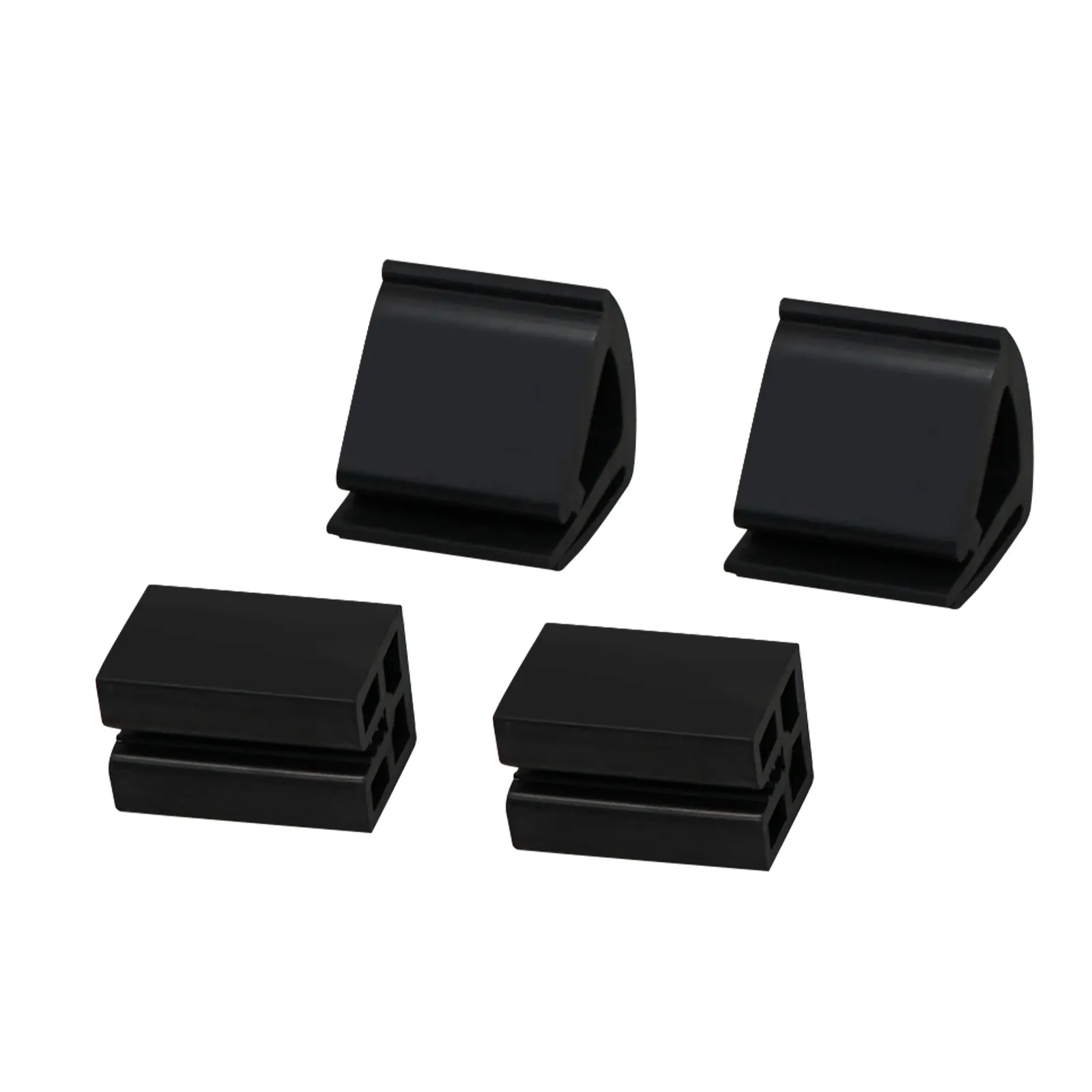

• 1 set of windshield retaining clips, sash clips and flex hinge parts (as pictured)

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
