EZGO TXT Cushman Express Gas Drive Belt & Starter Belts Kit

Description

Drive Belt & Starter/Generator Belt Kit for EZGO TXT Gas — Replaces OEM 72054-G01, 26414-G01

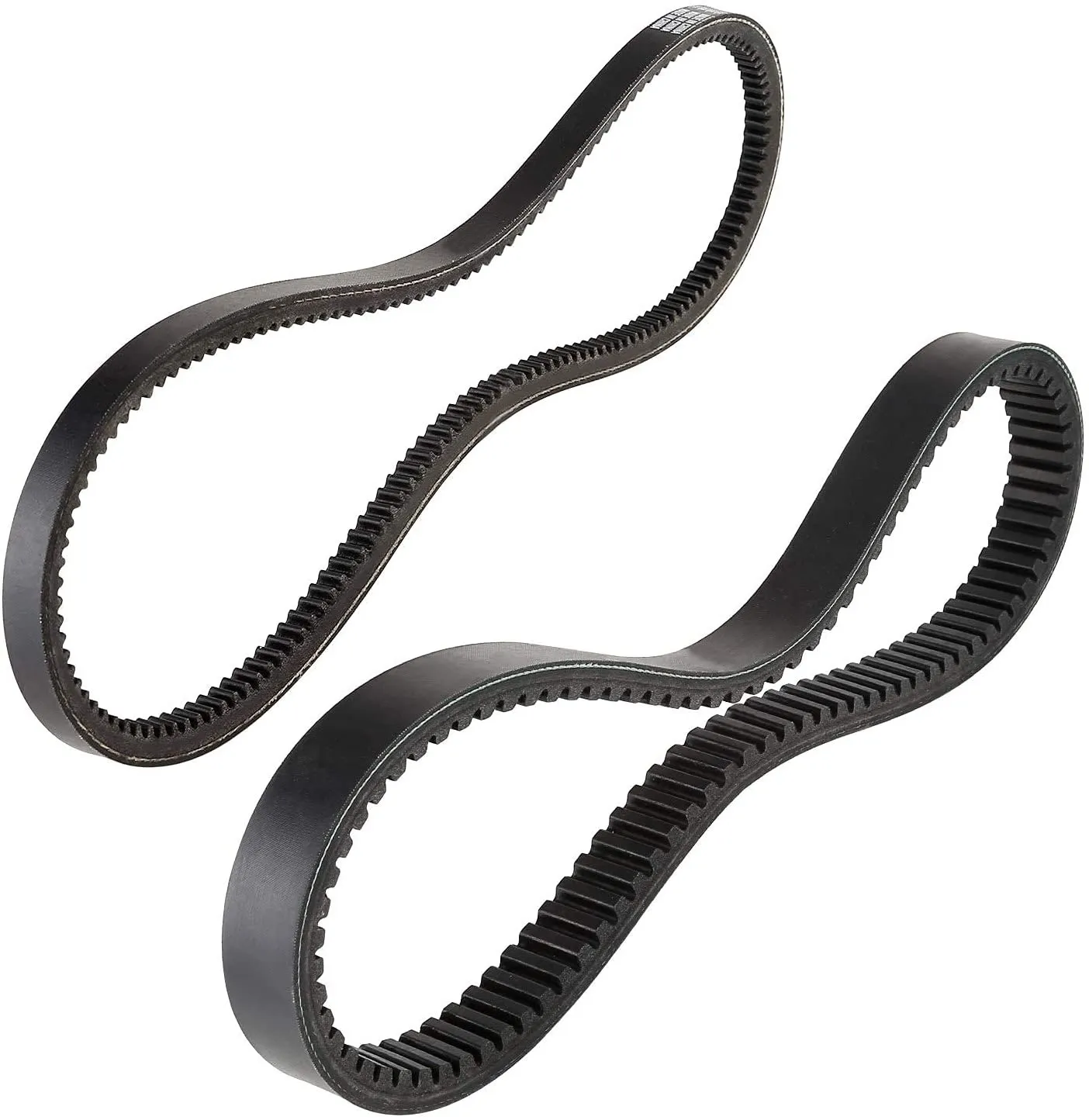

This aftermarket replacement belt kit has one drive belt and one starter/generator belt for EZGO gas carts. It replaces EZGO OEM 72054-G01 ("DRIVE BELT") and 26414-G01 ("STARTER / GENERATOR BELT"). Replace the drive belt when it is glazed, cracked or slipping (the engine revs but the cart is slow), and the starter belt when the engine cranks slowly or the belt squeals.

Will it fit my cart?

• EZGO TXT gas (2003–2006 parts manuals list both belts)
• EZGO ST 350 gas (2002) for the starter/generator belt
• Cushman Express gas (per our listing; compare with your old belts)
• Not for electric carts, Club Car or Yamaha carts
• Not sure? Compare the numbers printed on your old belts, or send a photo on WhatsApp to +1 (213) 551-9059 and we’ll check it for you.

Specifications

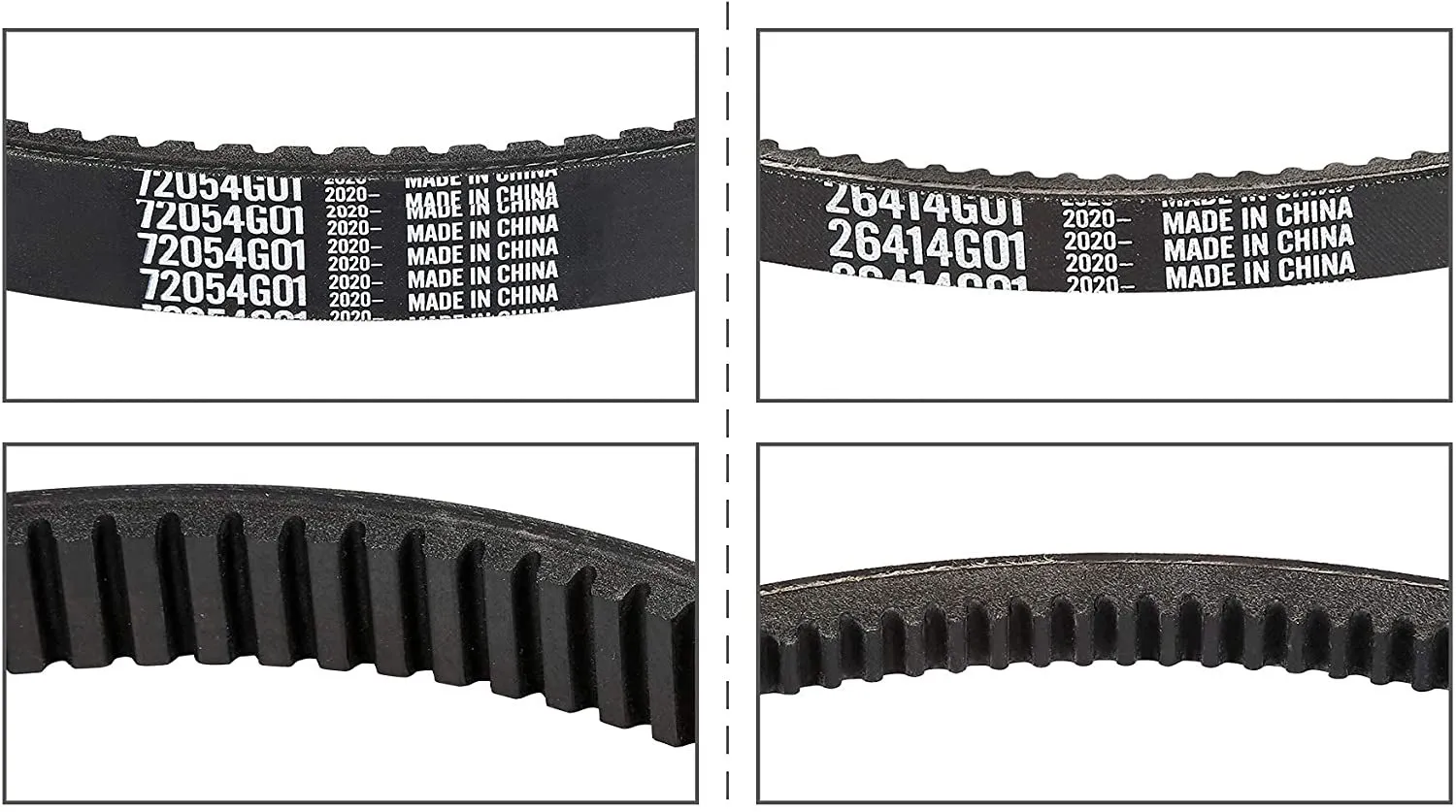

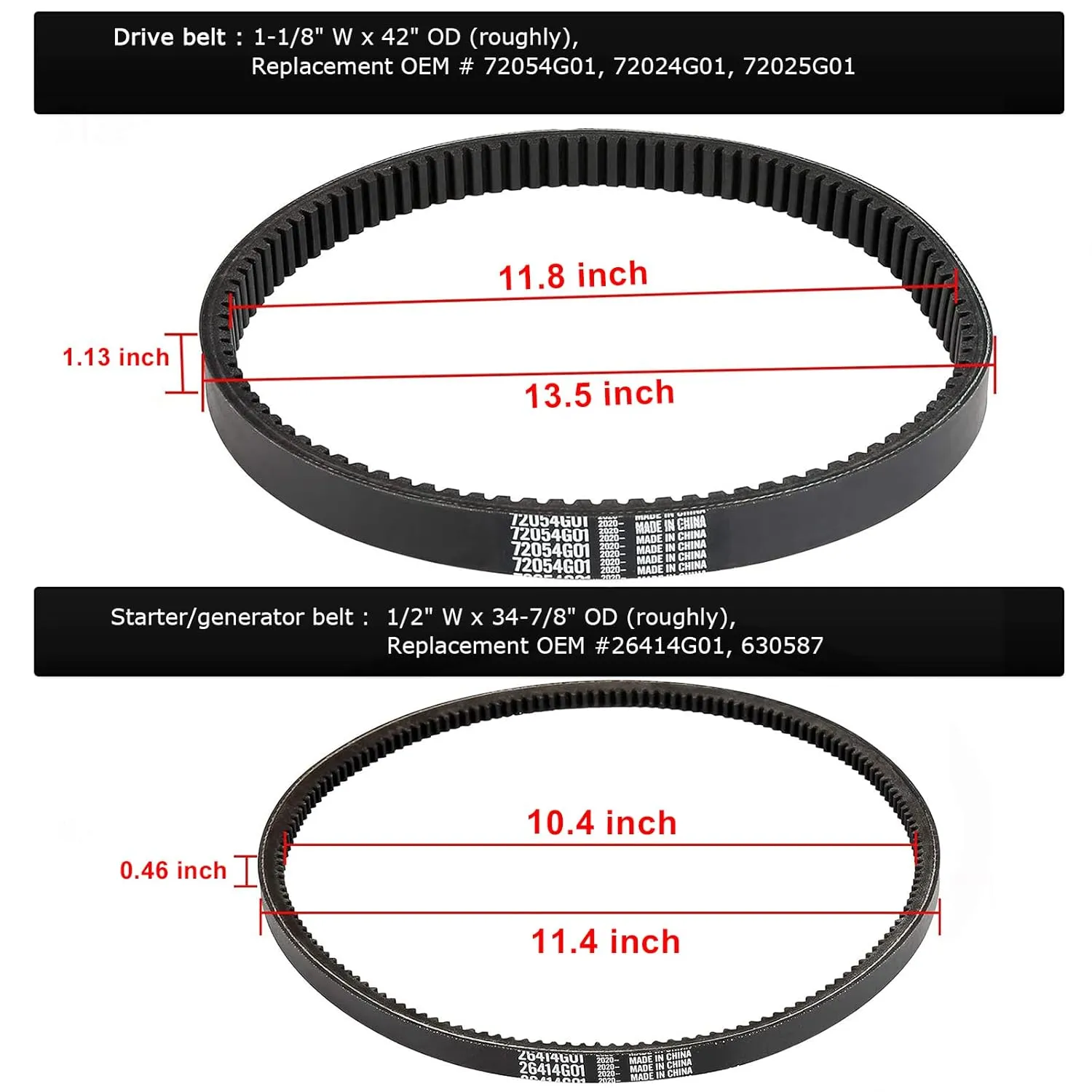

• OEM reference: 72054-G01 (drive belt), 26414-G01 (starter/generator belt)
• Also listed: 72024-G01, 72025-G01
• Package: 2 pieces (1 drive belt, 1 starter/generator belt), 9.25 x 8.9 x 1.38 inches, 1.09 lb (0.49 kg)

Installation — difficulty: moderate (about 30–45 minutes)

1. Remove the key and disconnect the battery negative cable.
2. Raise the seat and remove any covers so you can reach the clutches and the starter/generator.

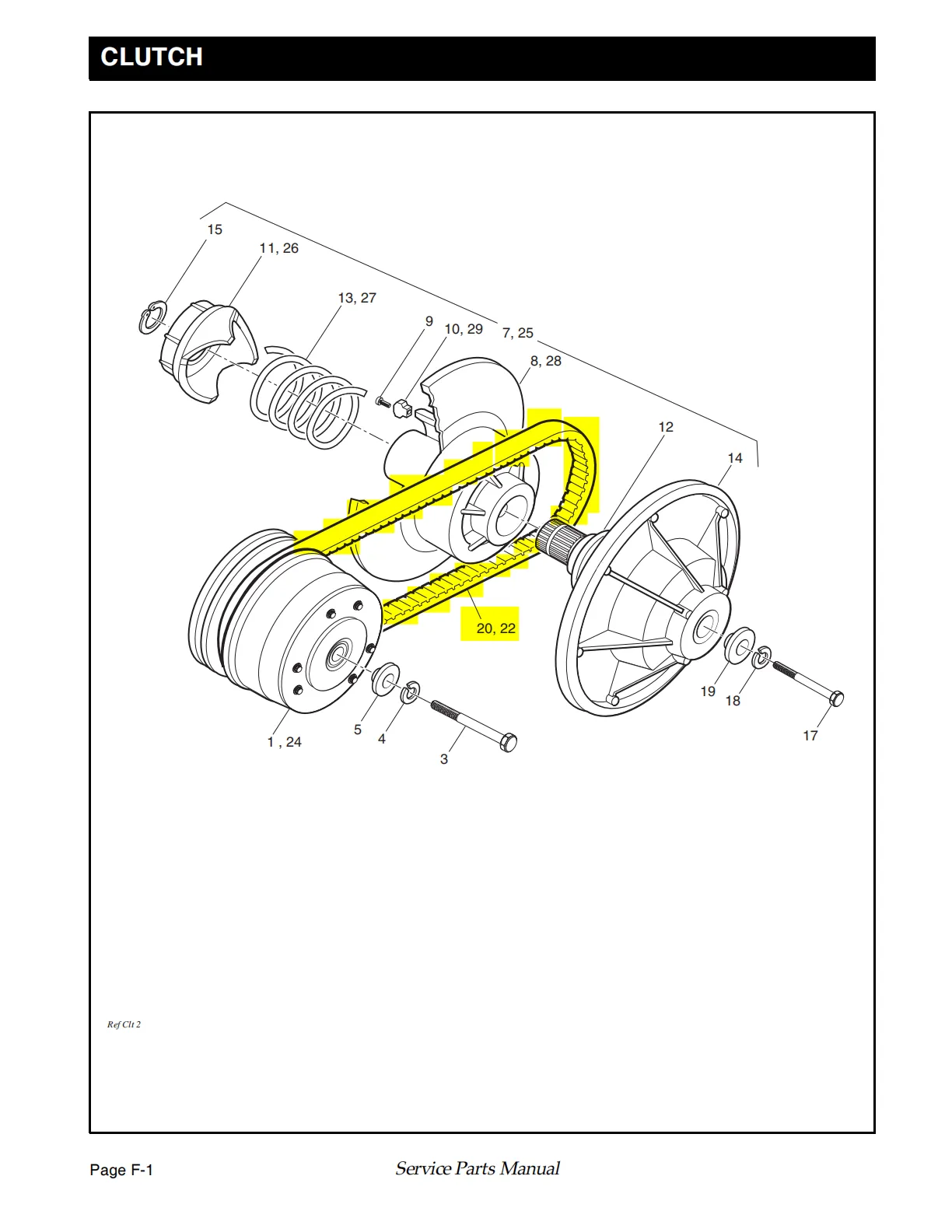

3. Drive belt: turn the driven clutch by hand while rolling the old belt off it, then fit the new belt on the drive clutch and roll it onto the driven clutch the same way.

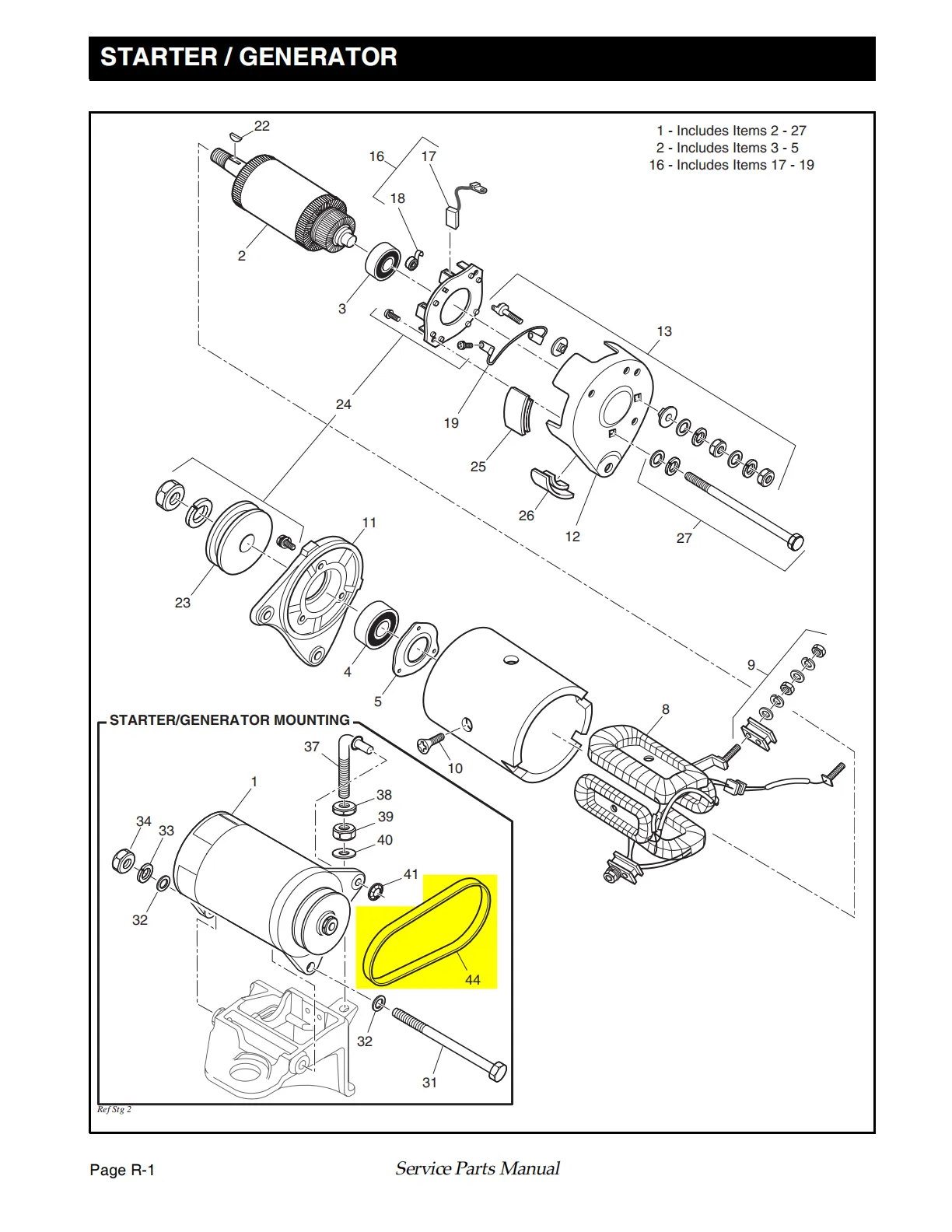

4. Starter/generator belt: loosen the starter/generator mounting and adjuster bolts, swap the belt, set the tension as described in your service manual and retighten the bolts.
5. Reconnect the battery, start the engine and check that both belts run straight.

What’s in the Box

• 1 x drive belt
• 1 x starter/generator belt

Warranty

1-year warranty and 30-day returns on uninstalled parts. Ships from our US warehouse.
